HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115413

HC-Cargo Alternator

Technical info:

Voltage: 14, Current: 220, Rotation: CW, Mounting bracket distributor: 56.20

Description

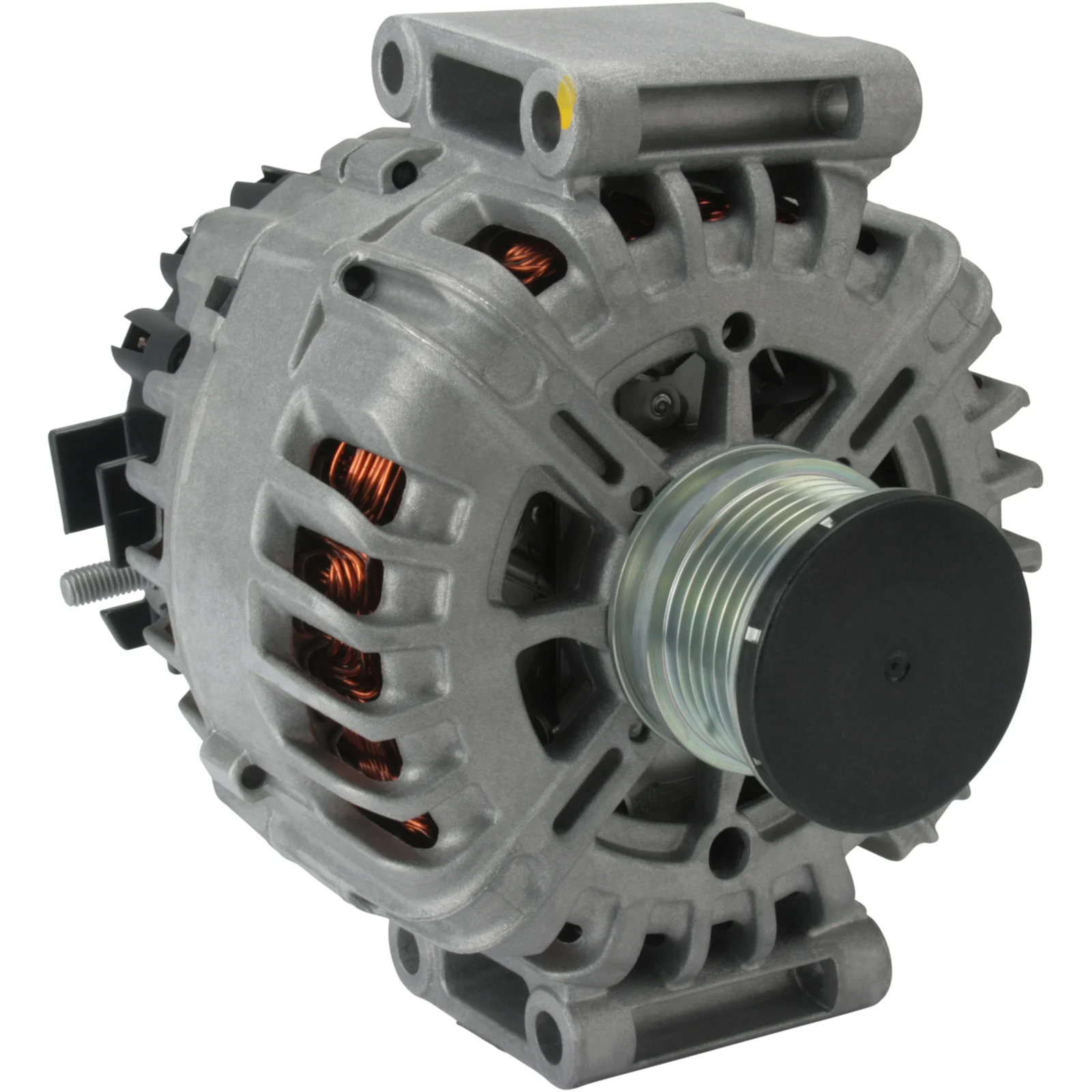

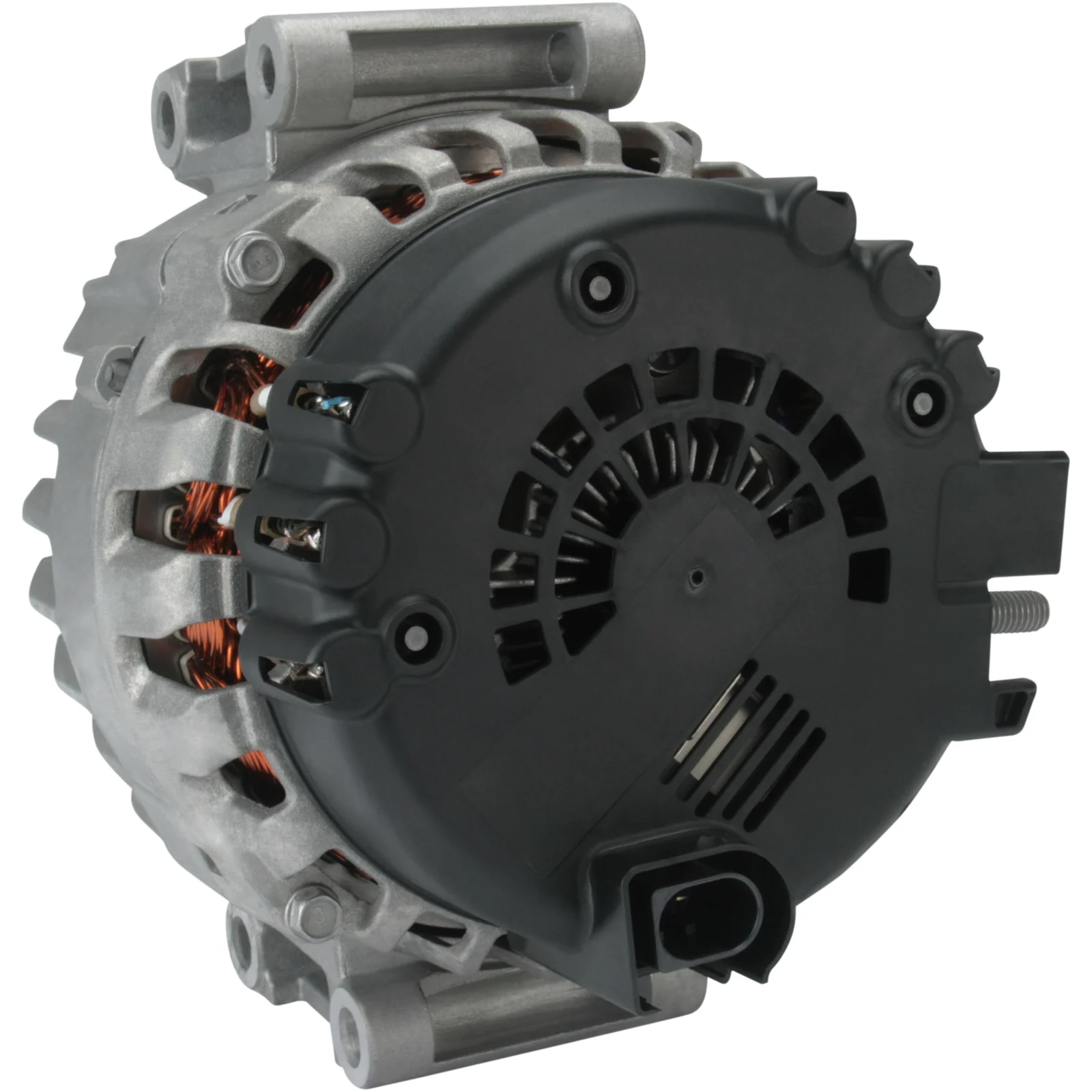

Mercedes Alternator 12V-220A 12V - 220A, 6 grooves, (COM) For Yourex product order 90-365-6468

Voltage: 14
Ampere: 220
Pulley distance: 31.50
Width/holder arm: 70.00
Mounting bracket distance: 56.20
Bracket hole: 9.50
Belt tensioning bracket hole 1: 9.50
Pulley diameter: 49.50
Grooves/pulley: 6
Radius: 81.00
Radius 2: 81.00
B+: M8
Position/B+ in min.: 46
Rotation: CW
Plug number: PL86
Total length mm: 195.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Product info: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    a6461540802, F032115413, TG23C 017, TG23C017, 646 154 0802, 2053ir, 115413, 440178, 2543444, 2543444A, 6461540802

  • Normalised article numbler
    a3277, a6461540802, cal15352, dra0688, f032115413, tg23c017, 8el011712421, 8el012241311, 8el738213251, 2053ir, 20091n, 20091r, 115413, 200203, 210900, 210900a, 285826, 440178, 2543444, 2543444a, 12090326, 32083600, 0986083600, 2251852202, 6461540802
  • Description
    Mercedes Alternator 12V-220A 12V - 220A, 6 grooves, (COM) For Yourex product order 90-365-6468

    Voltage: 14
    Ampere: 220
    Pulley distance: 31.50
    Width/holder arm: 70.00
    Mounting bracket distance: 56.20
    Bracket hole: 9.50
    Belt tensioning bracket hole 1: 9.50
    Pulley diameter: 49.50
    Grooves/pulley: 6
    Radius: 81.00
    Radius 2: 81.00
    B+: M8
    Position/B+ in min.: 46
    Rotation: CW
    Plug number: PL86
    Total length mm: 195.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Product info: BN
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      a6461540802, F032115413, TG23C 017, TG23C017, 646 154 0802, 2053ir, 115413, 440178, 2543444, 2543444A, 6461540802

    • Normalised article numbler
      a3277, a6461540802, cal15352, dra0688, f032115413, tg23c017, 8el011712421, 8el012241311, 8el738213251, 2053ir, 20091n, 20091r, 115413, 200203, 210900, 210900a, 285826, 440178, 2543444, 2543444a, 12090326, 32083600, 0986083600, 2251852202, 6461540802
