HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032111517

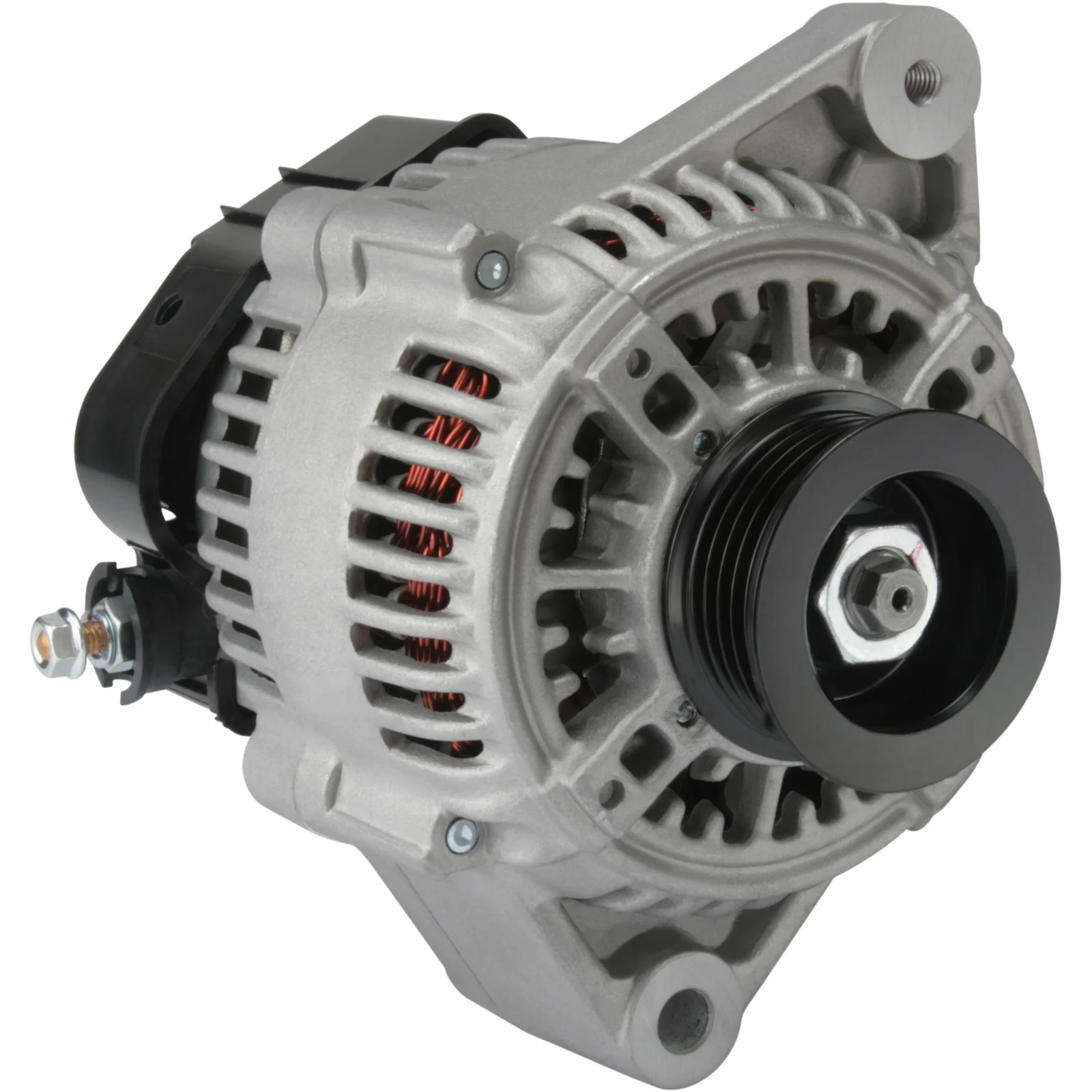

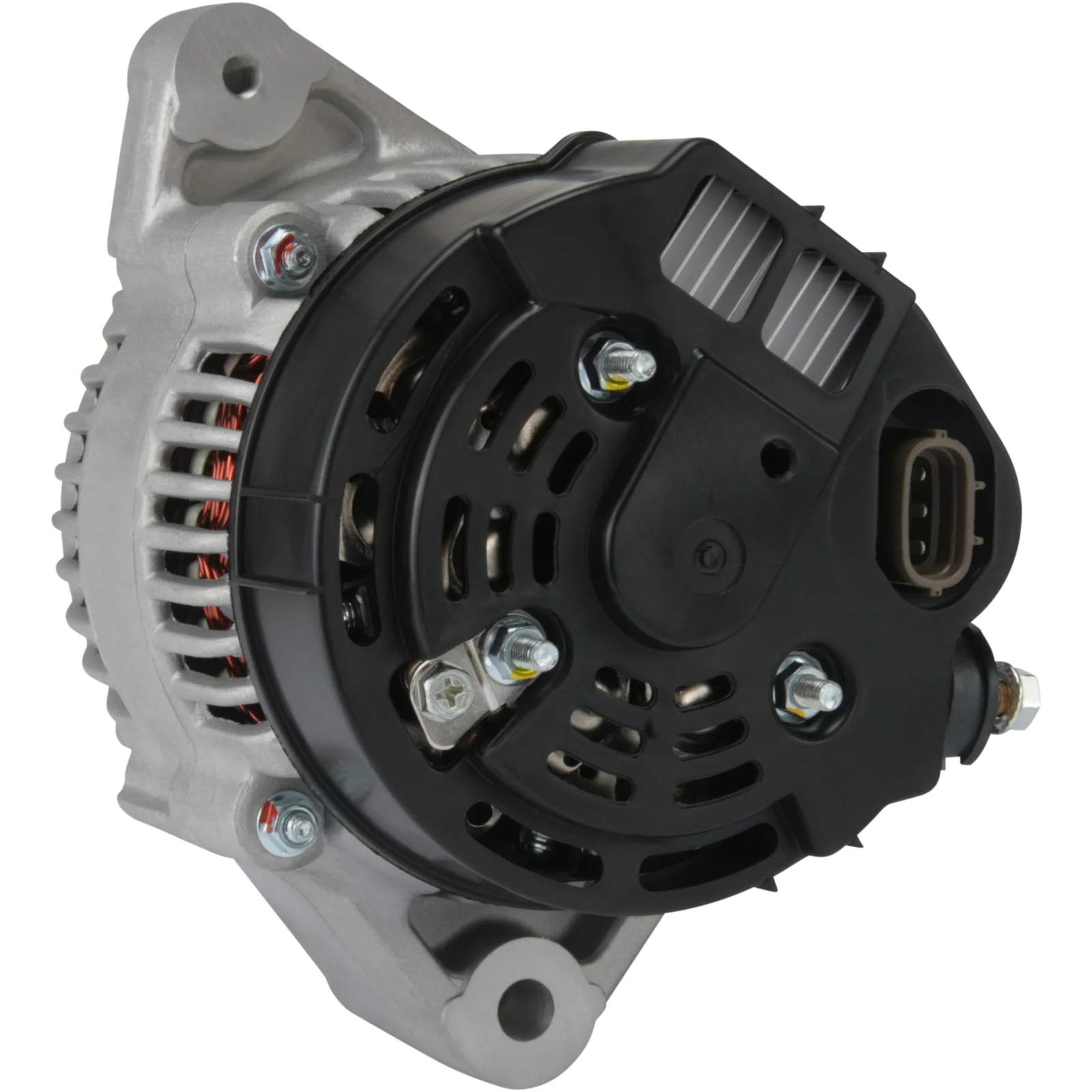

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 70, Rotation: CW, Pulley diameter: 52.00

Description

Toyota Camry Engine. 12V-70A 92> 12V - 70A, 5gr, (S, IG, L) Alternative 80A = 90-555-7436 For Yourrex product order 90-555-7437

Voltage: 14
Amp: 70
Pulley distance: 89.70
Width/holder arm: 58.00
Bracket hole: 10.70
Belt. adjustment bracket hole position: 5
Belt. adjustment bracket hole 1: M8
Pulley diameter: 52.00
Grooves/pulley: 5
Radius: 78.00
Radius 2: 85.00
B+: M6
Position/B+ in min.: 20
D+ Size: Plug
Rotation: CW
Plug no.: PL42
Total length mm: 163.00
Pulley: SP
Voltage regulator type: IR
Product info: BN
Servicing: Toyota

Files

  • OEM
    F032111517, ja981ir, 1986A01684, 27060-16320, 27060-16350, 27060-70410, 27060-74370, 27060-74380, 27060-74400, 27060-74410, 27060-74450, 27060-74530, 27060-74620, 27060-74630, 27060-74730, 101211-0070, 101211-0071, 101211-0072, 101211-0100, 101211-0170, 101211-0171, 101211-0172, 101211-0380, 101211-0381, 101211-0510, 101211-0620, 101211-0850, 101211-0851, 101211-4160, 101211-4161, 101211-4420, 101211-5230, 101211-9660, 111517

  • Normalised article numbler
    a6118, a6189, a6197denso, al3274x, alt5059c, cal40108, dan953, dendan953, dra3498, drb3041, f032111517, f042302049, f042a02049, ja981ir, lrb00211, qa1714, 8el011711471, 8el737056001, 1986a01684, 3132n, 5471, 13499, 13499n, 13499r, 13503, 13556n, 40981ri, 111517, 119063, 119536, 210628, 210628a, 282533, 437520, 1183801nd, 1240601nd, 9051290, 9212751, 12060406, 12060717, 235147702, 235181702, 0986040531, 0986043041, 1012110070, 1012110071, 1012110072, 1012110100, 1012110170, 1012110171, 1012110172, 1012110380, 1012110381, 1012110510, 1012110620, 1012110850, 1012110851, 1012114160, 1012114161, 1012114420, 1012115230, 1012119660, 2706016320, 2706016350, 2706070410, 2706074370, 2706074380, 2706074400, 2706074410, 2706074450, 2706074530, 2706074620, 2706074630, 2706074730, 943354010010
  • Description
    Toyota Camry Engine. 12V-70A 92> 12V - 70A, 5gr, (S, IG, L) Alternative 80A = 90-555-7436 For Yourrex product order 90-555-7437

    Voltage: 14
    Amp: 70
    Pulley distance: 89.70
    Width/holder arm: 58.00
    Bracket hole: 10.70
    Belt. adjustment bracket hole position: 5
    Belt. adjustment bracket hole 1: M8
    Pulley diameter: 52.00
    Grooves/pulley: 5
    Radius: 78.00
    Radius 2: 85.00
    B+: M6
    Position/B+ in min.: 20
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL42
    Total length mm: 163.00
    Pulley: SP
    Voltage regulator type: IR
    Product info: BN
    Servicing: Toyota

    Files

  • Suitable for these vehicles

    • OEM
      F032111517, ja981ir, 1986A01684, 27060-16320, 27060-16350, 27060-70410, 27060-74370, 27060-74380, 27060-74400, 27060-74410, 27060-74450, 27060-74530, 27060-74620, 27060-74630, 27060-74730, 101211-0070, 101211-0071, 101211-0072, 101211-0100, 101211-0170, 101211-0171, 101211-0172, 101211-0380, 101211-0381, 101211-0510, 101211-0620, 101211-0850, 101211-0851, 101211-4160, 101211-4161, 101211-4420, 101211-5230, 101211-9660, 111517

    • Normalised article numbler
      a6118, a6189, a6197denso, al3274x, alt5059c, cal40108, dan953, dendan953, dra3498, drb3041, f032111517, f042302049, f042a02049, ja981ir, lrb00211, qa1714, 8el011711471, 8el737056001, 1986a01684, 3132n, 5471, 13499, 13499n, 13499r, 13503, 13556n, 40981ri, 111517, 119063, 119536, 210628, 210628a, 282533, 437520, 1183801nd, 1240601nd, 9051290, 9212751, 12060406, 12060717, 235147702, 235181702, 0986040531, 0986043041, 1012110070, 1012110071, 1012110072, 1012110100, 1012110170, 1012110171, 1012110172, 1012110380, 1012110381, 1012110510, 1012110620, 1012110850, 1012110851, 1012114160, 1012114161, 1012114420, 1012115230, 1012119660, 2706016320, 2706016350, 2706070410, 2706074370, 2706074380, 2706074400, 2706074410, 2706074450, 2706074530, 2706074620, 2706074630, 2706074730, 943354010010
