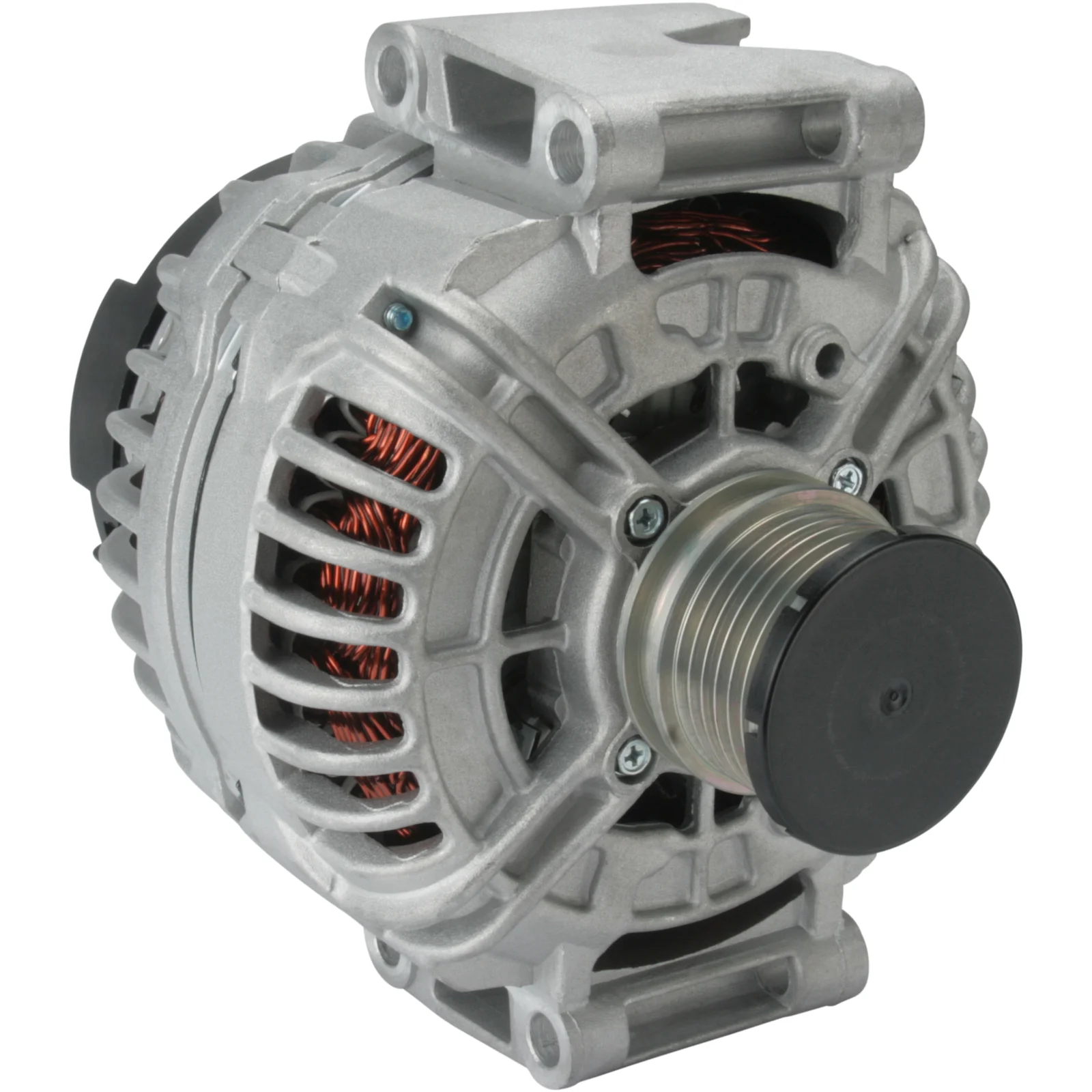

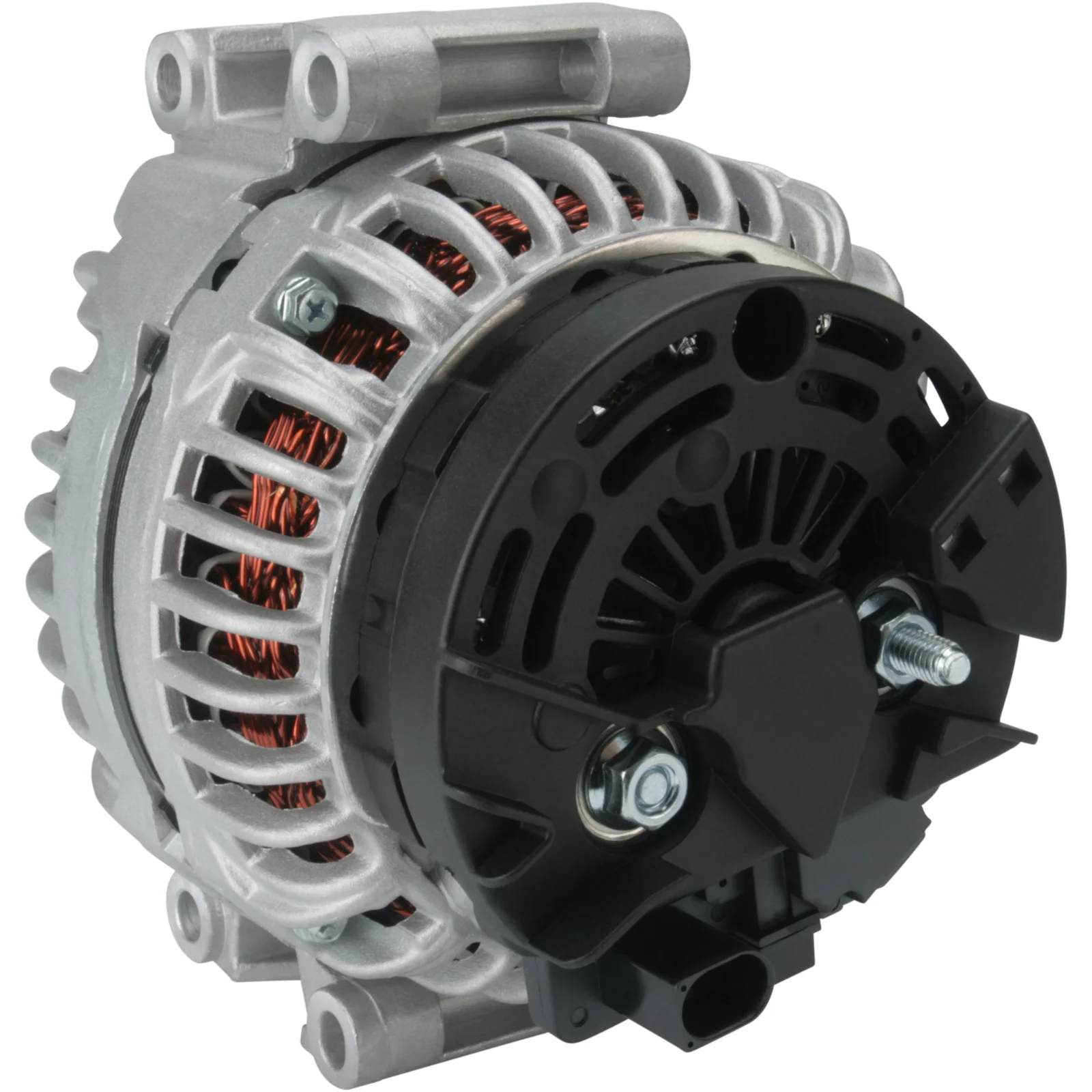

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113951

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 200, Rotation: CW, Mounting bracket distributor: 56.00

Description

Mercedes Vito Alternator 12V-200A 12V - 200A, 6 grooves, (L, DFM) 6 grooves, (L-DFM) Vehicles with manual gearbox For Yourex product order 90-365-4632

Voltage: 14
Amp: 200
Pulley distance: 31.00
Width/holder arm: 70.00
Mounting bracket distance: 56.00
Bracket hole: 9.50
Bracket hole 2: 9.50
Belt adjustment bracket hole 1: 9.50
Belt adjustment bracket hole 2: 8.50
Pulley diameter: 50.00
Grooves/pulley: 6
B+: M8
Position/B+ in min.: 45
D+ Size: Plug
Rotation: CW
Plug no.: PL103
Total length mm: 196.00
Terminal type: L-DFM
Lamp type: Active
Pulley: SP/FW
Fan: IF
Regulator type: IR
Product info: BN

Files

  • OEM
    A0121547902, A0131541002, A013154100280, A0199, A0199PR, A0199SR, ALT-2421, ALT-H230, AT050600105, CAL10144, DRB6320, DRB6320X, F032113951, F042208012, F042A01190, F042A0H230, LRA02247, 8EL012426-031, 8EL738211-201, 013 154 1002, 28-4725, 0124 625 006, 225.149.2002, 0986 046 320, 1846ir, 1986A00949, 23247N, 111574, 111667, 113951, 200249, 210901, 210901A, 301846RI, 440945, 443374, 9046320, 12046320, 32046320, 60523456, 60534820, 0060549569, 60549569, 0121547902, 0124625006, 0124625204, 0131541002, 131541002, 0986046320, 0986046323, 013154100280, 119130506000, 195460506000, 944390463200

  • Normalised article numbler
    a0121547902, a0131541002, a013154100280, a0199, a0199pr, a0199sr, alt2421, alth230, at050600105, cal10144, drb6320, drb6320x, f032113951, f042208012, f042a01190, f042a0h230, lra02247, 8el012426031, 8el738211201, 1846ir, 1986a00949, 23247n, 111574, 111667, 113951, 200249, 210901, 210901a, 284725, 301846ri, 440945, 443374, 9046320, 12046320, 32046320, 60523456, 60534820, 0060549569, 60549569, 0121547902, 0124625006, 0124625204, 0131541002, 131541002, 0986046320, 0986046323, 2251492002, 013154100280, 119130506000, 195460506000, 944390463200
  • Description
    Mercedes Vito Alternator 12V-200A 12V - 200A, 6 grooves, (L, DFM) 6 grooves, (L-DFM) Vehicles with manual gearbox For Yourex product order 90-365-4632

    Voltage: 14
    Amp: 200
    Pulley distance: 31.00
    Width/holder arm: 70.00
    Mounting bracket distance: 56.00
    Bracket hole: 9.50
    Bracket hole 2: 9.50
    Belt adjustment bracket hole 1: 9.50
    Belt adjustment bracket hole 2: 8.50
    Pulley diameter: 50.00
    Grooves/pulley: 6
    B+: M8
    Position/B+ in min.: 45
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL103
    Total length mm: 196.00
    Terminal type: L-DFM
    Lamp type: Active
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Product info: BN

    Files

  • Suitable for these vehicles

    • OEM
      A0121547902, A0131541002, A013154100280, A0199, A0199PR, A0199SR, ALT-2421, ALT-H230, AT050600105, CAL10144, DRB6320, DRB6320X, F032113951, F042208012, F042A01190, F042A0H230, LRA02247, 8EL012426-031, 8EL738211-201, 013 154 1002, 28-4725, 0124 625 006, 225.149.2002, 0986 046 320, 1846ir, 1986A00949, 23247N, 111574, 111667, 113951, 200249, 210901, 210901A, 301846RI, 440945, 443374, 9046320, 12046320, 32046320, 60523456, 60534820, 0060549569, 60549569, 0121547902, 0124625006, 0124625204, 0131541002, 131541002, 0986046320, 0986046323, 013154100280, 119130506000, 195460506000, 944390463200

    • Normalised article numbler
      a0121547902, a0131541002, a013154100280, a0199, a0199pr, a0199sr, alt2421, alth230, at050600105, cal10144, drb6320, drb6320x, f032113951, f042208012, f042a01190, f042a0h230, lra02247, 8el012426031, 8el738211201, 1846ir, 1986a00949, 23247n, 111574, 111667, 113951, 200249, 210901, 210901a, 284725, 301846ri, 440945, 443374, 9046320, 12046320, 32046320, 60523456, 60534820, 0060549569, 60549569, 0121547902, 0124625006, 0124625204, 0131541002, 131541002, 0986046320, 0986046323, 2251492002, 013154100280, 119130506000, 195460506000, 944390463200
