Article no.: F032113248

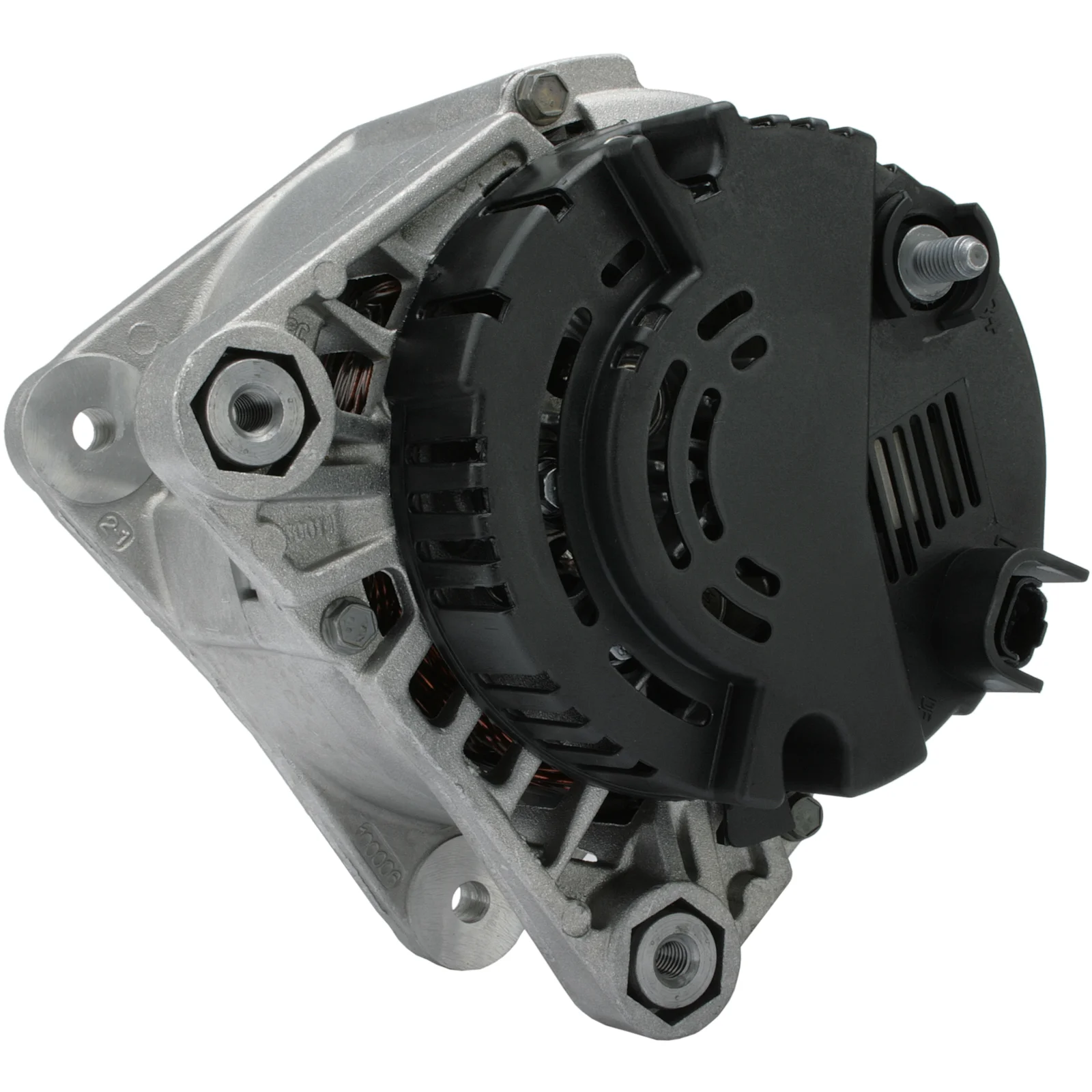

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Rotation: CW, Mounting bracket distributor: 60.70

Description

Opel/Renault Alternator 12V-120A 12V-120A, 5 groove UD pulley 48.5mm. 12V-120, 5 groove freewheel pulley, CW For vehicles without A/C, some models. For Yourex product order 90-430-7351

Voltage: 14
Amp: 120
Pulley distance: 36.00
Width/holder arm: 14.00
Mounting bracket distance: 60.70
Bracket hole: 8.70
Belt adjustment bracket hole position: 15
Belt adjustment bracket hole 1: 8.70
Pulley diameter: 48.70
Grooves/pulley: 5
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 8
D+ Size: Plug
Rotation: CW
Plug no.: PL55
Total length mm: 190.00
Pulley: SP/FW
Regulator type: IR
Product info: BN
Servicing: Volvo

Files

  • OEM
    aak5779, F032113248, R1530067, SG12B 050, sg12b050, SG12B095, SG12B108, SG12B116, 11.203.943, 1645ir, 1986A01261, 23100-00Q0B, 23100-00q1a, 23100-00QAL, 23100-00QBD, 23100-00QOB, 113248, 437351, 2542523, 2542523C, 2542523F, 2543340, 2543340A, 2543387, 2543387A, 2543441, 2543441A, 3088362, 4404331, 4412045, 4417846, 8253980, 8602356, 09112331, 9112331, 9512861, 30620870, 93160829, 93176396, 93191541, 7711134312, 8200086130, 8200495301, 8200538815, 8200590255

  • Normalised article numbler
    a3035, a3035er, a3035p, a3035sr, a3254valeo, a3418pr, a3418s, aak5779, alt14013, alt7217, dra4149, dra4149n, f032113248, f032ua0072, f04230b031, f042a0b031, ia1439, j5111114, lea0709, lra02160, mg79, r1530067, sg12b050, sg12b095, sg12b108, sg12b116, 8el011360111, 8el011710611, 8el737938001, 1645ir, 1986a01261, 4630, 23160n5g, 111785, 113248, 200080, 210056, 210056a, 284614, 437351, 439341, 746091, 746891, 2310000q0b, 2310000q1a, 2310000qal, 2310000qbd, 2310000qob, 2542523, 2542523c, 2542523f, 2543340, 2543340a, 2543387, 2543387a, 2543441, 2543441a, 3088362, 4404331, 4412045, 4417846, 8253980, 8602356, 9045101, 09112331, 9112331, 9213714, 9512861, 11203943, 12090035, 12090688, 30620870, 93160829, 93176396, 93191541, 0986045101, 0986045103, 2301941252, 7711134312, 8200086130, 8200495301, 8200538815, 8200590255, 944390451010
  • Description
    Opel/Renault Alternator 12V-120A 12V-120A, 5 groove UD pulley 48.5mm. 12V-120, 5 groove freewheel pulley, CW For vehicles without A/C, some models. For Yourex product order 90-430-7351

    Voltage: 14
    Amp: 120
    Pulley distance: 36.00
    Width/holder arm: 14.00
    Mounting bracket distance: 60.70
    Bracket hole: 8.70
    Belt adjustment bracket hole position: 15
    Belt adjustment bracket hole 1: 8.70
    Pulley diameter: 48.70
    Grooves/pulley: 5
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 8
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL55
    Total length mm: 190.00
    Pulley: SP/FW
    Regulator type: IR
    Product info: BN
    Servicing: Volvo

    Files

  • Suitable for these vehicles

    • OEM
      aak5779, F032113248, R1530067, SG12B 050, sg12b050, SG12B095, SG12B108, SG12B116, 11.203.943, 1645ir, 1986A01261, 23100-00Q0B, 23100-00q1a, 23100-00QAL, 23100-00QBD, 23100-00QOB, 113248, 437351, 2542523, 2542523C, 2542523F, 2543340, 2543340A, 2543387, 2543387A, 2543441, 2543441A, 3088362, 4404331, 4412045, 4417846, 8253980, 8602356, 09112331, 9112331, 9512861, 30620870, 93160829, 93176396, 93191541, 7711134312, 8200086130, 8200495301, 8200538815, 8200590255

    • Normalised article numbler
      a3035, a3035er, a3035p, a3035sr, a3254valeo, a3418pr, a3418s, aak5779, alt14013, alt7217, dra4149, dra4149n, f032113248, f032ua0072, f04230b031, f042a0b031, ia1439, j5111114, lea0709, lra02160, mg79, r1530067, sg12b050, sg12b095, sg12b108, sg12b116, 8el011360111, 8el011710611, 8el737938001, 1645ir, 1986a01261, 4630, 23160n5g, 111785, 113248, 200080, 210056, 210056a, 284614, 437351, 439341, 746091, 746891, 2310000q0b, 2310000q1a, 2310000qal, 2310000qbd, 2310000qob, 2542523, 2542523c, 2542523f, 2543340, 2543340a, 2543387, 2543387a, 2543441, 2543441a, 3088362, 4404331, 4412045, 4417846, 8253980, 8602356, 9045101, 09112331, 9112331, 9213714, 9512861, 11203943, 12090035, 12090688, 30620870, 93160829, 93176396, 93191541, 0986045101, 0986045103, 2301941252, 7711134312, 8200086130, 8200495301, 8200538815, 8200590255, 944390451010
