HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032111704

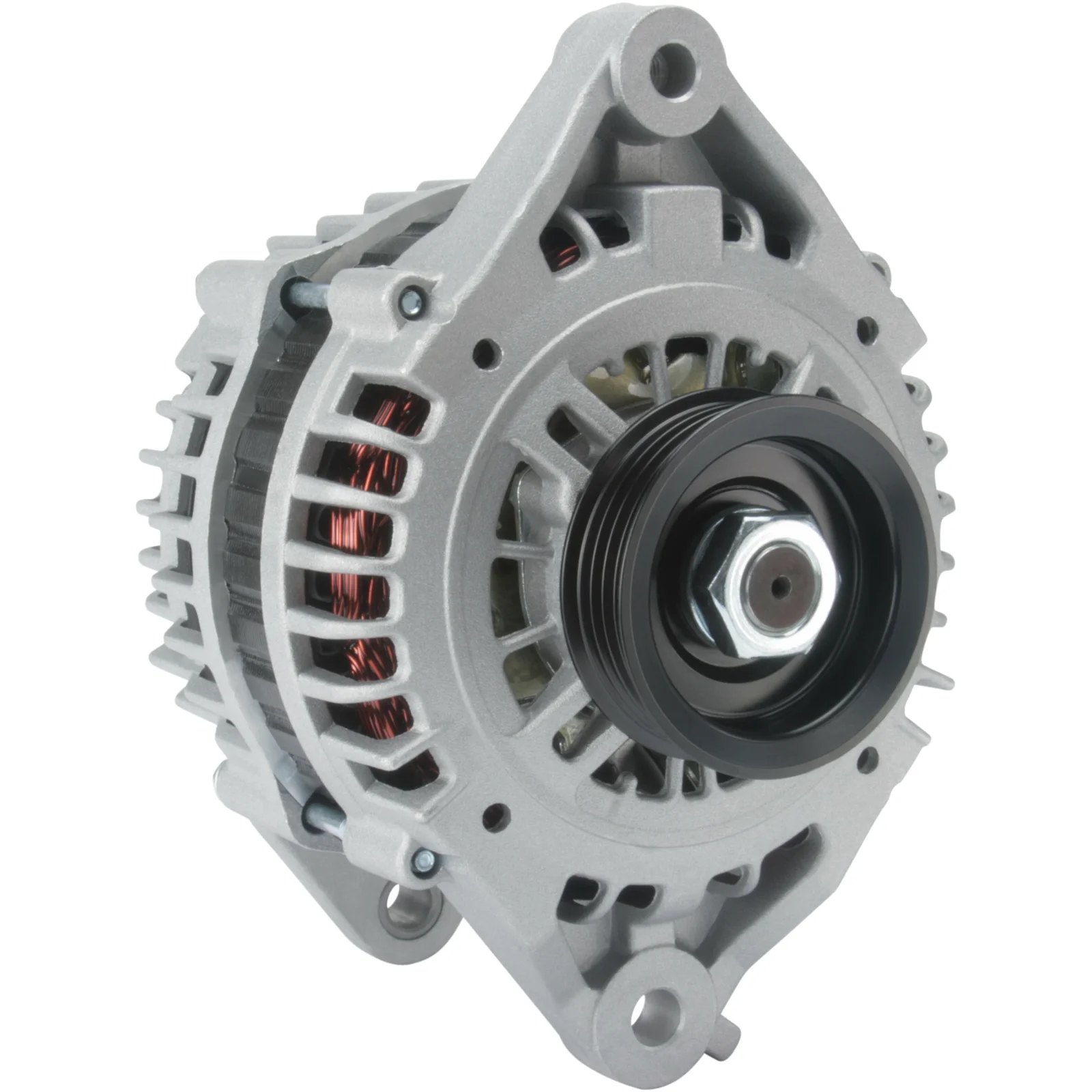

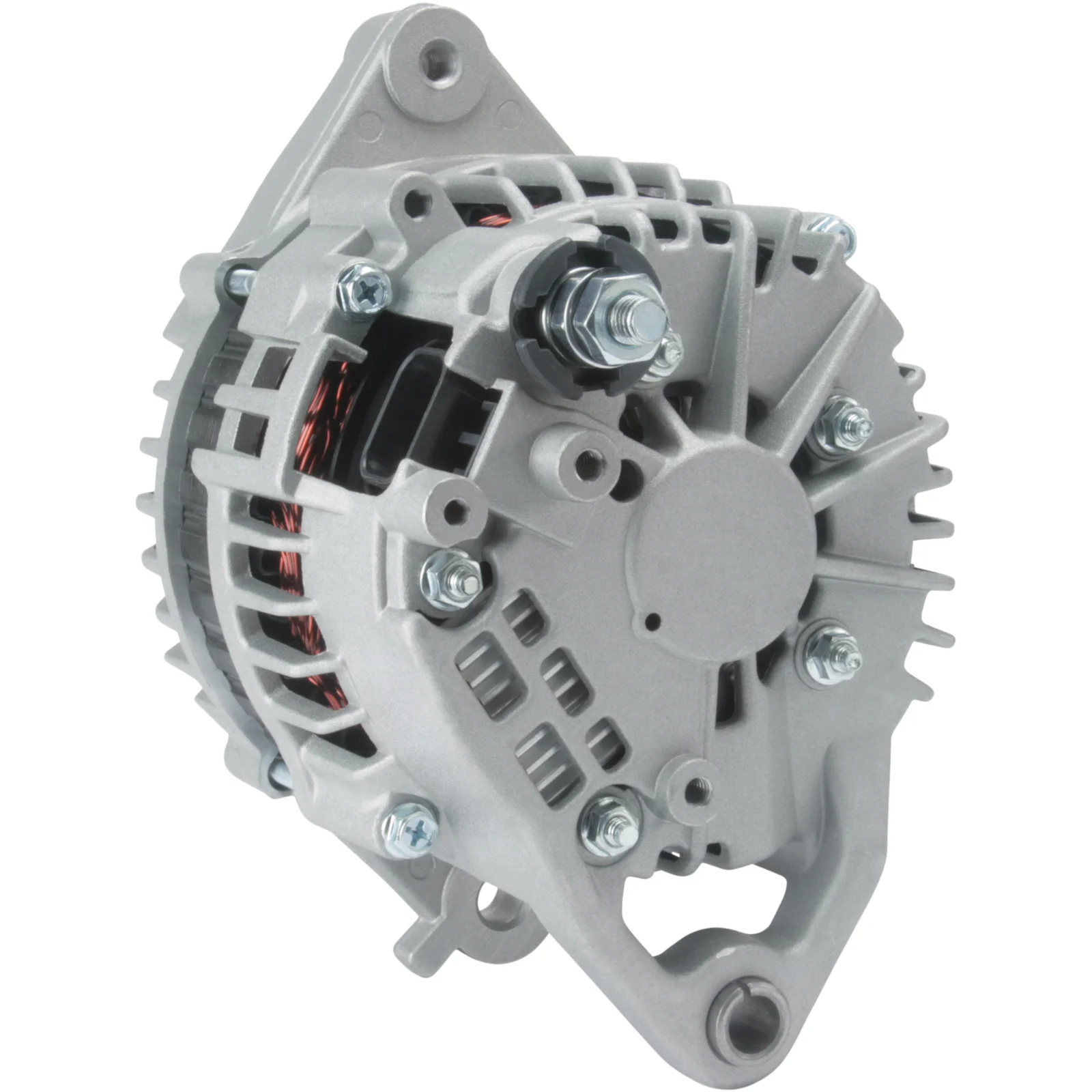

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 70, Rotation: CW, Mounting bracket distributor: 81.00

Description

Voltage: 14
Amp: 70
Pulley dist.: 38.00
Width/holder arm: 13.00
Mount. bracket dist.: 81.00
Bracket hole: 10.40
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 59.80
Grooves/pulley: 4
Radius: 81.50
Radius 2: 85.50
B+: M8
Position/B+ in min.: 53
D+ Size: Plug
Rotation: CW
Plug no.: PL07
Total length mm: 175.00
Terminal type: L-S
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Nissan

Files

  • OEM
    A005T06891, A005T06891A, A005T06891B, A005T06891C, A005T06891D, a5t06891, a5t06891a, a5t06891b, a5t06891c, a5t06891d, F032111704, ja1182ir, lr165-711, lr165-711b, lr170-746, lr170-746b, lr170-746c, lr170-746e, lr170-746f, lr170-746g, LR170-746H, lr170-746j, lr170-746k, lr170-746m, LR170-748, lr170-748b, lr170-750, lr170-750b, lr170-750c, 23100-0m003, 23100-0m005, 23100-0m006, 23100-0m007, 23100-0m008, 23100-0m009, 23100-0m010, 23100-0M012, 23100-4M400, 23100-86a00, 23100-86r00, 23100-95R10

  • Normalised article numbler
    a005t06891, a005t06891a, a005t06891b, a005t06891c, a005t06891d, a2007, a5t06891, a5t06891a, a5t06891b, a5t06891c, a5t06891d, al2361x, alt3078, alt32089, bao3250, cal20133, dra3697, f032111704, f042205070, f042305012, f042a05012, j5111062, ja1182ir, lr165711, lr165711b, lr170746, lr170746b, lr170746c, lr170746e, lr170746f, lr170746g, lr170746h, lr170746j, lr170746k, lr170746m, lr170748, lr170748b, lr170750, lr170750b, lr170750c, lrb00266, qa1904, 8el012426481, 8el737327001, 5670, 9205, 13637, 13637n, 13637r, 119598, 119603, 231000m003, 231000m005, 231000m006, 231000m007, 231000m008, 231000m009, 231000m010, 231000m012, 231004m400, 282654, 401182ri, 600380, 746943, 1200101hi, 2310086a00, 2310086r00, 2310095r10, 9212689, 12060292, 12060301, 227153702, 227166702, 0986042951, 943354039010, 944390511620
  • Description
    Voltage: 14
    Amp: 70
    Pulley dist.: 38.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 81.00
    Bracket hole: 10.40
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 59.80
    Grooves/pulley: 4
    Radius: 81.50
    Radius 2: 85.50
    B+: M8
    Position/B+ in min.: 53
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL07
    Total length mm: 175.00
    Terminal type: L-S
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Nissan

    Files

  • Suitable for these vehicles

    • OEM
      A005T06891, A005T06891A, A005T06891B, A005T06891C, A005T06891D, a5t06891, a5t06891a, a5t06891b, a5t06891c, a5t06891d, F032111704, ja1182ir, lr165-711, lr165-711b, lr170-746, lr170-746b, lr170-746c, lr170-746e, lr170-746f, lr170-746g, LR170-746H, lr170-746j, lr170-746k, lr170-746m, LR170-748, lr170-748b, lr170-750, lr170-750b, lr170-750c, 23100-0m003, 23100-0m005, 23100-0m006, 23100-0m007, 23100-0m008, 23100-0m009, 23100-0m010, 23100-0M012, 23100-4M400, 23100-86a00, 23100-86r00, 23100-95R10

    • Normalised article numbler
      a005t06891, a005t06891a, a005t06891b, a005t06891c, a005t06891d, a2007, a5t06891, a5t06891a, a5t06891b, a5t06891c, a5t06891d, al2361x, alt3078, alt32089, bao3250, cal20133, dra3697, f032111704, f042205070, f042305012, f042a05012, j5111062, ja1182ir, lr165711, lr165711b, lr170746, lr170746b, lr170746c, lr170746e, lr170746f, lr170746g, lr170746h, lr170746j, lr170746k, lr170746m, lr170748, lr170748b, lr170750, lr170750b, lr170750c, lrb00266, qa1904, 8el012426481, 8el737327001, 5670, 9205, 13637, 13637n, 13637r, 119598, 119603, 231000m003, 231000m005, 231000m006, 231000m007, 231000m008, 231000m009, 231000m010, 231000m012, 231004m400, 282654, 401182ri, 600380, 746943, 1200101hi, 2310086a00, 2310086r00, 2310095r10, 9212689, 12060292, 12060301, 227153702, 227166702, 0986042951, 943354039010, 944390511620
