HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115904

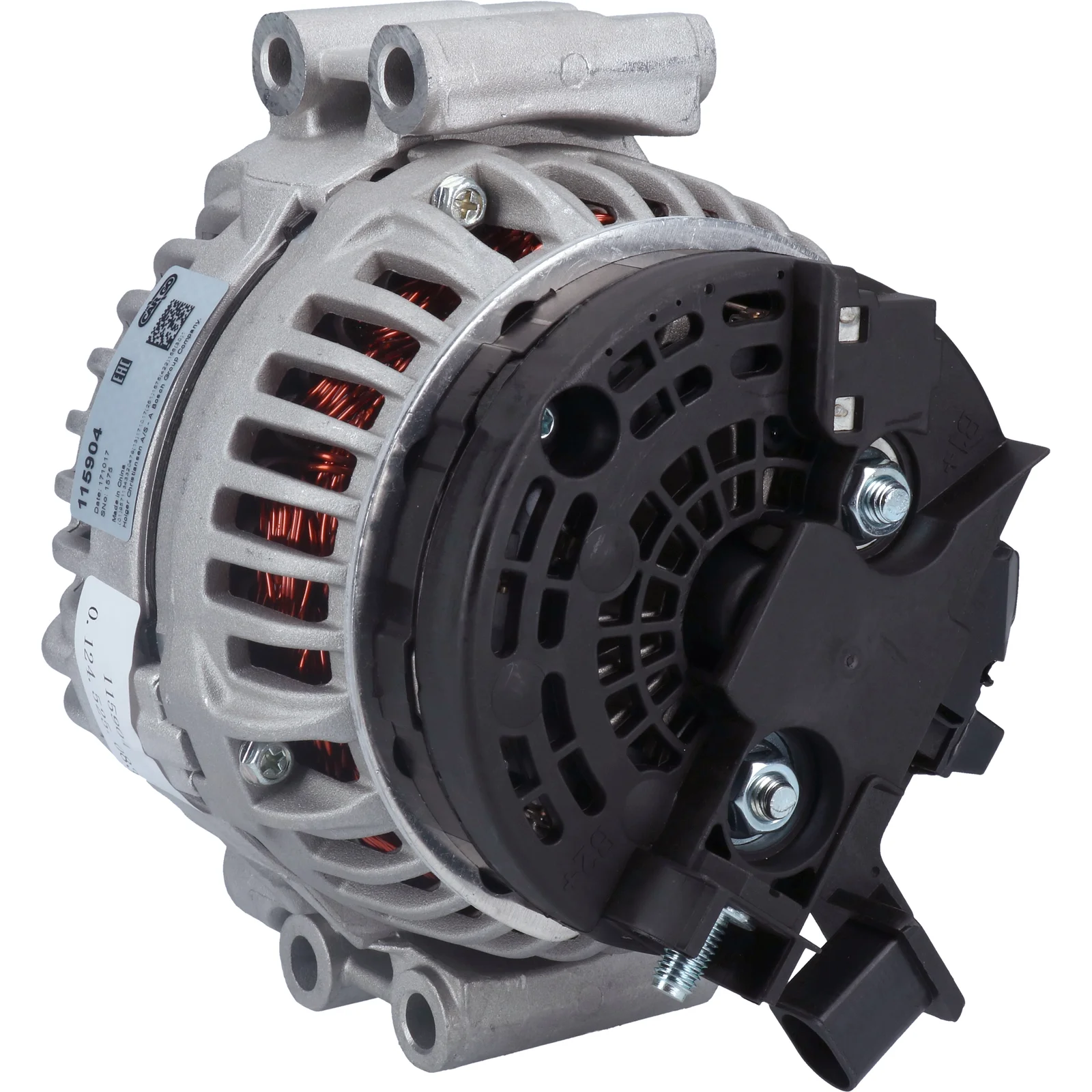

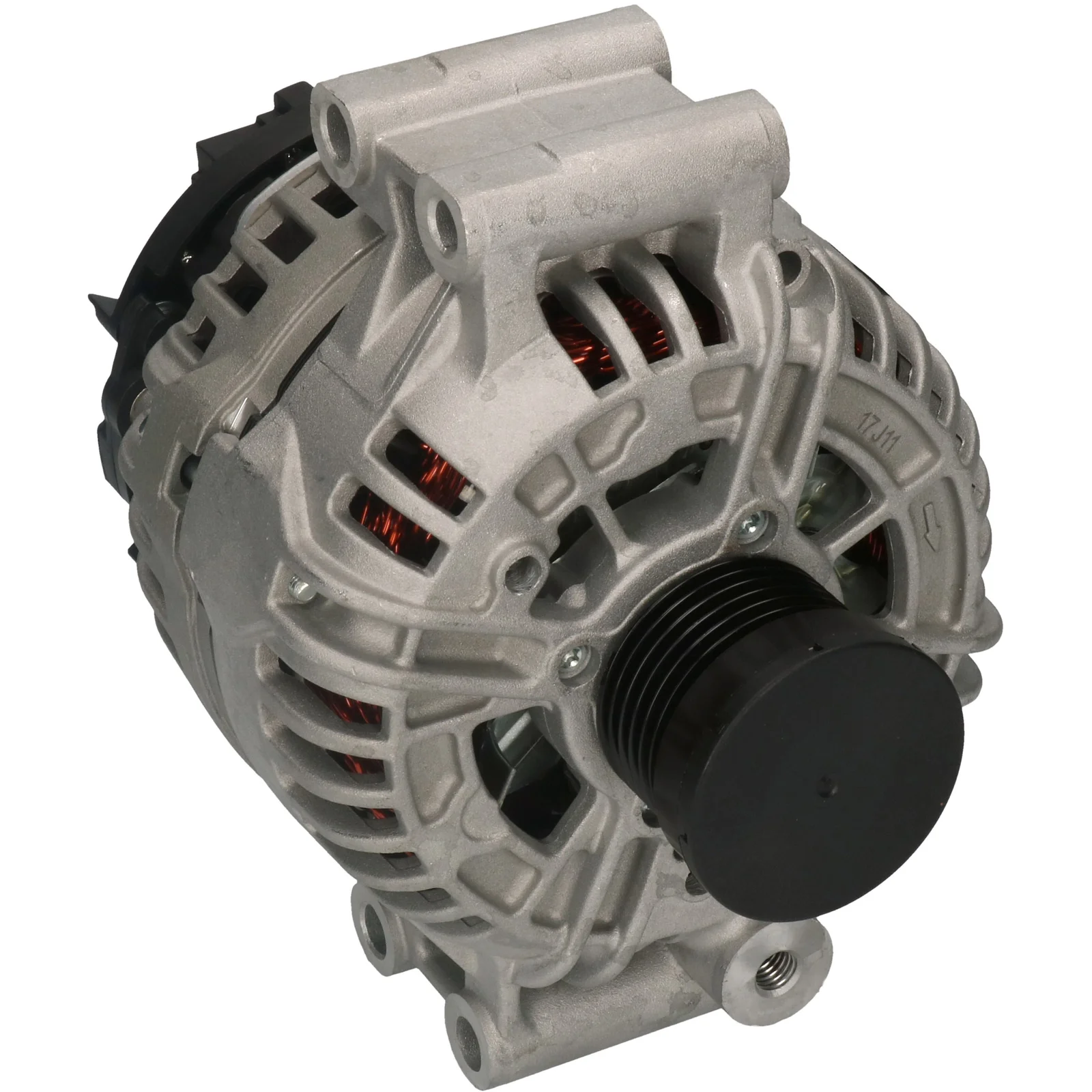

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 155, Rotation: CW, Mounting bracket distributor: 41.00

Description

Voltage: 14
Amp: 155
Pulley dist.: 8.50
Width/holder arm: 63.00
Mount. bracket dist.: 41.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 9.50x10.50
Pulley dia.: 49.50
Grooves/pulley: 6
Radius: 87.00
Radius 2: 87.00
B+: M8
Position/B+ in min.: 3
Rotation: CW
Plug no.: PL86
Total length mm: 195.00
Terminal type: COM
Alternator: SP/FW
Regulator type: IR
Prod. info: BN
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032115904, 1986A00892, 2009ir, 4487081, 7542529, 7543083, 0124525083, 0124525524, 12314487081, 12317542529, 12317543083

  • Normalised article numbler
    a0267, a0267s, dra0579, f032115904, lra02961, 8el011712431, 8el738212271, 1986a00892, 2009ir, 11077n, 11077r, 111801, 285575, 443475, 4487081, 7542529, 7543083, 12048350, 32048350, 0124525083, 0124525524, 215517155, 0986048350, 0986048353, 0986048357, 2151711552, 12314487081, 12317542529, 12317543083
  • Description
    Voltage: 14
    Amp: 155
    Pulley dist.: 8.50
    Width/holder arm: 63.00
    Mount. bracket dist.: 41.00
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 9.50x10.50
    Pulley dia.: 49.50
    Grooves/pulley: 6
    Radius: 87.00
    Radius 2: 87.00
    B+: M8
    Position/B+ in min.: 3
    Rotation: CW
    Plug no.: PL86
    Total length mm: 195.00
    Terminal type: COM
    Alternator: SP/FW
    Regulator type: IR
    Prod. info: BN
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032115904, 1986A00892, 2009ir, 4487081, 7542529, 7543083, 0124525083, 0124525524, 12314487081, 12317542529, 12317543083

    • Normalised article numbler
      a0267, a0267s, dra0579, f032115904, lra02961, 8el011712431, 8el738212271, 1986a00892, 2009ir, 11077n, 11077r, 111801, 285575, 443475, 4487081, 7542529, 7543083, 12048350, 32048350, 0124525083, 0124525524, 215517155, 0986048350, 0986048353, 0986048357, 2151711552, 12314487081, 12317542529, 12317543083
