HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113518

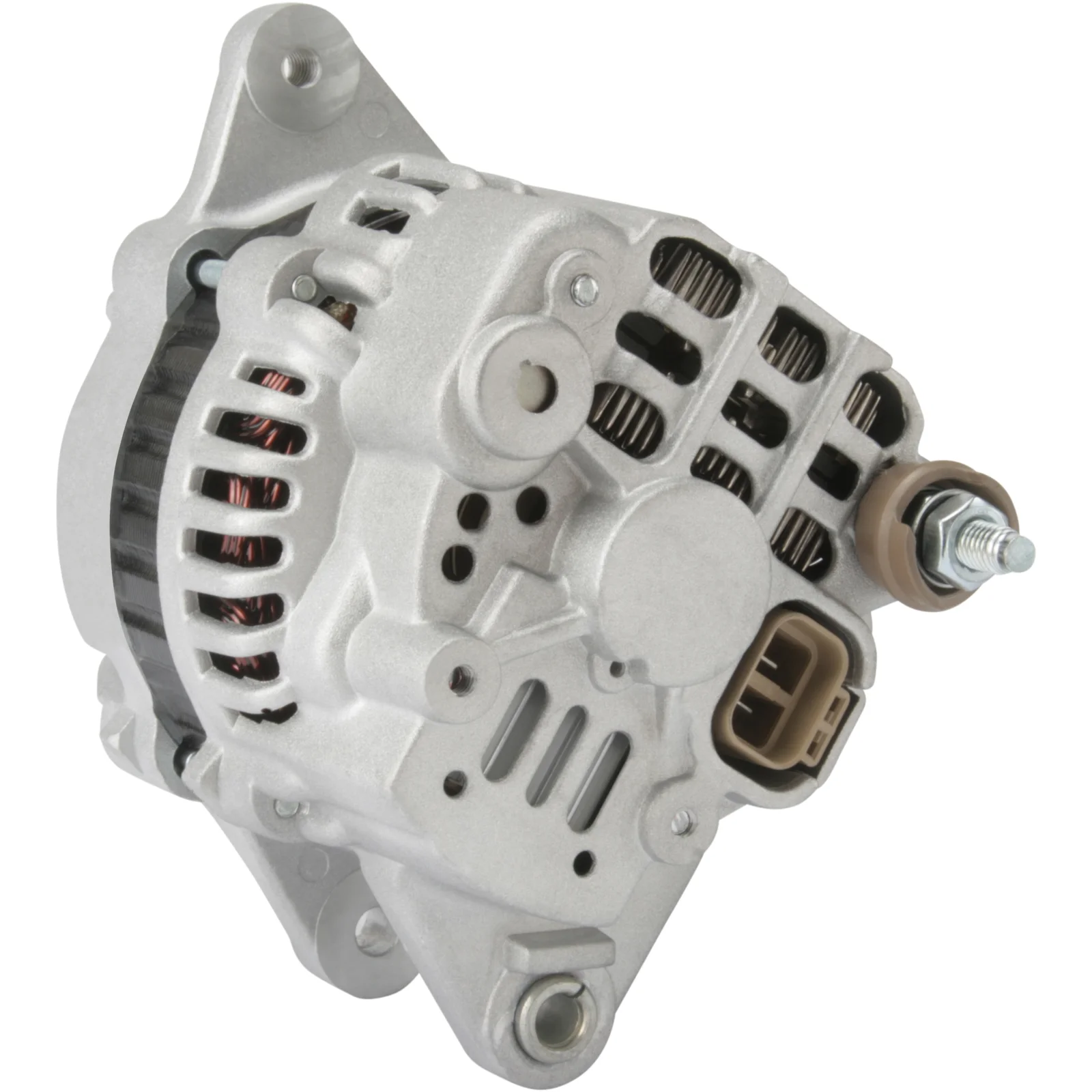

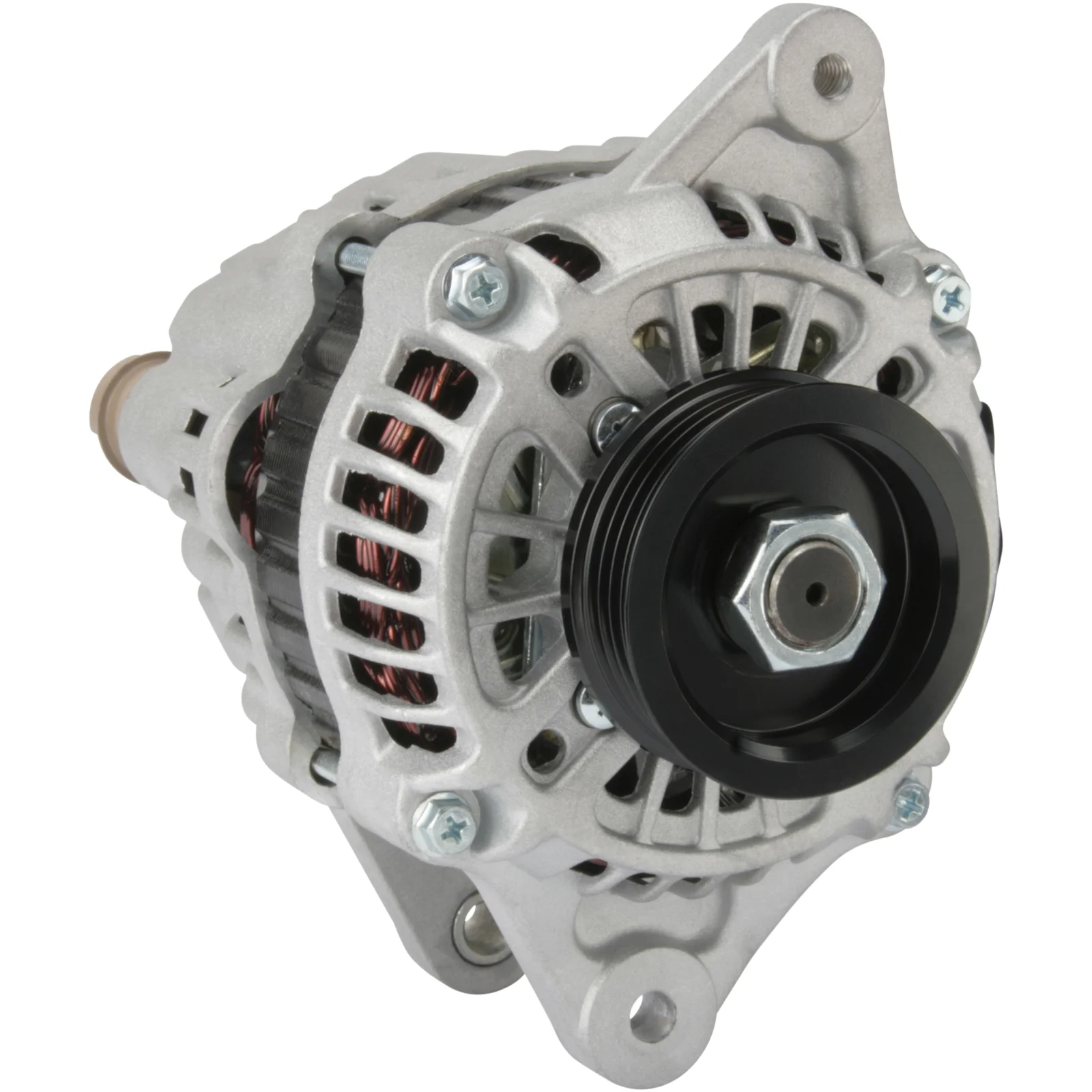

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 60, Rotation: CW, Mounting bracket distance: 48.30

Description

Voltage: 14
Amp: 60
Pulley drive: 38.00
Width/holder arm: 13.00
Mounting bracket distance: 48.30
Bracket hole: 8.80
Belt adjustment bracket hole position: 3
Belt adjustment bracket hole 1: M8
Pulley diameter: 59.50
Grooves/pulley: 4
Radius: 78.00
Radius 2: 80.00
B+: M8
Position/B+ in min.: 15
D+ size: Plug
Rotation: CW
Spark plug no.: PL89
Total length mm: 171.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Hyundai

Files

  • OEM
    ab160108, F032113518, ja1715ir, TA000A17301, 37300-02503

  • Normalised article numbler
    a9006, ab160108, alt35005, alt7231, cal32100, dra3846, dra3846n, f032113518, f042a0b038, j5110514, ja1715ir, lea0201, lra02039, ta000a17301, 8el011711251, 8el738102001, 23039n, 23039r, 111624, 210081, 210081a, 283958, 401715ri, 437337, 439384, 600266, 608377, 747903, 9213303, 12060790, 063532613, 226154602, 0986049201, 3730002503, 063532613010, 944390605140
  • Description
    Voltage: 14
    Amp: 60
    Pulley drive: 38.00
    Width/holder arm: 13.00
    Mounting bracket distance: 48.30
    Bracket hole: 8.80
    Belt adjustment bracket hole position: 3
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 59.50
    Grooves/pulley: 4
    Radius: 78.00
    Radius 2: 80.00
    B+: M8
    Position/B+ in min.: 15
    D+ size: Plug
    Rotation: CW
    Spark plug no.: PL89
    Total length mm: 171.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Hyundai

    Files

  • Suitable for these vehicles

    • OEM
      ab160108, F032113518, ja1715ir, TA000A17301, 37300-02503

    • Normalised article numbler
      a9006, ab160108, alt35005, alt7231, cal32100, dra3846, dra3846n, f032113518, f042a0b038, j5110514, ja1715ir, lea0201, lra02039, ta000a17301, 8el011711251, 8el738102001, 23039n, 23039r, 111624, 210081, 210081a, 283958, 401715ri, 437337, 439384, 600266, 608377, 747903, 9213303, 12060790, 063532613, 226154602, 0986049201, 3730002503, 063532613010, 944390605140
