HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032112328

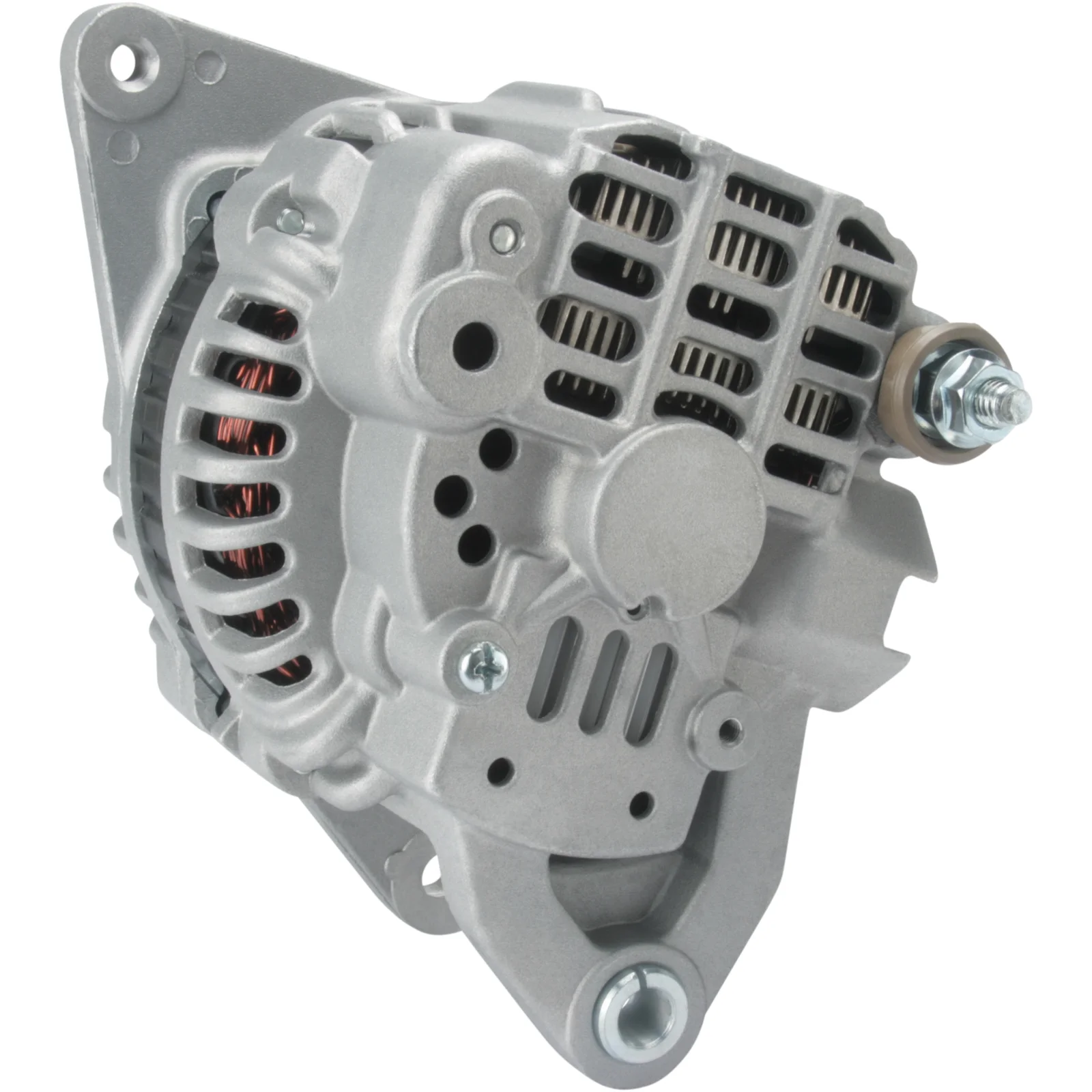

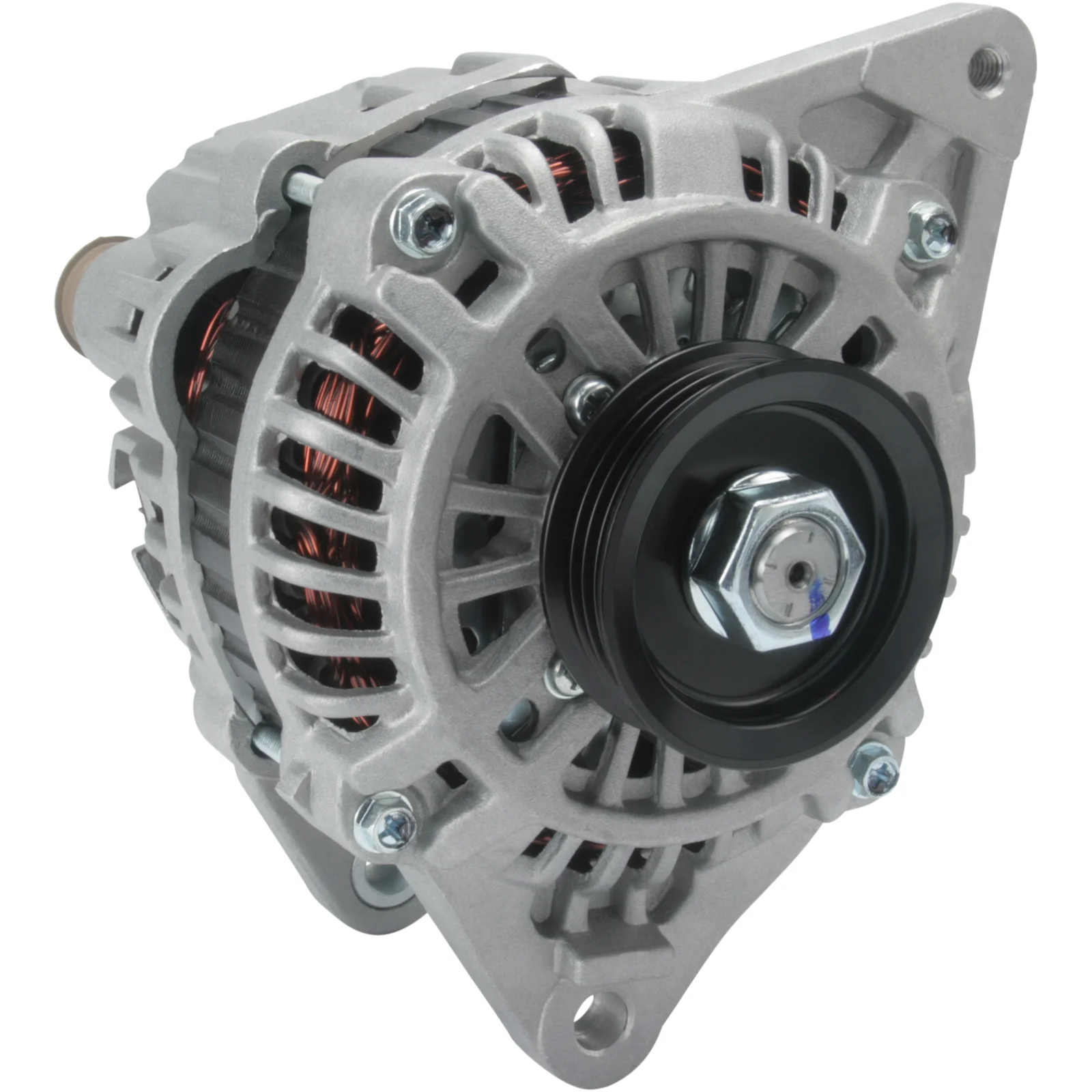

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 85, Rotation: CW, Mounting bracket distance: 66.50

Description

Voltage: 14
Amp: 85
Pulley dist.: 38.00
Width/holder arm: 13.00
Mount. bracket dist.: 66.50
Bracket hole: 10.50
Belt. adj. brackethole pos.: 6
Belt. adj. bracket hole 1: M8
Pulley dia.: 60.50
Grooves/pulley: 4
Radius: 90.00
Radius 2: 96.00
B+: M8
Position/B+ in min.: 10
D+ Size: Plug
Rotation: CW
Plug no.: PL68
Total length mm: 170.00
Terminal type: G-S-L-F
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Mitsubishi

Files

  • OEM
    A002TA4991, A002TA5391, A002TA5391ZT, A002TB0892, A002TB5791ZC, a2ta4991, a2ta5391, A2TA5391ZT, a2tb0892, A2TB5791ZC, F032112328, ja1523ir, md317860, md317862, md343562, MD360394, md368519

  • Normalised article numbler
    a002ta4991, a002ta5391, a002ta5391zt, a002tb0892, a002tb5791zc, a2ta4991, a2ta5391, a2ta5391zt, a2tb0892, a2tb5791zc, a5010, a5304pr, alt3047, cal35124, cal35168, dra0736, dra4094, f032112328, f042303016, f042303123, f042a03016, j5115062, ja1523ir, lra01676, lra02079, md317860, md317862, md343562, md360394, md368519, 11053n, 13751, 13751n, 13787, 13787n, 13840n, 13898n, 13898r, 119856, 119933, 210624, 210624a, 282900, 284516, 401523ri, 440118, 440121, 1211801mi, 1220401mi, 9045581, 9051552, 9213554, 12060754, 155942090, 226150802, 226150902, 0986045581
  • Description
    Voltage: 14
    Amp: 85
    Pulley dist.: 38.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 66.50
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 6
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 60.50
    Grooves/pulley: 4
    Radius: 90.00
    Radius 2: 96.00
    B+: M8
    Position/B+ in min.: 10
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL68
    Total length mm: 170.00
    Terminal type: G-S-L-F
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Mitsubishi

    Files

  • Suitable for these vehicles

    • OEM
      A002TA4991, A002TA5391, A002TA5391ZT, A002TB0892, A002TB5791ZC, a2ta4991, a2ta5391, A2TA5391ZT, a2tb0892, A2TB5791ZC, F032112328, ja1523ir, md317860, md317862, md343562, MD360394, md368519

    • Normalised article numbler
      a002ta4991, a002ta5391, a002ta5391zt, a002tb0892, a002tb5791zc, a2ta4991, a2ta5391, a2ta5391zt, a2tb0892, a2tb5791zc, a5010, a5304pr, alt3047, cal35124, cal35168, dra0736, dra4094, f032112328, f042303016, f042303123, f042a03016, j5115062, ja1523ir, lra01676, lra02079, md317860, md317862, md343562, md360394, md368519, 11053n, 13751, 13751n, 13787, 13787n, 13840n, 13898n, 13898r, 119856, 119933, 210624, 210624a, 282900, 284516, 401523ri, 440118, 440121, 1211801mi, 1220401mi, 9045581, 9051552, 9213554, 12060754, 155942090, 226150802, 226150902, 0986045581
