Article no.: F032113348

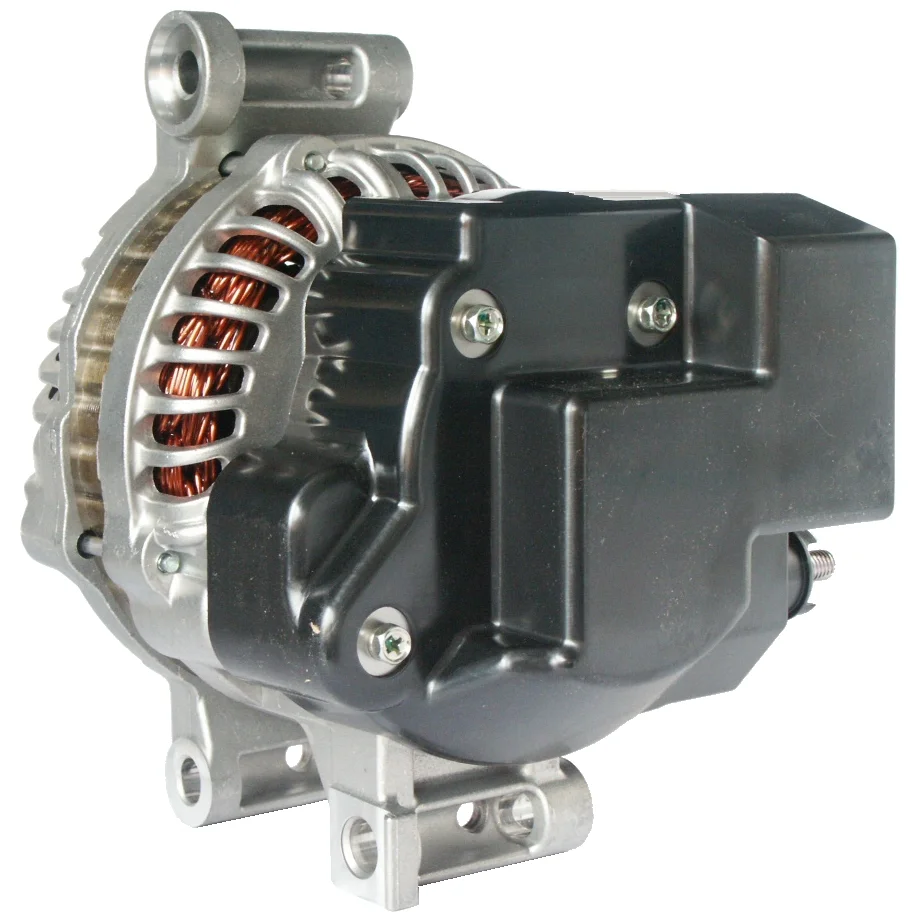

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 90, Rotation: clockwise, Mounting bracket distributor: 75.00

Description

Voltage: 14
Amp: 90
Pulley dist.: 39.00
Width/holder arm: 60.00
Mount. bracket dist.: 75.00
Bracket hole: 10.20
Bracket hole 2: 12.00
Belt. adj. bracket hole pos.: 60
Belt. adj. bracket hole 1: 10.20
Pulley dia.: 54.80
Grooves/pulley: 6
B+: M8
Position/B+ in min.: 20
Rotation: CW
Plug no.: PL54
Pulley: SP
Regulator type: IR
Prod. info: BN/OE
Servicing: Mazda

Files

  • OEM
    A003TG0091, a3tg0091, A3TG0091A, F032113348, ja1705, L813-18-300, L8Y3-18-300, L8Y30-18-400, LB13-18-300

  • Normalised article numbler
    a003tg0091, a3tg0091, a3tg0091a, a5050, alth133, cal35179, dra0116, f032113348, f042a0h133, j5113060, ja1705, l81318300, l8y3018400, l8y318300, lb1318300, lra01166, 8el738044001, 111759, 209422, 209422a, 274798, 401705, 12060832, 224160902, 0986080320
  • Description
    Voltage: 14
    Amp: 90
    Pulley dist.: 39.00
    Width/holder arm: 60.00
    Mount. bracket dist.: 75.00
    Bracket hole: 10.20
    Bracket hole 2: 12.00
    Belt. adj. bracket hole pos.: 60
    Belt. adj. bracket hole 1: 10.20
    Pulley dia.: 54.80
    Grooves/pulley: 6
    B+: M8
    Position/B+ in min.: 20
    Rotation: CW
    Plug no.: PL54
    Pulley: SP
    Regulator type: IR
    Prod. info: BN/OE
    Servicing: Mazda

    Files

  • Suitable for these vehicles

    • OEM
      A003TG0091, a3tg0091, A3TG0091A, F032113348, ja1705, L813-18-300, L8Y3-18-300, L8Y30-18-400, LB13-18-300

    • Normalised article numbler
      a003tg0091, a3tg0091, a3tg0091a, a5050, alth133, cal35179, dra0116, f032113348, f042a0h133, j5113060, ja1705, l81318300, l8y3018400, l8y318300, lb1318300, lra01166, 8el738044001, 111759, 209422, 209422a, 274798, 401705, 12060832, 224160902, 0986080320
