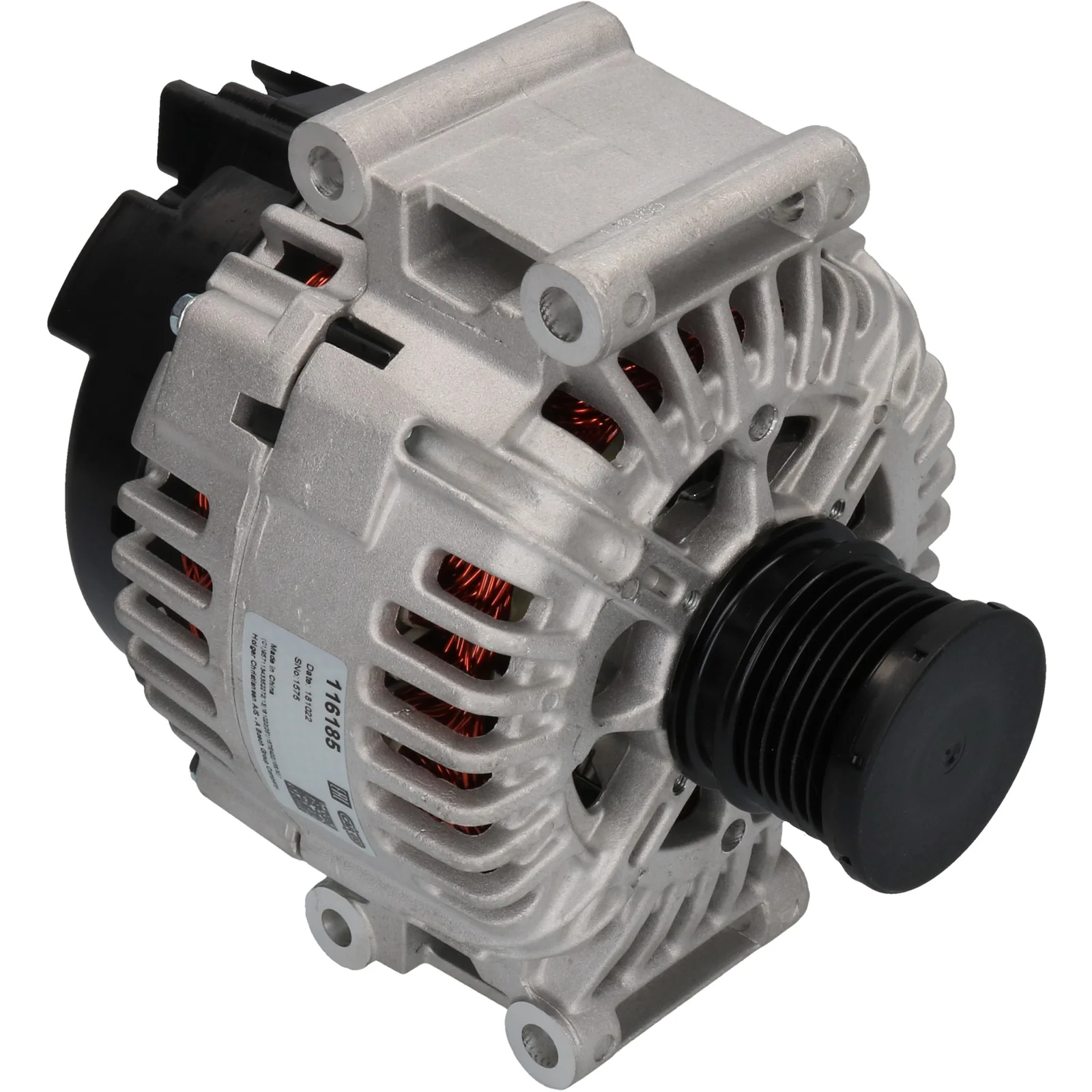

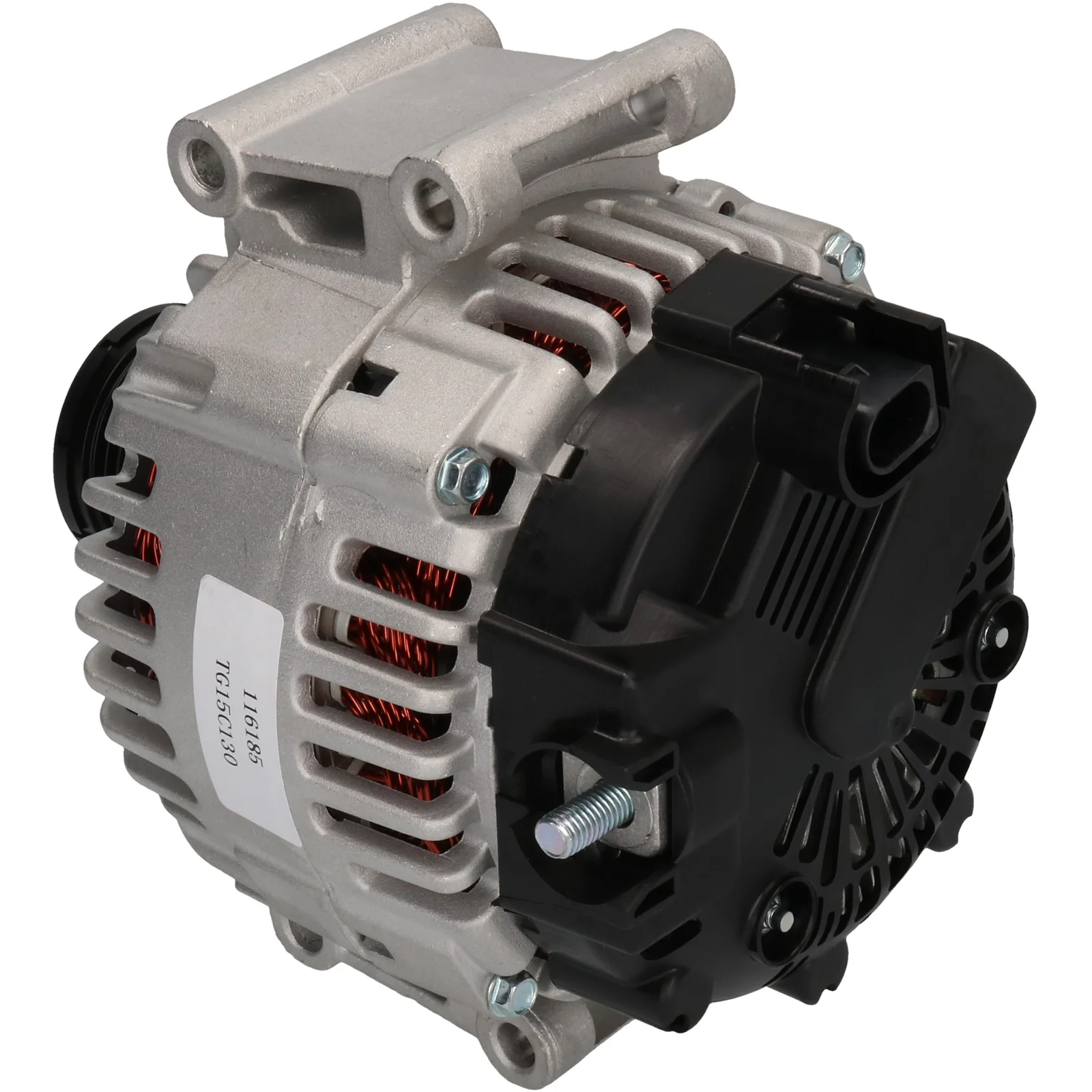

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116185

HC-Cargo Alternator

Technical info:

Voltage: 14, Amper: 150, Rotation: CW, Mounting bracket distance: 56.30

Description

Mercedes Alternator 12V-150A 12V - 150A, 6 grooves, (LIN2, - ) For Yourex product order 90-365-5130 Voltage: 14 Amp: 150 Pulley distance: 31.00 Width/holder arm: 70.00 Mounting bracket distance: 56.30 Bracket hole: 9.50 Belt tensioning bracket hole 1: 9.50 Belt tensioning bracket hole 2: 9.50 Pulley diameter: 50.00 Grooves/pulley: 6 Radius: 81.50 Radius 2: 81.50 B+: M8 Rotation: CW Plug no.: PL181 Total length mm: 190.00 Terminal type: COM Communication: LIN Pulley: SP/FW Regulator type: IR Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A014 1541102, a0141541102, F032116185, TG15C 130, TG15C130, 1986A01647, 116185, 439671, 440257, 2605299, 2605299A, 0141541102

  • Normalised article numbler
    a0141541102, a3279, cal15407, dra1059, f032116185, tg15c130, 1986a01647, 20294n, 20294noe, 116185, 200222, 209231, 209231a, 286538, 439671, 440257, 553744ri, 2605299, 2605299a, 9090793, 12090442, 32002314, 0141541102, 555578150, 0986084010, 2251981502
  • Description
    Mercedes Alternator 12V-150A 12V - 150A, 6 grooves, (LIN2, - ) For Yourex product order 90-365-5130 Voltage: 14 Amp: 150 Pulley distance: 31.00 Width/holder arm: 70.00 Mounting bracket distance: 56.30 Bracket hole: 9.50 Belt tensioning bracket hole 1: 9.50 Belt tensioning bracket hole 2: 9.50 Pulley diameter: 50.00 Grooves/pulley: 6 Radius: 81.50 Radius 2: 81.50 B+: M8 Rotation: CW Plug no.: PL181 Total length mm: 190.00 Terminal type: COM Communication: LIN Pulley: SP/FW Regulator type: IR Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A014 1541102, a0141541102, F032116185, TG15C 130, TG15C130, 1986A01647, 116185, 439671, 440257, 2605299, 2605299A, 0141541102

    • Normalised article numbler
      a0141541102, a3279, cal15407, dra1059, f032116185, tg15c130, 1986a01647, 20294n, 20294noe, 116185, 200222, 209231, 209231a, 286538, 439671, 440257, 553744ri, 2605299, 2605299a, 9090793, 12090442, 32002314, 0141541102, 555578150, 0986084010, 2251981502
