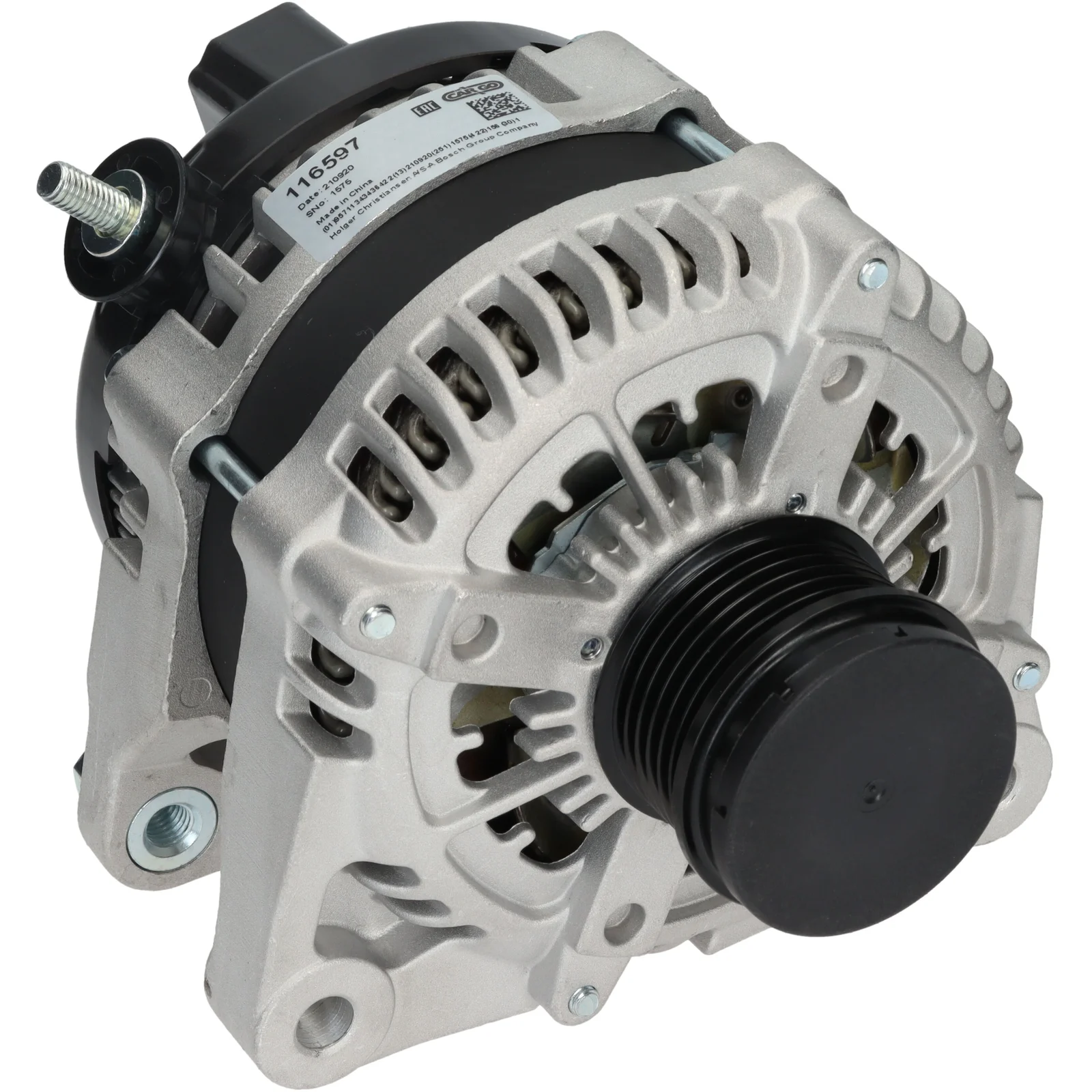

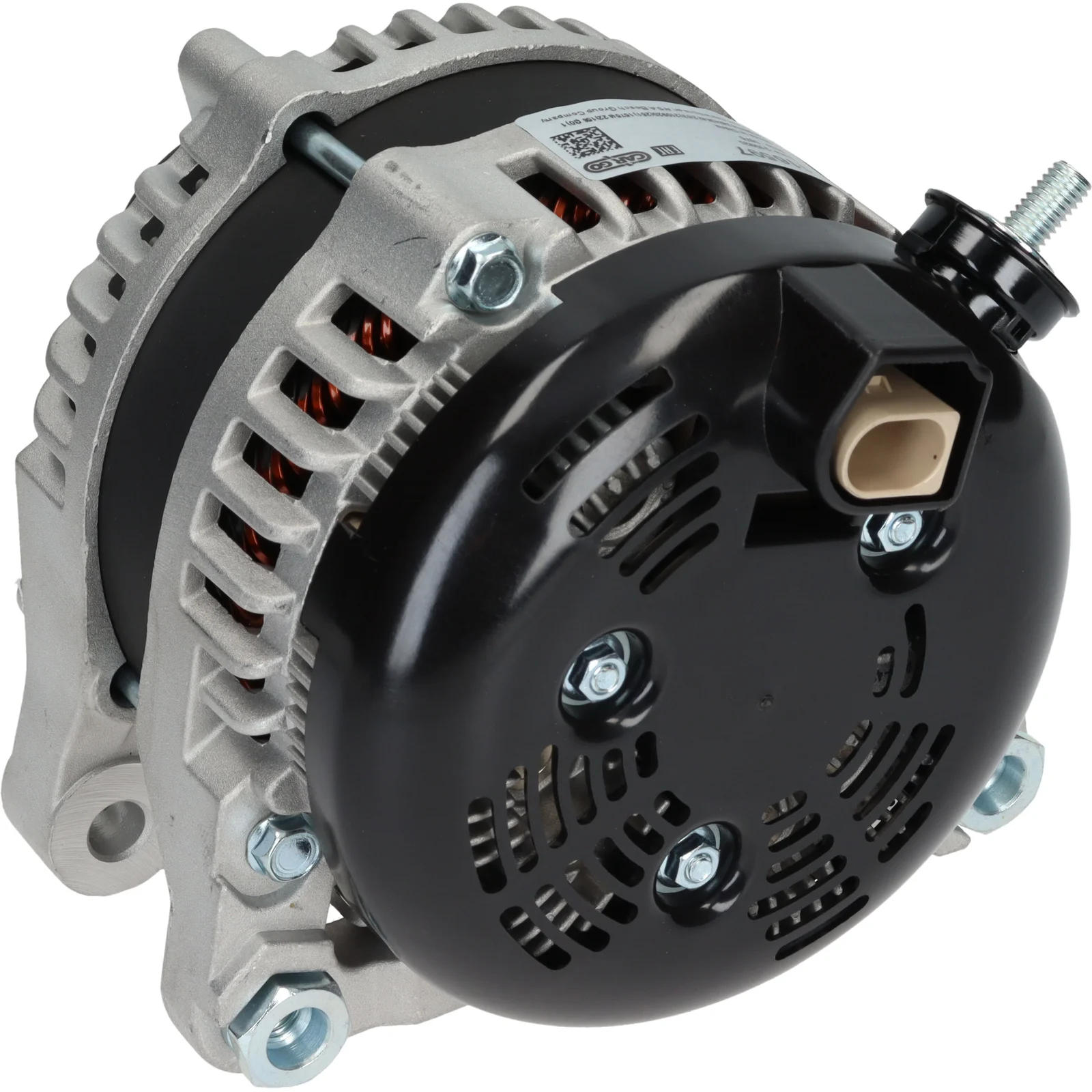

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116597

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 180, Mount. bracket dist.: 44.50, Pulley dia.: 54.00

Description

Alternator 12V-180A 12V - 180A, 6 grooves, (LIN) Freewheel pulley = 45-252-0263 For Yourex product order 90-258-4636

Voltage: 14
Amp: 180
Pulley diameter: 43.00
Mounting bracket distance: 44.50
Bracket hole: 10.20
Belt adjustment bracket hole position: 47
Belt adjustment bracket hole 1: 10.50
Pulley diameter: 54.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 93.00
B+: M8
Position/B+ in min.: 60
Plug no.: PL174
Total length mm: 189.00
ID Code: 28
Communication: LIN_1
Pulley: SP/FW
Fan: IF
Regulator type: IR

Files

  • OEM
    A6434(DENSO), A6434S, BJ32-10300AC, BJ32-10300AD, BJ3210300AC, BJ3210300AD, C2Z-17063, C2Z-31658, C2Z17063, C2Z31658, CAL40399, CZ231658, DAN 1111, DAN1111, DRA1326, F032116597, LR 028116, LR 031026, LR028116, LR0281166, LR031026, LR088854, LRA03624, 8EL011713-181, 28-6734, 214.179.1802, 455.532.180, 0986 085 120, 1986A00640, 104210-6360, 104210-6361, 116597, 209324, 209324A, 440763, 553760RI, 12090755, 32118821, 0986085120

  • Normalised article numbler
    a6434denso, a6434s, bj3210300ac, bj3210300ad, c2z17063, c2z31658, cal40399, cz231658, dan1111, dra1326, f032116597, lr028116, lr0281166, lr031026, lr088854, lra03624, 8el011713181, 1986a00640, 116597, 209324, 209324a, 286734, 440763, 553760ri, 12090755, 32118821, 455532180, 0986085120, 1042106360, 1042106361, 2141791802
  • Description
    Alternator 12V-180A 12V - 180A, 6 grooves, (LIN) Freewheel pulley = 45-252-0263 For Yourex product order 90-258-4636

    Voltage: 14
    Amp: 180
    Pulley diameter: 43.00
    Mounting bracket distance: 44.50
    Bracket hole: 10.20
    Belt adjustment bracket hole position: 47
    Belt adjustment bracket hole 1: 10.50
    Pulley diameter: 54.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 93.00
    B+: M8
    Position/B+ in min.: 60
    Plug no.: PL174
    Total length mm: 189.00
    ID Code: 28
    Communication: LIN_1
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      A6434(DENSO), A6434S, BJ32-10300AC, BJ32-10300AD, BJ3210300AC, BJ3210300AD, C2Z-17063, C2Z-31658, C2Z17063, C2Z31658, CAL40399, CZ231658, DAN 1111, DAN1111, DRA1326, F032116597, LR 028116, LR 031026, LR028116, LR0281166, LR031026, LR088854, LRA03624, 8EL011713-181, 28-6734, 214.179.1802, 455.532.180, 0986 085 120, 1986A00640, 104210-6360, 104210-6361, 116597, 209324, 209324A, 440763, 553760RI, 12090755, 32118821, 0986085120

    • Normalised article numbler
      a6434denso, a6434s, bj3210300ac, bj3210300ad, c2z17063, c2z31658, cal40399, cz231658, dan1111, dra1326, f032116597, lr028116, lr0281166, lr031026, lr088854, lra03624, 8el011713181, 1986a00640, 116597, 209324, 209324a, 286734, 440763, 553760ri, 12090755, 32118821, 455532180, 0986085120, 1042106360, 1042106361, 2141791802
