HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116322

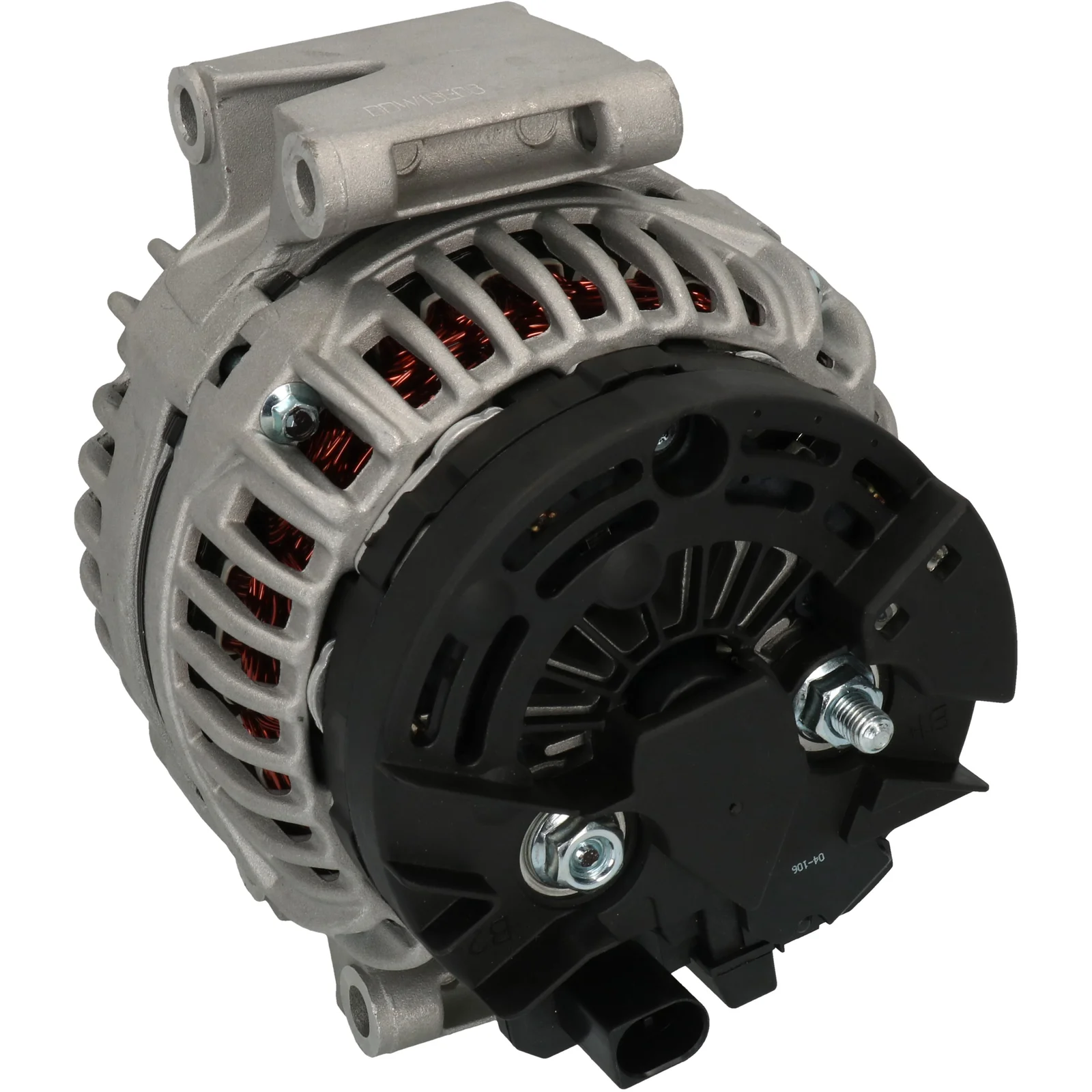

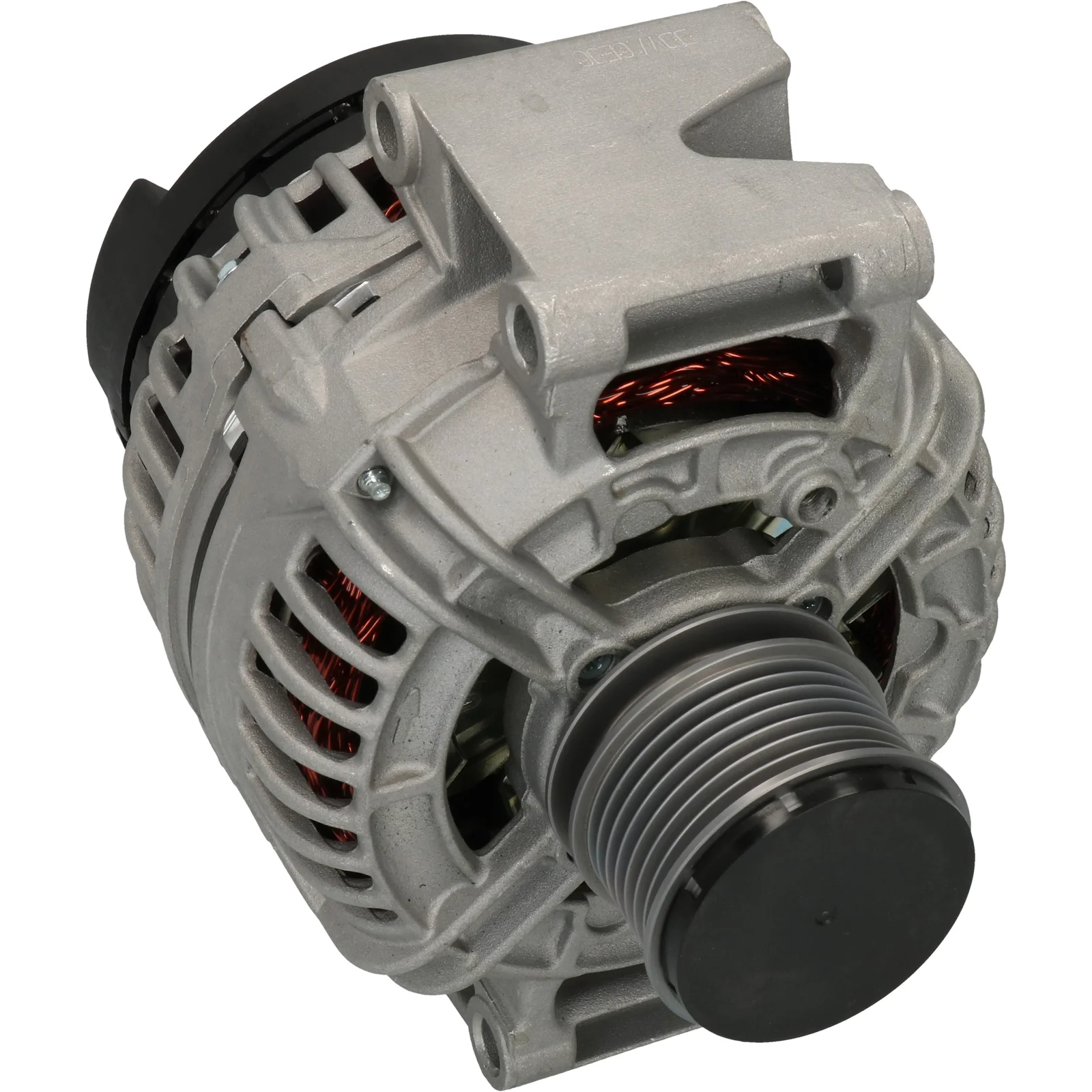

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 120, Rotation: CW, Mounting bracket distributor: 56.00

Description

Mercedes C-Class Gen. 12V-120A 12V - 120A, 7-rib freewheel, (COM-DFM) For Yourex product order 90-365-4538

Voltage: 14
Amp: 120
Pulley diameter: 32.00
Width/holder arm: 70.00
Mounting bracket diameter: 56.00
Bracket hole: 9.00
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: 9.50
Belt adjustment bracket hole 2: 9.00
Pulley diameter: 55.60
Grooves/pulley: 7
Radius: 81.50
Radius 2: 81.50
B+: M8
Position/B+ in min.: 45
Rotation: CW
Plug number: PL114
Total length mm: 200.00
Terminal type: COM-DFM
Communication: BSS
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A2711540202, A2711540802, A271154080280, A2711540902, A271154090280, F032116322, SG12B 062, SG12B062, 0124 515 088, 271 154 0202, 271 154 0802, 271 154 0902, 0986 045 380, 1986A00862, 1986A01186, 116322, 437430, 2542582, 2542582A, 2542582B, 0124515088, 0124515198, 2711540202, 2711540802, 2711540902, 271154080280, 271154090280

  • Normalised article numbler
    a0266, a2711540202, a2711540802, a271154080280, a2711540902, a271154090280, a3156, cal10a50, cal15254, drb5380, drb5380x, f032116322, lra02362, sg12b062, 8el012428351, 8el738125001, 1986a00862, 1986a01186, 4803, 23285n, 111446, 112068, 116322, 200045, 210730, 210730a, 284866, 301752ri, 437430, 439471, 746133, 746933, 2542582, 2542582a, 2542582b, 9045380, 12045380, 32045380, 0124515088, 0124515198, 0986045380, 0986045383, 0986045387, 0986085710, 2251451202, 2711540202, 2711540802, 2711540902, 271154080280, 271154090280, 944390453800
  • Description
    Mercedes C-Class Gen. 12V-120A 12V - 120A, 7-rib freewheel, (COM-DFM) For Yourex product order 90-365-4538

    Voltage: 14
    Amp: 120
    Pulley diameter: 32.00
    Width/holder arm: 70.00
    Mounting bracket diameter: 56.00
    Bracket hole: 9.00
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: 9.50
    Belt adjustment bracket hole 2: 9.00
    Pulley diameter: 55.60
    Grooves/pulley: 7
    Radius: 81.50
    Radius 2: 81.50
    B+: M8
    Position/B+ in min.: 45
    Rotation: CW
    Plug number: PL114
    Total length mm: 200.00
    Terminal type: COM-DFM
    Communication: BSS
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A2711540202, A2711540802, A271154080280, A2711540902, A271154090280, F032116322, SG12B 062, SG12B062, 0124 515 088, 271 154 0202, 271 154 0802, 271 154 0902, 0986 045 380, 1986A00862, 1986A01186, 116322, 437430, 2542582, 2542582A, 2542582B, 0124515088, 0124515198, 2711540202, 2711540802, 2711540902, 271154080280, 271154090280

    • Normalised article numbler
      a0266, a2711540202, a2711540802, a271154080280, a2711540902, a271154090280, a3156, cal10a50, cal15254, drb5380, drb5380x, f032116322, lra02362, sg12b062, 8el012428351, 8el738125001, 1986a00862, 1986a01186, 4803, 23285n, 111446, 112068, 116322, 200045, 210730, 210730a, 284866, 301752ri, 437430, 439471, 746133, 746933, 2542582, 2542582a, 2542582b, 9045380, 12045380, 32045380, 0124515088, 0124515198, 0986045380, 0986045383, 0986045387, 0986085710, 2251451202, 2711540202, 2711540802, 2711540902, 271154080280, 271154090280, 944390453800
