HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115864

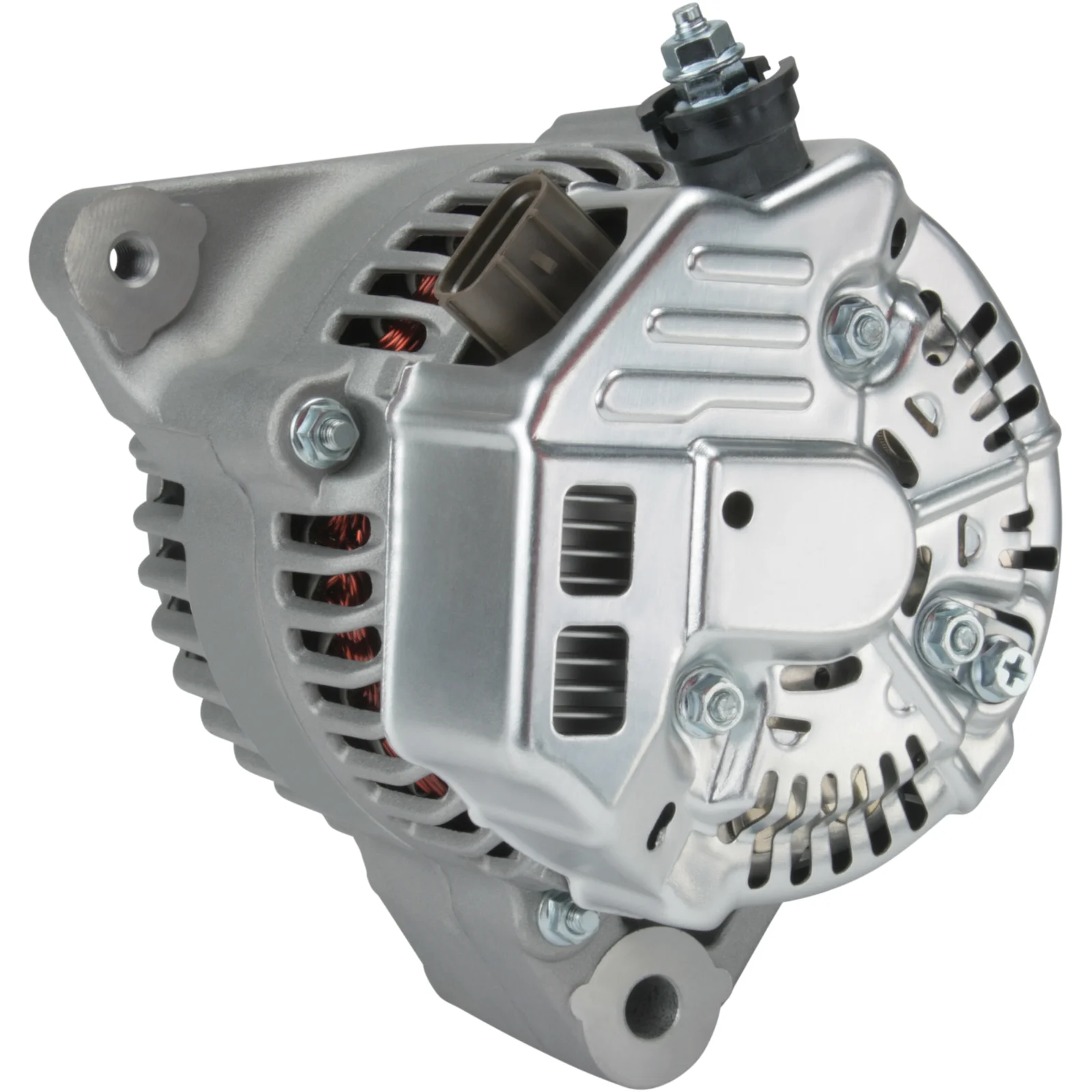

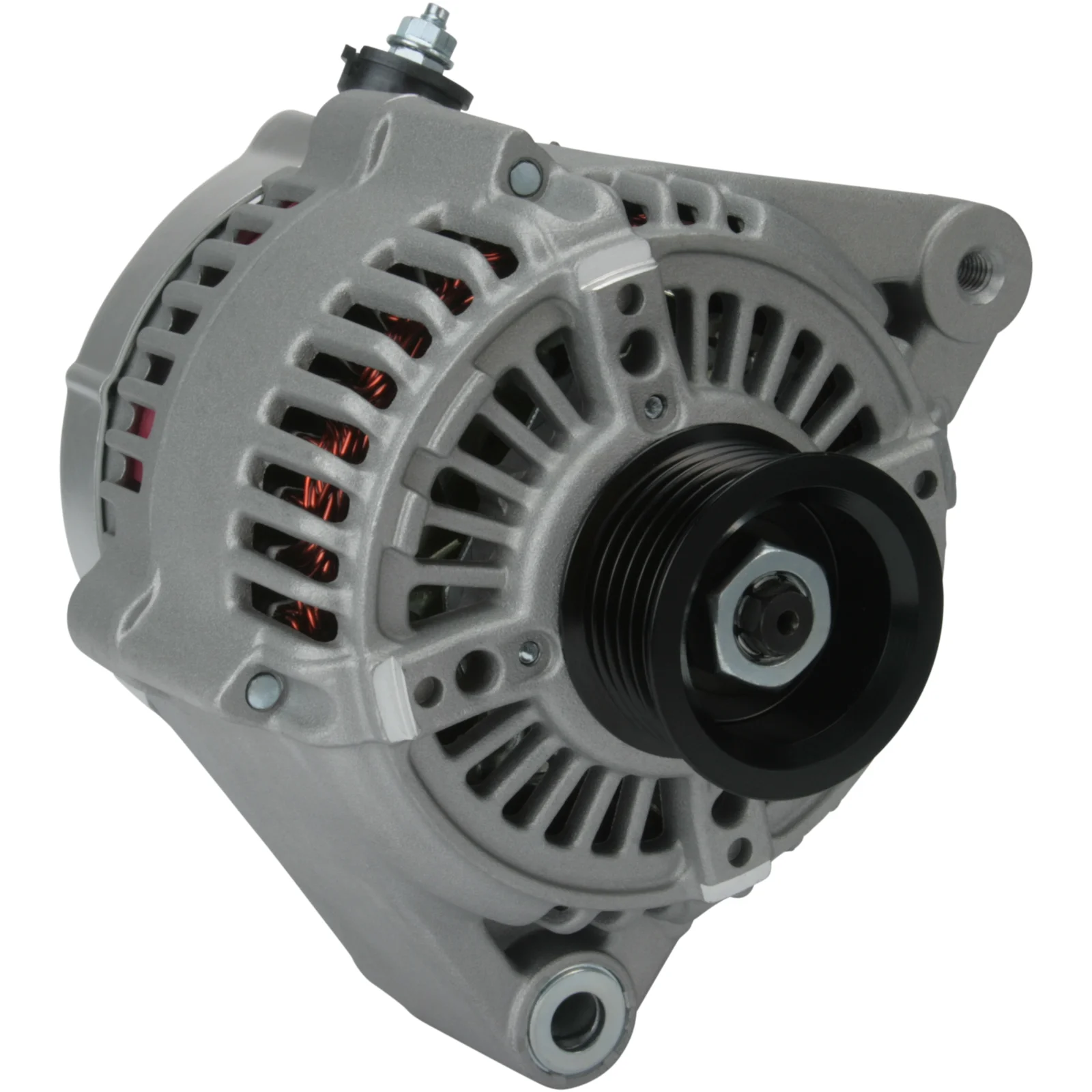

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 90, Rotation: CW, Pulley diameter: 48.20

Description

Voltage: 14
Amp: 90
Pulley distance: 90.00
Width/holder arm: 58.00
Bracket hole: 10.50
V-belt adjustment bracket hole position: 10
V-belt adjustment bracket hole 1: M8
Pulley diameter: 48.20
Grooves/pulley: 6
Radius: 80.00
Radius 2: 84.00
B+: M6
Position/B+ in minutes: 60
D+ Size: Plug
Rotation: CW
Plug no.: PL74
Total length mm: 168.00
Pulley: SP
Voltage regulator type: IR
Product information: BN

Files

  • OEM
    F032115864, ja1596ir, YLE102330, 102211-1470, 102211-1471

  • Normalised article numbler
    a6639s, cal40265, dra4034, f032115864, ja1596ir, yle102330, 23070r, 111721, 284505, 401596ri, 440849, 12090118, 32321580, 455512120, 0986081290, 1022111470, 1022111471, 2141431202
  • Description
    Voltage: 14
    Amp: 90
    Pulley distance: 90.00
    Width/holder arm: 58.00
    Bracket hole: 10.50
    V-belt adjustment bracket hole position: 10
    V-belt adjustment bracket hole 1: M8
    Pulley diameter: 48.20
    Grooves/pulley: 6
    Radius: 80.00
    Radius 2: 84.00
    B+: M6
    Position/B+ in minutes: 60
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL74
    Total length mm: 168.00
    Pulley: SP
    Voltage regulator type: IR
    Product information: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032115864, ja1596ir, YLE102330, 102211-1470, 102211-1471

    • Normalised article numbler
      a6639s, cal40265, dra4034, f032115864, ja1596ir, yle102330, 23070r, 111721, 284505, 401596ri, 440849, 12090118, 32321580, 455512120, 0986081290, 1022111470, 1022111471, 2141431202
