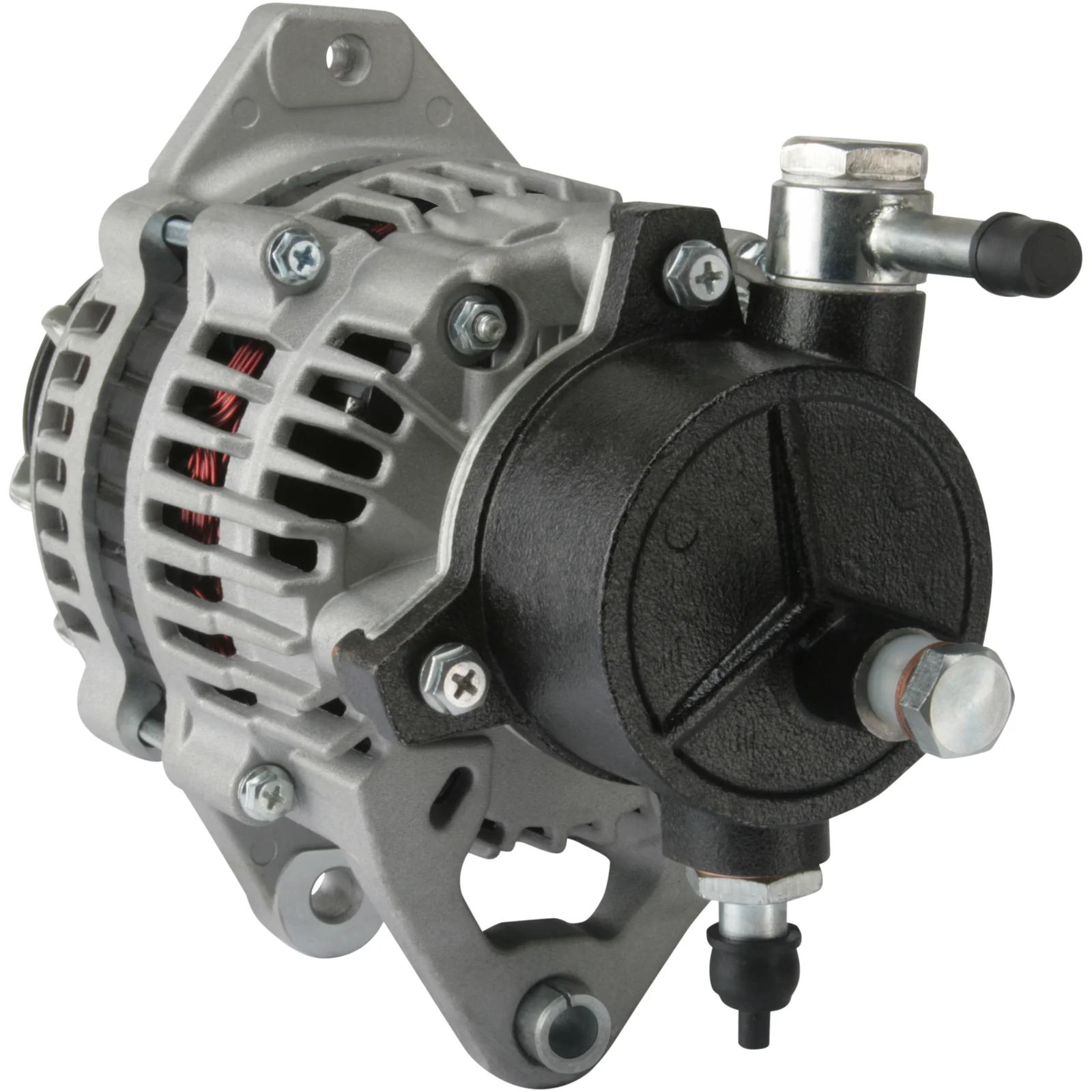

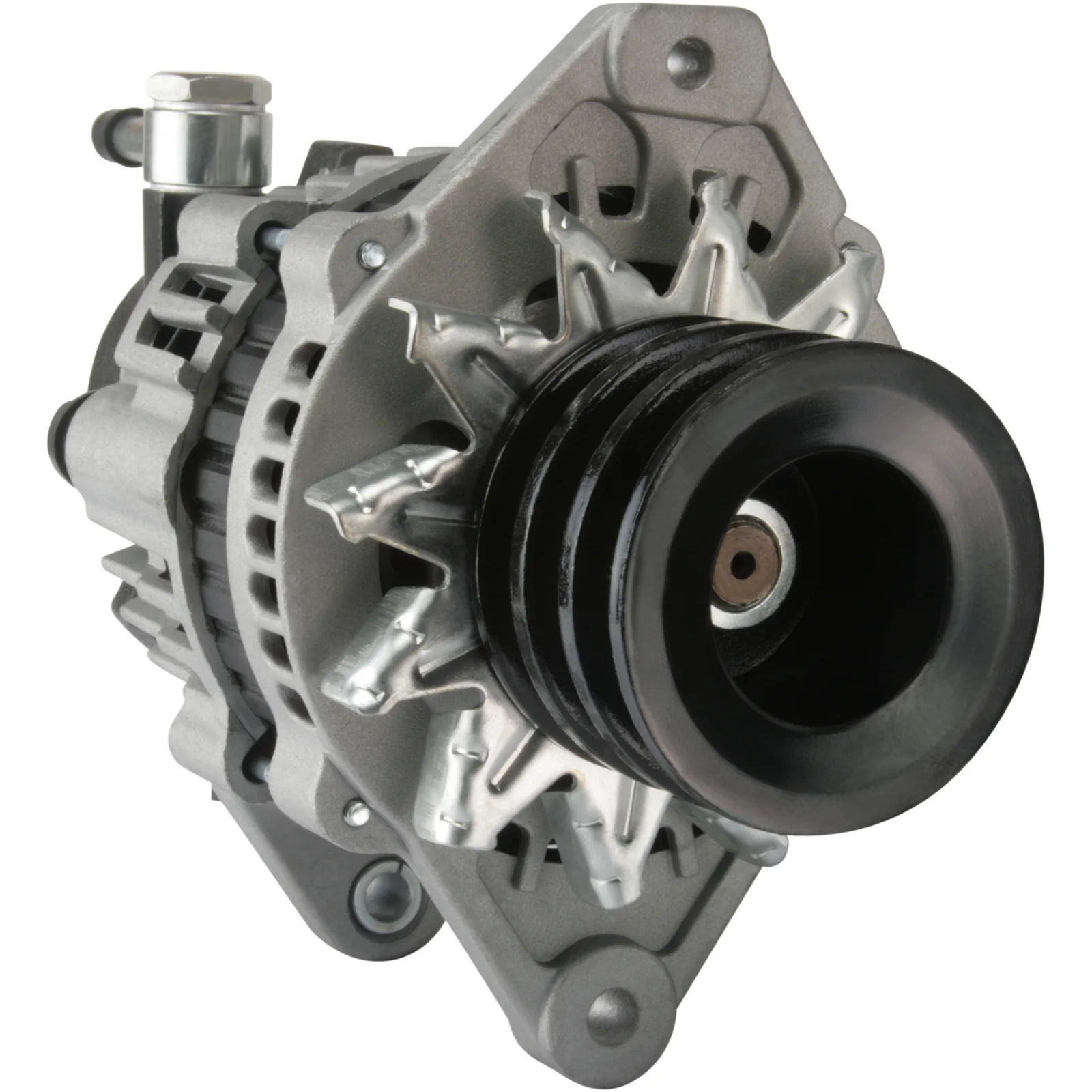

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114782

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 50, Rotation: CW, Mounting bracket distributor: 78.00

Description

Voltage: 28
Amp: 50
Pulley dist.: 42.00
Width/holder arm: 17.00
Mount. bracket dist.: 78.00
Bracket hole: 10.50
Belt. adj. brackets hole position.: 60
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 82.00
Grooves/pulley: 3
Radius: 90.00
Radius 2: 84.50
B+: M6
Position/B+ in min.: 15
D+ Size: Plug
Rotation: CW
Plug no.: PL100
Pulley: SP
Vacuum pump: Yes
Prod. info: BN

Files

  • Description
    Voltage: 28
    Amp: 50
    Pulley dist.: 42.00
    Width/holder arm: 17.00
    Mount. bracket dist.: 78.00
    Bracket hole: 10.50
    Belt. adj. brackets hole position.: 60
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 82.00
    Grooves/pulley: 3
    Radius: 90.00
    Radius 2: 84.50
    B+: M6
    Position/B+ in min.: 15
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL100
    Pulley: SP
    Vacuum pump: Yes
    Prod. info: BN

    Files

  • Suitable for these vehicles
