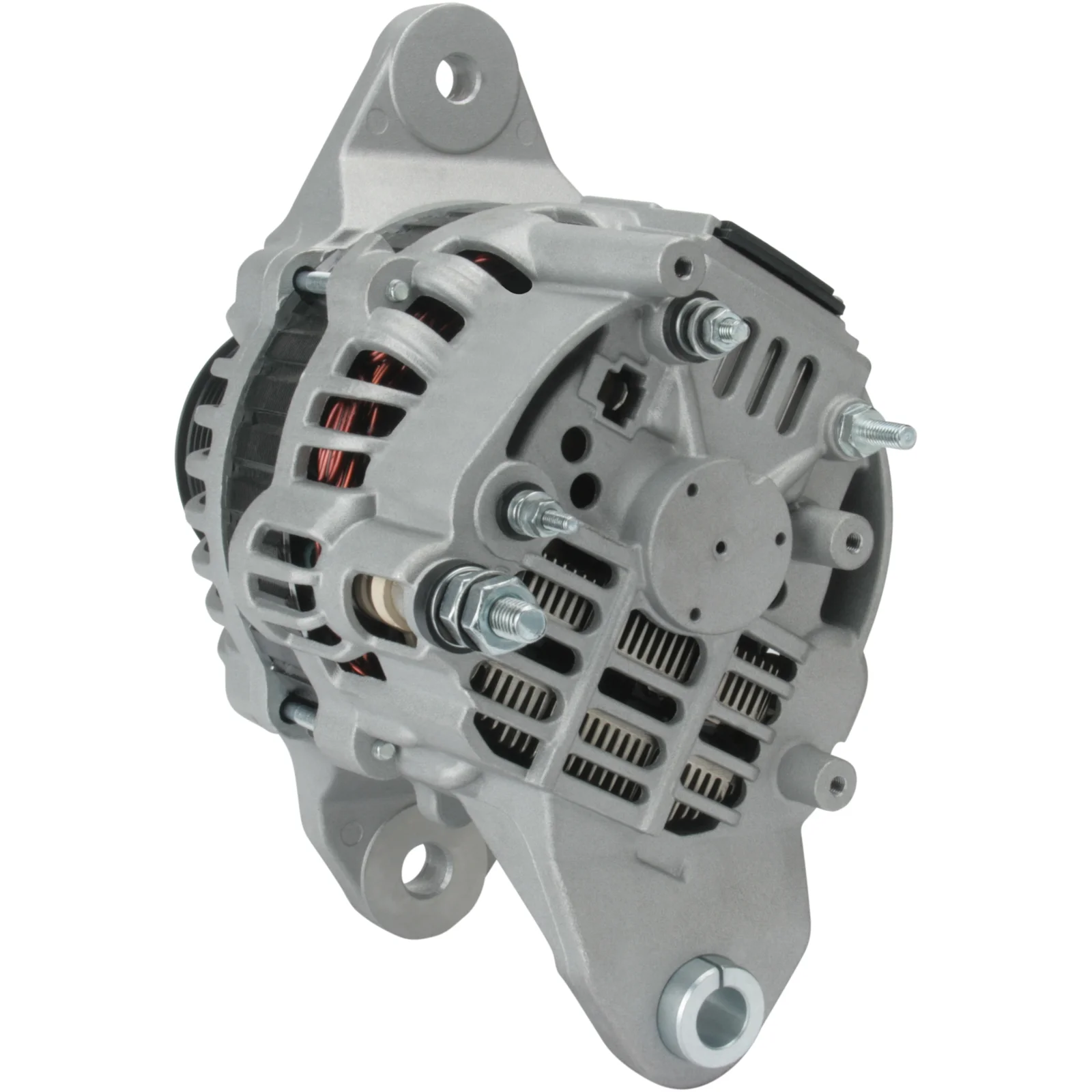

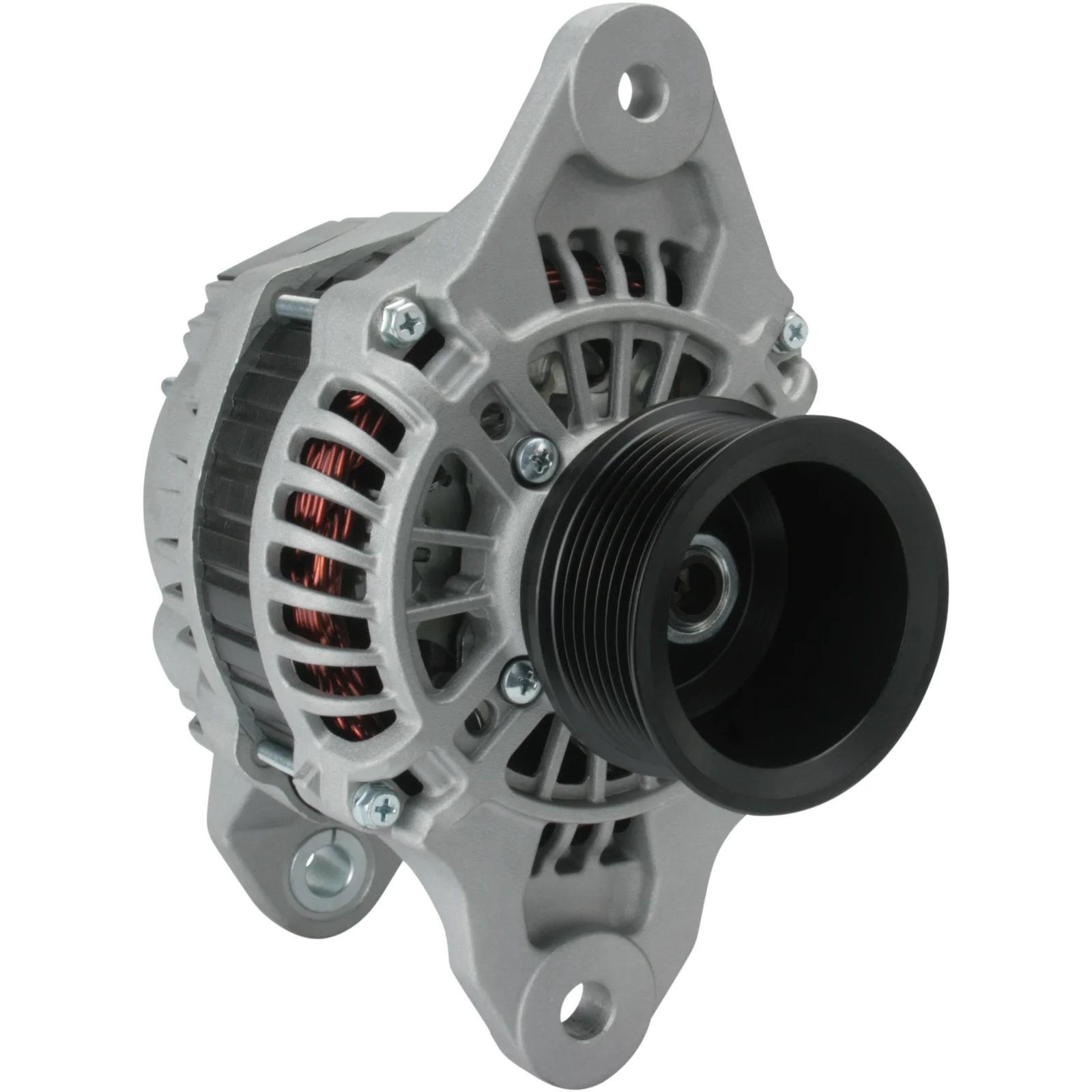

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114843

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 80, Rotation: CW, Mount. bracket dist.: 104.00

Description

Voltage: 28
Amp: 80
Pulley dist.: 44.50
Width/holder arm: 13.50
Mount. bracket dist.: 104.00
Bracket hole: 13.40
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 11.20
Pulley dia.: 72.00
Grooves/pulley: 8
Radius: 99.00
Radius 2: 99.00
B+: M8
Position/B+ in min.: 43
D+ Size: M4
Rotation: CW
W plug type: 6.30
Total length mm: 207.00
Lamp type: Active
Pulley: SP
Regulator type: IR
Prod. info: BN

Files

  • OEM
    A003TR5092, A003TR5092ZT, A3TR5092, A3TR5092ZT, F032114843, 3587218

  • Normalised article numbler
    a003tr5092, a003tr5092zt, a3tr5092, a3tr5092zt, a5308, cal35630, dra1116, f032114843, mita3tr5092, 20909n, 210907, 210907a, 487646, 3587218, 816507080
  • Description
    Voltage: 28
    Amp: 80
    Pulley dist.: 44.50
    Width/holder arm: 13.50
    Mount. bracket dist.: 104.00
    Bracket hole: 13.40
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 11.20
    Pulley dia.: 72.00
    Grooves/pulley: 8
    Radius: 99.00
    Radius 2: 99.00
    B+: M8
    Position/B+ in min.: 43
    D+ Size: M4
    Rotation: CW
    W plug type: 6.30
    Total length mm: 207.00
    Lamp type: Active
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      A003TR5092, A003TR5092ZT, A3TR5092, A3TR5092ZT, F032114843, 3587218

    • Normalised article numbler
      a003tr5092, a003tr5092zt, a3tr5092, a3tr5092zt, a5308, cal35630, dra1116, f032114843, mita3tr5092, 20909n, 210907, 210907a, 487646, 3587218, 816507080
