HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115855

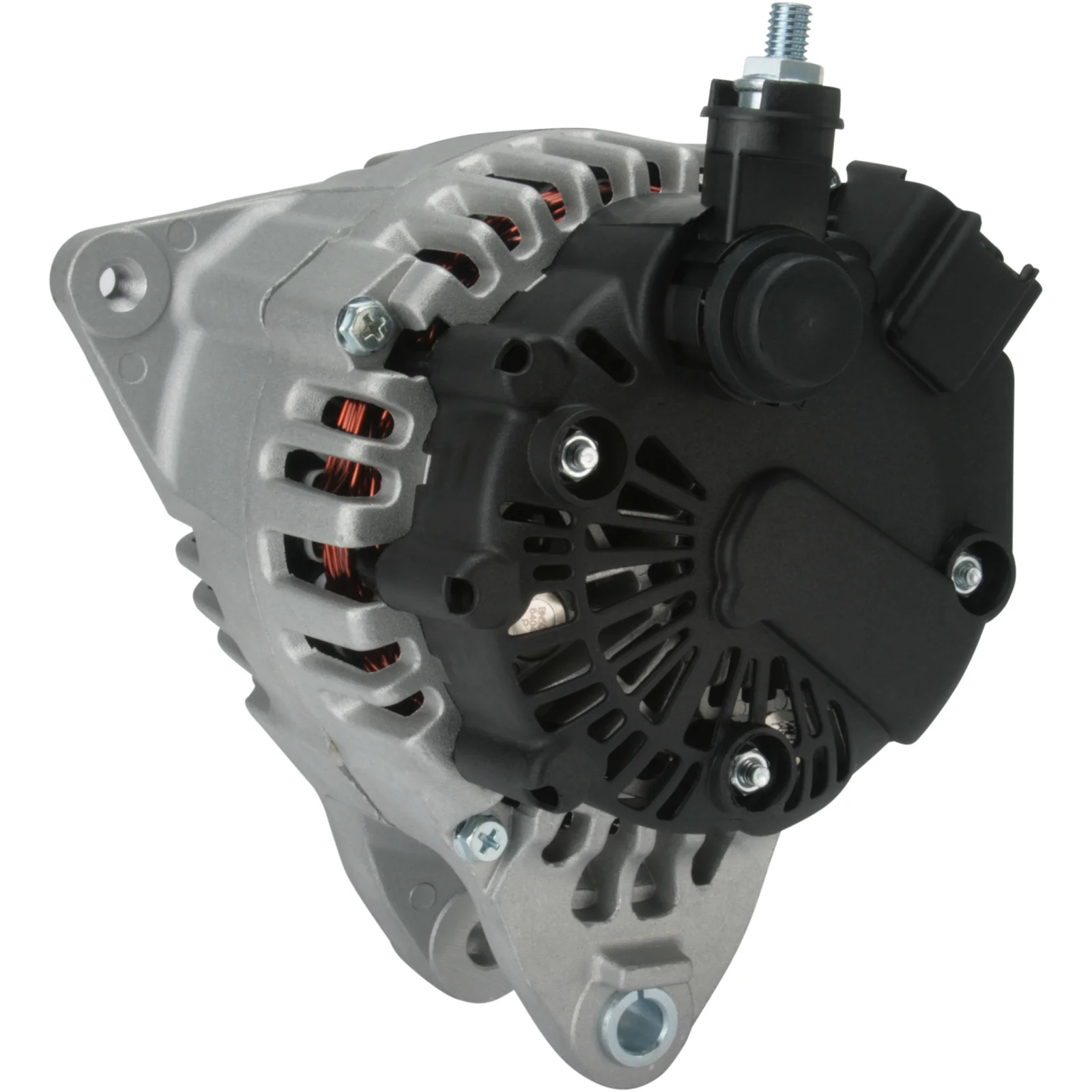

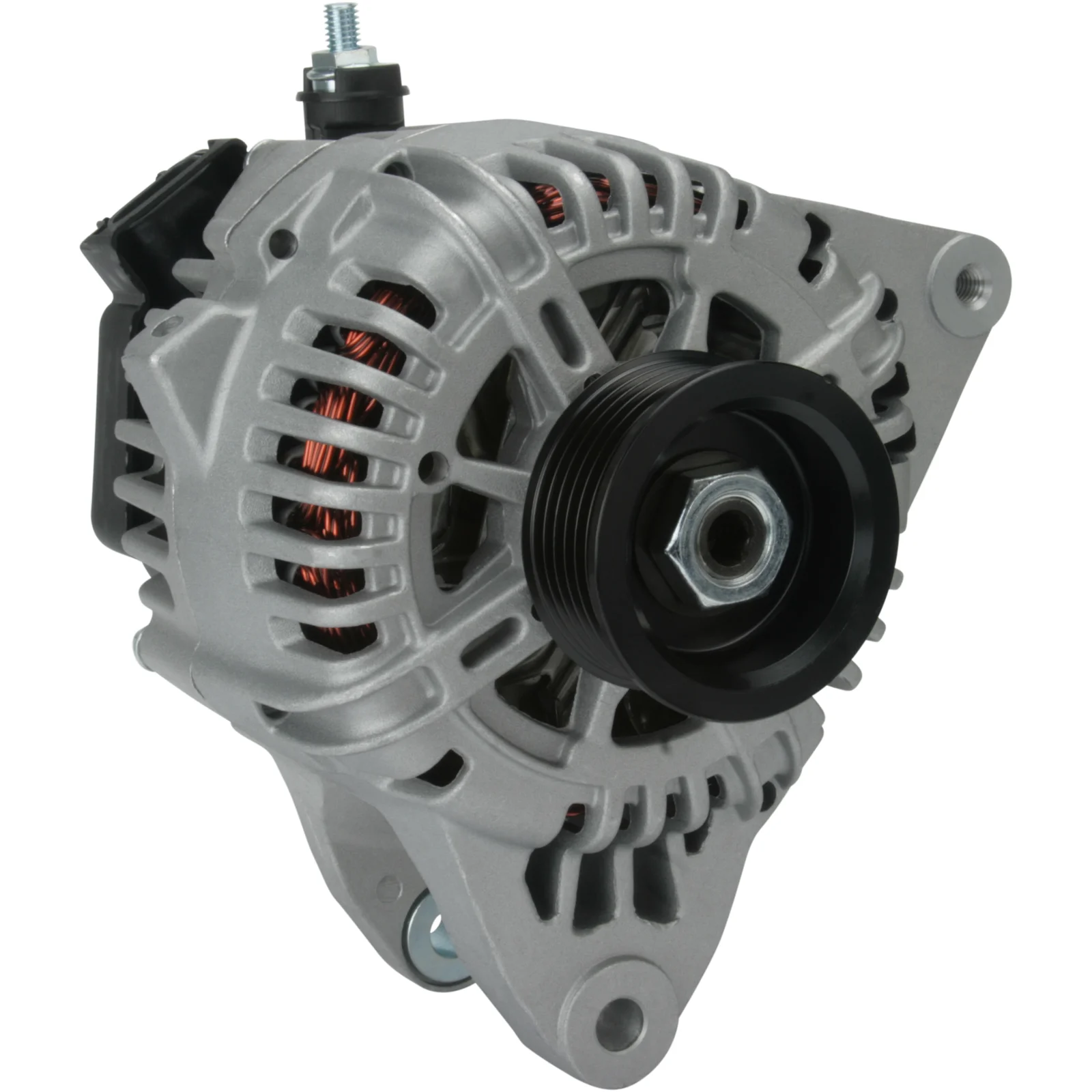

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 120, Rotation: CW, Mounting bracket distance: 44.00

Description

Voltage: 14
Amp: 120
Pulley dist.: 43.50
Width/holder arm: 23.00
Mounting bracket dist.: 44.00
Bracket hole: 10.50
Belt adjustment bracket hole position.: 10
Belt adjustment bracket hole 1: M8
Pulley diameter: 58.50
Grooves/pulley: 6
Radius: 101.00
Radius 2: 89.00
B+: M8
Position/B+ in min.: 60
D+ Size: Plug
Rotation: CW
Plug no.: PL100
Total length mm: 185.00
Pulley: SP
Regulator type: IR
Product information: BN

Files

  • OEM
    A0002655524, F032115855, ja1903ir, 1986A00040, 37300-37800, 2655524

  • Normalised article numbler
    a0002655524, a3217, cal32146, dra0417, f032115855, j5110528, ja1903ir, lra02985, 8el738212511, 0986ur0141, 1986a00040, 11188, 11188n, 11188r, 113388, 210647, 210647a, 285599, 401903ri, 600093, 600758, 2655524, 9090541, 12060905, 2261921202, 3730037800
  • Description
    Voltage: 14
    Amp: 120
    Pulley dist.: 43.50
    Width/holder arm: 23.00
    Mounting bracket dist.: 44.00
    Bracket hole: 10.50
    Belt adjustment bracket hole position.: 10
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 58.50
    Grooves/pulley: 6
    Radius: 101.00
    Radius 2: 89.00
    B+: M8
    Position/B+ in min.: 60
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL100
    Total length mm: 185.00
    Pulley: SP
    Regulator type: IR
    Product information: BN

    Files

  • Suitable for these vehicles

    • OEM
      A0002655524, F032115855, ja1903ir, 1986A00040, 37300-37800, 2655524

    • Normalised article numbler
      a0002655524, a3217, cal32146, dra0417, f032115855, j5110528, ja1903ir, lra02985, 8el738212511, 0986ur0141, 1986a00040, 11188, 11188n, 11188r, 113388, 210647, 210647a, 285599, 401903ri, 600093, 600758, 2655524, 9090541, 12060905, 2261921202, 3730037800
