HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032111384

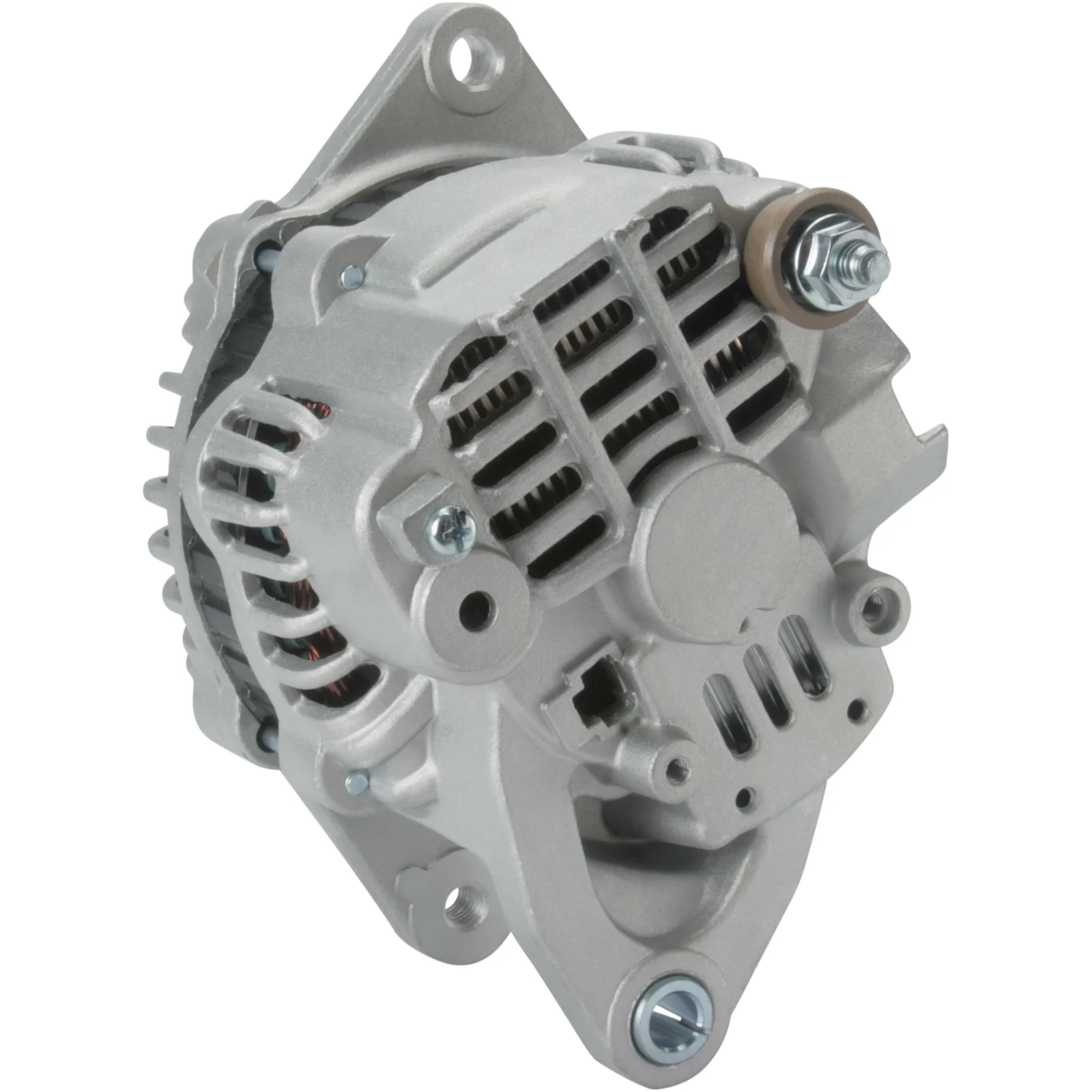

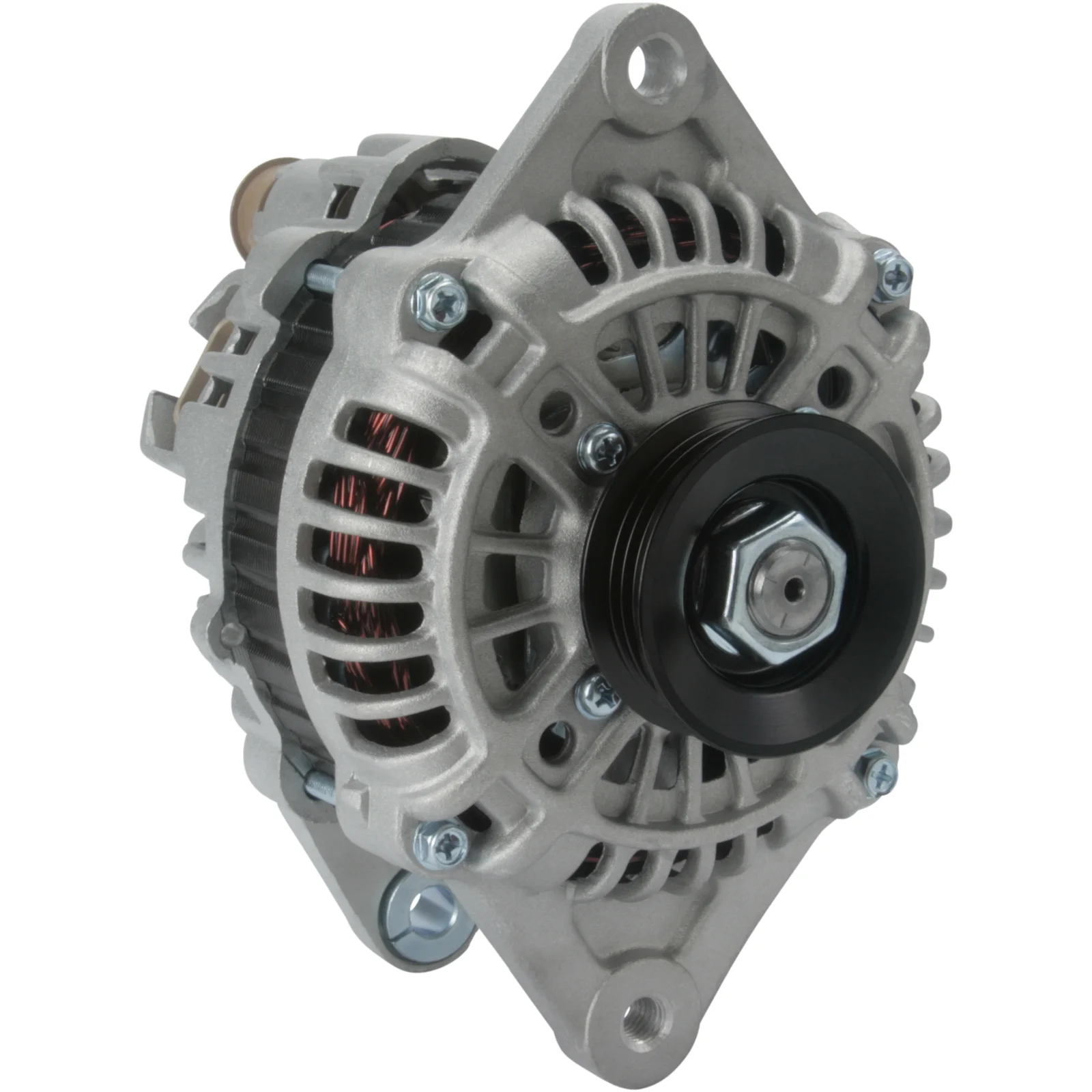

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 70, Rotation: CW, Mounting bracket distributor: 67.50

Description

Mazda Alternator 12V-70A, (P, D) 12V - 70A, (P, D) Does not have a regular regulator, but a semi-circuit. Test adapter = 89-8218, the data box controls the charging. Must not be tested as a regular S-L regulator. For Yourex product order 90-360-0091

Voltage: 14
Ampere: 70
Pulley distance: 37.50
Width/holder arm: 13.00
Mounting bracket distance: 67.50
Bracket hole: M10
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: 9.50
Pulley diameter: 55.00
Grooves/pulley: 4
Radius: 89.00
Radius 2: 85.00
B+: M8
Position/B+ in min.: 4
D+ Size: Plug
Rotation: CW
Plug number: PL54
Total length mm: 172.00
Pulley: SP
Fan: IF
Regulator type: IR
Product info: BN
Servicing: Mazda
Remarks: ECU controlled

Files

  • OEM
    A002TB0091, A002TB0091A, A002TB0091B, A002TB2391, A002TB6191, A002TB6192, A2T-B0091, a2tb0091, a2tb0091a, a2tb0091b, a2tb2391, A2TB6191, A2TB6192, B34P-18-300A, B34P-18-400, B34P-18-400A, B5D8-18-300A, BP4W-18-300, BP4W-18-300C, F032111384, ja1283, lr170-758, Z599-18-300, Z599-18-300A, Z599-18-300B, Z599-18-300C, z599-18-300d, z599-18-300e, Z599-18-300R, Z5A1-18-300, 111384

  • Normalised article numbler
    a002tb0091, a002tb0091a, a002tb0091b, a002tb2391, a002tb6191, a002tb6192, a2tb0091, a2tb0091a, a2tb0091b, a2tb2391, a2tb6191, a2tb6192, a5185, alt3071d, b34p18300a, b34p18400, b34p18400a, b5d818300a, bp4w18300, bp4w18300c, cal35143, dra1473, dra3683, dra4087, f032111384, f042303042, f042a03042, j5113046, j5113059, ja1283, lr170758, lra01143, z59918300, z59918300a, z59918300b, z59918300c, z59918300d, z59918300e, z59918300r, z5a118300, 8el012429601, 8el737414001, 5922, 13718, 13718n, 13788n, 13788r, 23919r, 111384, 111517, 119050, 119480, 209487, 209487a, 272853, 273829, 276857, 401283, 437650, 1206101mi, 9212871, 12060733, 145575070, 224139702, 224147702, 224312702, 0986045551
  • Description
    Mazda Alternator 12V-70A, (P, D) 12V - 70A, (P, D) Does not have a regular regulator, but a semi-circuit. Test adapter = 89-8218, the data box controls the charging. Must not be tested as a regular S-L regulator. For Yourex product order 90-360-0091

    Voltage: 14
    Ampere: 70
    Pulley distance: 37.50
    Width/holder arm: 13.00
    Mounting bracket distance: 67.50
    Bracket hole: M10
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: 9.50
    Pulley diameter: 55.00
    Grooves/pulley: 4
    Radius: 89.00
    Radius 2: 85.00
    B+: M8
    Position/B+ in min.: 4
    D+ Size: Plug
    Rotation: CW
    Plug number: PL54
    Total length mm: 172.00
    Pulley: SP
    Fan: IF
    Regulator type: IR
    Product info: BN
    Servicing: Mazda
    Remarks: ECU controlled

    Files

  • Suitable for these vehicles

    • OEM
      A002TB0091, A002TB0091A, A002TB0091B, A002TB2391, A002TB6191, A002TB6192, A2T-B0091, a2tb0091, a2tb0091a, a2tb0091b, a2tb2391, A2TB6191, A2TB6192, B34P-18-300A, B34P-18-400, B34P-18-400A, B5D8-18-300A, BP4W-18-300, BP4W-18-300C, F032111384, ja1283, lr170-758, Z599-18-300, Z599-18-300A, Z599-18-300B, Z599-18-300C, z599-18-300d, z599-18-300e, Z599-18-300R, Z5A1-18-300, 111384

    • Normalised article numbler
      a002tb0091, a002tb0091a, a002tb0091b, a002tb2391, a002tb6191, a002tb6192, a2tb0091, a2tb0091a, a2tb0091b, a2tb2391, a2tb6191, a2tb6192, a5185, alt3071d, b34p18300a, b34p18400, b34p18400a, b5d818300a, bp4w18300, bp4w18300c, cal35143, dra1473, dra3683, dra4087, f032111384, f042303042, f042a03042, j5113046, j5113059, ja1283, lr170758, lra01143, z59918300, z59918300a, z59918300b, z59918300c, z59918300d, z59918300e, z59918300r, z5a118300, 8el012429601, 8el737414001, 5922, 13718, 13718n, 13788n, 13788r, 23919r, 111384, 111517, 119050, 119480, 209487, 209487a, 272853, 273829, 276857, 401283, 437650, 1206101mi, 9212871, 12060733, 145575070, 224139702, 224147702, 224312702, 0986045551
