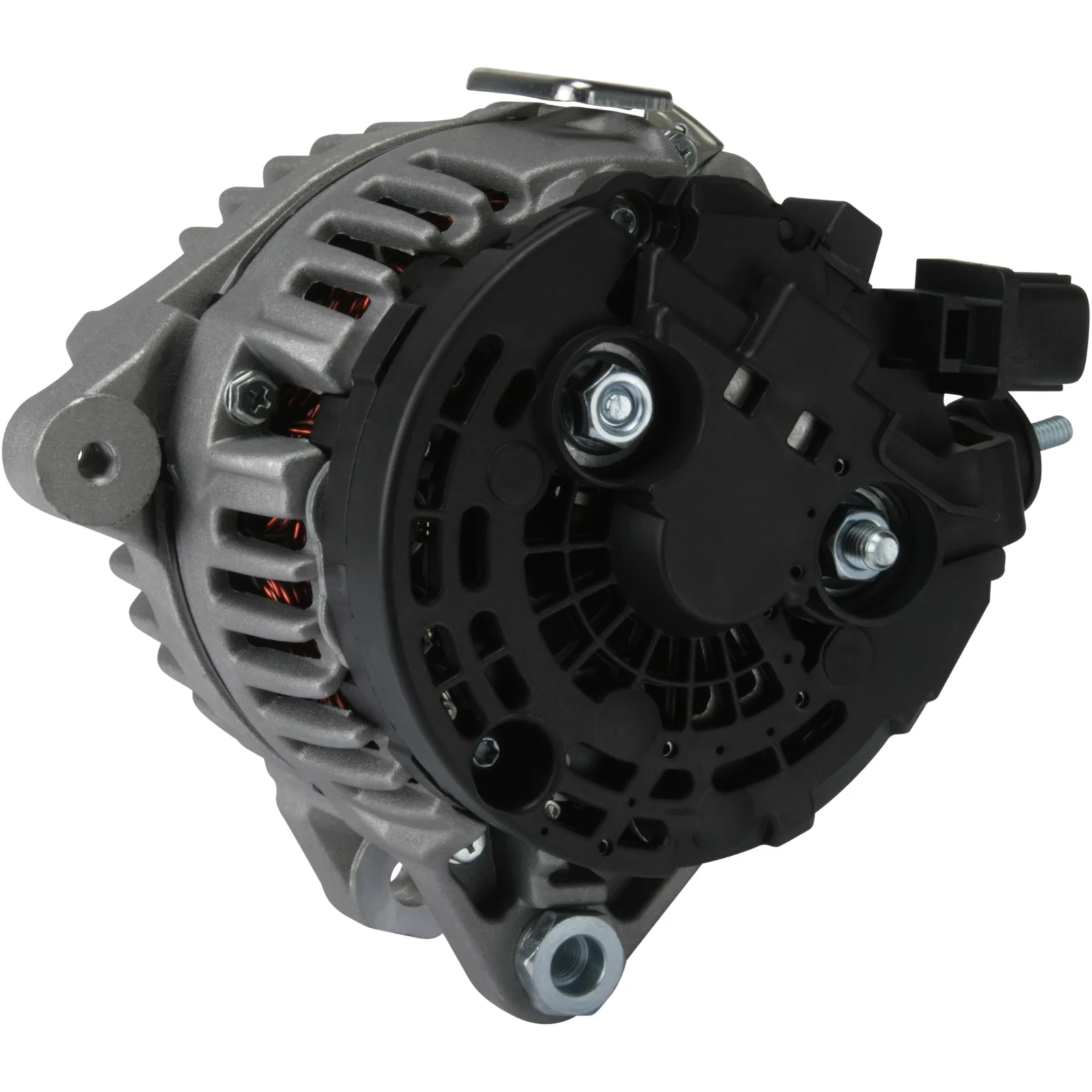

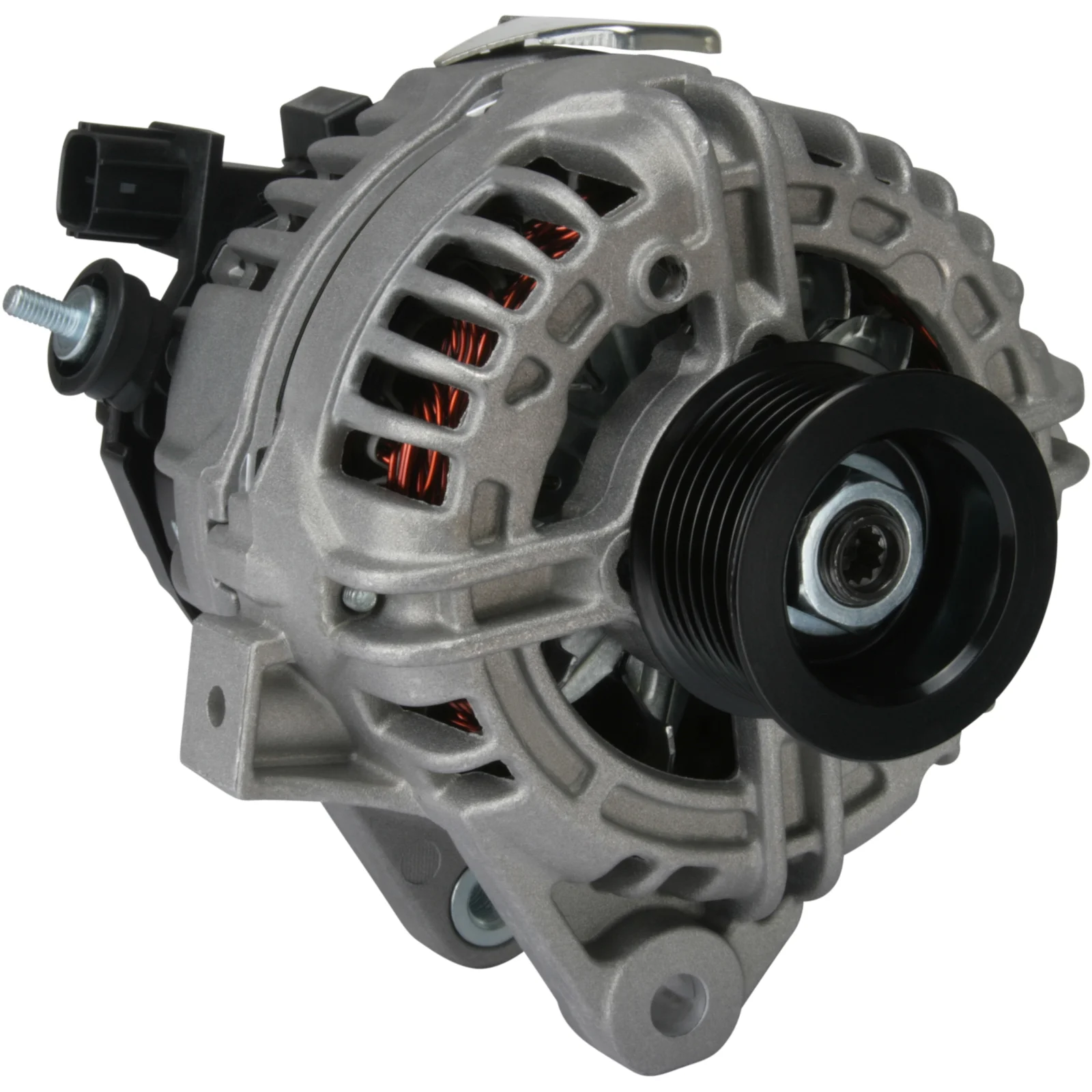

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115416

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 100, Rotation: CW, Mounting bracket distance: 45.00

Description

Toyota Avensis Alternator 12V-100A 12V - 100A, 7 grooves (S, IG, L, DFM) Option: 90-555-2823 Densodesign For Yourrex product order 90-555-4612

Voltage: 14
Amp: 100
Pulley dist.: 35.00
Width/holder arm: 18.00
Mount. bracket dist.: 45.00
Bracket hole: 11.00
Belt. adj. brackethole pos.: 15
Belt. adj. bracket hole 1: M8
Pulley dia.: 55.50
Grooves/pulley: 7
Radius: 84.00
Radius 2: 86.00
B+: M6
Position/B+ in min.: 12
Rotation: CW
Plug no.: PL78
Pulley: SP
Regulator type: IR
Prod. info: BN

Files

  • OEM
    F032115416, 0124 325 085, 0124 325 086, 0986 046 120, 1907ir, 1986A00795, 27060-0H070, 27060-0h070, 27060-0H080, 27060-0H221, 115416, 0124325071, 0124325082, 0124325084, 0124325085, 0124325086

  • Normalised article numbler
    a0224, a0646s, a0740s, a6055denso, a6055p, cal40209, drb6120, f032115416, lra03500, 8el738212721, 1907ir, 1986a00795, 11088, 11088n, 115416, 209366, 209366a, 270600h070, 270600h080, 270600h221, 286610, 301907ri, 440843, 443022, 12060778, 0124325071, 0124325082, 0124325084, 0124325085, 0124325086, 195530100, 195530110, 0986046120, 0986046123
  • Description
    Toyota Avensis Alternator 12V-100A 12V - 100A, 7 grooves (S, IG, L, DFM) Option: 90-555-2823 Densodesign For Yourrex product order 90-555-4612

    Voltage: 14
    Amp: 100
    Pulley dist.: 35.00
    Width/holder arm: 18.00
    Mount. bracket dist.: 45.00
    Bracket hole: 11.00
    Belt. adj. brackethole pos.: 15
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 55.50
    Grooves/pulley: 7
    Radius: 84.00
    Radius 2: 86.00
    B+: M6
    Position/B+ in min.: 12
    Rotation: CW
    Plug no.: PL78
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032115416, 0124 325 085, 0124 325 086, 0986 046 120, 1907ir, 1986A00795, 27060-0H070, 27060-0h070, 27060-0H080, 27060-0H221, 115416, 0124325071, 0124325082, 0124325084, 0124325085, 0124325086

    • Normalised article numbler
      a0224, a0646s, a0740s, a6055denso, a6055p, cal40209, drb6120, f032115416, lra03500, 8el738212721, 1907ir, 1986a00795, 11088, 11088n, 115416, 209366, 209366a, 270600h070, 270600h080, 270600h221, 286610, 301907ri, 440843, 443022, 12060778, 0124325071, 0124325082, 0124325084, 0124325085, 0124325086, 195530100, 195530110, 0986046120, 0986046123
