Article no.: F032111937

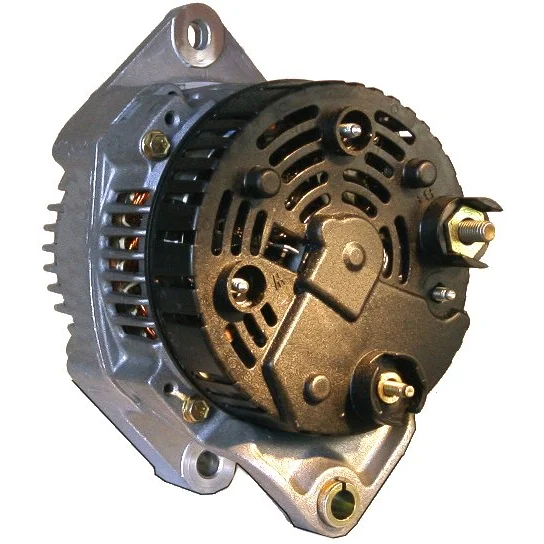

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 75, Rotation: CW, Mounting bracket distance: 66.00

Description

Voltage: 14
Amp: 75
Terminal: W
Pulley dist.: 52.00
Width/holder arm: 27.00
Mounting bracket dist.: 66.00
Bracket hole: 10.50
Belt adjustment bracket hole position.: 60
Belt adjustment bracket hole 1: 8.30
Pulley diameter: 52.00
Grooves/pulley: 6
Radius: 86.00
Radius 2: 84.00
B+: M8
Position/B+ in min.: 3
D+ Size: M5
Rotation: CW
W plug type: 6.30
Total length mm: 192.00
Pulley: Alternator
Regulator type: IR
Product info: BN
Servicing: Opel

Files

  • OEM
    a11vi81, F032111937, 1343ir, 1986A00678, 1986A01182, 2541928, 2541928A, 4500044, 9160344, 7700300407, 7711134617

  • Normalised article numbler
    a11vi81, a3187, a3187pr, a3379pr, alt14107, alth068, cal15170, dra3735, f032111937, f042a0h068, lrb00419, qa2389, 8el012430211, 8el737539001, 1343ir, 1986a00678, 1986a01182, 4952, 6005, 21419r, 119674, 200119, 210676, 210676a, 283727, 436706, 439182, 746083, 746883, 2541928, 2541928a, 4500044, 9042031, 9160344, 12042030, 32042031, 230172752, 575595075, 0986042031, 0986042033, 7700300407, 7711134617, 943355149010, 944390420310
  • Description
    Voltage: 14
    Amp: 75
    Terminal: W
    Pulley dist.: 52.00
    Width/holder arm: 27.00
    Mounting bracket dist.: 66.00
    Bracket hole: 10.50
    Belt adjustment bracket hole position.: 60
    Belt adjustment bracket hole 1: 8.30
    Pulley diameter: 52.00
    Grooves/pulley: 6
    Radius: 86.00
    Radius 2: 84.00
    B+: M8
    Position/B+ in min.: 3
    D+ Size: M5
    Rotation: CW
    W plug type: 6.30
    Total length mm: 192.00
    Pulley: Alternator
    Regulator type: IR
    Product info: BN
    Servicing: Opel

    Files

  • Suitable for these vehicles

    • OEM
      a11vi81, F032111937, 1343ir, 1986A00678, 1986A01182, 2541928, 2541928A, 4500044, 9160344, 7700300407, 7711134617

    • Normalised article numbler
      a11vi81, a3187, a3187pr, a3379pr, alt14107, alth068, cal15170, dra3735, f032111937, f042a0h068, lrb00419, qa2389, 8el012430211, 8el737539001, 1343ir, 1986a00678, 1986a01182, 4952, 6005, 21419r, 119674, 200119, 210676, 210676a, 283727, 436706, 439182, 746083, 746883, 2541928, 2541928a, 4500044, 9042031, 9160344, 12042030, 32042031, 230172752, 575595075, 0986042031, 0986042033, 7700300407, 7711134617, 943355149010, 944390420310
