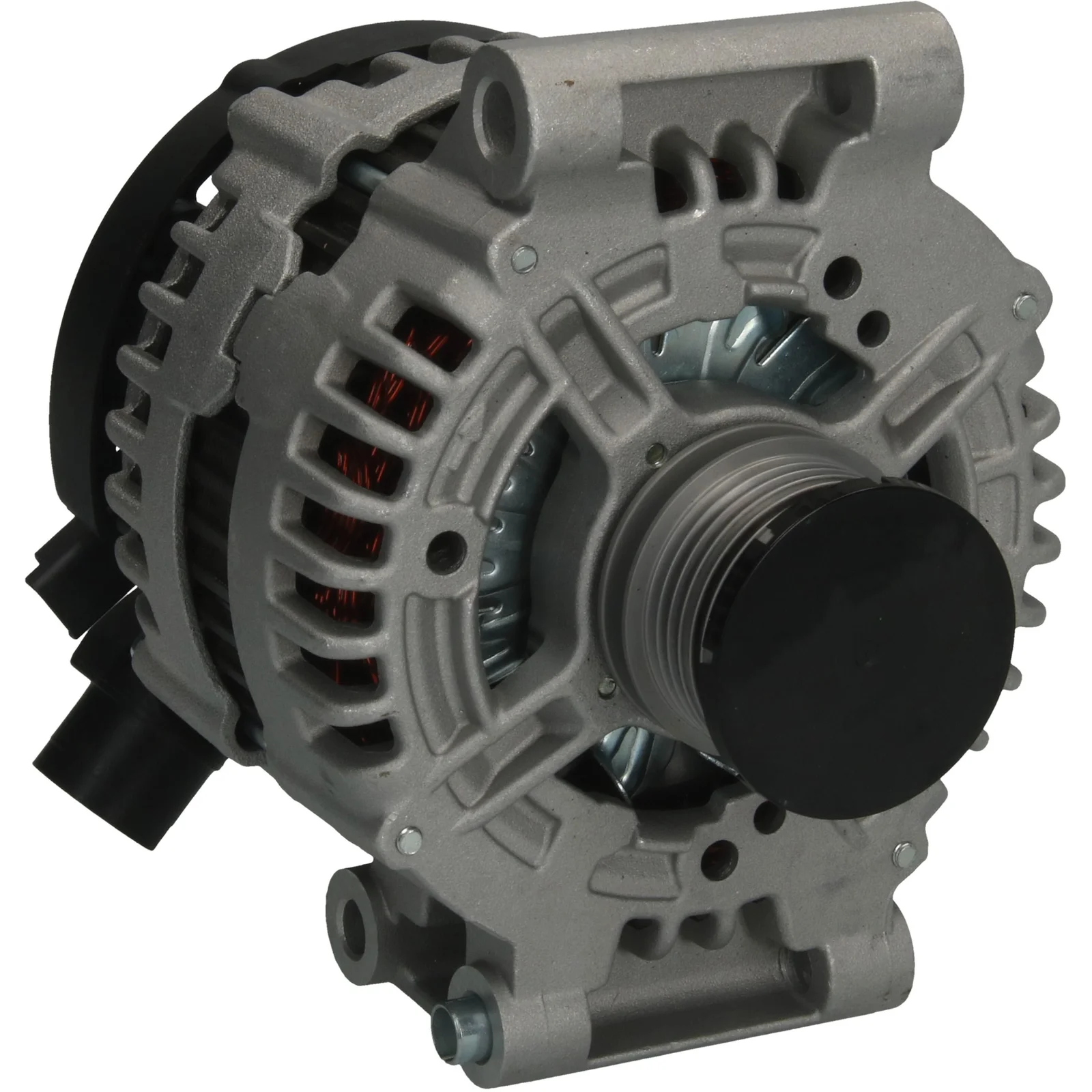

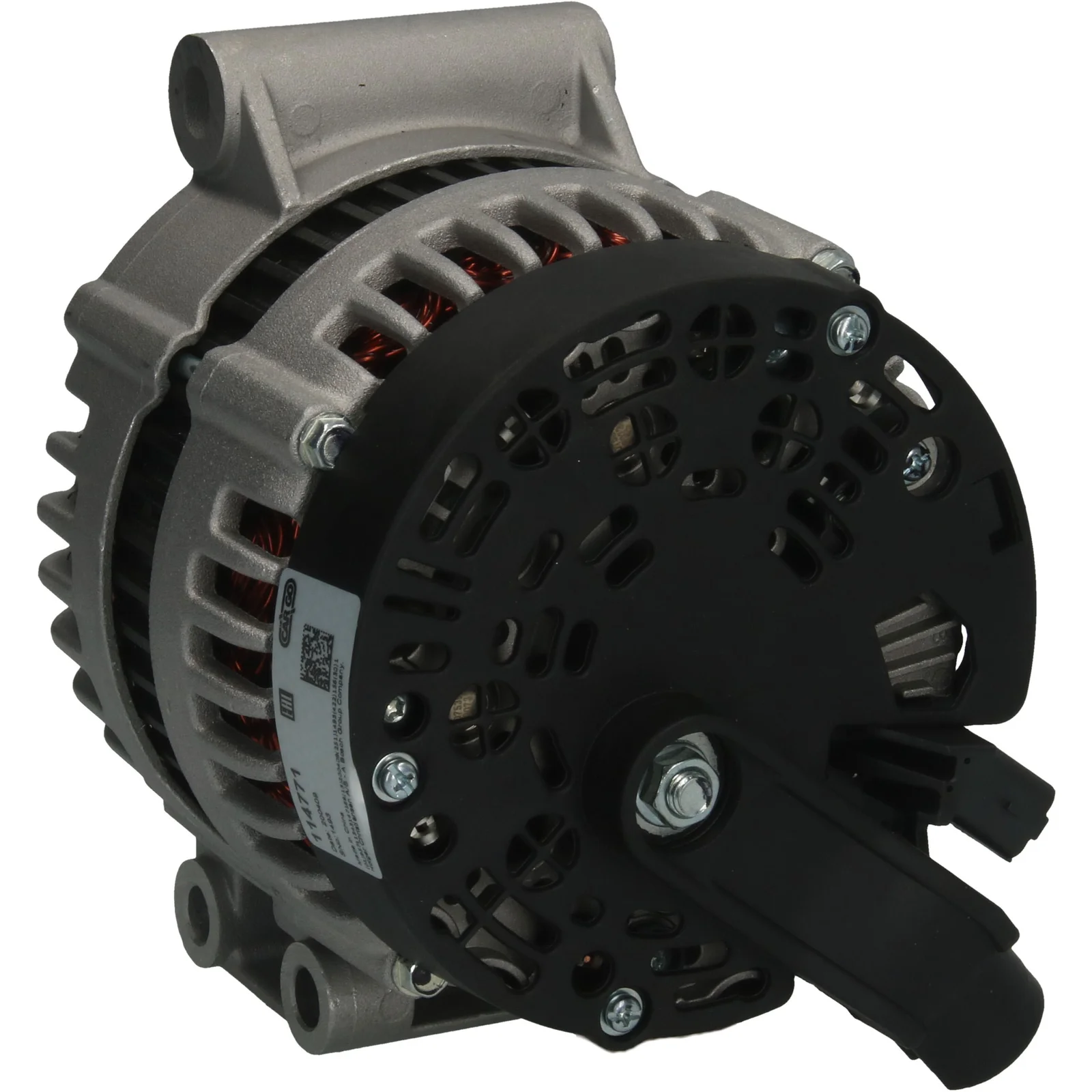

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114771

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 150, Rotation: CW, Pulley dia.: 49.00

Description

PSA/Mini Alternator 12V-150A, 6gr 12V - 150A, 6gr (BSS, - ) ID code: 1 (COM/BSS) For Yourex product order 90-450-8182

Voltage: 14
Amp: 150
Pulley dist.: 26.80
Width/holder arm: 80.00
Belt. adj. bracket hole 1: 11.00
Pulley dia.: 49.00
Grooves/pulley: 6
Radius: 78.00
Radius 2: 78.00
B+: M8
Position/B+ in min.: 35
Rotation: CW
Plug no.: PL129
Total length mm: 185.00
Terminal type: COM
Communication: BSS
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032114771, FG15T 044, FG15T 072, PEU 5702 L3, PEU 5705 KF, PEU 5705 NR, V755300980, v757436580, V757712180, 0121 615 012, 0121 615 027, 0121 615 127, 0125 711 011, 0125 711 078, 1231 7575650, 1231 7575779, 1231 7575873, 1231 7604782, 1231 7613445, 1986A01042, 1986A01257, 2006ir, 114771, 440351, 7553009, 7562388, 7574365, 7575872, 7575873, 7576550, 7604782, 7613445, 0121615012, 0121615027, 0121615127, 0125711011, 0125711078, 9666997980, 9666998080, 12317553009, 12317562388, 12317574365, 12317575650, 12317575872, 12317575873, 12317576550, 12317604782, 12317613445

  • Normalised article numbler
    a0280, a0280pr, a0293, a0528, a0528pr, a3382s, cal10435, cal15415, dra0214, dra0554, f032114771, fg15t044, fg15t072, lra02966, peu5702l3, peu5705kf, peu5705nr, v755300980, v757436580, v757712180, 8el012430051, 8el738212391, 1986a01042, 1986a01257, 2006ir, 5702g3, 5705h9, 5705jg, 5705kf, 11335n, 11336r, 23561n, 23561r, 113046, 114771, 209031, 209031a, 210828, 210828a, 285580, 302006ri, 440351, 443043, 553835ri, 7553009, 7562388, 7574365, 7575872, 7575873, 7576550, 7604782, 7613445, 9090816, 32048740, 0121615012, 0121615027, 0121615127, 0125711011, 0125711078, 215550156, 225511150, 225555150, 455531150, 0986048740, 0986048743, 0986048747, 0986081820, 0986081827, 9666997980, 9666998080, 12317553009, 12317562388, 12317574365, 12317575650, 12317575779, 12317575872, 12317575873, 12317576550, 12317604782, 12317613445
  • Description
    PSA/Mini Alternator 12V-150A, 6gr 12V - 150A, 6gr (BSS, - ) ID code: 1 (COM/BSS) For Yourex product order 90-450-8182

    Voltage: 14
    Amp: 150
    Pulley dist.: 26.80
    Width/holder arm: 80.00
    Belt. adj. bracket hole 1: 11.00
    Pulley dia.: 49.00
    Grooves/pulley: 6
    Radius: 78.00
    Radius 2: 78.00
    B+: M8
    Position/B+ in min.: 35
    Rotation: CW
    Plug no.: PL129
    Total length mm: 185.00
    Terminal type: COM
    Communication: BSS
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032114771, FG15T 044, FG15T 072, PEU 5702 L3, PEU 5705 KF, PEU 5705 NR, V755300980, v757436580, V757712180, 0121 615 012, 0121 615 027, 0121 615 127, 0125 711 011, 0125 711 078, 1231 7575650, 1231 7575779, 1231 7575873, 1231 7604782, 1231 7613445, 1986A01042, 1986A01257, 2006ir, 114771, 440351, 7553009, 7562388, 7574365, 7575872, 7575873, 7576550, 7604782, 7613445, 0121615012, 0121615027, 0121615127, 0125711011, 0125711078, 9666997980, 9666998080, 12317553009, 12317562388, 12317574365, 12317575650, 12317575872, 12317575873, 12317576550, 12317604782, 12317613445

    • Normalised article numbler
      a0280, a0280pr, a0293, a0528, a0528pr, a3382s, cal10435, cal15415, dra0214, dra0554, f032114771, fg15t044, fg15t072, lra02966, peu5702l3, peu5705kf, peu5705nr, v755300980, v757436580, v757712180, 8el012430051, 8el738212391, 1986a01042, 1986a01257, 2006ir, 5702g3, 5705h9, 5705jg, 5705kf, 11335n, 11336r, 23561n, 23561r, 113046, 114771, 209031, 209031a, 210828, 210828a, 285580, 302006ri, 440351, 443043, 553835ri, 7553009, 7562388, 7574365, 7575872, 7575873, 7576550, 7604782, 7613445, 9090816, 32048740, 0121615012, 0121615027, 0121615127, 0125711011, 0125711078, 215550156, 225511150, 225555150, 455531150, 0986048740, 0986048743, 0986048747, 0986081820, 0986081827, 9666997980, 9666998080, 12317553009, 12317562388, 12317574365, 12317575650, 12317575779, 12317575872, 12317575873, 12317576550, 12317604782, 12317613445
