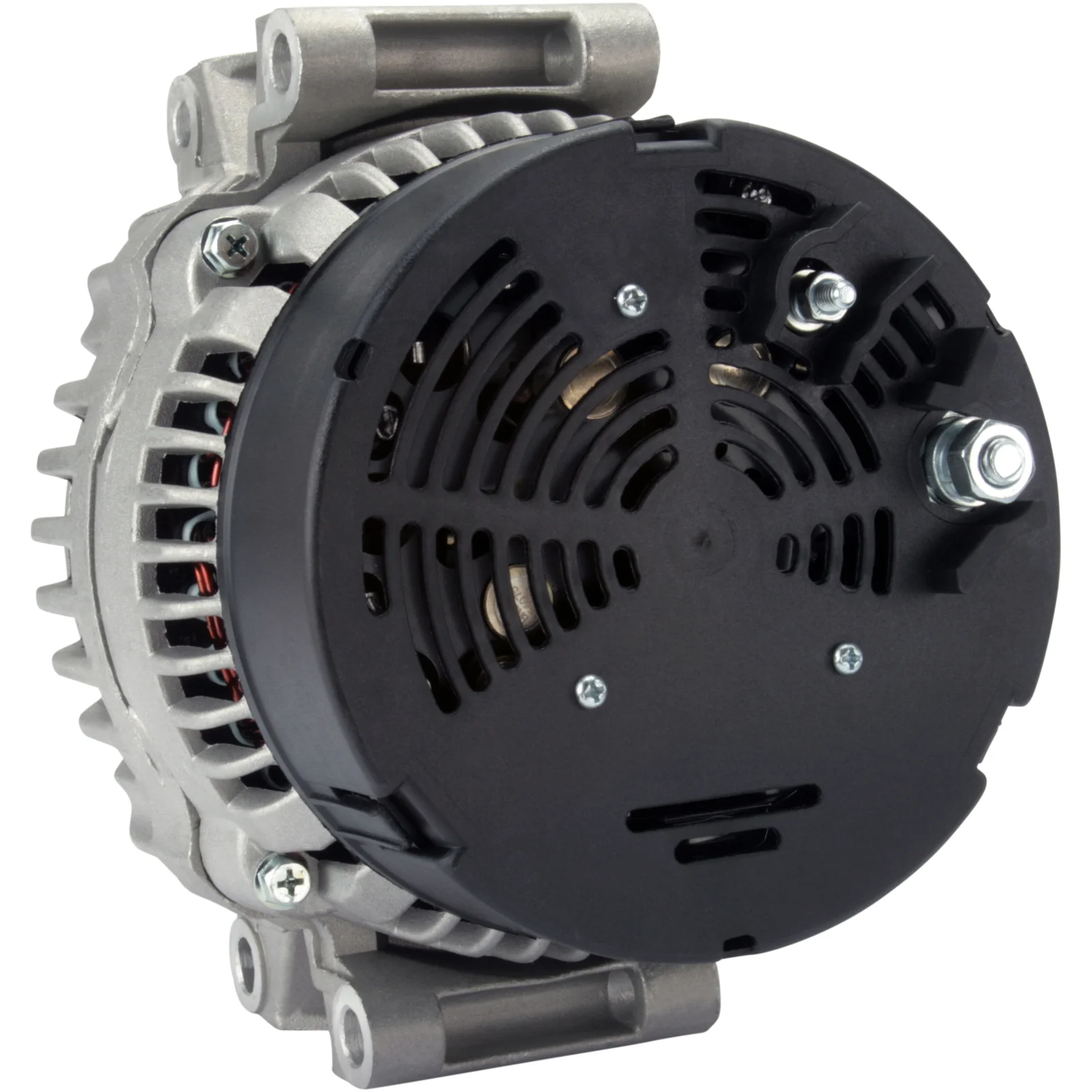

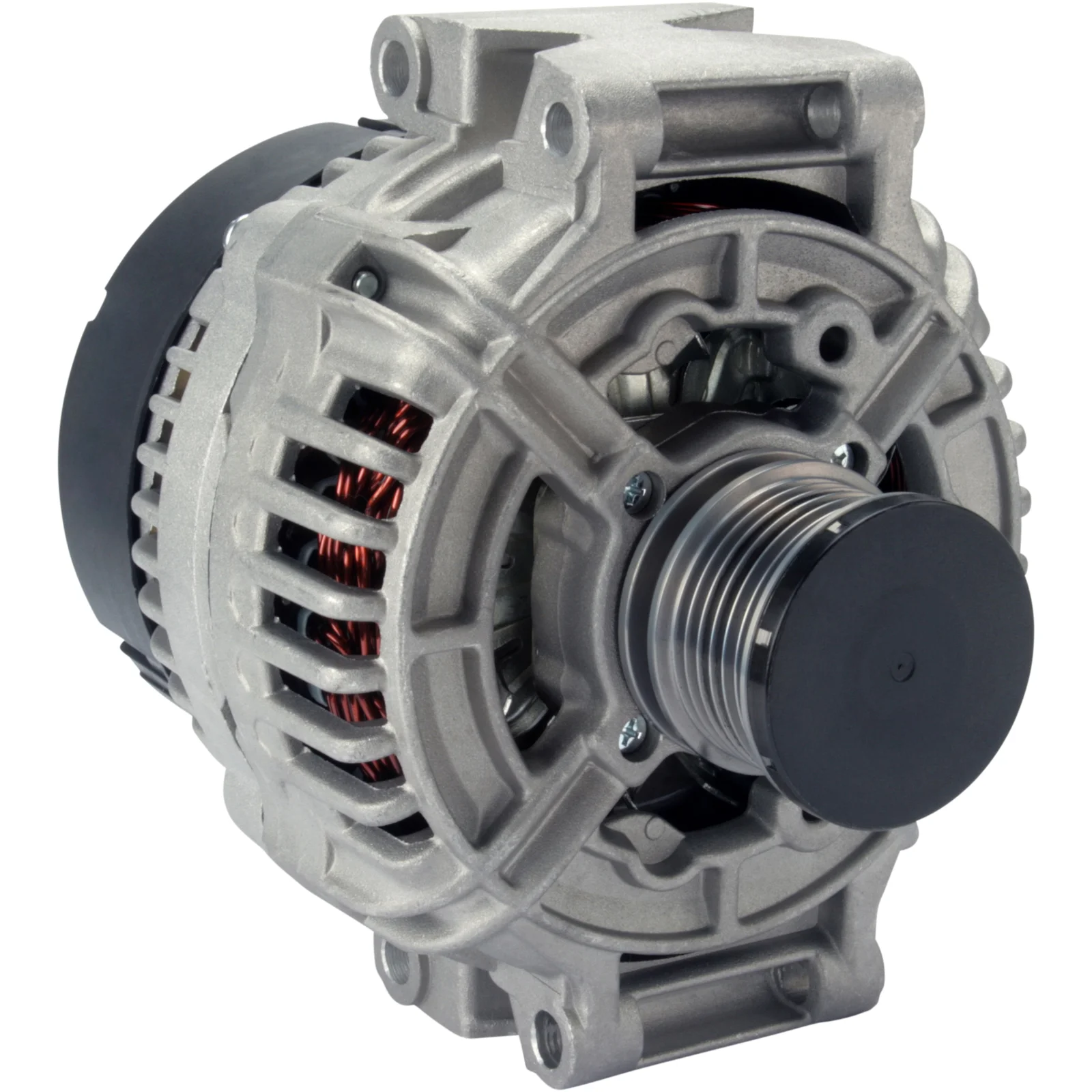

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032112197

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 115, Rotation: CW, Mounting bracket distance: 56.00

Description

Voltage: 14
Amp: 115
Pulley Distributor: 31.00
Width/holder arm: 69.80
Mounting bracket distance: 56.00
Bracket hole: 9.00
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: 9.00
Pulley diameter: 49.50
Grooves/pulley: 6
B+: M8
Position/B+ in minutes: 15
D+ Size: M5
Rotation: CW
Total length mm: 176.00
Pulley: SP/FW
Voltage regulator type: IR
Product info: BN
Servicing: Mercedes-Benz

Files

  • OEM
    A0101545902, A010154590280, A0101549602, A010154960280, A0111540902, A011154090280, A0111547802, A011154780280, A011154780285, A0121541502, A0121542402, A012154240280, A0121545402, A012154540280, A0131541502, A013154150280, A0131543402, A013154340280, aan5572, F032112197, sg12b087, 11.209.440, 1481ir, 1986A00653, 1516475R, 05103886AA, 5103886AA, 05134204AA, 05134204AB, 5134204AA, 5134204AB, 0101545902, 0101549502, 0101549602, 0111540902, 0111547802, 0121542402, 0121545402, 0123510082, 0123510107, 0123510108, 0124515064, 0124515091, 0124515114, 0124515118, 0124515213, 0124515216, 0131541502, 0131543402, 1024515061, 010154590280, 010154960280, 011154090280, 011154780280, 011154780285, 012154240280, 012154540280, 013154150280, 013154340280

  • Normalised article numbler
    a0035, a0035p, a0035pina, a0101545902, a010154590280, a0101549602, a010154960280, a0111540902, a011154090280, a0111547802, a011154780280, a011154780285, a0121541502, a0121542402, a012154240280, a0121545402, a012154540280, a0131541502, a013154150280, a0131543402, a013154340280, a0169p, a0548s, aan5572, alt10295, alt10399, alt2300, alt2300u, bax1141017, cal10142, cal15323, drb1530, drb1590, drb3660, drb3900, drb3900n, f032112197, f042301149, f042301150, f042a01149, f042a01150, ia9425, lra01861, mg448, sg12b087, 8el011710421, 8el011711511, 8el737707001, 1481ir, 1986a00653, 4070, 4260, 4802, 5793, 12383n6gn, 12383r, 23020n, 111497, 111498, 119788, 119790, 200069, 200083, 200132, 210059, 210059a, 210272, 210272a, 283720, 287901, 301481ri, 437540, 437625, 439540, 440987, 443467, 746945, 746987, 1516475r, 05103886aa, 5103886aa, 05134204aa, 05134204ab, 5134204aa, 5134204ab, 9041590, 9043900, 9212334, 11209440, 12041590, 12043660, 12043900, 32041590, 0101545902, 0101549502, 0101549602, 0111540902, 0111547802, 0121542402, 0121545402, 0123510082, 0123510107, 0123510108, 0124515064, 0124515091, 0124515114, 0124515118, 0124515213, 0124515216, 0131541502, 0131543402, 0986041566, 0986041590, 0986041593, 0986041596, 0986043660, 0986043663, 0986043900, 0986043903, 0986043907, 1024515061, 2251311152, 2251311202, 010154590280, 010154960280, 011154090280, 011154780280, 011154780285, 012154240280, 012154540280, 013154150280, 013154340280, 943355135010, 944390415900, 944399425200
  • Description
    Voltage: 14
    Amp: 115
    Pulley Distributor: 31.00
    Width/holder arm: 69.80
    Mounting bracket distance: 56.00
    Bracket hole: 9.00
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: 9.00
    Pulley diameter: 49.50
    Grooves/pulley: 6
    B+: M8
    Position/B+ in minutes: 15
    D+ Size: M5
    Rotation: CW
    Total length mm: 176.00
    Pulley: SP/FW
    Voltage regulator type: IR
    Product info: BN
    Servicing: Mercedes-Benz

    Files

  • Suitable for these vehicles

    • OEM
      A0101545902, A010154590280, A0101549602, A010154960280, A0111540902, A011154090280, A0111547802, A011154780280, A011154780285, A0121541502, A0121542402, A012154240280, A0121545402, A012154540280, A0131541502, A013154150280, A0131543402, A013154340280, aan5572, F032112197, sg12b087, 11.209.440, 1481ir, 1986A00653, 1516475R, 05103886AA, 5103886AA, 05134204AA, 05134204AB, 5134204AA, 5134204AB, 0101545902, 0101549502, 0101549602, 0111540902, 0111547802, 0121542402, 0121545402, 0123510082, 0123510107, 0123510108, 0124515064, 0124515091, 0124515114, 0124515118, 0124515213, 0124515216, 0131541502, 0131543402, 1024515061, 010154590280, 010154960280, 011154090280, 011154780280, 011154780285, 012154240280, 012154540280, 013154150280, 013154340280

    • Normalised article numbler
      a0035, a0035p, a0035pina, a0101545902, a010154590280, a0101549602, a010154960280, a0111540902, a011154090280, a0111547802, a011154780280, a011154780285, a0121541502, a0121542402, a012154240280, a0121545402, a012154540280, a0131541502, a013154150280, a0131543402, a013154340280, a0169p, a0548s, aan5572, alt10295, alt10399, alt2300, alt2300u, bax1141017, cal10142, cal15323, drb1530, drb1590, drb3660, drb3900, drb3900n, f032112197, f042301149, f042301150, f042a01149, f042a01150, ia9425, lra01861, mg448, sg12b087, 8el011710421, 8el011711511, 8el737707001, 1481ir, 1986a00653, 4070, 4260, 4802, 5793, 12383n6gn, 12383r, 23020n, 111497, 111498, 119788, 119790, 200069, 200083, 200132, 210059, 210059a, 210272, 210272a, 283720, 287901, 301481ri, 437540, 437625, 439540, 440987, 443467, 746945, 746987, 1516475r, 05103886aa, 5103886aa, 05134204aa, 05134204ab, 5134204aa, 5134204ab, 9041590, 9043900, 9212334, 11209440, 12041590, 12043660, 12043900, 32041590, 0101545902, 0101549502, 0101549602, 0111540902, 0111547802, 0121542402, 0121545402, 0123510082, 0123510107, 0123510108, 0124515064, 0124515091, 0124515114, 0124515118, 0124515213, 0124515216, 0131541502, 0131543402, 0986041566, 0986041590, 0986041593, 0986041596, 0986043660, 0986043663, 0986043900, 0986043903, 0986043907, 1024515061, 2251311152, 2251311202, 010154590280, 010154960280, 011154090280, 011154780280, 011154780285, 012154240280, 012154540280, 013154150280, 013154340280, 943355135010, 944390415900, 944399425200
