HC-Cargo Alternator

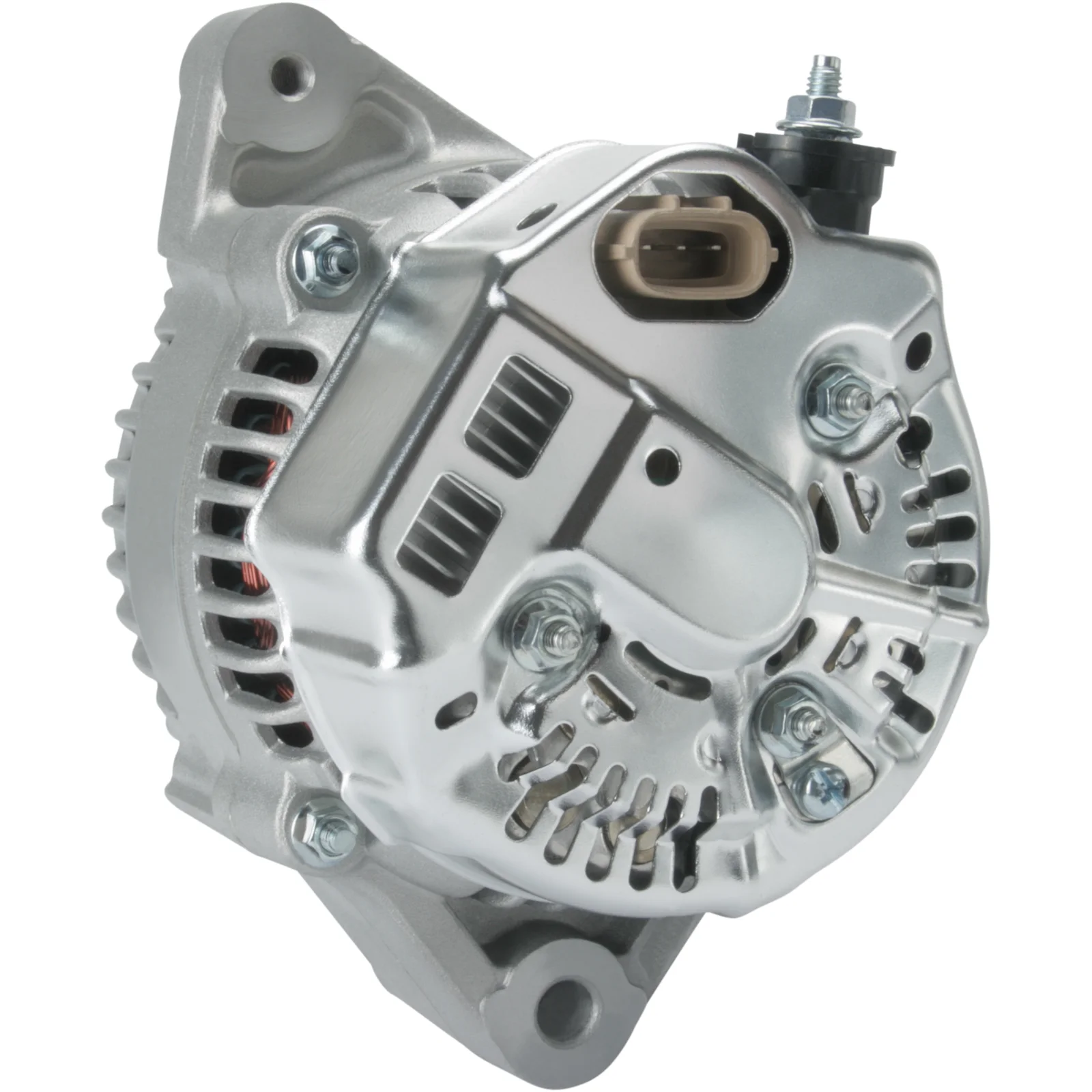

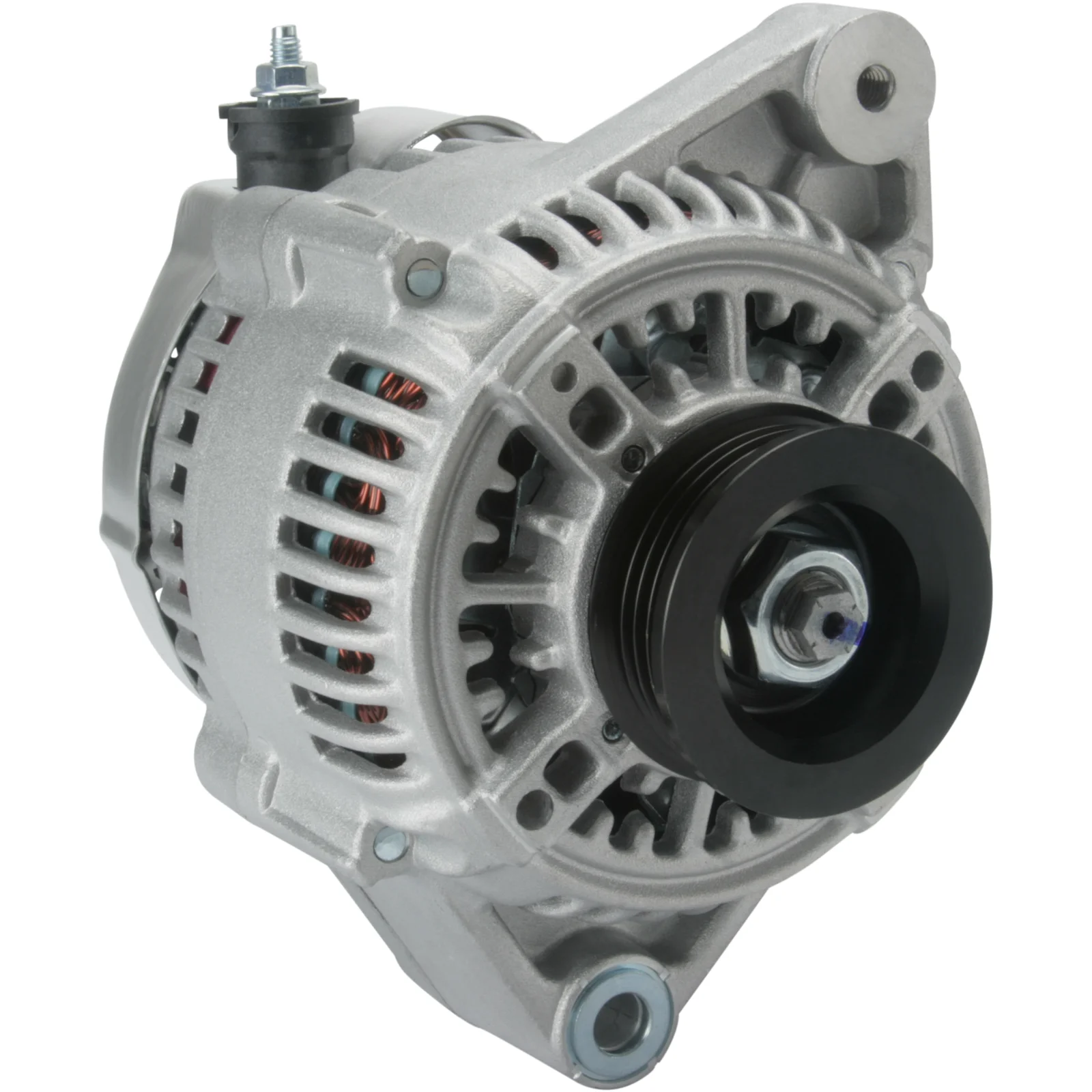

HC-Cargo Alternator
Article no.: F032111518

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 70, Rotation: CW, Pulley dia.: 59.50

Description

Toyota Corolla 1.3 Alternator 12V-70A 12V - 70A, 4-rib pulley, (S, IG, L) 12V - 70A, 4-rib pulley, (S-IG-L) For Yourex product order 90-555-1127

Voltage: 14
Amp: 70
Pulley distance: 89.00
Width/holder arm: 58.00
Bracket hole: 10.20
Belt adjustment bracket hole position: 5
Belt adjustment bracket hole 1: M8
Pulley diameter: 59.50
Grooves/pulley: 4
Radius: 79.00
Radius 2: 85.50
B+: M6
Position/B+ in min.: 5
D+ Size: Plug
Rotation: CW
Plug no.: PL42
Total length mm: 155.00
Terminal type: L-IG-S
Pulley: SPA
Regulator type: IR
Prod. info: BN
Servicing: Toyota

Files

  • OEM
    F032111518, ja1178ir, 1986A01276, 27060-11170, 27060-11270, 27060-11280, 27060-11281, 27060-11320, 27060-11340, 27060-55060, 27060-55070, 101211-0050, 101211-0051, 101211-0052, 101211-0340, 101211-0341, 101211-0342, 101211-0430, 101211-0431, 101211-0432, 101211-0740, 101211-0741, 101211-5150, 101211-5151, 101211-5970, 102211-5090, 102211-5091, 111518

  • Normalised article numbler
    a6009, al3249x, al3262x, alt5062, cal40140, dra3506, dra3508, f032111518, f042302053, f042a02053, j5112088, ja1178ir, lrb00212, lrb00337, qa2017, 8el012426621, 8el012427891, 8el737063001, 8el737321001, 1986a01276, 3142n, 3142r, 5478, 5666, 13457, 13457n, 13486n, 13486r, 13489r, 13711n, 13711r, 21337r, 40988ri, 56408, 111518, 118950, 119391, 210629, 210629a, 282537, 282540, 401178ri, 437509, 437643, 440099, 747906, 1183901nd, 1193601nd, 1197801nd, 1208101nd, 1221101nd, 9051288, 9213142, 12060398, 12060399, 235139552, 235139702, 535132702, 0986040461, 0986040501, 1012110050, 1012110051, 1012110052, 1012110340, 1012110341, 1012110342, 1012110430, 1012110431, 1012110432, 1012110740, 1012110741, 1012115150, 1012115151, 1012115970, 1022115090, 1022115091, 2706011170, 2706011270, 2706011280, 2706011281, 2706011320, 2706011340, 2706055060, 2706055070, 943346172010, 944390512880
  • Description
    Toyota Corolla 1.3 Alternator 12V-70A 12V - 70A, 4-rib pulley, (S, IG, L) 12V - 70A, 4-rib pulley, (S-IG-L) For Yourex product order 90-555-1127

    Voltage: 14
    Amp: 70
    Pulley distance: 89.00
    Width/holder arm: 58.00
    Bracket hole: 10.20
    Belt adjustment bracket hole position: 5
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 59.50
    Grooves/pulley: 4
    Radius: 79.00
    Radius 2: 85.50
    B+: M6
    Position/B+ in min.: 5
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL42
    Total length mm: 155.00
    Terminal type: L-IG-S
    Pulley: SPA
    Regulator type: IR
    Prod. info: BN
    Servicing: Toyota

    Files

  • Suitable for these vehicles

    • OEM
      F032111518, ja1178ir, 1986A01276, 27060-11170, 27060-11270, 27060-11280, 27060-11281, 27060-11320, 27060-11340, 27060-55060, 27060-55070, 101211-0050, 101211-0051, 101211-0052, 101211-0340, 101211-0341, 101211-0342, 101211-0430, 101211-0431, 101211-0432, 101211-0740, 101211-0741, 101211-5150, 101211-5151, 101211-5970, 102211-5090, 102211-5091, 111518

    • Normalised article numbler
      a6009, al3249x, al3262x, alt5062, cal40140, dra3506, dra3508, f032111518, f042302053, f042a02053, j5112088, ja1178ir, lrb00212, lrb00337, qa2017, 8el012426621, 8el012427891, 8el737063001, 8el737321001, 1986a01276, 3142n, 3142r, 5478, 5666, 13457, 13457n, 13486n, 13486r, 13489r, 13711n, 13711r, 21337r, 40988ri, 56408, 111518, 118950, 119391, 210629, 210629a, 282537, 282540, 401178ri, 437509, 437643, 440099, 747906, 1183901nd, 1193601nd, 1197801nd, 1208101nd, 1221101nd, 9051288, 9213142, 12060398, 12060399, 235139552, 235139702, 535132702, 0986040461, 0986040501, 1012110050, 1012110051, 1012110052, 1012110340, 1012110341, 1012110342, 1012110430, 1012110431, 1012110432, 1012110740, 1012110741, 1012115150, 1012115151, 1012115970, 1022115090, 1022115091, 2706011170, 2706011270, 2706011280, 2706011281, 2706011320, 2706011340, 2706055060, 2706055070, 943346172010, 944390512880
