HC-Cargo Alternator

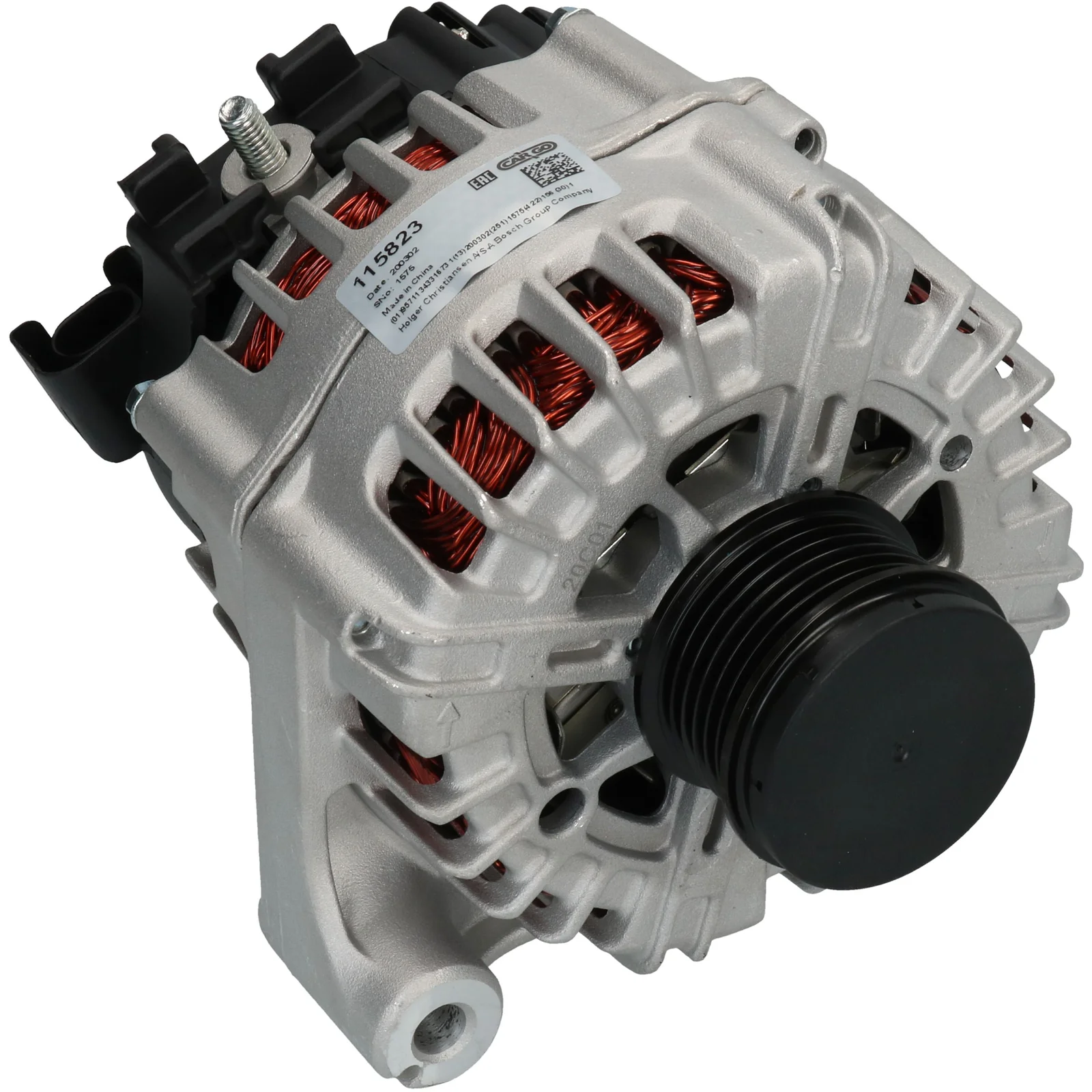

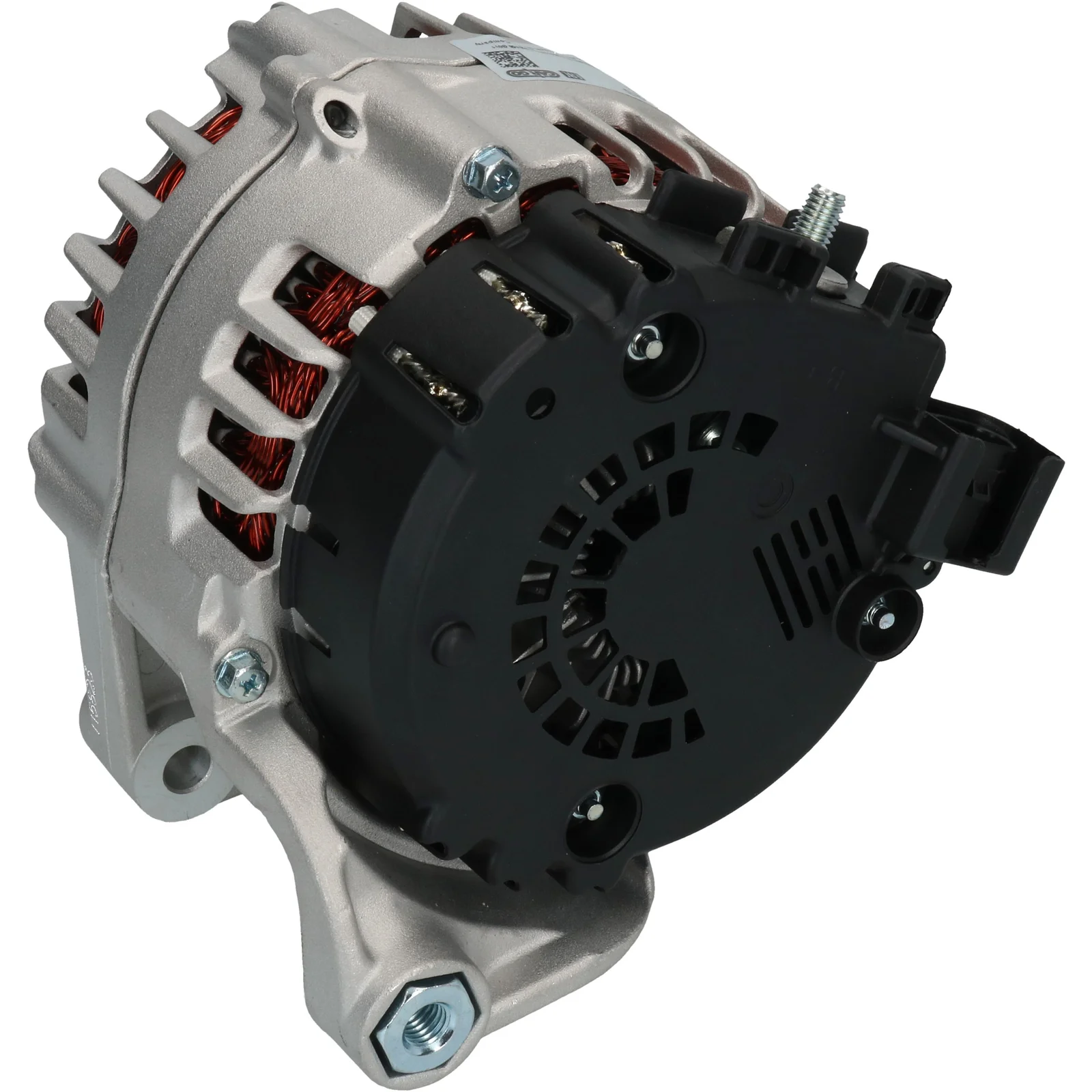

HC-Cargo Alternator
Article no.: F032115823

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 220, Rotation: CW, Mounting bracket distributor: 75.00

Description

HC-Cargo Alternator 12V - 220A, 6r. groove, (BSS) ID code 57

Voltage: 14
Current: 220
Pulley diameter: 57.30
Width/holder arm: 28.00
Mounting bracket diameter: 75.00
Bracket hole: 10.50
Belt adjustment bracket hole position: 43
Belt adjustment bracket hole 1: 10.50
Pulley diameter: 54.00
Grooves/pulley: 6
Radius: 93.00
Radius 2: 92.00
B+: M8
Position/B+ in min.: 2
Rotation: CW
Plug no.: PL125
Total length mm: 190.00
Terminal type: COM
Communication: BSS
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032115823, FG23S 032, FG23S032, FGN23S032, 85-300-1040, 1231 8507625, 1231 8509024, 1231 8579420, 1986A00565, 115823, 439730, 440320, 2608668, 2608668D, 12318507625, 12318509024, 12318579420

  • Normalised article numbler
    a3403s, cal15437, dra0869, f032115823, fg23s032, fgn23s032, lra03399, 8el011713051, 1986a00565, 20685n, 20685noe, 115823, 209206, 209206a, 286511, 439730, 440320, 2608668, 2608668d, 9090865, 12090667, 32439730, 215567220, 853001040, 0986084840, 2151922302, 12318507625, 12318509024, 12318579420
  • Description
    HC-Cargo Alternator 12V - 220A, 6r. groove, (BSS) ID code 57

    Voltage: 14
    Current: 220
    Pulley diameter: 57.30
    Width/holder arm: 28.00
    Mounting bracket diameter: 75.00
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 43
    Belt adjustment bracket hole 1: 10.50
    Pulley diameter: 54.00
    Grooves/pulley: 6
    Radius: 93.00
    Radius 2: 92.00
    B+: M8
    Position/B+ in min.: 2
    Rotation: CW
    Plug no.: PL125
    Total length mm: 190.00
    Terminal type: COM
    Communication: BSS
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032115823, FG23S 032, FG23S032, FGN23S032, 85-300-1040, 1231 8507625, 1231 8509024, 1231 8579420, 1986A00565, 115823, 439730, 440320, 2608668, 2608668D, 12318507625, 12318509024, 12318579420

    • Normalised article numbler
      a3403s, cal15437, dra0869, f032115823, fg23s032, fgn23s032, lra03399, 8el011713051, 1986a00565, 20685n, 20685noe, 115823, 209206, 209206a, 286511, 439730, 440320, 2608668, 2608668d, 9090865, 12090667, 32439730, 215567220, 853001040, 0986084840, 2151922302, 12318507625, 12318509024, 12318579420
