HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116355

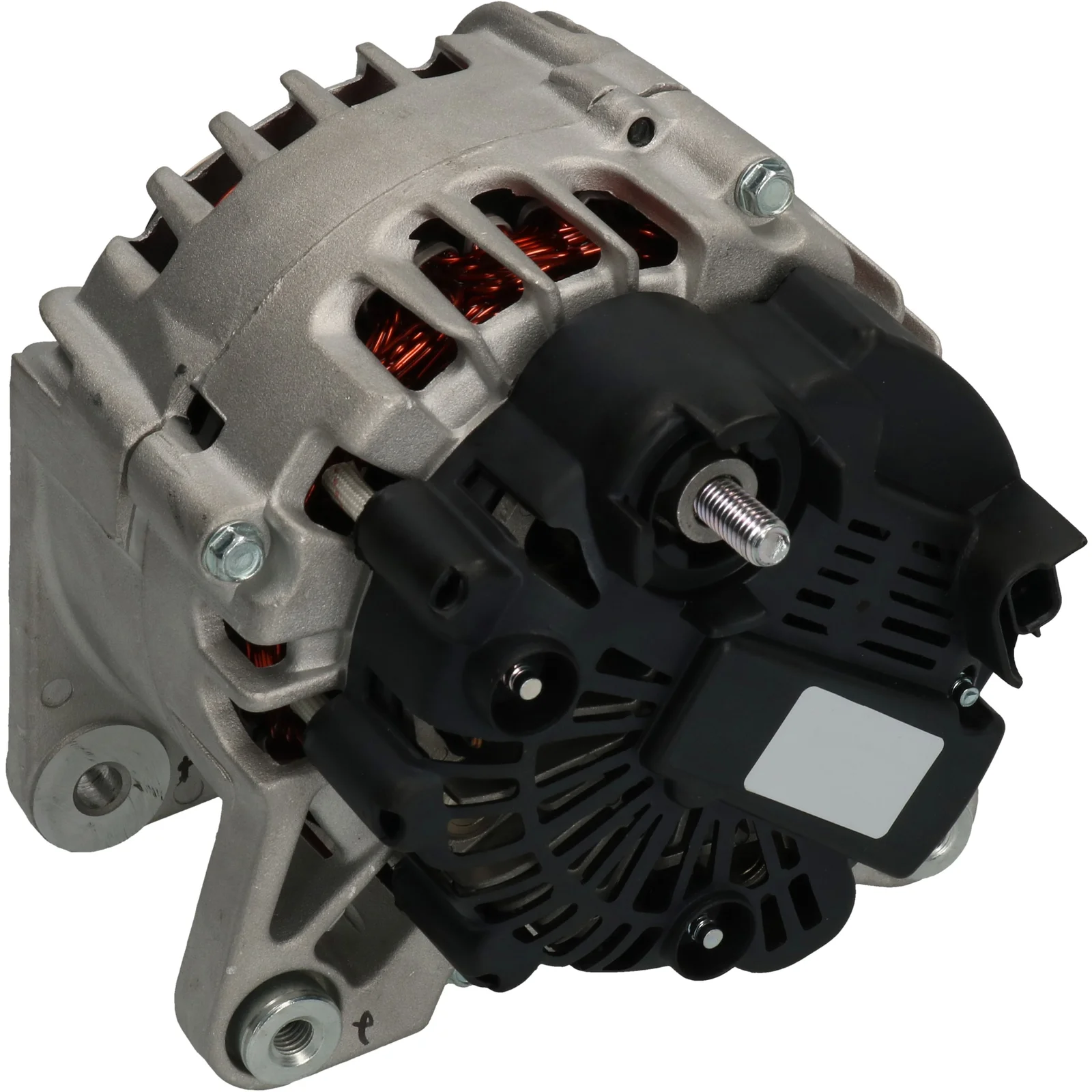

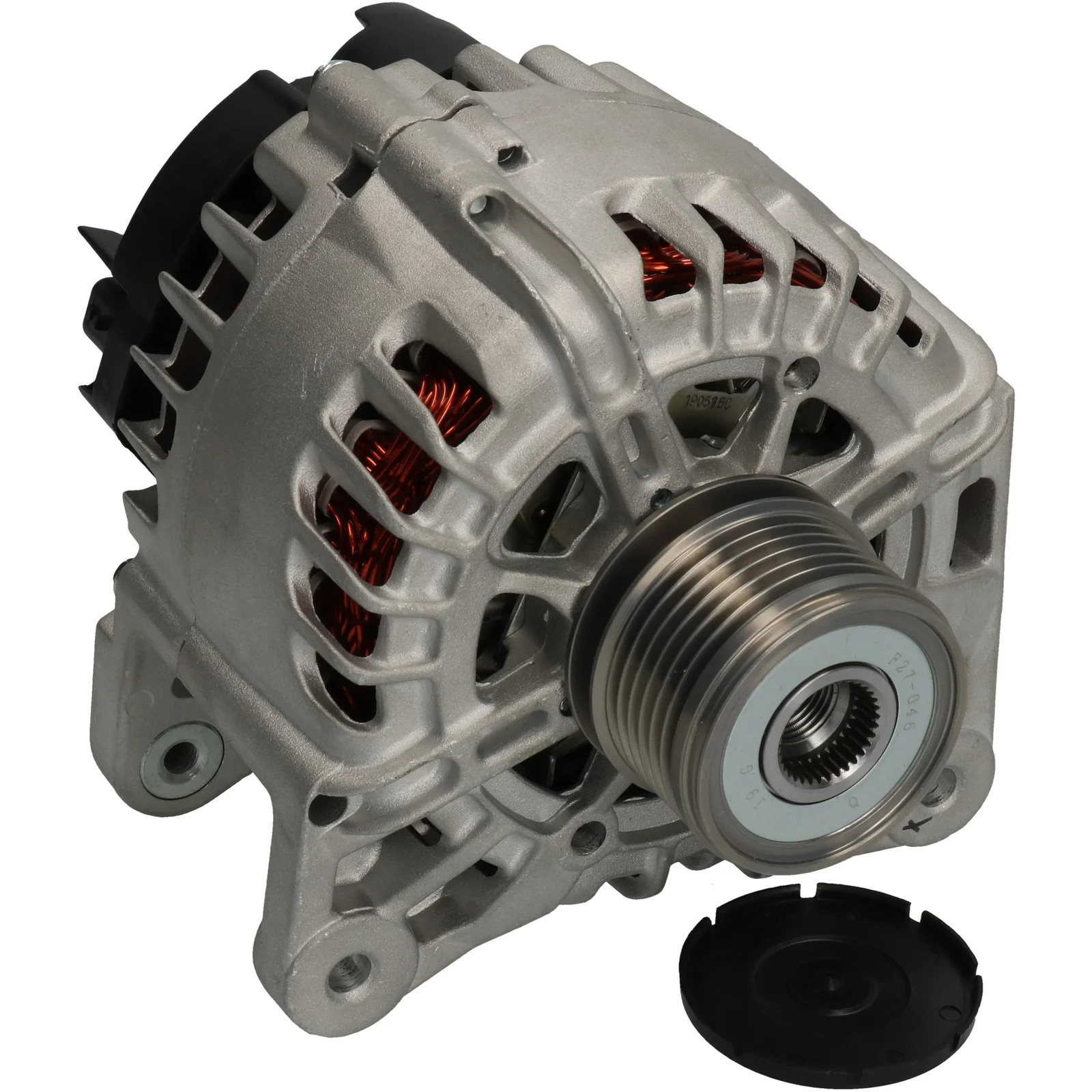

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 150, Rotation: clockwise, Mounting bracket distributor: 61.00

Description

HC-Cargo Alternator 12V - 150A, 6 poles, (BSS) ID code 34

Voltage: 14
Amp: 150
Pulley distance: 38.70
Width/holder arm: 14.20
Mounting bracket distance: 61.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Belt adjustment bracket hole 2: M8
Pulley diameter: 55.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 52
Rotation: CW
Plug number: PL131
Total length mm: 196.00
Terminal type: COM
Communication: BSS
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A415 9063500, a4159063500, F000BL08UC, F032116355, FG15T 056, FG15T056, 415 906 3500, 1986 A00 621, 1986A00621, 23100-4554R, 23100-7239R, 2612716, 2612716A, 231004554, 231004554R, 4159063500

  • Normalised article numbler
    a3552s, a4159063500, cal15575, f000bl08uc, f032116355, fg15t056, 8el015637401, 1986a00621, 20355n, 209265, 209265a, 286862, 439808, 440462, 553690ri, 2612716, 2612716a, 12090656, 32439808, 231004554, 231004554r, 231007239r, 575940150, 0986084870, 4159063500
  • Description
    HC-Cargo Alternator 12V - 150A, 6 poles, (BSS) ID code 34

    Voltage: 14
    Amp: 150
    Pulley distance: 38.70
    Width/holder arm: 14.20
    Mounting bracket distance: 61.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.50
    Belt adjustment bracket hole 2: M8
    Pulley diameter: 55.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 52
    Rotation: CW
    Plug number: PL131
    Total length mm: 196.00
    Terminal type: COM
    Communication: BSS
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A415 9063500, a4159063500, F000BL08UC, F032116355, FG15T 056, FG15T056, 415 906 3500, 1986 A00 621, 1986A00621, 23100-4554R, 23100-7239R, 2612716, 2612716A, 231004554, 231004554R, 4159063500

    • Normalised article numbler
      a3552s, a4159063500, cal15575, f000bl08uc, f032116355, fg15t056, 8el015637401, 1986a00621, 20355n, 209265, 209265a, 286862, 439808, 440462, 553690ri, 2612716, 2612716a, 12090656, 32439808, 231004554, 231004554r, 231007239r, 575940150, 0986084870, 4159063500
