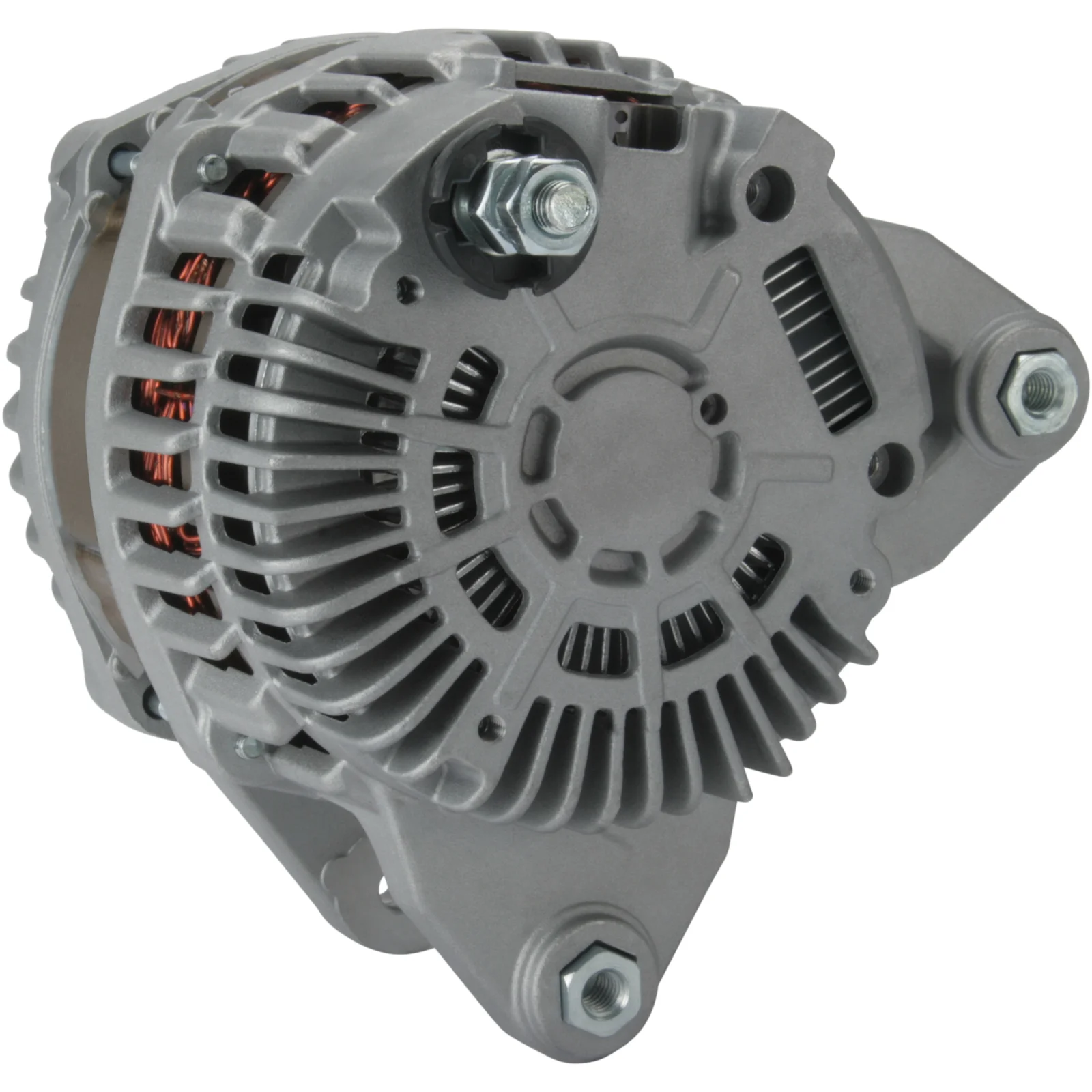

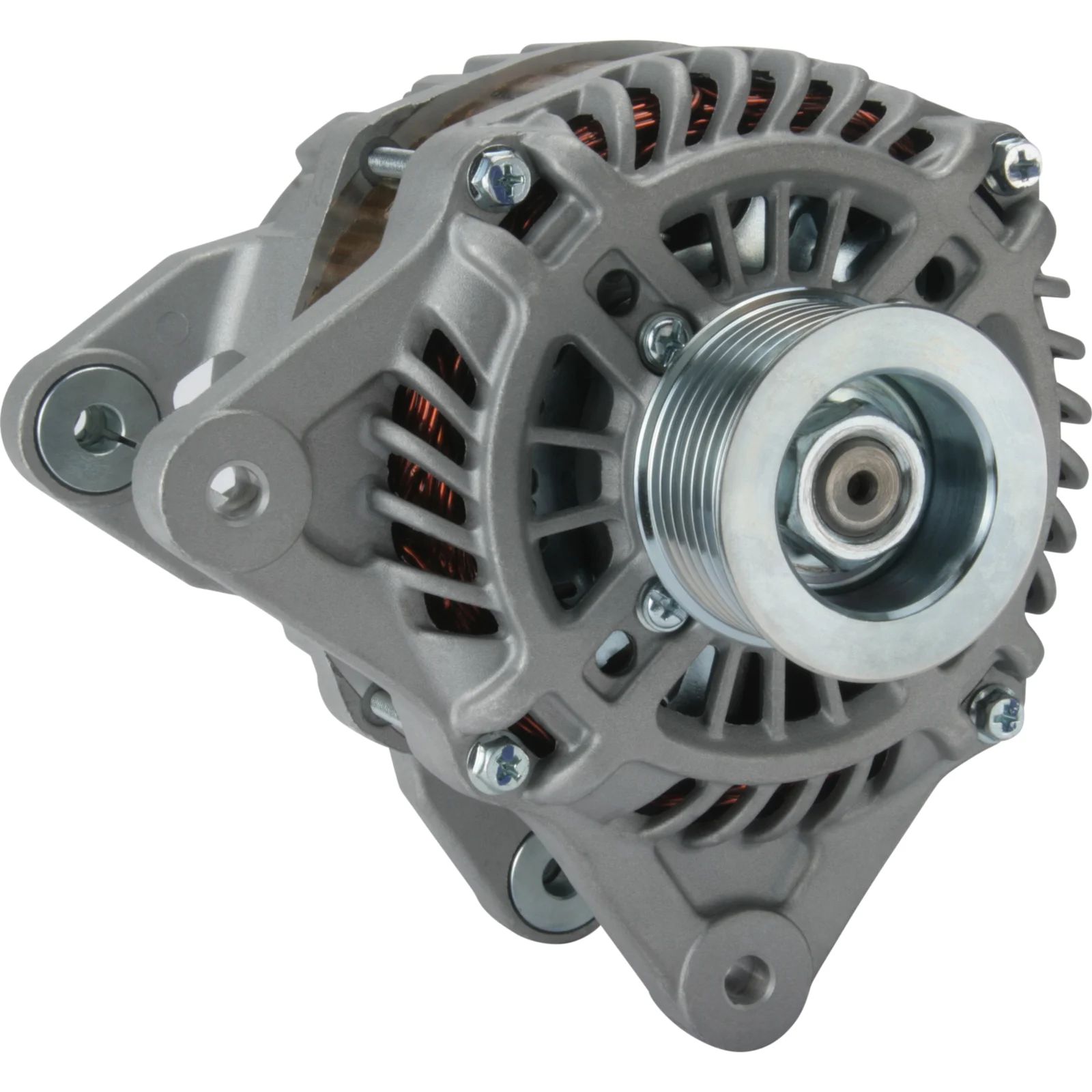

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115548

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 120, Rotation: CW, Mounting bracket distributor: 59.00

Description

Voltage: 14
Amp: 120
Pulley dist.: 32.50
Width/holder arm: 14.50
Mount. bracket dist.: 59.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Belt. adj. bracket hole 2: M8
Pulley dia.: 55.30
Grooves/pulley: 7
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 55
D+ Size: Plug
Rotation: CW
Plug no.: PL85
Total length mm: 183.00
Pulley: Alternator
Fan: \"Radiator fan\""
Regulator type: Voltage regulator
Prod. info: BN"

Files

  • OEM
    A002TJ0291, A002TJ0291ZE, A2TJ0291, A2TJ0291ZC, A2TJ0291ZE, F032115548, 1957ir, 1986A00645, 23100-1HS1A, 23100-BC00A, 23100-BC400, 23100-em01a, 23100-EM01AR, 23110-BC00A

  • Normalised article numbler
    a002tj0291, a002tj0291ze, a2tj0291, a2tj0291zc, a2tj0291ze, a5129, cal35244, dra0394, f032115548, j5111116, 8el011712151, 1957ir, 1986a00645, 11344n, 11344r, 23100bc00a, 23100bc400, 23100em01a, 23100em01ar, 23110bc00a, 209347, 209347a, 231001hs1a, 285872, 287575, 301957ri, 440541, 446535, 9090719, 12060914, 0986081220
  • Description
    Voltage: 14
    Amp: 120
    Pulley dist.: 32.50
    Width/holder arm: 14.50
    Mount. bracket dist.: 59.00
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.50
    Belt. adj. bracket hole 2: M8
    Pulley dia.: 55.30
    Grooves/pulley: 7
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 55
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL85
    Total length mm: 183.00
    Pulley: Alternator
    Fan: \"Radiator fan\""
    Regulator type: Voltage regulator
    Prod. info: BN"

    Files

  • Suitable for these vehicles

    • OEM
      A002TJ0291, A002TJ0291ZE, A2TJ0291, A2TJ0291ZC, A2TJ0291ZE, F032115548, 1957ir, 1986A00645, 23100-1HS1A, 23100-BC00A, 23100-BC400, 23100-em01a, 23100-EM01AR, 23110-BC00A

    • Normalised article numbler
      a002tj0291, a002tj0291ze, a2tj0291, a2tj0291zc, a2tj0291ze, a5129, cal35244, dra0394, f032115548, j5111116, 8el011712151, 1957ir, 1986a00645, 11344n, 11344r, 23100bc00a, 23100bc400, 23100em01a, 23100em01ar, 23110bc00a, 209347, 209347a, 231001hs1a, 285872, 287575, 301957ri, 440541, 446535, 9090719, 12060914, 0986081220
