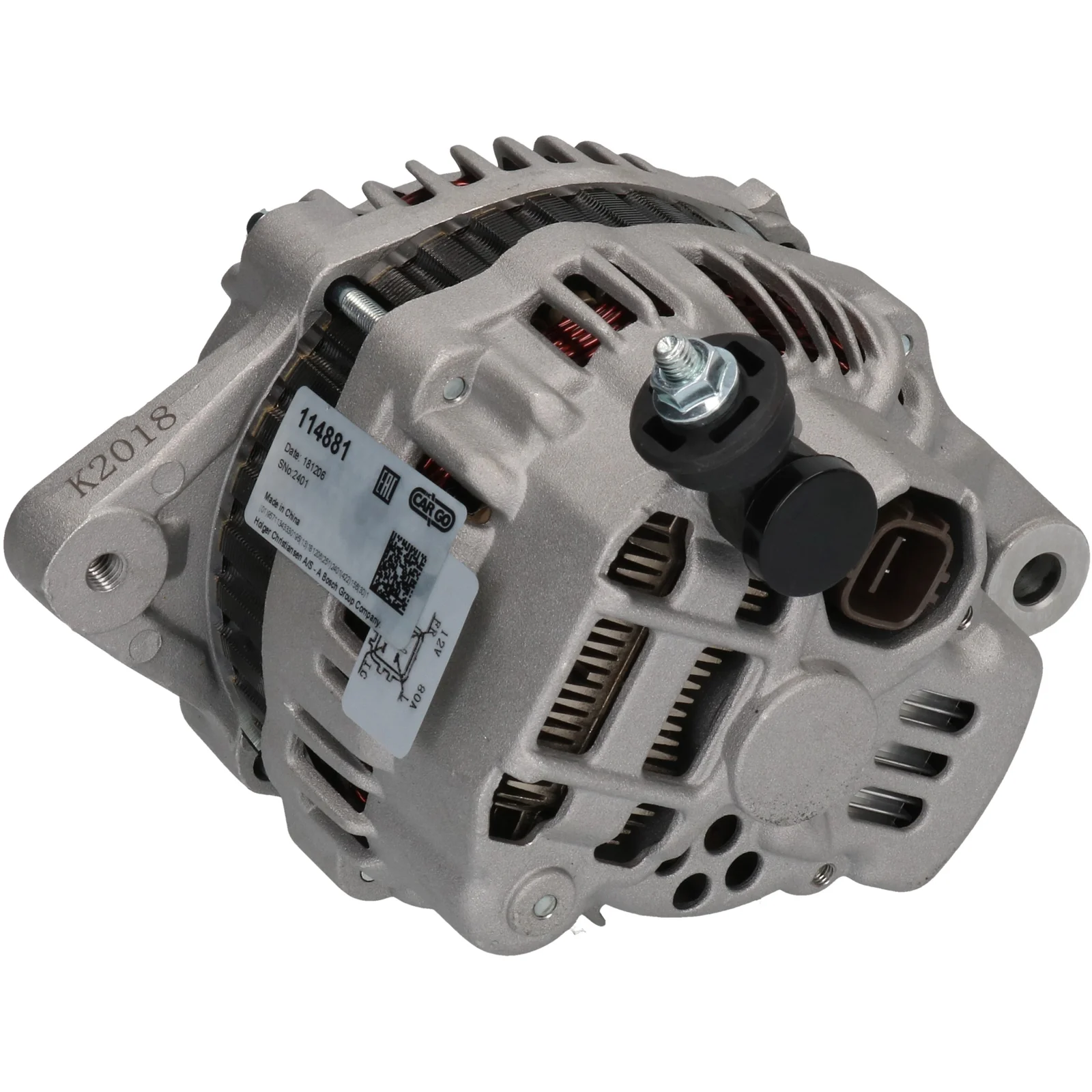

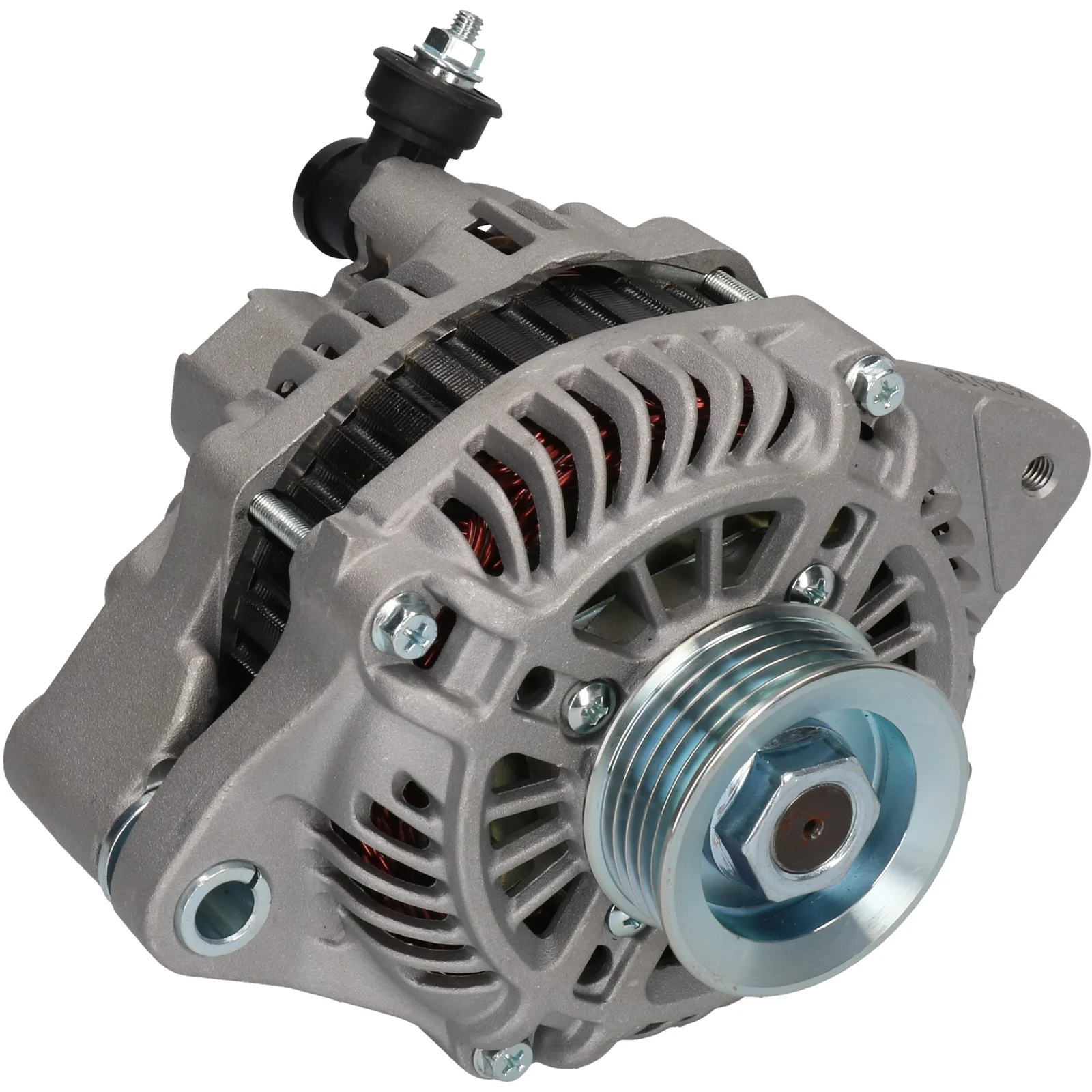

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114881

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 80, Rotation: CW, Pulley dia.: 55.00

Description

Voltage: 14
Amp: 80
Pulley dis.: 90.00
Width/holdar arm: 57.50
Bracket hole: 10.50
Belt. adj. bracket hole position: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 55.00
Grooves/pulley: 5
Radius: 79.50
Radius 2: 83.50
B+: M6
Position/B+ in min.: 5
Rotation: CW
Glow plug no.: PL60
Total length mm: 170.00
Pulley: SP
Voltage regulator type: IR
Prod. info: BN

Files

  • OEM
    A005TG0291, a5tg0291, A5TG0291A, F032114881, 1986A00031, 2004ir, 31400-63J00, 31400-65j10, 31400-65J12, 31400-80J0, 31400-80j00, 31400-80j02, 102211-9260

  • Normalised article numbler
    a005tg0291, a5080, a5tg0291, a5tg0291a, a6417s, cal35238, cal40493, dan1357, dra0561, dra0561n, f032114881, f042a03130, j5118026, lra02957, 8el738212351, 1986a00031, 2004ir, 14024r, 23955, 23955n, 113023, 209500, 209500a, 285571, 287699, 443154, 3140063j00, 3140065j10, 3140065j12, 3140080j0, 3140080j00, 3140080j02, 9090595, 12060995, 185515075, 245126802, 1022119260
  • Description
    Voltage: 14
    Amp: 80
    Pulley dis.: 90.00
    Width/holdar arm: 57.50
    Bracket hole: 10.50
    Belt. adj. bracket hole position: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 55.00
    Grooves/pulley: 5
    Radius: 79.50
    Radius 2: 83.50
    B+: M6
    Position/B+ in min.: 5
    Rotation: CW
    Glow plug no.: PL60
    Total length mm: 170.00
    Pulley: SP
    Voltage regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      A005TG0291, a5tg0291, A5TG0291A, F032114881, 1986A00031, 2004ir, 31400-63J00, 31400-65j10, 31400-65J12, 31400-80J0, 31400-80j00, 31400-80j02, 102211-9260

    • Normalised article numbler
      a005tg0291, a5080, a5tg0291, a5tg0291a, a6417s, cal35238, cal40493, dan1357, dra0561, dra0561n, f032114881, f042a03130, j5118026, lra02957, 8el738212351, 1986a00031, 2004ir, 14024r, 23955, 23955n, 113023, 209500, 209500a, 285571, 287699, 443154, 3140063j00, 3140065j10, 3140065j12, 3140080j0, 3140080j00, 3140080j02, 9090595, 12060995, 185515075, 245126802, 1022119260
