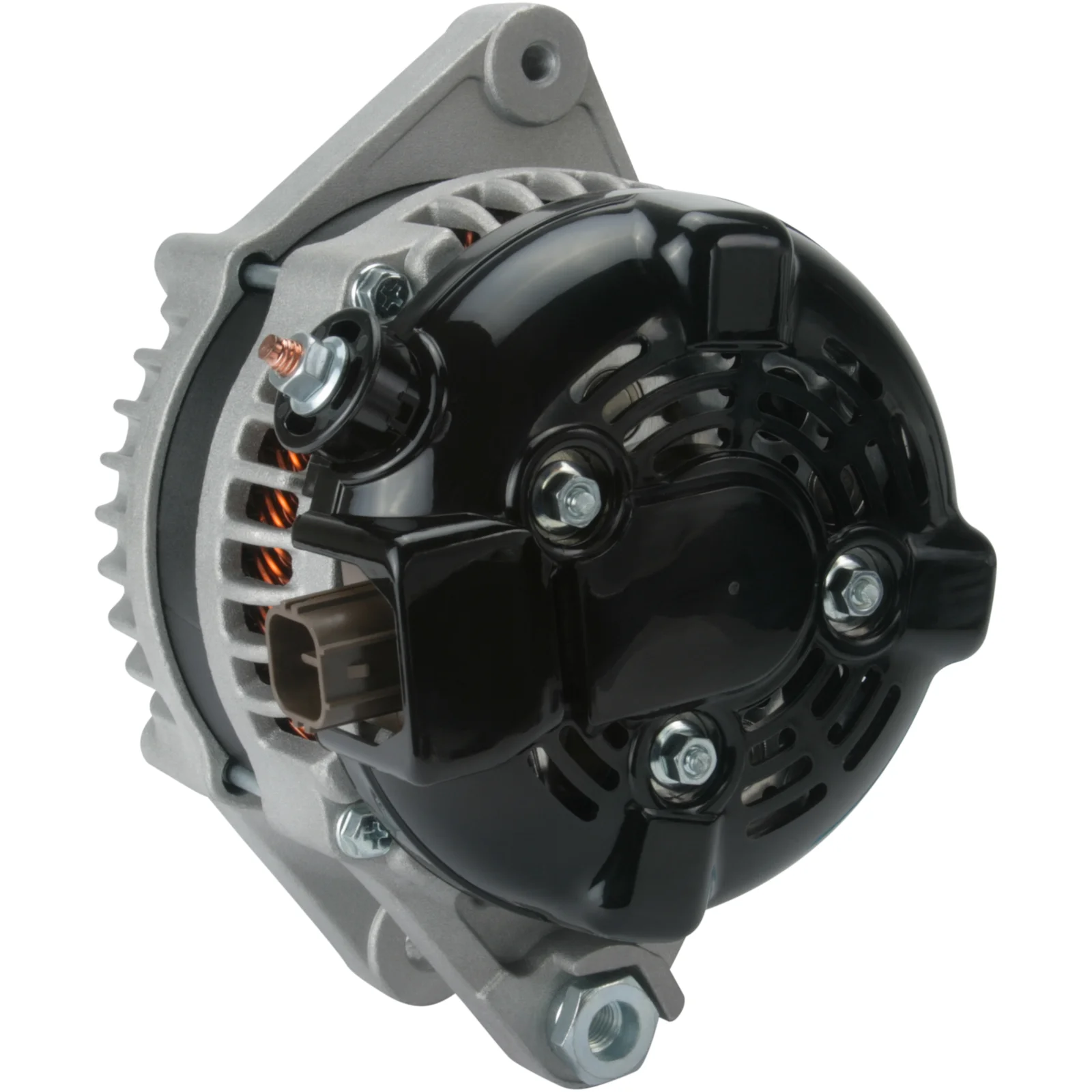

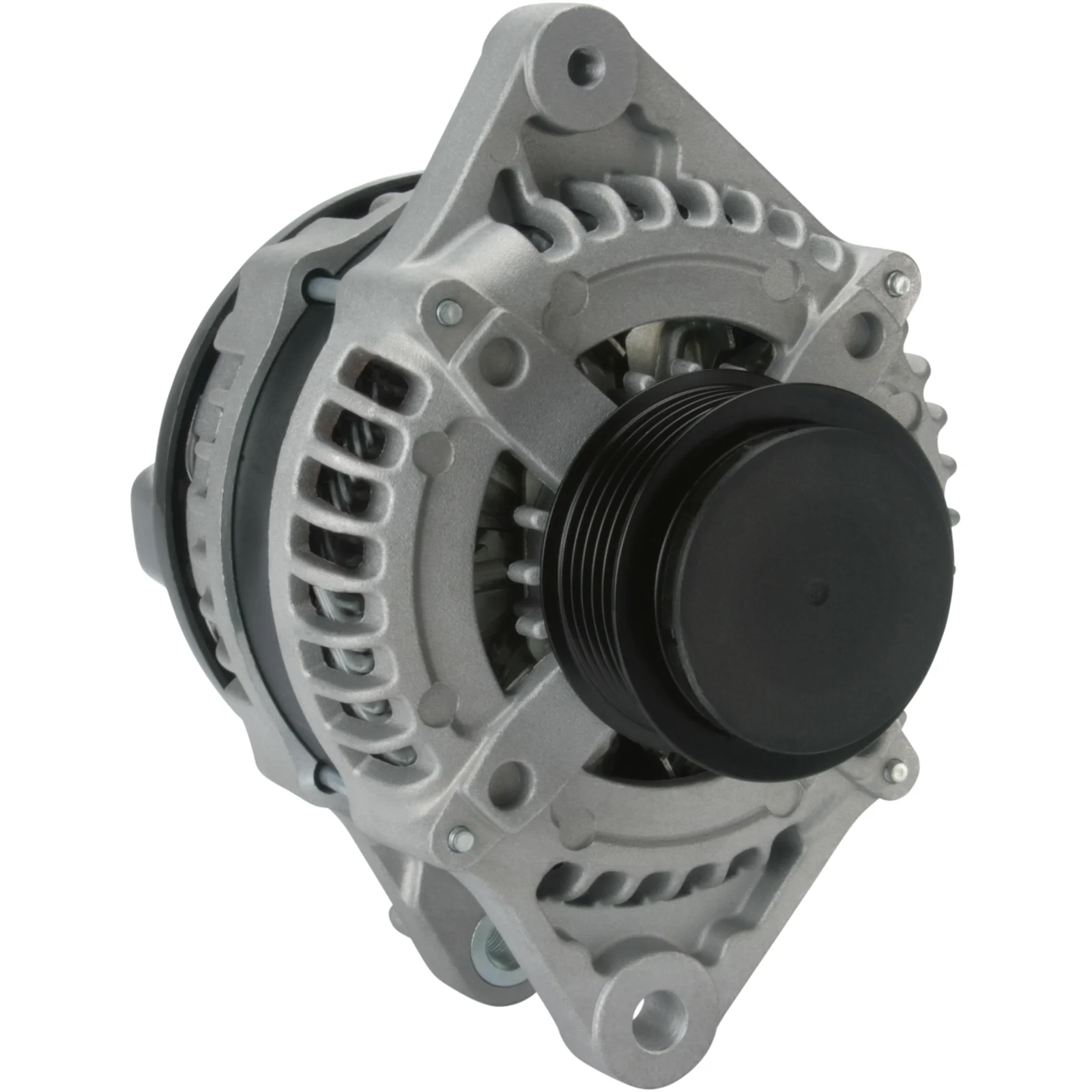

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113972

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 100, Rotation: CW, Mounting bracket diameter: 39.00

Description

Voltage: 14
Amp: 100
Pulley dist.: 31.00
Width/holder arm: 16.00
Mount. bracket dist.: 39.00
Bracket hole: 11.00
Belt. adj. brackethole pos.: 59
Belt. adj. bracket hole 1: M8
Pulley dia.: 62.00
Grooves/pulley: 6
Radius: 87.00
Radius 2: 87.00
B+: M6
Position/B+ in min.: 50
D+ Size: Plug
Rotation: CW
Plug no.: PL78
Total length mm: 165.00
Lamp type: Inactive
Pulley: SP/FW
Fan: IF
Regulator type: IR
Prod. info: BN

Files

  • OEM
    F032113972, 1964ir, 1986A01688, 27060-0N020, 27060-0N021, 27060-0N030, 27060-0N031, 27060-33071, 27060-33072, 104210-4100, 104210-4101, 104210-4102, 104210-5150, 104210-5151, 104210-5591

  • Normalised article numbler
    a6038, a6038denso, a6038pr, cal40206, dan1076, dra0411, dra0411x, f032113972, j5112148, 8el012429531, 8el738212931, 1964ir, 1986a01688, 9311, 23843, 112859, 210882, 210882a, 270600n020, 270600n021, 270600n030, 270600n031, 284959, 301964ri, 440517, 440913, 443077, 9212697, 12060858, 195582100, 0986082020, 1042104100, 1042104101, 1042104102, 1042105150, 1042105151, 1042105591, 2706033071, 2706033072, 09860820200, 944390904080
  • Description
    Voltage: 14
    Amp: 100
    Pulley dist.: 31.00
    Width/holder arm: 16.00
    Mount. bracket dist.: 39.00
    Bracket hole: 11.00
    Belt. adj. brackethole pos.: 59
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 62.00
    Grooves/pulley: 6
    Radius: 87.00
    Radius 2: 87.00
    B+: M6
    Position/B+ in min.: 50
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL78
    Total length mm: 165.00
    Lamp type: Inactive
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032113972, 1964ir, 1986A01688, 27060-0N020, 27060-0N021, 27060-0N030, 27060-0N031, 27060-33071, 27060-33072, 104210-4100, 104210-4101, 104210-4102, 104210-5150, 104210-5151, 104210-5591

    • Normalised article numbler
      a6038, a6038denso, a6038pr, cal40206, dan1076, dra0411, dra0411x, f032113972, j5112148, 8el012429531, 8el738212931, 1964ir, 1986a01688, 9311, 23843, 112859, 210882, 210882a, 270600n020, 270600n021, 270600n030, 270600n031, 284959, 301964ri, 440517, 440913, 443077, 9212697, 12060858, 195582100, 0986082020, 1042104100, 1042104101, 1042104102, 1042105150, 1042105151, 1042105591, 2706033071, 2706033072, 09860820200, 944390904080
