HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032110496

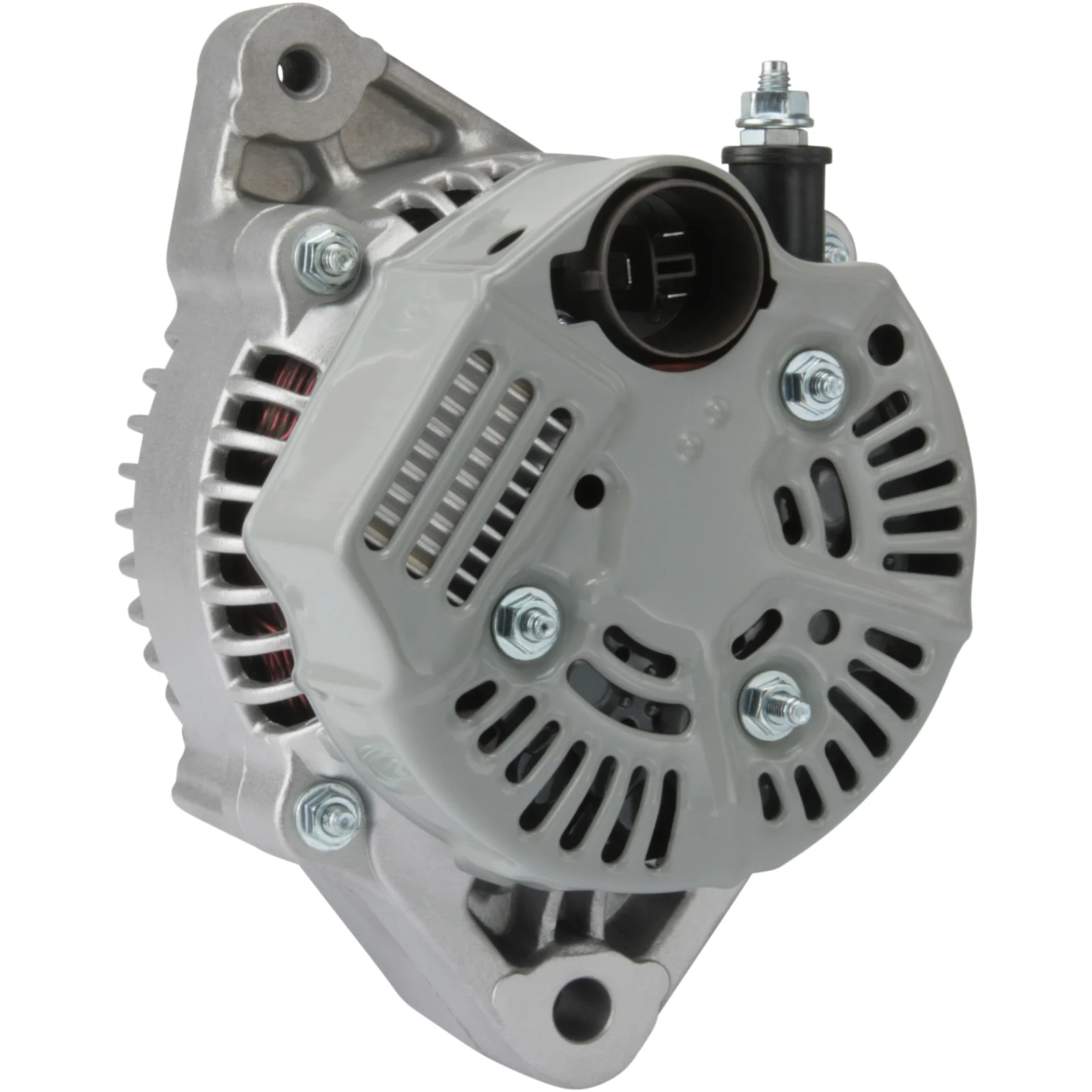

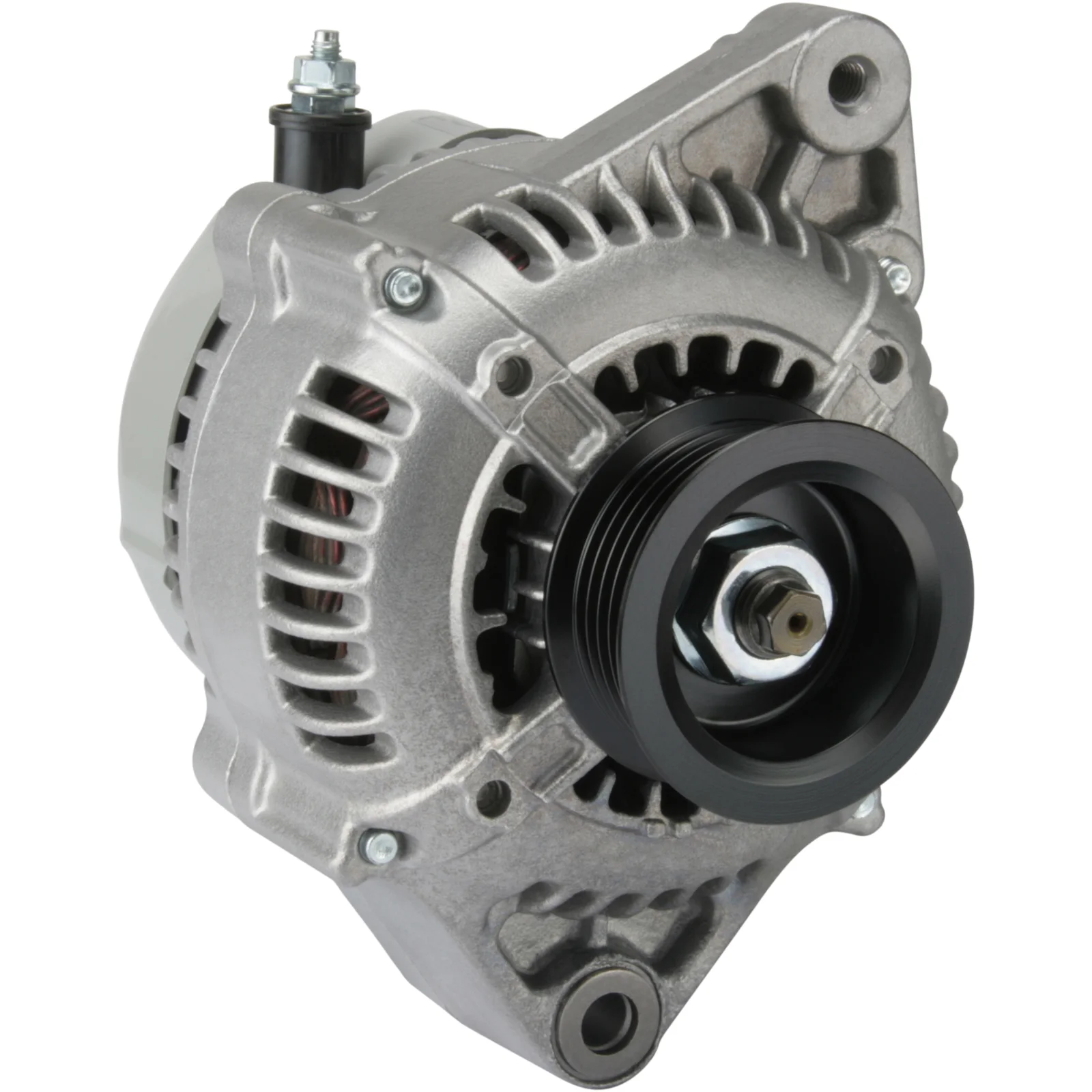

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 60, Rotation: CW, Pulley diameter: 55.00

Description

Toyota Alternator 12V-70A 12V - 70A, 5 grooves, (S, IG, L) For Yourex product order 90-555-7100

Voltage: 14
Amp: 60
Pulley diameter: 90.00
Width/holder arm: 58.00
Bracket hole: 10.00
Belt. adjustment bracket hole 1: M8
Pulley dia.: 55.00
Grooves/pulley: 5
Radius: 79.00
Radius 2: 82.00
Bplus: M6
Position/Bplus in min.: 5
Dplus Size: Plug
Rotation: CW
Plug no.: PL12
Total length mm: 153.50
Pulley: SP
Voltage regulator type: IR
Prod. info: BN
Servicing: Toyota

Files

  • OEM
    F032110496, ja142ir, 16540-64011, 27060--11030, 27060-10010, 27060-10011, 27060-10060, 27060-10061, 27060-10090, 27060-11050, 27060-11120, 27060-11160, 27060-11230, 27060-16010, 27060-16011, 27060-16012, 27060-16050, 27060-16051, 27060-16080, 27060-16081, 27060-16082, 27060-16090, 27060-16091, 27060-16151, 27060-16180, 27060-18010, 27060-55020, 27060-55030, 100211-1040, 100211-1041, 100211-1320, 100211-1321, 100211-1340, 100211-1341, 100211-2070, 100211-2071, 100211-2211, 100211-2280, 100211-2281, 100211-2300, 100211-2302, 100211-2320, 100211-3090, 100211-3091, 100211-3180, 100211-3181, 100211-3400, 100211-3401, 100211-3500, 100211-3530, 100211-3531, 100211-3560, 100211-3610, 100211-3611, 100211-3740, 100211-3760, 100211-3761, 100211-7100, 100211-9400, 100211-9710, 100211-9711, 110496

  • Normalised article numbler
    a1214, a6078, al3241x, al363x, alt30036, and0141, and0143, at00119r, at0088r, ata409, ata450, ata451, cal40137, da13456, da14451, da14452, da14683, da14974, dra3055, f032110496, fra711, j5112061, j5112065, j5112073, ja142ir, lra00555, lra00688, lra00689, qa1440, va243, 8el726289001, 3463, 13319, 13456, 13456n, 13456r, 14449, 14449n, 14449r, 14466, 14611n, 14674, 14679n, 14683, 14844, 14848, 21371, 21403, 40142ri, 56070, 110496, 118294, 138587, 280800, 280934, 281597, 281895, 282713, 282909, 291666, 291898, 436537, 436538, 437665, 1105002nd, 1105101nd, 1105401nd, 1116602nd, 1196701nd, 3951250, 3951251, 3951252, 3951255, 3951261, 3951262, 3951265, 3951273, 3951274, 12060369, 12060386, 12060387, 90295157, 90295237, 195503060, 235106602, 235106702, 235126602, 235126702, 535105552, 0986035601, 0986035901, 0986038011, 1002111040, 1002111041, 1002111320, 1002111321, 1002111340, 1002111341, 1002112070, 1002112071, 1002112211, 1002112280, 1002112281, 1002112300, 1002112302, 1002112320, 1002113090, 1002113091, 1002113180, 1002113181, 1002113400, 1002113401, 1002113500, 1002113530, 1002113531, 1002113560, 1002113610, 1002113611, 1002113740, 1002113760, 1002113761, 1002117100, 1002119400, 1002119710, 1002119711, 1654064011, 2706010010, 2706010011, 2706010060, 2706010061, 2706010090, 2706011030, 2706011050, 2706011120, 2706011160, 2706011230, 2706016010, 2706016011, 2706016012, 2706016050, 2706016051, 2706016080, 2706016081, 2706016082, 2706016090, 2706016091, 2706016151, 2706016180, 2706018010, 2706055020, 2706055030, 943356592010, 944390512740
  • Description
    Toyota Alternator 12V-70A 12V - 70A, 5 grooves, (S, IG, L) For Yourex product order 90-555-7100

    Voltage: 14
    Amp: 60
    Pulley diameter: 90.00
    Width/holder arm: 58.00
    Bracket hole: 10.00
    Belt. adjustment bracket hole 1: M8
    Pulley dia.: 55.00
    Grooves/pulley: 5
    Radius: 79.00
    Radius 2: 82.00
    Bplus: M6
    Position/Bplus in min.: 5
    Dplus Size: Plug
    Rotation: CW
    Plug no.: PL12
    Total length mm: 153.50
    Pulley: SP
    Voltage regulator type: IR
    Prod. info: BN
    Servicing: Toyota

    Files

  • Suitable for these vehicles

    • OEM
      F032110496, ja142ir, 16540-64011, 27060--11030, 27060-10010, 27060-10011, 27060-10060, 27060-10061, 27060-10090, 27060-11050, 27060-11120, 27060-11160, 27060-11230, 27060-16010, 27060-16011, 27060-16012, 27060-16050, 27060-16051, 27060-16080, 27060-16081, 27060-16082, 27060-16090, 27060-16091, 27060-16151, 27060-16180, 27060-18010, 27060-55020, 27060-55030, 100211-1040, 100211-1041, 100211-1320, 100211-1321, 100211-1340, 100211-1341, 100211-2070, 100211-2071, 100211-2211, 100211-2280, 100211-2281, 100211-2300, 100211-2302, 100211-2320, 100211-3090, 100211-3091, 100211-3180, 100211-3181, 100211-3400, 100211-3401, 100211-3500, 100211-3530, 100211-3531, 100211-3560, 100211-3610, 100211-3611, 100211-3740, 100211-3760, 100211-3761, 100211-7100, 100211-9400, 100211-9710, 100211-9711, 110496

    • Normalised article numbler
      a1214, a6078, al3241x, al363x, alt30036, and0141, and0143, at00119r, at0088r, ata409, ata450, ata451, cal40137, da13456, da14451, da14452, da14683, da14974, dra3055, f032110496, fra711, j5112061, j5112065, j5112073, ja142ir, lra00555, lra00688, lra00689, qa1440, va243, 8el726289001, 3463, 13319, 13456, 13456n, 13456r, 14449, 14449n, 14449r, 14466, 14611n, 14674, 14679n, 14683, 14844, 14848, 21371, 21403, 40142ri, 56070, 110496, 118294, 138587, 280800, 280934, 281597, 281895, 282713, 282909, 291666, 291898, 436537, 436538, 437665, 1105002nd, 1105101nd, 1105401nd, 1116602nd, 1196701nd, 3951250, 3951251, 3951252, 3951255, 3951261, 3951262, 3951265, 3951273, 3951274, 12060369, 12060386, 12060387, 90295157, 90295237, 195503060, 235106602, 235106702, 235126602, 235126702, 535105552, 0986035601, 0986035901, 0986038011, 1002111040, 1002111041, 1002111320, 1002111321, 1002111340, 1002111341, 1002112070, 1002112071, 1002112211, 1002112280, 1002112281, 1002112300, 1002112302, 1002112320, 1002113090, 1002113091, 1002113180, 1002113181, 1002113400, 1002113401, 1002113500, 1002113530, 1002113531, 1002113560, 1002113610, 1002113611, 1002113740, 1002113760, 1002113761, 1002117100, 1002119400, 1002119710, 1002119711, 1654064011, 2706010010, 2706010011, 2706010060, 2706010061, 2706010090, 2706011030, 2706011050, 2706011120, 2706011160, 2706011230, 2706016010, 2706016011, 2706016012, 2706016050, 2706016051, 2706016080, 2706016081, 2706016082, 2706016090, 2706016091, 2706016151, 2706016180, 2706018010, 2706055020, 2706055030, 943356592010, 944390512740
