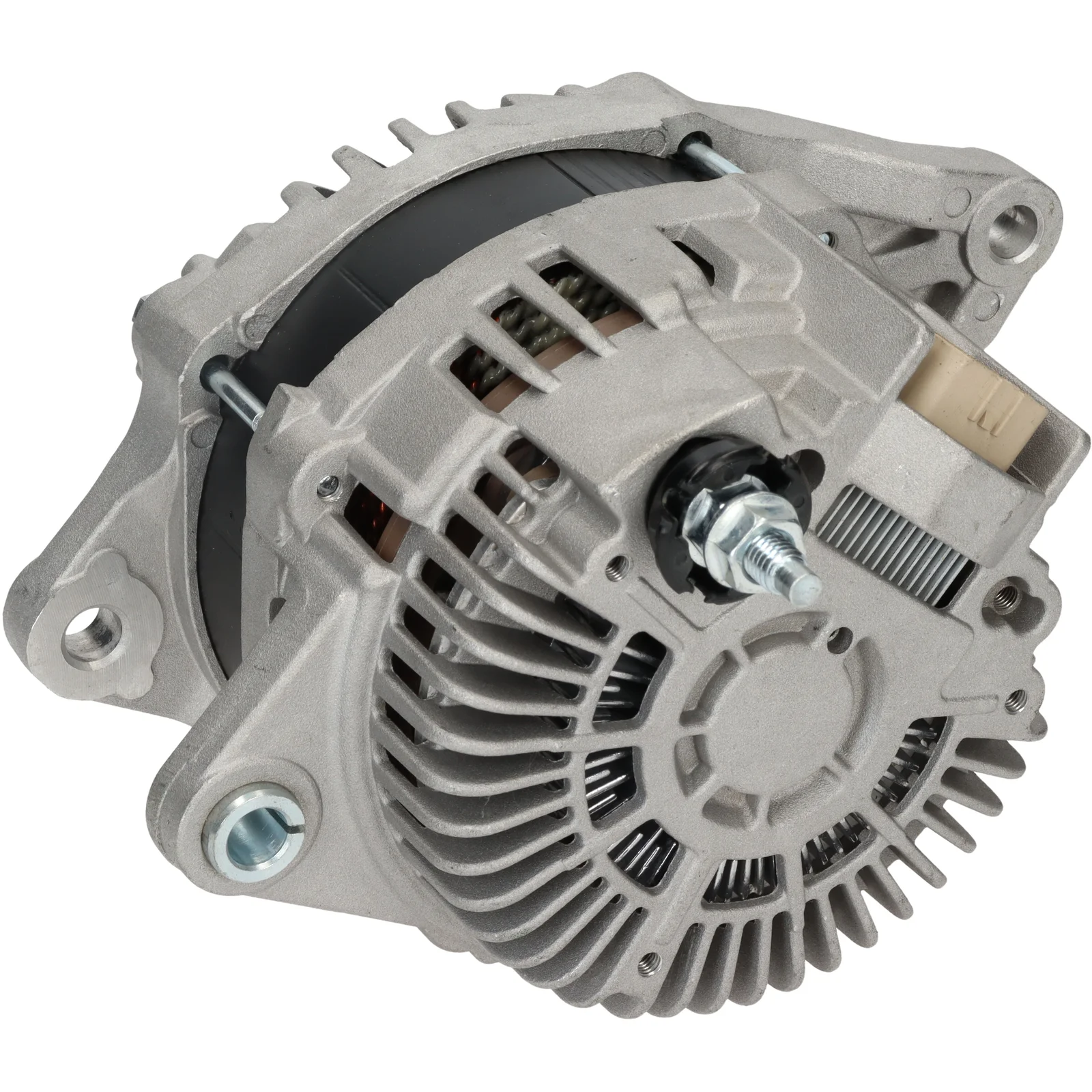

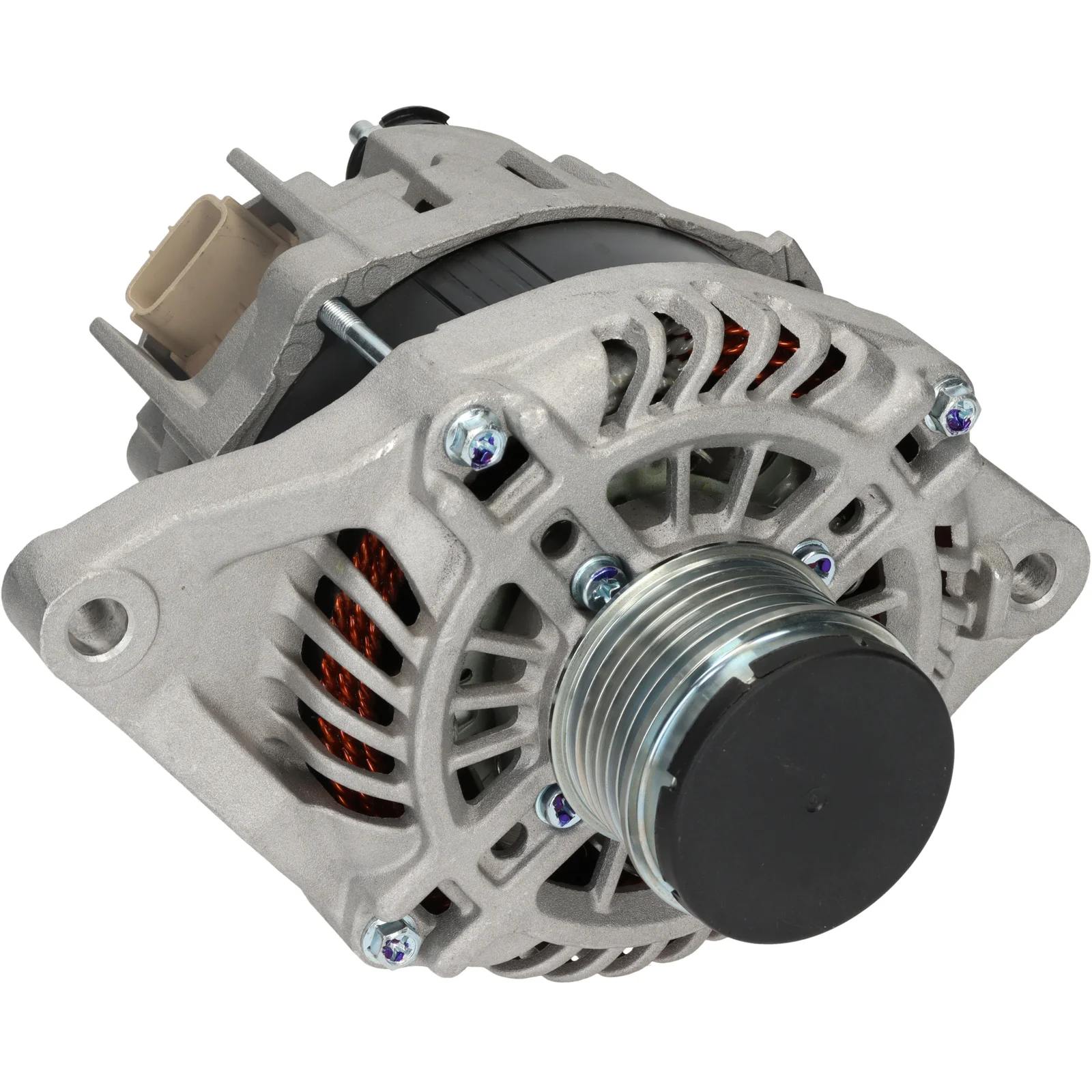

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116394

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 130, Rotation: CW, Mounting bracket diameter: 54.00

Description

Voltage: 14
Amp: 130
Pulley diameter: 33.50
Width/holder arm: 13.00
Mounting bracket distance: 54.00
Bracket hole: 10.50
Belt adjustment bracket hole position: 2
Belt adjustment bracket hole 1: 10.50
Pulley diameter: 55.00
Grooves/pulley: 6
Radius: 83.00
Radius 2: 102.00
B+: M8
Position/B+ in minutes: 43
D+ Size: Plug
Rotation: CW
Plug no.: PL68
Total length mm: 188.00
Terminal type: G-S-L-F
Pulley: SP/FW
Fan: IF
Regulator type: IR

Files

  • OEM
    A002TX0881A, A2TX0881, A2TX0881A, A2TX0891A, F032116394, 1800a121, 1800a288, 1800A546, 1986A00776

  • Normalised article numbler
    a002tx0881a, a2tx0881, a2tx0881a, a2tx0891a, a5285, a5323, dra1293, f032116394, 1800a121, 1800a288, 1800a546, 1986a00776, 13226, 13226n, 286896, 444311, 12061058, 155901130, 0986085180, 2263061302
  • Description
    Voltage: 14
    Amp: 130
    Pulley diameter: 33.50
    Width/holder arm: 13.00
    Mounting bracket distance: 54.00
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 2
    Belt adjustment bracket hole 1: 10.50
    Pulley diameter: 55.00
    Grooves/pulley: 6
    Radius: 83.00
    Radius 2: 102.00
    B+: M8
    Position/B+ in minutes: 43
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL68
    Total length mm: 188.00
    Terminal type: G-S-L-F
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      A002TX0881A, A2TX0881, A2TX0881A, A2TX0891A, F032116394, 1800a121, 1800a288, 1800A546, 1986A00776

    • Normalised article numbler
      a002tx0881a, a2tx0881, a2tx0881a, a2tx0891a, a5285, a5323, dra1293, f032116394, 1800a121, 1800a288, 1800a546, 1986a00776, 13226, 13226n, 286896, 444311, 12061058, 155901130, 0986085180, 2263061302
