HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115601

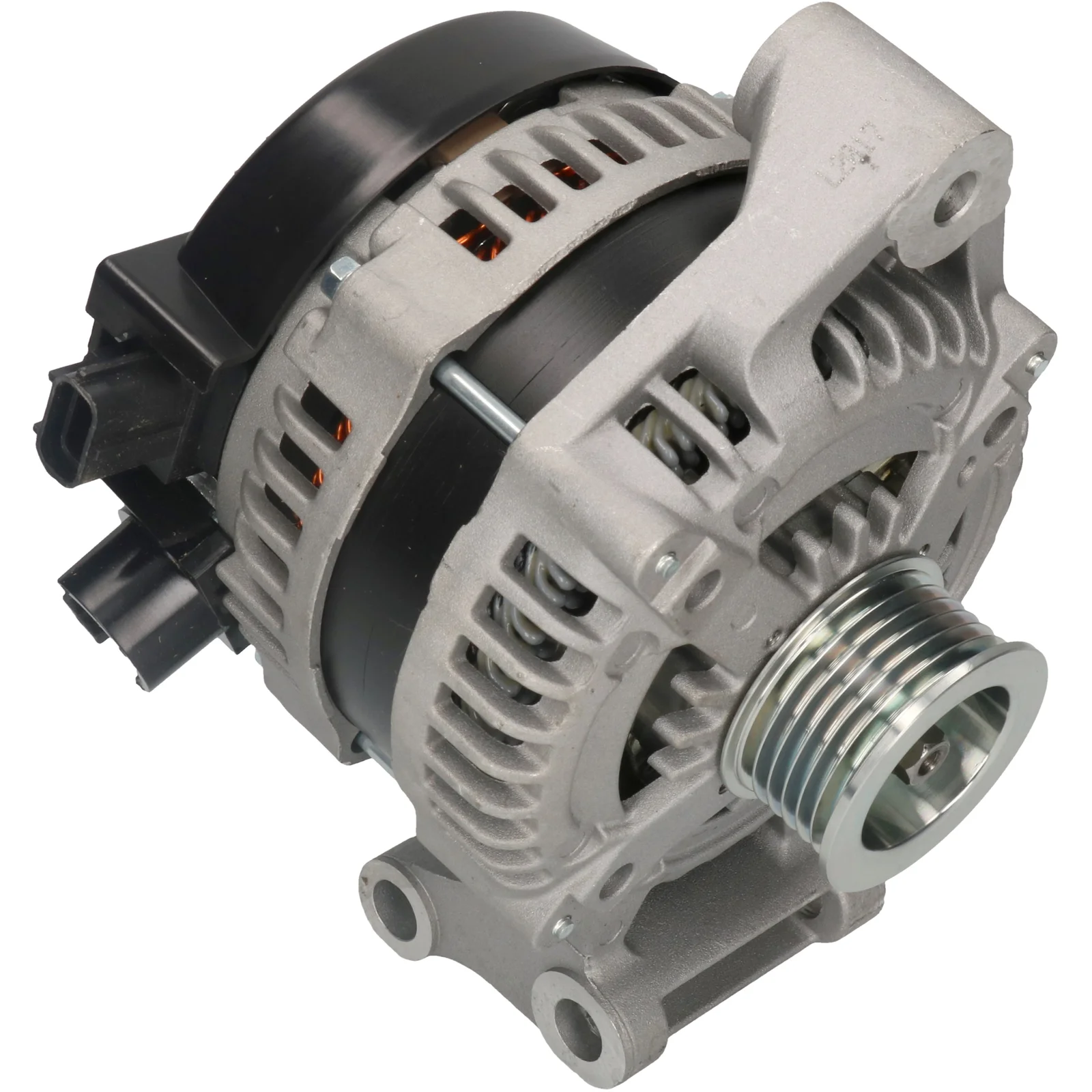

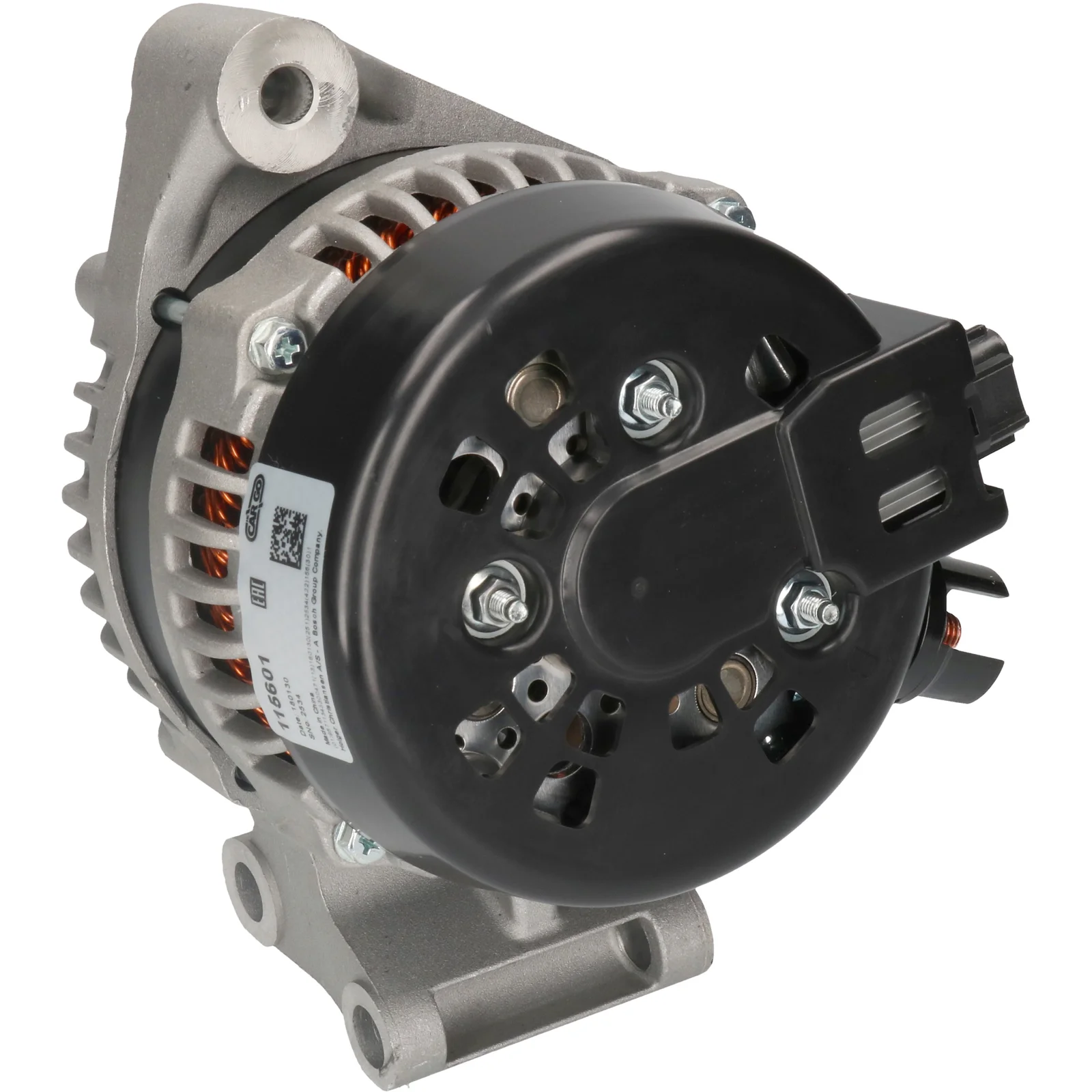

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 120, Rotation: CW, Mounting bracket distance: 49.50

Description

Voltage: 14
Amp: 120
Pulley dist.: 11.00
Width/holder arm: 72.00
Mount. bracket dist.: 49.50
Bracket hole: 12.50
Belt. adj. brackethole pos.: 3
Belt. adj. bracket hole 1: 10.20
Pulley dia.: 49.00
Grooves/pulley: 6
Radius: 84.00
Radius 2: 86.50
B+: M8
Position/B+ in min.: 20
D+ Size: Plug
Rotation: CW
Plug no.: PL57
Total length mm: 157.00
Pulley: SP
Regulator type: IR
Prod. info: BN

Files

  • OEM
    F032115601, 3M5T10300KA, 3m5t10300kb, 3m5t10300kc, 1962ir, 1986A00593, 104210-4020, 104210-4021, 104210-4022, 104210-5760, 1352858, 1353886, 1543764, 8603604, 30667501, 30795493, 36002573

  • Normalised article numbler
    a6088, a6088denso, cal40332, dan1041, dan582, dra1198, f032115601, lra03208, 3m5t10300ka, 3m5t10300kb, 3m5t10300kc, 8el012430881, 8el738212921, 1962ir, 1986a00593, 4868, 20492, 20492r, 113007, 210384, 210384a, 275820, 301962ri, 443075, 444308, 1352858, 1353886, 1543764, 8603604, 9090832, 12090235, 30667501, 30795493, 32082100, 36002573, 0986082100, 0986082104, 1042104020, 1042104021, 1042104022, 1042105760, 2381531202
  • Description
    Voltage: 14
    Amp: 120
    Pulley dist.: 11.00
    Width/holder arm: 72.00
    Mount. bracket dist.: 49.50
    Bracket hole: 12.50
    Belt. adj. brackethole pos.: 3
    Belt. adj. bracket hole 1: 10.20
    Pulley dia.: 49.00
    Grooves/pulley: 6
    Radius: 84.00
    Radius 2: 86.50
    B+: M8
    Position/B+ in min.: 20
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL57
    Total length mm: 157.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032115601, 3M5T10300KA, 3m5t10300kb, 3m5t10300kc, 1962ir, 1986A00593, 104210-4020, 104210-4021, 104210-4022, 104210-5760, 1352858, 1353886, 1543764, 8603604, 30667501, 30795493, 36002573

    • Normalised article numbler
      a6088, a6088denso, cal40332, dan1041, dan582, dra1198, f032115601, lra03208, 3m5t10300ka, 3m5t10300kb, 3m5t10300kc, 8el012430881, 8el738212921, 1962ir, 1986a00593, 4868, 20492, 20492r, 113007, 210384, 210384a, 275820, 301962ri, 443075, 444308, 1352858, 1353886, 1543764, 8603604, 9090832, 12090235, 30667501, 30795493, 32082100, 36002573, 0986082100, 0986082104, 1042104020, 1042104021, 1042104022, 1042105760, 2381531202
