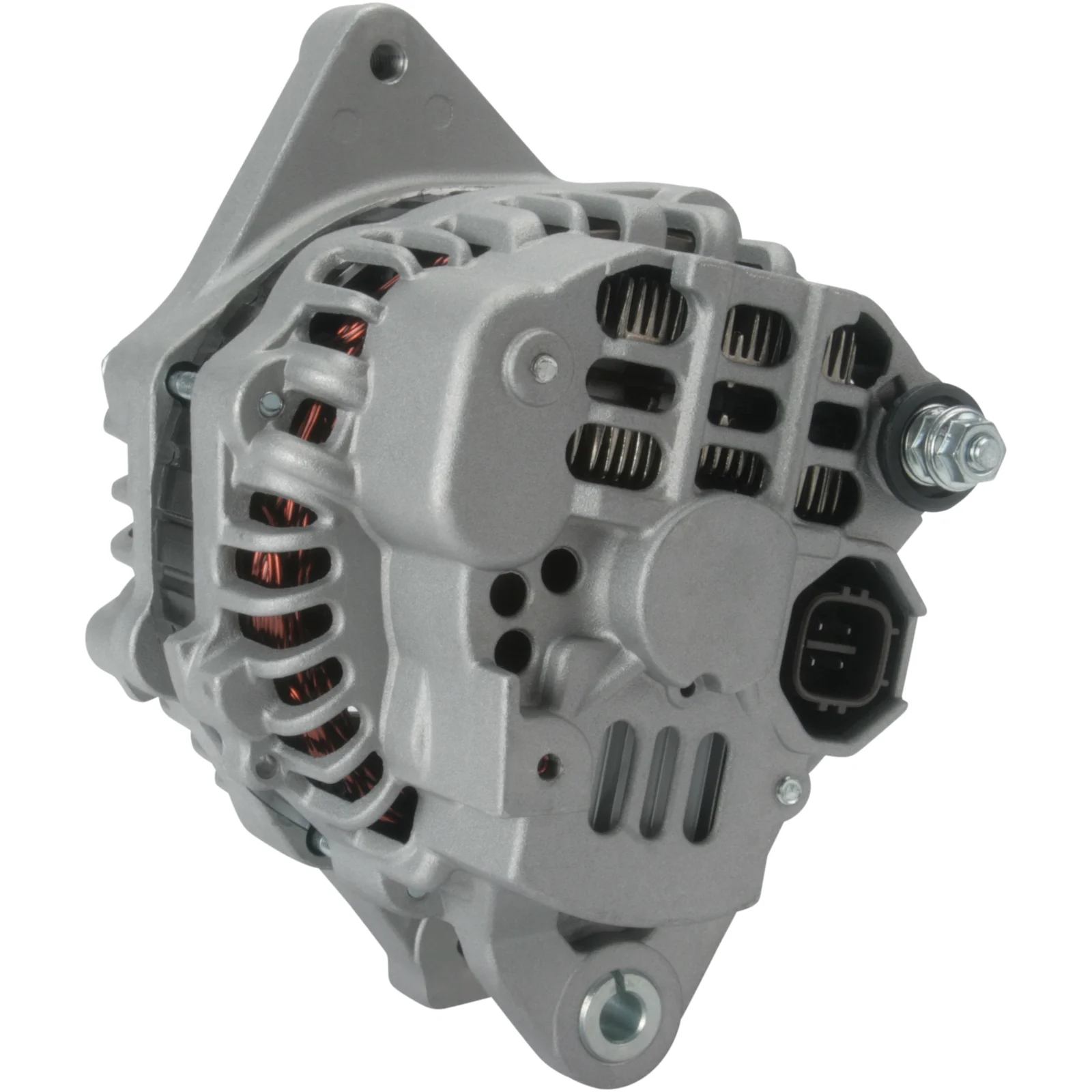

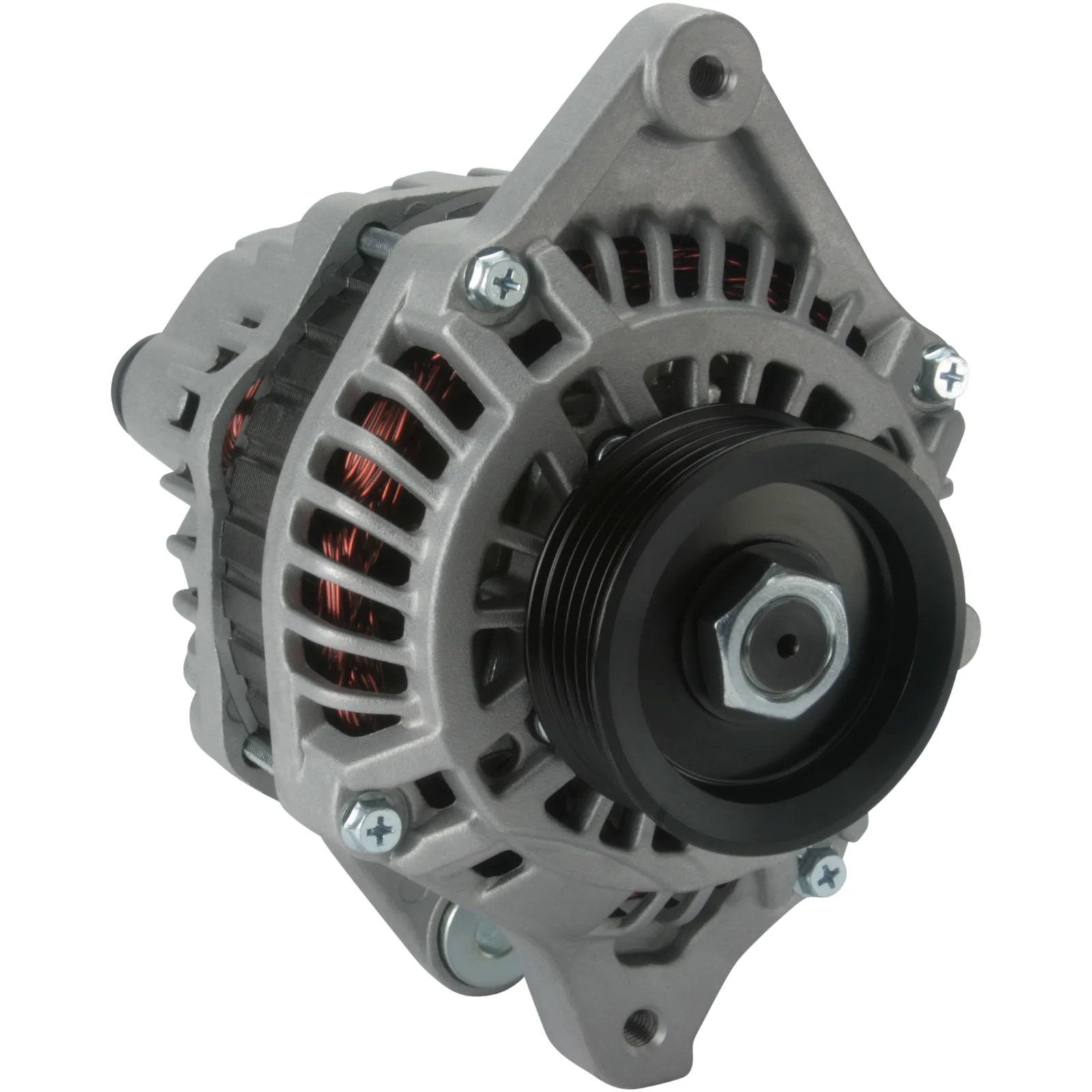

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114841

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 80, Rotation: CW, Mounting bracket distance: 39.00

Description

Voltage: 14
Amp: 80
Pulley dist.: 42.00
Width/holder arm: 16.50
Mount. bracket dist.: 39.00
Bracket hole: M8
Belt. adj. brackethole pos.: 2
Belt. adj. bracket hole 1: M8
Pulley dia.: 65.00
Grooves/pulley: 5
Radius: 81.00
Radius 2: 85.00
B+: M6
Position/B+ in min.: 10
D+ Size: Plug
Rotation: CW
Plug no.: PL65
Total length mm: 165.00
Pulley: SP
Regulator type: IR
Prod. info: BN

Files

  • OEM
    A005TB0091, A005TB1391, A005TB1391ZD, A3TB1391, A5TB0091, a5tb1391, A5TB1391ZD, AHGA56, AHGA69, F032114841, ja1897ir, 31100-PWA-004, 31100-PWK-Q01, 31100-rsh-004

  • Normalised article numbler
    a005tb0091, a005tb1391, a005tb1391zd, a3tb1391, a5203, a5tb0091, a5tb1391, a5tb1391zd, ahga56, ahga69, cal35175, dra0143, f032114841, f042205040, f042a03127, j5114036, ja1897ir, lra02544, 8el012429591, 8el738211181, 11177, 11177n, 11177r, 23544, 23544n, 31100pwa004, 31100pwkq01, 31100rsh004, 112616, 210956, 210956a, 284888, 401897ri, 443191, 9090517, 12060884, 125530080, 222149802, 0986080570
  • Description
    Voltage: 14
    Amp: 80
    Pulley dist.: 42.00
    Width/holder arm: 16.50
    Mount. bracket dist.: 39.00
    Bracket hole: M8
    Belt. adj. brackethole pos.: 2
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 65.00
    Grooves/pulley: 5
    Radius: 81.00
    Radius 2: 85.00
    B+: M6
    Position/B+ in min.: 10
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL65
    Total length mm: 165.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      A005TB0091, A005TB1391, A005TB1391ZD, A3TB1391, A5TB0091, a5tb1391, A5TB1391ZD, AHGA56, AHGA69, F032114841, ja1897ir, 31100-PWA-004, 31100-PWK-Q01, 31100-rsh-004

    • Normalised article numbler
      a005tb0091, a005tb1391, a005tb1391zd, a3tb1391, a5203, a5tb0091, a5tb1391, a5tb1391zd, ahga56, ahga69, cal35175, dra0143, f032114841, f042205040, f042a03127, j5114036, ja1897ir, lra02544, 8el012429591, 8el738211181, 11177, 11177n, 11177r, 23544, 23544n, 31100pwa004, 31100pwkq01, 31100rsh004, 112616, 210956, 210956a, 284888, 401897ri, 443191, 9090517, 12060884, 125530080, 222149802, 0986080570
