HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032111594

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 75, Rotation: CW, Mounting bracket distance: 55.00

Description

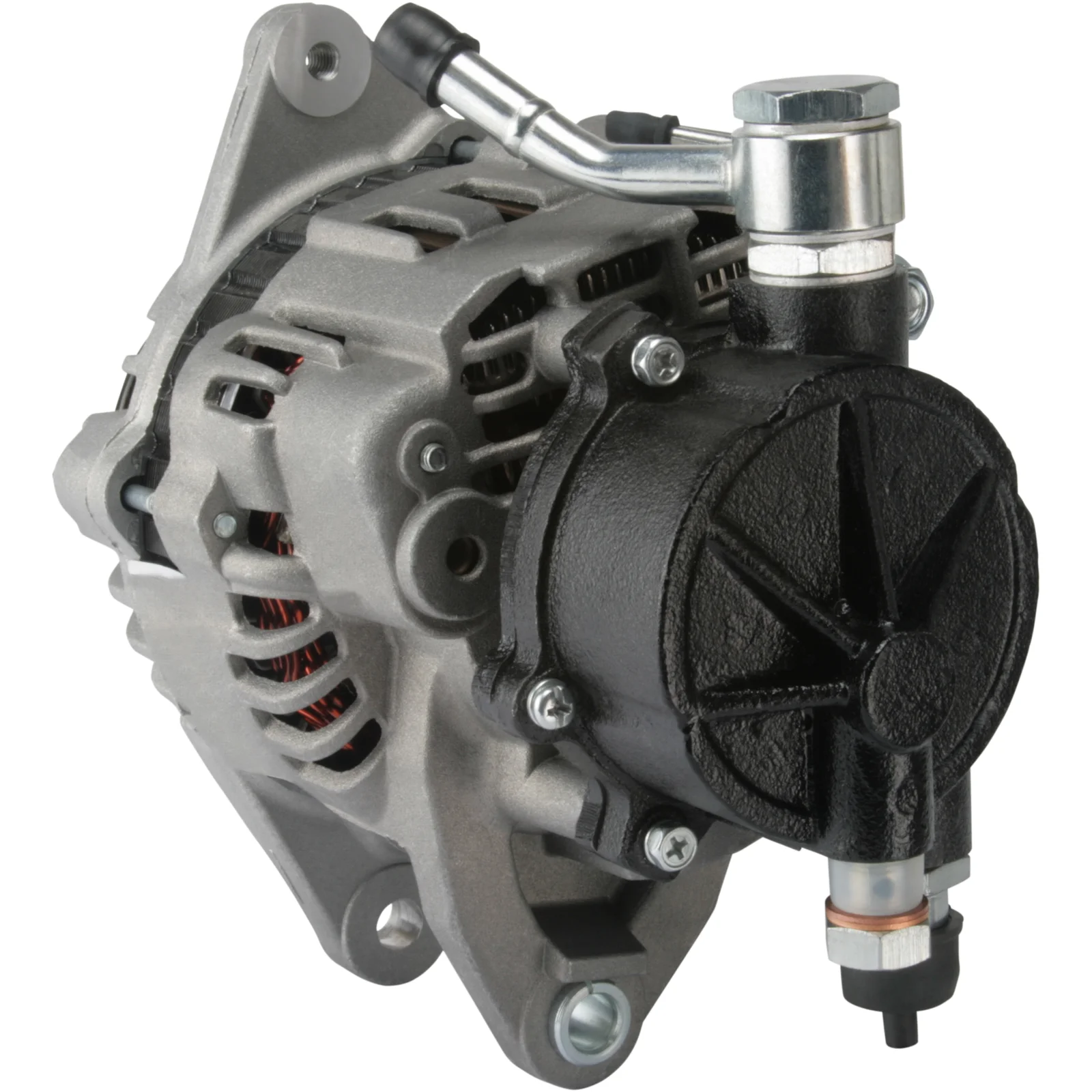

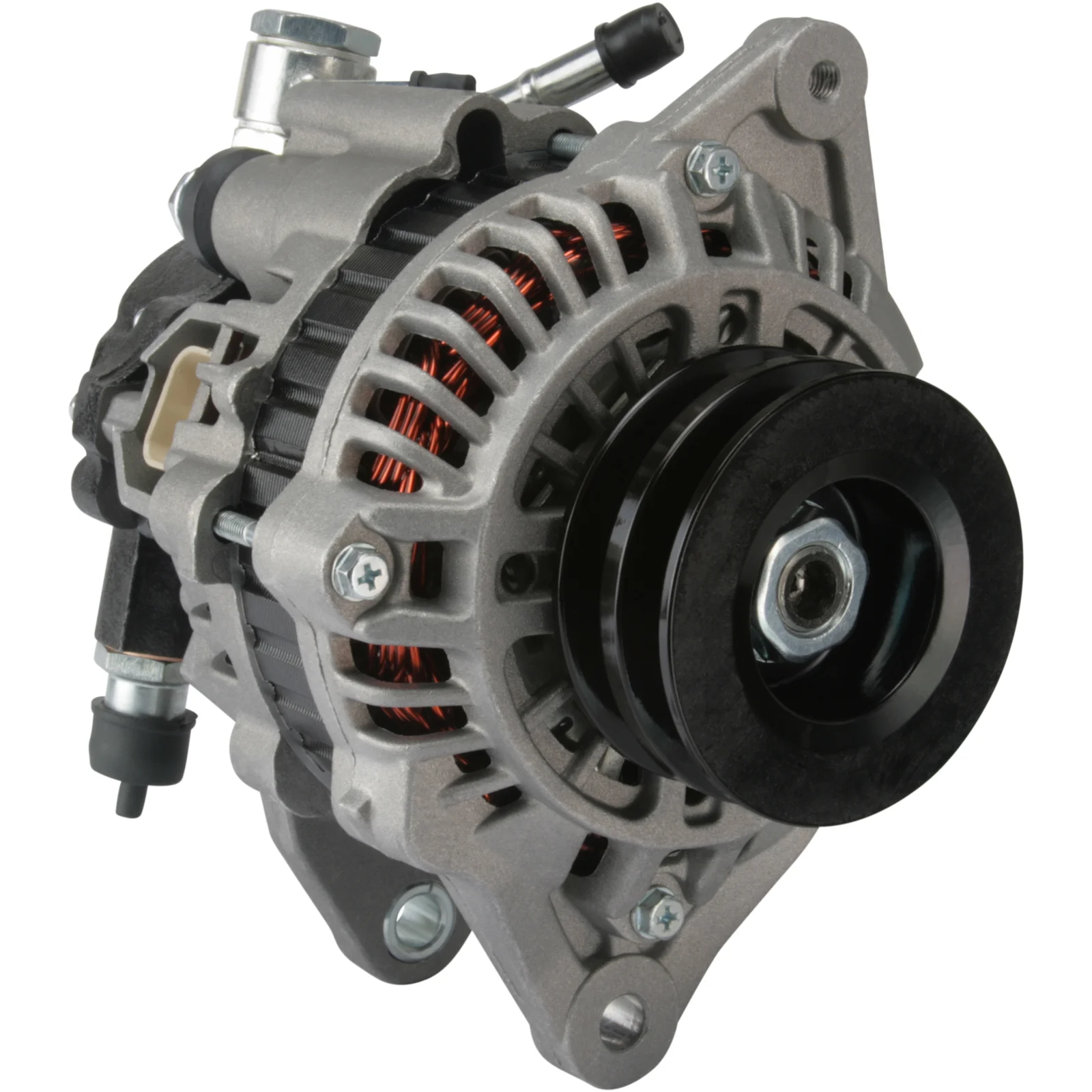

Mitsubishi Alternator 12V-75A 12V - 75A, 2V, (S, L) Pulley 79mm in diameter! For Yourex product order 90-380-3116

Voltage: 14
Amp: 75
Pulley dist.: 42.50
Width/holder arm: 13.00
Mount. bracket dist.: 55.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 5
Belt. adj. bracket hole 1: M8
Pulley dia.: 77.00
Grooves/pulley: 2
Radius: 88.00
Radius 2: 89.00
B+: M8
Position/B+ in min.: 6
Rotation: CW
Plug no.: PL07
Total length mm: 227.00
Pulley: DP
Regulator type: IR
Vac. pump: Yes
Prod. info: BN
Servicing: Mitsubishi

Files

  • OEM
    A002T82899, A002T82899A, A002T82899AT, A002T82899ZT, A002TN0499AT, A2T-82899, A2T-82899AT, A2T-82899ZT, A2T-N0399, A2T-N0499, A2T-N0499ZT, A2T-N1199, A2T-N1199AT, A2T-N1199ZT, a2t82899, A2T82899A, a2t82899at, a2t82899zt, A2TN0499AT, A3T-04999, A3T-06099, A3T-15099, F032111594, F032112128, ja1183ir, MD 135825, MD 147246, MD 304129, MD 306649, MD 306834, MD 313939, MD 327514, MD 366050, MD 366051, md306649, md366050, MN137867, 111594, 112128

  • Normalised article numbler
    a002t82899, a002t82899a, a002t82899at, a002t82899zt, a002tn0499at, a2t82899, a2t82899a, a2t82899at, a2t82899zt, a2tn0399, a2tn0499, a2tn0499at, a2tn0499zt, a2tn1199, a2tn1199at, a2tn1199zt, a3t04999, a3t06099, a3t15099, a5008, a5092, alth048, cal35101, dra3474, dra4227, f032111594, f032112128, f042a0h048, ga15899, ja1183ir, lra02714, lrb00236, md135825, md147246, md304129, md306649, md306834, md313939, md327514, md366050, md366051, mn137867, 8el011711081, 8el737328001, 5671, 9029, 12666r, 12667n, 111518, 111594, 112128, 210274, 210274a, 282759, 401183ri, 440950, 443279, 12060516, 526119652, 0986045561, 0986087070, 944390900700
  • Description
    Mitsubishi Alternator 12V-75A 12V - 75A, 2V, (S, L) Pulley 79mm in diameter! For Yourex product order 90-380-3116

    Voltage: 14
    Amp: 75
    Pulley dist.: 42.50
    Width/holder arm: 13.00
    Mount. bracket dist.: 55.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 5
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 77.00
    Grooves/pulley: 2
    Radius: 88.00
    Radius 2: 89.00
    B+: M8
    Position/B+ in min.: 6
    Rotation: CW
    Plug no.: PL07
    Total length mm: 227.00
    Pulley: DP
    Regulator type: IR
    Vac. pump: Yes
    Prod. info: BN
    Servicing: Mitsubishi

    Files

  • Suitable for these vehicles

    • OEM
      A002T82899, A002T82899A, A002T82899AT, A002T82899ZT, A002TN0499AT, A2T-82899, A2T-82899AT, A2T-82899ZT, A2T-N0399, A2T-N0499, A2T-N0499ZT, A2T-N1199, A2T-N1199AT, A2T-N1199ZT, a2t82899, A2T82899A, a2t82899at, a2t82899zt, A2TN0499AT, A3T-04999, A3T-06099, A3T-15099, F032111594, F032112128, ja1183ir, MD 135825, MD 147246, MD 304129, MD 306649, MD 306834, MD 313939, MD 327514, MD 366050, MD 366051, md306649, md366050, MN137867, 111594, 112128

    • Normalised article numbler
      a002t82899, a002t82899a, a002t82899at, a002t82899zt, a002tn0499at, a2t82899, a2t82899a, a2t82899at, a2t82899zt, a2tn0399, a2tn0499, a2tn0499at, a2tn0499zt, a2tn1199, a2tn1199at, a2tn1199zt, a3t04999, a3t06099, a3t15099, a5008, a5092, alth048, cal35101, dra3474, dra4227, f032111594, f032112128, f042a0h048, ga15899, ja1183ir, lra02714, lrb00236, md135825, md147246, md304129, md306649, md306834, md313939, md327514, md366050, md366051, mn137867, 8el011711081, 8el737328001, 5671, 9029, 12666r, 12667n, 111518, 111594, 112128, 210274, 210274a, 282759, 401183ri, 440950, 443279, 12060516, 526119652, 0986045561, 0986087070, 944390900700
