HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113252

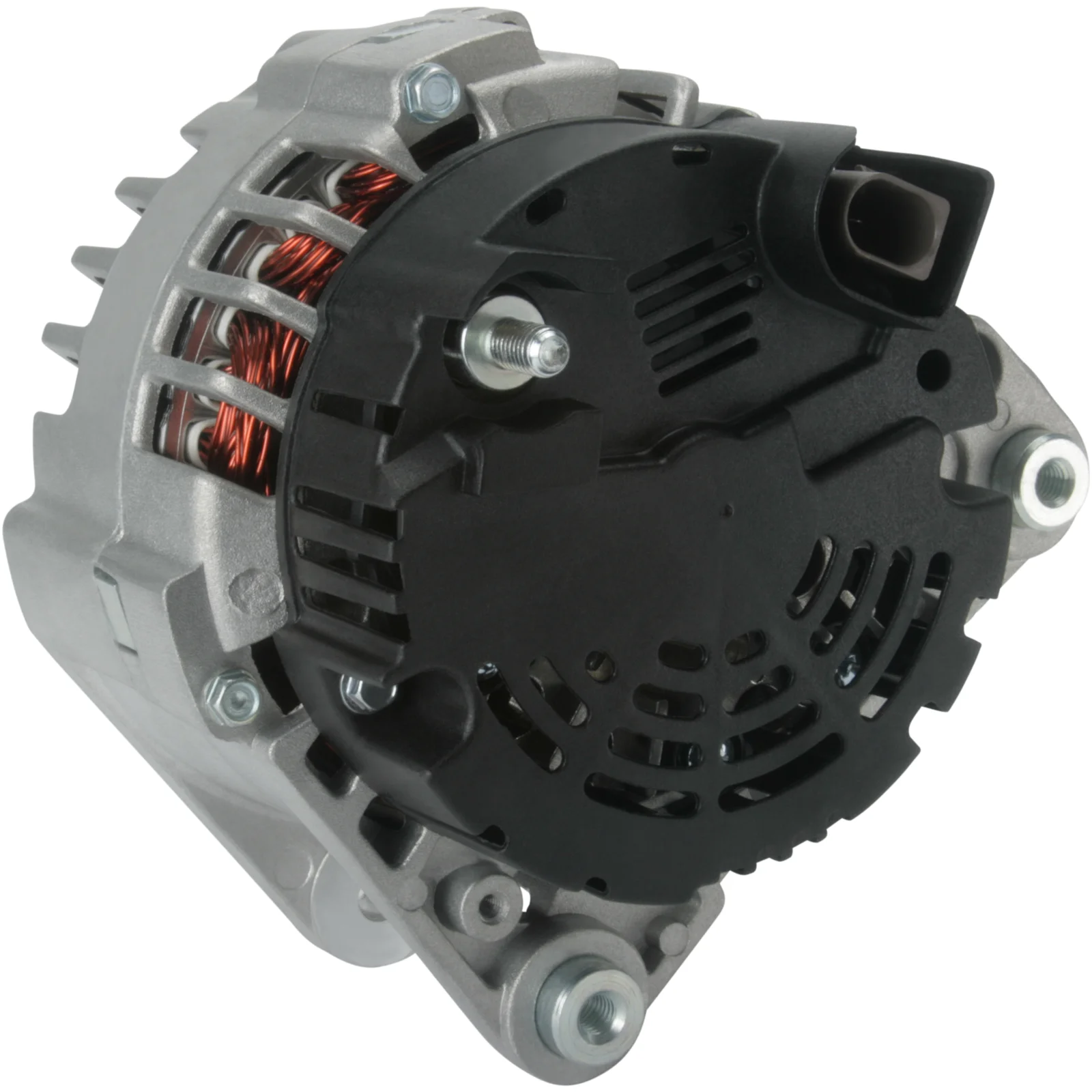

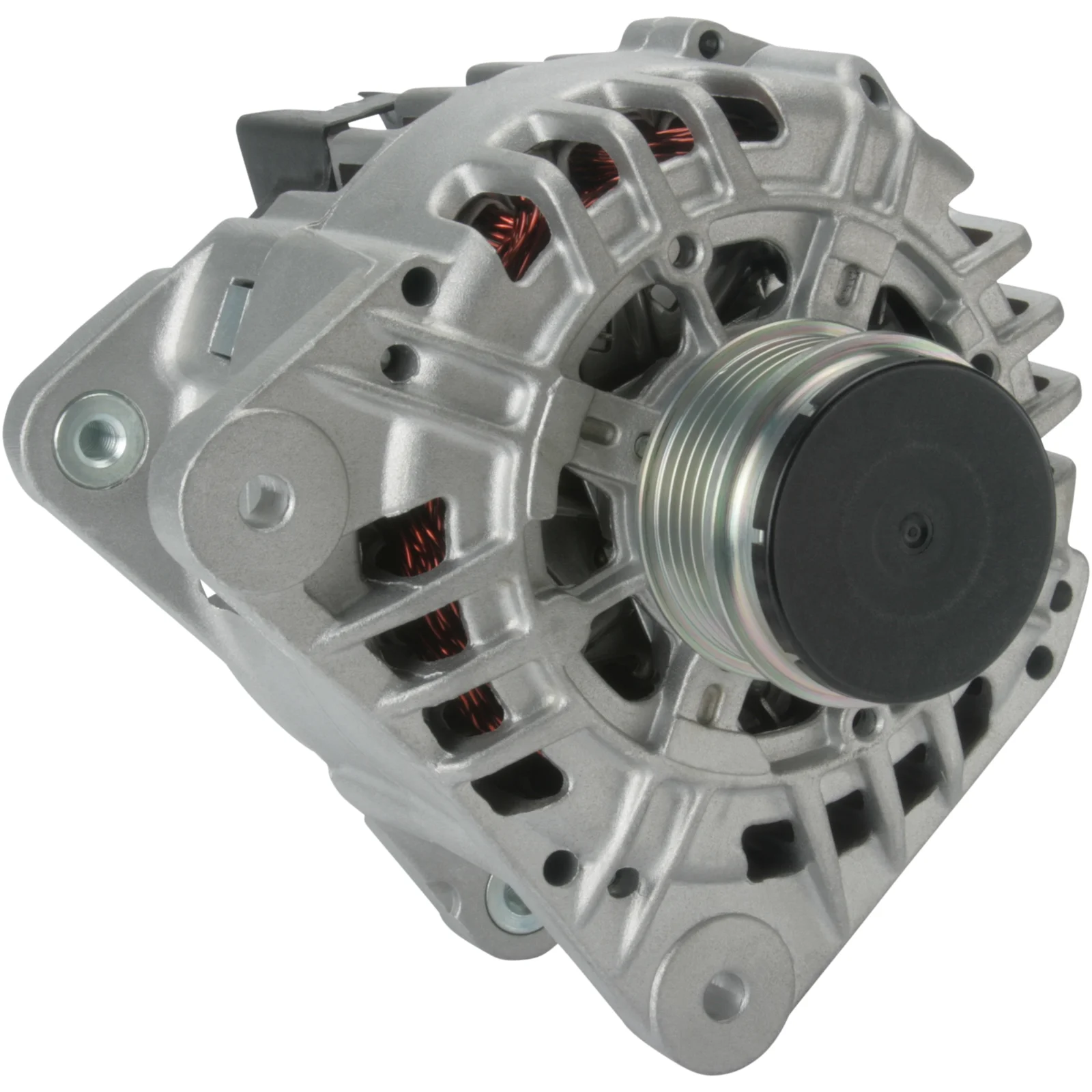

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 140, Rotation: CW, Mounting bracket distributor: 61.00

Description

Voltage: 14
Amp: 140
Pulley: Alternator
Dist.: 29.00
Width/holder arm: 14.00
Mounting bracket dist.: 61.00
Bracket hole: 8.50
V-belt adjustment bracket hole position.: 45
V-belt adjustment bracket hole 1: 8.50
Pulley dia.: 56.00
Grooves/pulley: 5
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 50
D+ Size: Plug
Rotation: CW
Plug no.: PL61
Total length mm: 180.00
Pulley: SP/FW
Regulator type: IR
Prod. info: BN
Servicing: VW

Files

  • OEM
    F032113252, sg14b011, 1678ir, 2542496, 2542496B, 2542496C, 028903029Q, 028903029QX, 028903029r, 028903029RX, 0124525010, 0124525021, 0124525089

  • Normalised article numbler
    a0725s, a3033, alth121, cal15270, drb4460, drb4460x, f032113252, f042a0h121, lra02323, sg14b011, 8el011710681, 1678ir, 4647, 23320n, 23320r, 111411, 200017, 210134, 210134a, 284818, 301678ri, 437377, 439421, 746125, 746925, 2542496, 2542496b, 2542496c, 9044460, 9213623, 12044460, 028903029q, 028903029qx, 028903029r, 028903029rx, 32044460, 0124525010, 0124525021, 0124525089, 305525140, 0986044460, 2111971402, 944390444600
  • Description
    Voltage: 14
    Amp: 140
    Pulley: Alternator
    Dist.: 29.00
    Width/holder arm: 14.00
    Mounting bracket dist.: 61.00
    Bracket hole: 8.50
    V-belt adjustment bracket hole position.: 45
    V-belt adjustment bracket hole 1: 8.50
    Pulley dia.: 56.00
    Grooves/pulley: 5
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 50
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL61
    Total length mm: 180.00
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN
    Servicing: VW

    Files

  • Suitable for these vehicles

    • OEM
      F032113252, sg14b011, 1678ir, 2542496, 2542496B, 2542496C, 028903029Q, 028903029QX, 028903029r, 028903029RX, 0124525010, 0124525021, 0124525089

    • Normalised article numbler
      a0725s, a3033, alth121, cal15270, drb4460, drb4460x, f032113252, f042a0h121, lra02323, sg14b011, 8el011710681, 1678ir, 4647, 23320n, 23320r, 111411, 200017, 210134, 210134a, 284818, 301678ri, 437377, 439421, 746125, 746925, 2542496, 2542496b, 2542496c, 9044460, 9213623, 12044460, 028903029q, 028903029qx, 028903029r, 028903029rx, 32044460, 0124525010, 0124525021, 0124525089, 305525140, 0986044460, 2111971402, 944390444600
