HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032112742

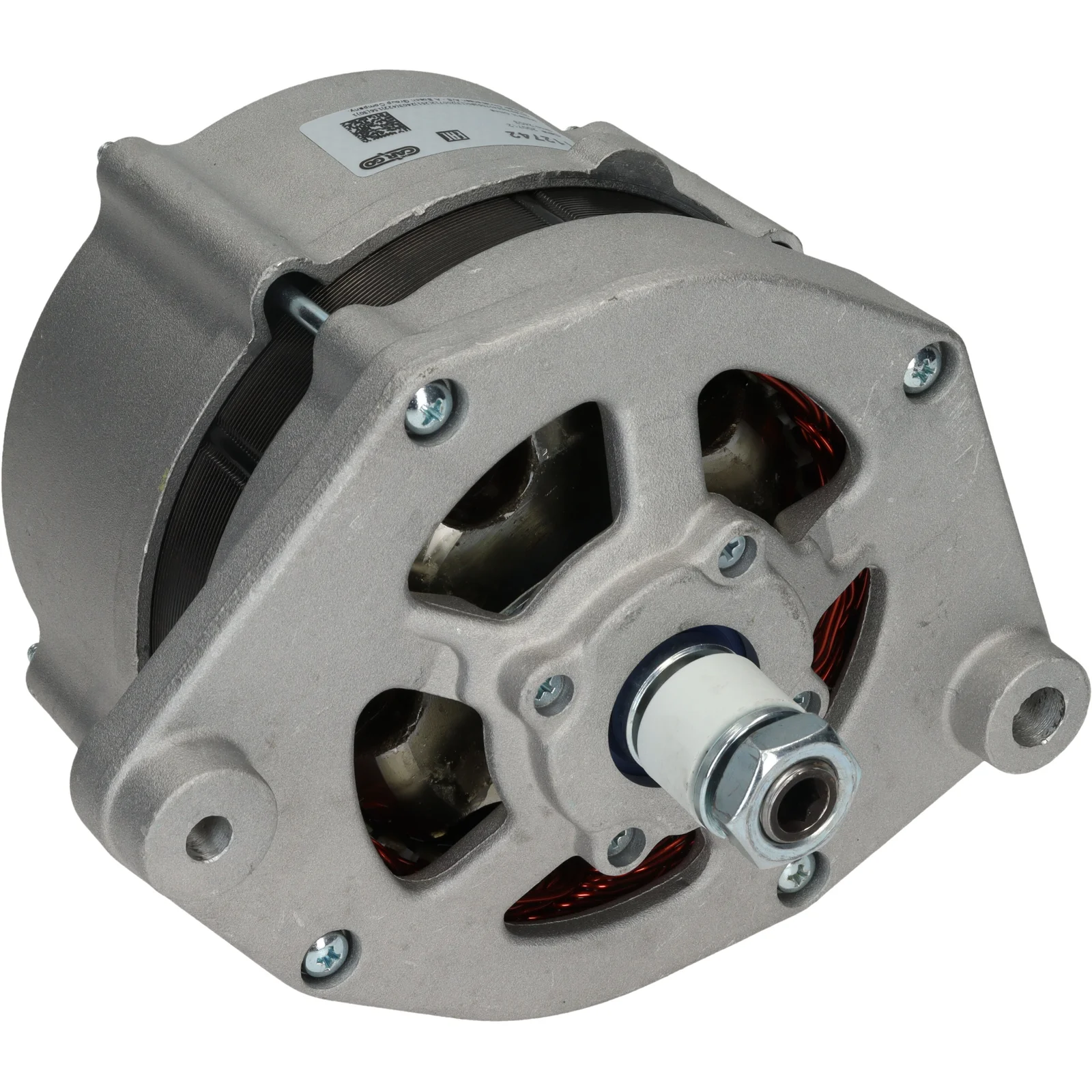

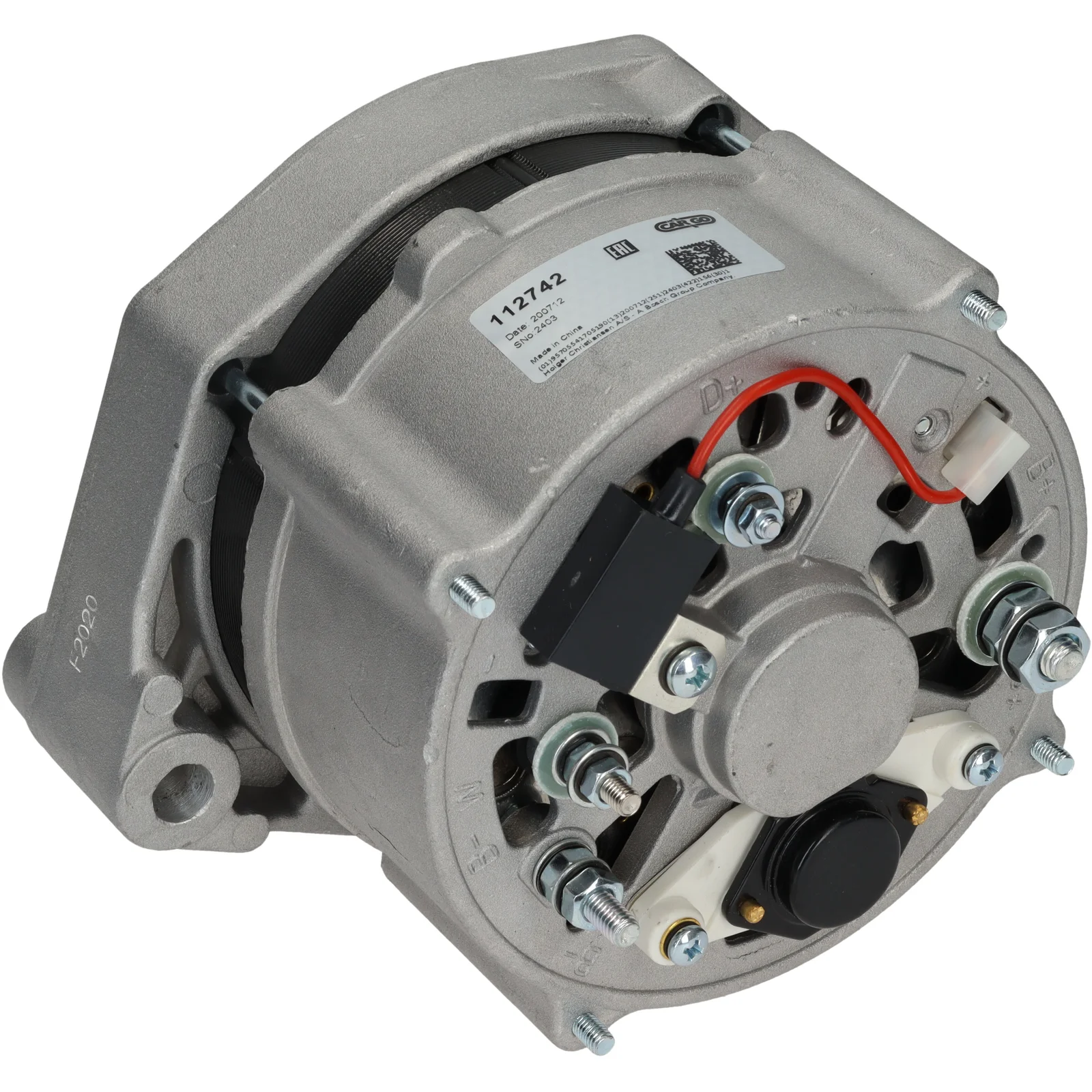

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, Pulley diameter: 70.30

Description

Alternator 12V-90A fits Volvo 12V - 90A For Yourex product order 90-600-3271 Voltage: 14 Amp: 90 Terminal: W Pulley dist.: 72.50 Width/holder arm: 51.00 Bracket hole: 12.00 Belt. adj. bracket hole position: 56 Belt. adj. bracket hole 1: 8.00 Pulley dia.: 70.30 Grooves/pulley: 2 Radius: 89.00 Radius 2: 90.00 B+: M8 Position/B+ in min.: 50 D+ Size: M4 Rotation: CW W plug type: M5 Pulley: w/o Regulator type: IR Prod. info: BN Servicing: Volvo

Files

  • OEM
    F032112742, RGO 112742, 0120 469 507, 0120 469 522, 0120 469 749, 366ir, 0986 032 710, 112742, 1509425, 1516571R, 1578139, 1578938, 5001782, 5001835, 5003261, 6779713, 7772730L, 8113910, 77727360L, 85000711, 0120400886, 0120469507, 0120469522, 0120469749

  • Normalised article numbler
    a0055, al910x, cal10503, dra2710, f032112742, lra00969, rgo112742, 8el725770001, 366ir, 3542, 13207, 21477r, 30366ri, 75751, 75752, 112742, 118570, 280772, 436567, 1509425, 1516571r, 1578139, 1578938, 2091081, 4032710, 5001782, 5001835, 5003261, 6779713, 7772730l, 8113910, 9932710, 9934360, 12032710, 77727360l, 85000711, 0120400886, 0120469507, 0120469522, 0120469749, 238110902, 238123902, 943356230, 0986032710, 0986032713, 0986032717, 0986034360, 943356230010
  • Description
    Alternator 12V-90A fits Volvo 12V - 90A For Yourex product order 90-600-3271 Voltage: 14 Amp: 90 Terminal: W Pulley dist.: 72.50 Width/holder arm: 51.00 Bracket hole: 12.00 Belt. adj. bracket hole position: 56 Belt. adj. bracket hole 1: 8.00 Pulley dia.: 70.30 Grooves/pulley: 2 Radius: 89.00 Radius 2: 90.00 B+: M8 Position/B+ in min.: 50 D+ Size: M4 Rotation: CW W plug type: M5 Pulley: w/o Regulator type: IR Prod. info: BN Servicing: Volvo

    Files

  • Suitable for these vehicles

    • OEM
      F032112742, RGO 112742, 0120 469 507, 0120 469 522, 0120 469 749, 366ir, 0986 032 710, 112742, 1509425, 1516571R, 1578139, 1578938, 5001782, 5001835, 5003261, 6779713, 7772730L, 8113910, 77727360L, 85000711, 0120400886, 0120469507, 0120469522, 0120469749

    • Normalised article numbler
      a0055, al910x, cal10503, dra2710, f032112742, lra00969, rgo112742, 8el725770001, 366ir, 3542, 13207, 21477r, 30366ri, 75751, 75752, 112742, 118570, 280772, 436567, 1509425, 1516571r, 1578139, 1578938, 2091081, 4032710, 5001782, 5001835, 5003261, 6779713, 7772730l, 8113910, 9932710, 9934360, 12032710, 77727360l, 85000711, 0120400886, 0120469507, 0120469522, 0120469749, 238110902, 238123902, 943356230, 0986032710, 0986032713, 0986032717, 0986034360, 943356230010
