Article no.: F032113949

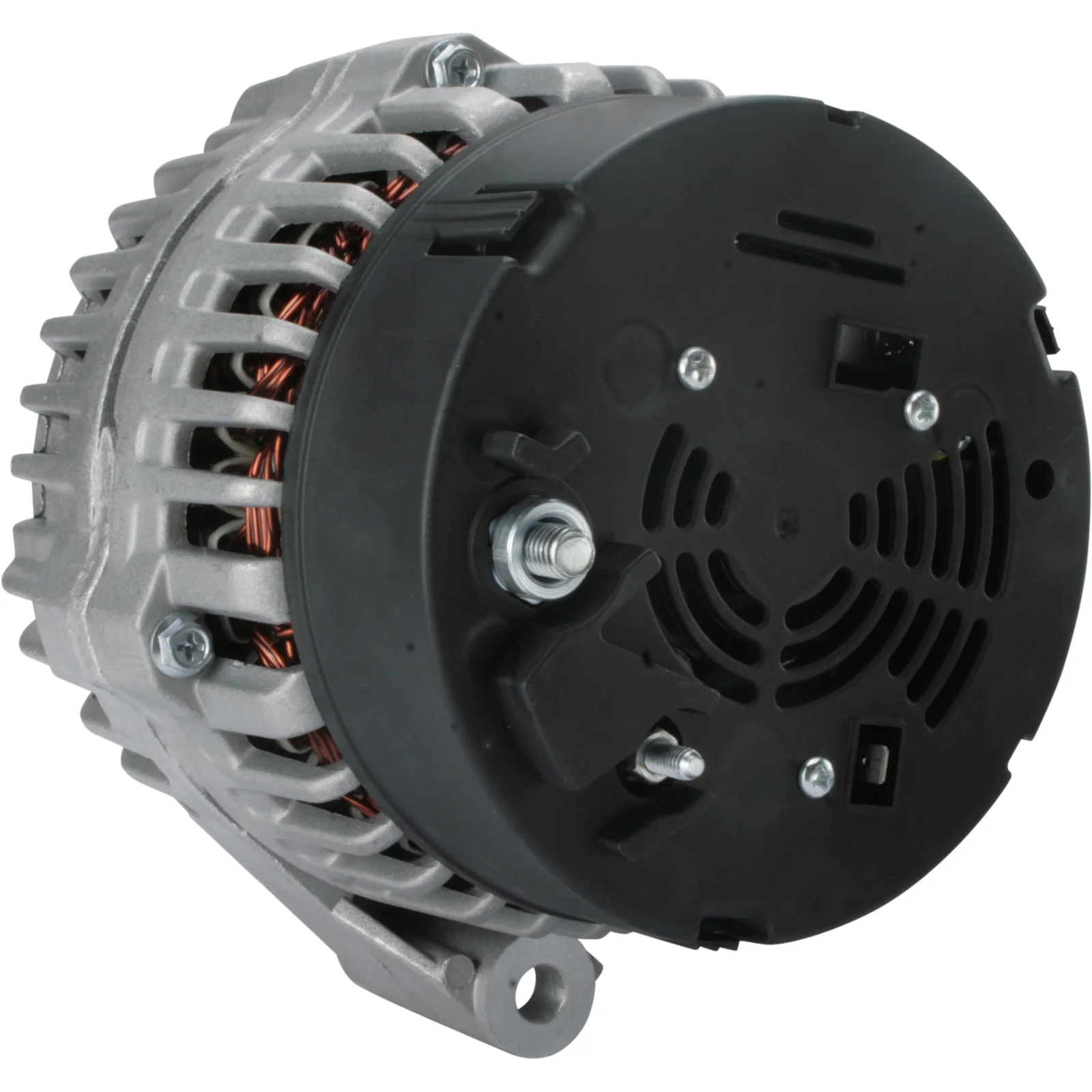

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 150, Rotation: CW, Radius: 90.00

Description

John Deere Alternator 12V-150A 12V - 150A, without pulley Rotor armature: 28mm Option: 90-162-4313 (143A), rotor armature 18mm 90-441-0416 (175A), (B+) bolt M10 Pulley: F00M 061 015 (solid) / 45-012-3793 (freewheel) For Yourex product order 90-270-4721

Voltage: 14
Amperes: 150
Terminal: W
Width/holder arm: 56.00
Bracket hole: 10.00
Belt. adj. bracket hole position: 50
Belt. adj. bracket hole 1: 10.60
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 45
D+ Size: M5
Rotation: CW
W plug type: 6.30
Total length mm: 185.00
Pulley: without
Regulator type: IR

Files

  • OEM
    A0121541402, AAN5120, AAN5122, AAN5125, AAN8166, AAN8185, AL 119537, AL119537, AL171541, F032113949, F404900010050, MN16359209, RGO 113949, V836667315, V836673344, 11.203.051, 11.203.065, 11.203.103, 11.204.065, 11.204.254, 11.204.276, 0123 515 500, 0123 515 501, 714-40215, 0986 047 210, 1831ir, 1986A00884, 1986A00946, 1986A01161, 1986A01173, 113949, 01181741, 01182027, 1182027, 01182401, 01182691, 1182691, 01183185, 01183483, 01183606, 1183606, 01183797, 01183799, 01912346, 2402000, 03269108, 3789453M91, 3789983M92, 3789983M93, 3909639M1, 4280470F91, 4281878F91, 4281878M92, 4281878M93, 4281880M92, 4281880M93, 4288341M91, 0007984930, 07984930, 8281880M93, 82036223, 88601600, 89685300, 0121541402, 0123515500, 0123515501, 0123515503, 0123515504, 0124525147, 0124615057, 836667315, 836673344, 836864048, 0986047210

  • Normalised article numbler
    a0121541402, a0245, a0539s, a0647s, a9190, aan5120, aan5122, aan5125, aan8166, aan8185, abo0422, al119537, al171541, cal10290, dra4213, dra4213n, f032113949, f404900010050, ia1117, ia1242, lra02234, mg162, mg28, mg52, mn16359209, rgo113949, v836667315, v836673344, 8el015643121, 8el738231001, 1831ir, 1986a00884, 1986a00946, 1986a01161, 1986a01173, 12381n, 111300, 111704, 111762, 113058, 113949, 284709, 286967, 301480ri, 301831ri, 01181741, 01182027, 1182027, 01182401, 01182691, 1182691, 01183185, 01183483, 01183606, 1183606, 01183797, 01183799, 01912346, 2402000, 03269108, 3789453m91, 3789983m92, 3789983m93, 3909639m1, 4280470f91, 4281878f91, 4281878m92, 4281878m93, 4281880m92, 4281880m93, 4288341m91, 0007984930, 07984930, 8281880m93, 9947210, 11203051, 11203065, 11203103, 11204065, 11204254, 11204276, 12047210, 71440215, 82036223, 88601600, 89685300, 0121541402, 0123515500, 0123515501, 0123515503, 0123515504, 0124525147, 0124615057, 535504150, 635529150, 635533150, 805507150, 836667315, 836673344, 836864048, 0986047210, 5001371502, 5001981502
  • Description
    John Deere Alternator 12V-150A 12V - 150A, without pulley Rotor armature: 28mm Option: 90-162-4313 (143A), rotor armature 18mm 90-441-0416 (175A), (B+) bolt M10 Pulley: F00M 061 015 (solid) / 45-012-3793 (freewheel) For Yourex product order 90-270-4721

    Voltage: 14
    Amperes: 150
    Terminal: W
    Width/holder arm: 56.00
    Bracket hole: 10.00
    Belt. adj. bracket hole position: 50
    Belt. adj. bracket hole 1: 10.60
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 45
    D+ Size: M5
    Rotation: CW
    W plug type: 6.30
    Total length mm: 185.00
    Pulley: without
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      A0121541402, AAN5120, AAN5122, AAN5125, AAN8166, AAN8185, AL 119537, AL119537, AL171541, F032113949, F404900010050, MN16359209, RGO 113949, V836667315, V836673344, 11.203.051, 11.203.065, 11.203.103, 11.204.065, 11.204.254, 11.204.276, 0123 515 500, 0123 515 501, 714-40215, 0986 047 210, 1831ir, 1986A00884, 1986A00946, 1986A01161, 1986A01173, 113949, 01181741, 01182027, 1182027, 01182401, 01182691, 1182691, 01183185, 01183483, 01183606, 1183606, 01183797, 01183799, 01912346, 2402000, 03269108, 3789453M91, 3789983M92, 3789983M93, 3909639M1, 4280470F91, 4281878F91, 4281878M92, 4281878M93, 4281880M92, 4281880M93, 4288341M91, 0007984930, 07984930, 8281880M93, 82036223, 88601600, 89685300, 0121541402, 0123515500, 0123515501, 0123515503, 0123515504, 0124525147, 0124615057, 836667315, 836673344, 836864048, 0986047210

    • Normalised article numbler
      a0121541402, a0245, a0539s, a0647s, a9190, aan5120, aan5122, aan5125, aan8166, aan8185, abo0422, al119537, al171541, cal10290, dra4213, dra4213n, f032113949, f404900010050, ia1117, ia1242, lra02234, mg162, mg28, mg52, mn16359209, rgo113949, v836667315, v836673344, 8el015643121, 8el738231001, 1831ir, 1986a00884, 1986a00946, 1986a01161, 1986a01173, 12381n, 111300, 111704, 111762, 113058, 113949, 284709, 286967, 301480ri, 301831ri, 01181741, 01182027, 1182027, 01182401, 01182691, 1182691, 01183185, 01183483, 01183606, 1183606, 01183797, 01183799, 01912346, 2402000, 03269108, 3789453m91, 3789983m92, 3789983m93, 3909639m1, 4280470f91, 4281878f91, 4281878m92, 4281878m93, 4281880m92, 4281880m93, 4288341m91, 0007984930, 07984930, 8281880m93, 9947210, 11203051, 11203065, 11203103, 11204065, 11204254, 11204276, 12047210, 71440215, 82036223, 88601600, 89685300, 0121541402, 0123515500, 0123515501, 0123515503, 0123515504, 0124525147, 0124615057, 535504150, 635529150, 635533150, 805507150, 836667315, 836673344, 836864048, 0986047210, 5001371502, 5001981502
