HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114078

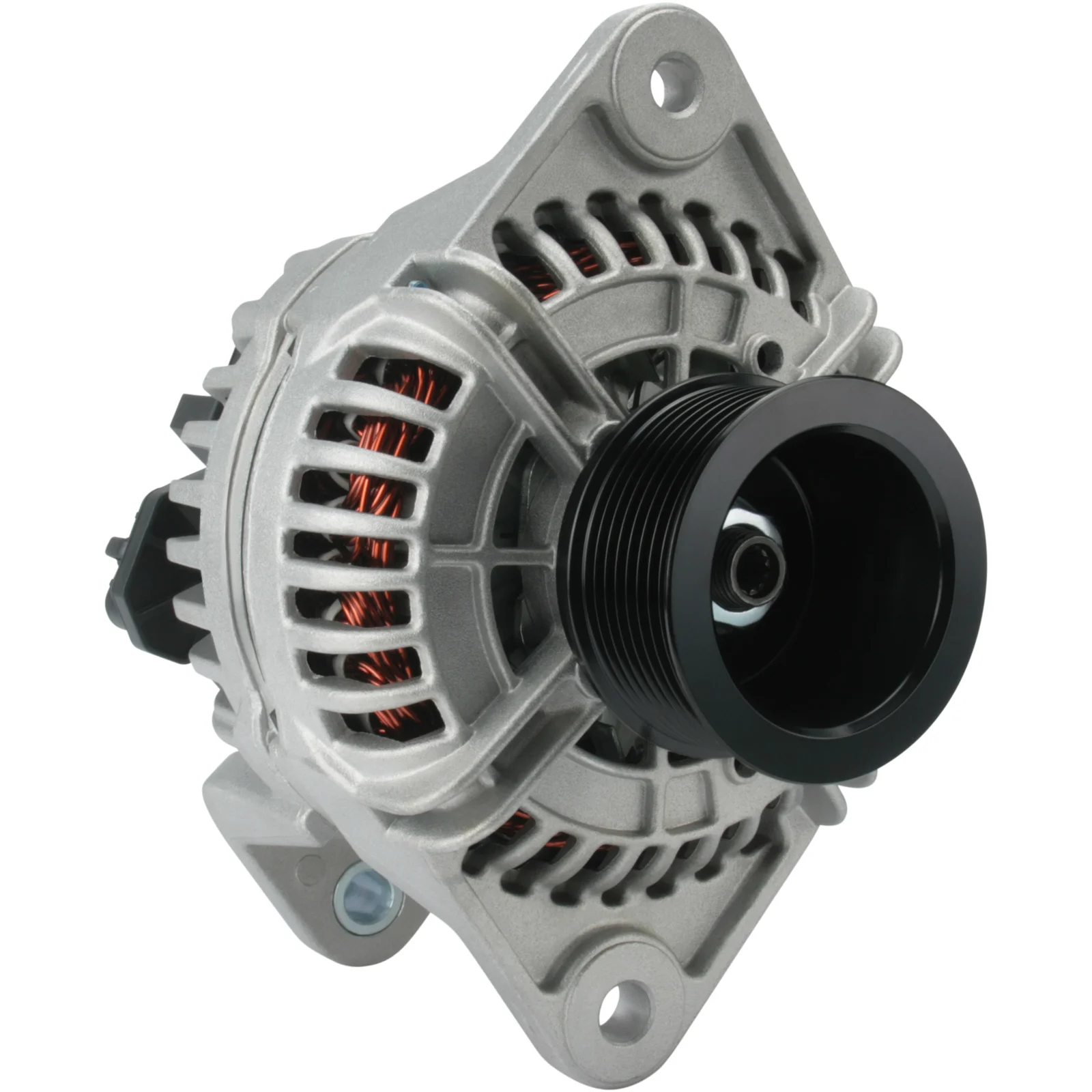

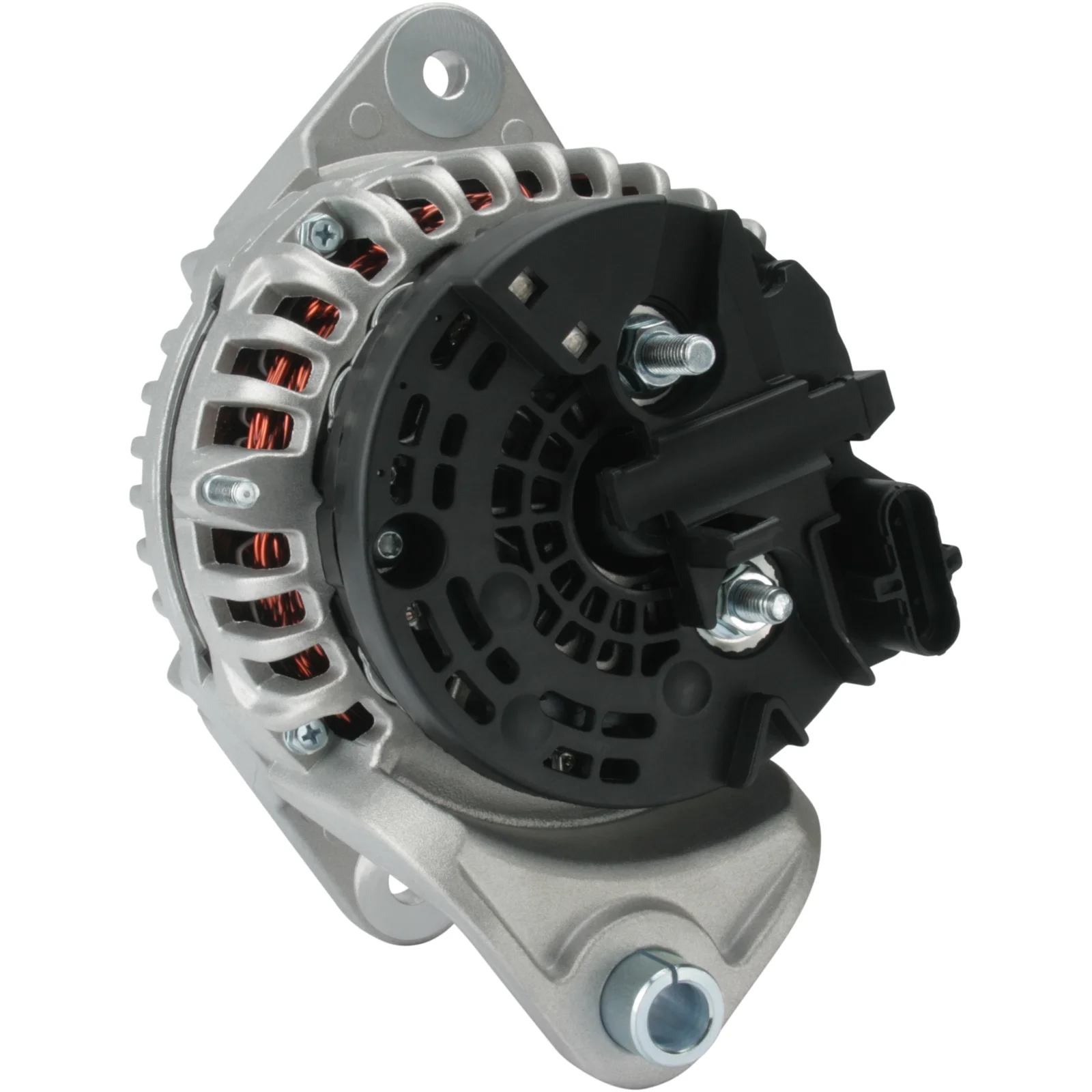

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 120, Rotation: CW, Mounting bracket distributor: 105.50

Description

Alternator 24V-120A fits Volvo 24V - 120A, 8-pin, (W, L, 15, S, DFM)5-pin connector. Alternative: 90-600-9493 OEM Prestolite, recommended for bus applications, Same Alternator in 80A = 90-600-4629, in 110A = 90-600-4935, in 150A = 90-600-8447. Connector piece = KON-120 5-pin. For Yourex product order 90-600-5331

Voltage: 28
Amp: 120
Pulley distance: 45.00
Width/holder arm: 14.00
Mounting bracket distance: 105.50
Bracket hole: 13.00
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: 11.20
Pulley diameter: 72.00
Grooves/pulley: 8
Radius: 99.00
Radius 2: 99.00
B+: M8
Position/B+ in minutes: 60
D+ size: Plug
Rotation: CW
Plug number: PL82
W plug type: Plug
Total length mm: 215.00
Terminal type: W-L-15-S-DFM
Lamp type: Active
Pulley: SP
Regulator type: IR
Product info: BN

Files

  • OEM
    A4TR5893, A4TR5893ZT, AAN5413, F032114078, 11.209.624, 0124 655 331, 0124 655 332, 1986A00629, 1986A01022, 1986A01031, 114078, 20741686, 21041876, 21056611, 21429790, 22218391, 22218393, 72445850, 85000592, 0124655021, 0124655325, 0124655326, 0124655331, 0124655332, 7421041876

  • Normalised article numbler
    a0412, a4tr5893, a4tr5893zt, a5368pr, a5368s, aan5413, avi147j3110hd, cal10659, cal10763, dra0286, dra1079, dra1079n, f032114078, ia9472, lra04521, mg817, 8el012584781, 1986a00629, 1986a01022, 1986a01031, 20243n, 23868n, 114078, 202039, 210920, 210920a, 443497, 444453, 486532, 488630, 553466ri, 861344, 9990767, 11209624, 12090612, 20741686, 21041876, 21056611, 21429790, 22218391, 22218393, 72445850, 85000592, 0124655021, 0124655325, 0124655326, 0124655331, 0124655332, 816521120, 0986084800, 0986085310, 7421041876
  • Description
    Alternator 24V-120A fits Volvo 24V - 120A, 8-pin, (W, L, 15, S, DFM)5-pin connector. Alternative: 90-600-9493 OEM Prestolite, recommended for bus applications, Same Alternator in 80A = 90-600-4629, in 110A = 90-600-4935, in 150A = 90-600-8447. Connector piece = KON-120 5-pin. For Yourex product order 90-600-5331

    Voltage: 28
    Amp: 120
    Pulley distance: 45.00
    Width/holder arm: 14.00
    Mounting bracket distance: 105.50
    Bracket hole: 13.00
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: 11.20
    Pulley diameter: 72.00
    Grooves/pulley: 8
    Radius: 99.00
    Radius 2: 99.00
    B+: M8
    Position/B+ in minutes: 60
    D+ size: Plug
    Rotation: CW
    Plug number: PL82
    W plug type: Plug
    Total length mm: 215.00
    Terminal type: W-L-15-S-DFM
    Lamp type: Active
    Pulley: SP
    Regulator type: IR
    Product info: BN

    Files

  • Suitable for these vehicles

    • OEM
      A4TR5893, A4TR5893ZT, AAN5413, F032114078, 11.209.624, 0124 655 331, 0124 655 332, 1986A00629, 1986A01022, 1986A01031, 114078, 20741686, 21041876, 21056611, 21429790, 22218391, 22218393, 72445850, 85000592, 0124655021, 0124655325, 0124655326, 0124655331, 0124655332, 7421041876

    • Normalised article numbler
      a0412, a4tr5893, a4tr5893zt, a5368pr, a5368s, aan5413, avi147j3110hd, cal10659, cal10763, dra0286, dra1079, dra1079n, f032114078, ia9472, lra04521, mg817, 8el012584781, 1986a00629, 1986a01022, 1986a01031, 20243n, 23868n, 114078, 202039, 210920, 210920a, 443497, 444453, 486532, 488630, 553466ri, 861344, 9990767, 11209624, 12090612, 20741686, 21041876, 21056611, 21429790, 22218391, 22218393, 72445850, 85000592, 0124655021, 0124655325, 0124655326, 0124655331, 0124655332, 816521120, 0986084800, 0986085310, 7421041876
