HC-Cargo Alternator

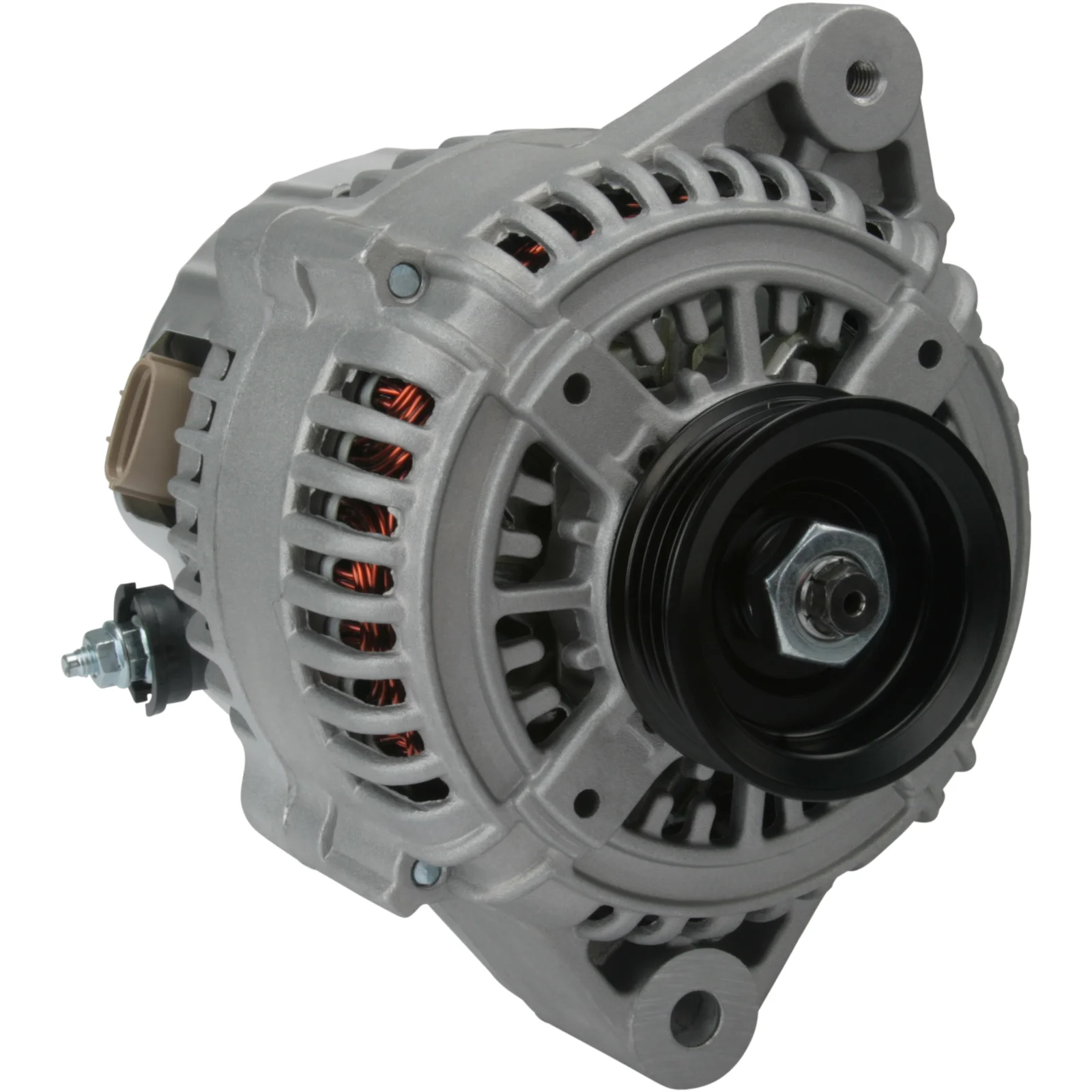

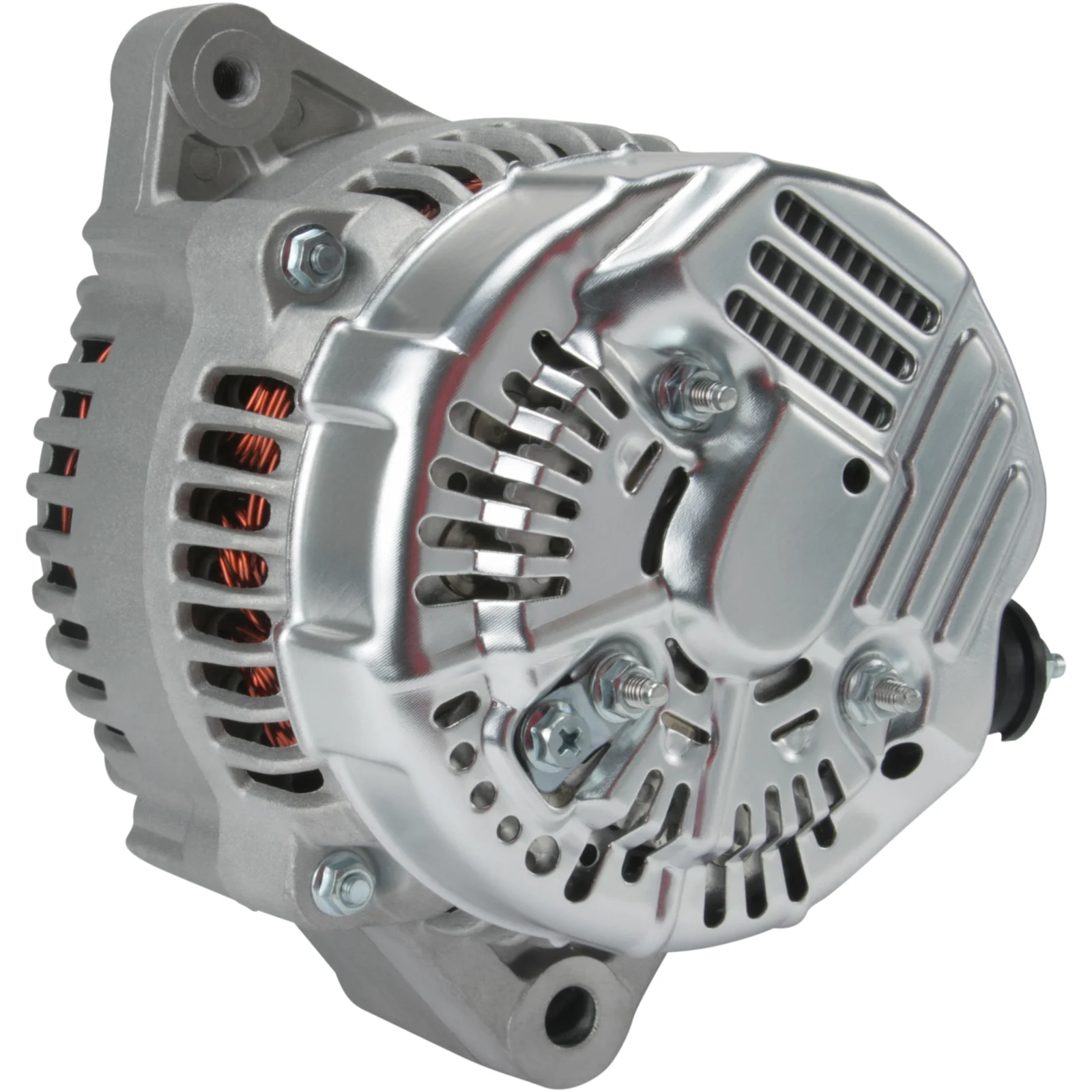

HC-Cargo Alternator
Article no.: F032115790

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 100, Rotation: CW, Pulley diameter: 59.00

Description

Voltage: 14
Amp: 100
Pulley diameter: 90.00
Width/holder arm: 58.00
Bracket hole: 10.50
Belt. adjustment brackethole position: 4
Belt. adjustment bracket hole 1: M8
Pulley diameter: 59.00
Grooves/pulley: 4
Radius: 84.00
Radius 2: 84.00
B+: M6
Position/B+ in min.: 18
D+ Size: Plug
Rotation: CW
Plug number: PL42
Total length mm: 161.00
Terminal type: S-IG-L
Pulley: SP
Regulator type: IR
Prod. info: BN

Files

  • OEM
    F032115790, 1986A01863, 2022ir, 27060-70500, 101211-7370

  • Normalised article numbler
    a6153, alt30280, cal40247, dra0171, f032115790, lra02190, 1986a01863, 2022ir, 23190, 23190r, 112521, 284653, 9090456, 12060965, 195567090, 235189902, 0986084390, 1012117370, 2706070500
  • Description
    Voltage: 14
    Amp: 100
    Pulley diameter: 90.00
    Width/holder arm: 58.00
    Bracket hole: 10.50
    Belt. adjustment brackethole position: 4
    Belt. adjustment bracket hole 1: M8
    Pulley diameter: 59.00
    Grooves/pulley: 4
    Radius: 84.00
    Radius 2: 84.00
    B+: M6
    Position/B+ in min.: 18
    D+ Size: Plug
    Rotation: CW
    Plug number: PL42
    Total length mm: 161.00
    Terminal type: S-IG-L
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032115790, 1986A01863, 2022ir, 27060-70500, 101211-7370

    • Normalised article numbler
      a6153, alt30280, cal40247, dra0171, f032115790, lra02190, 1986a01863, 2022ir, 23190, 23190r, 112521, 284653, 9090456, 12060965, 195567090, 235189902, 0986084390, 1012117370, 2706070500
