HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032111898

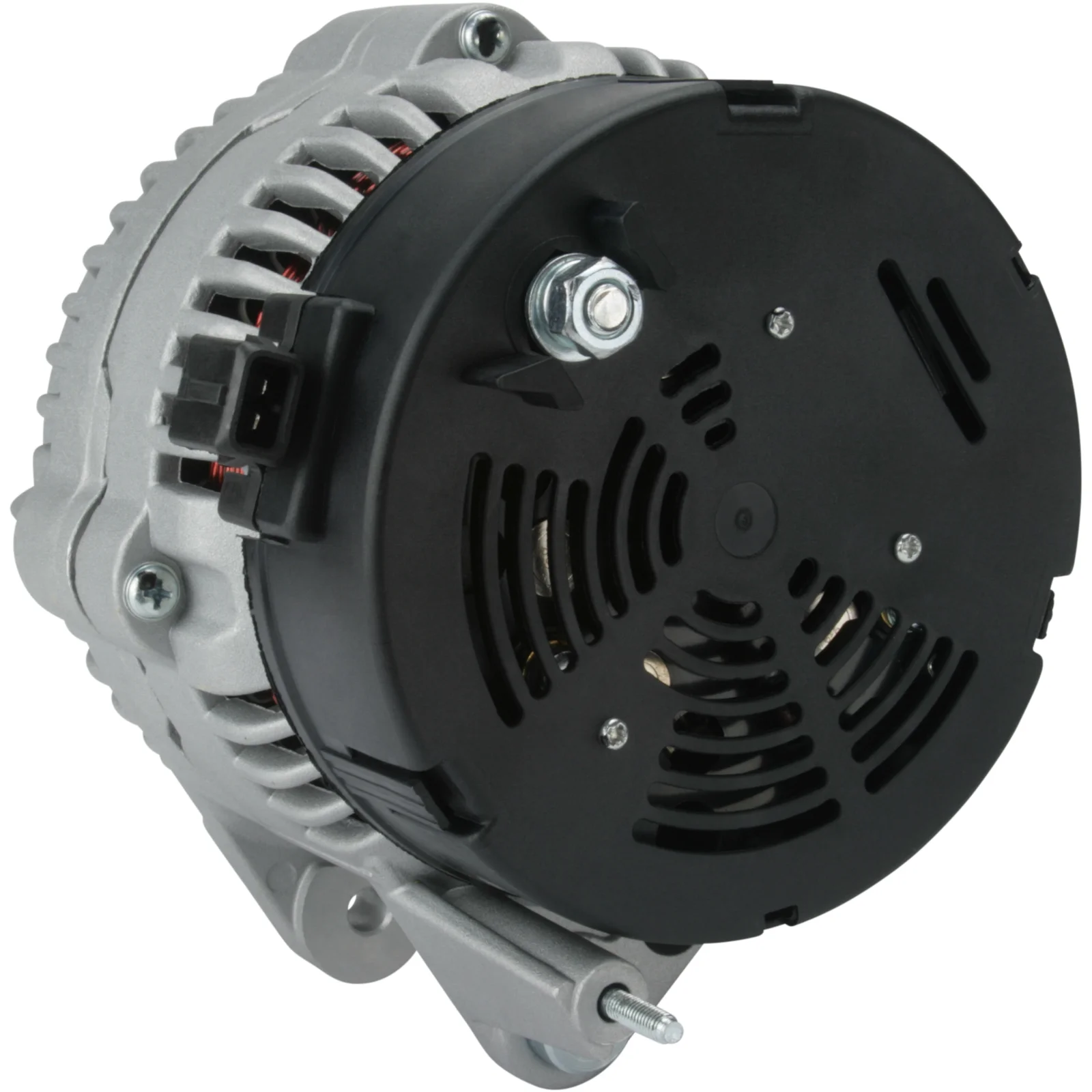

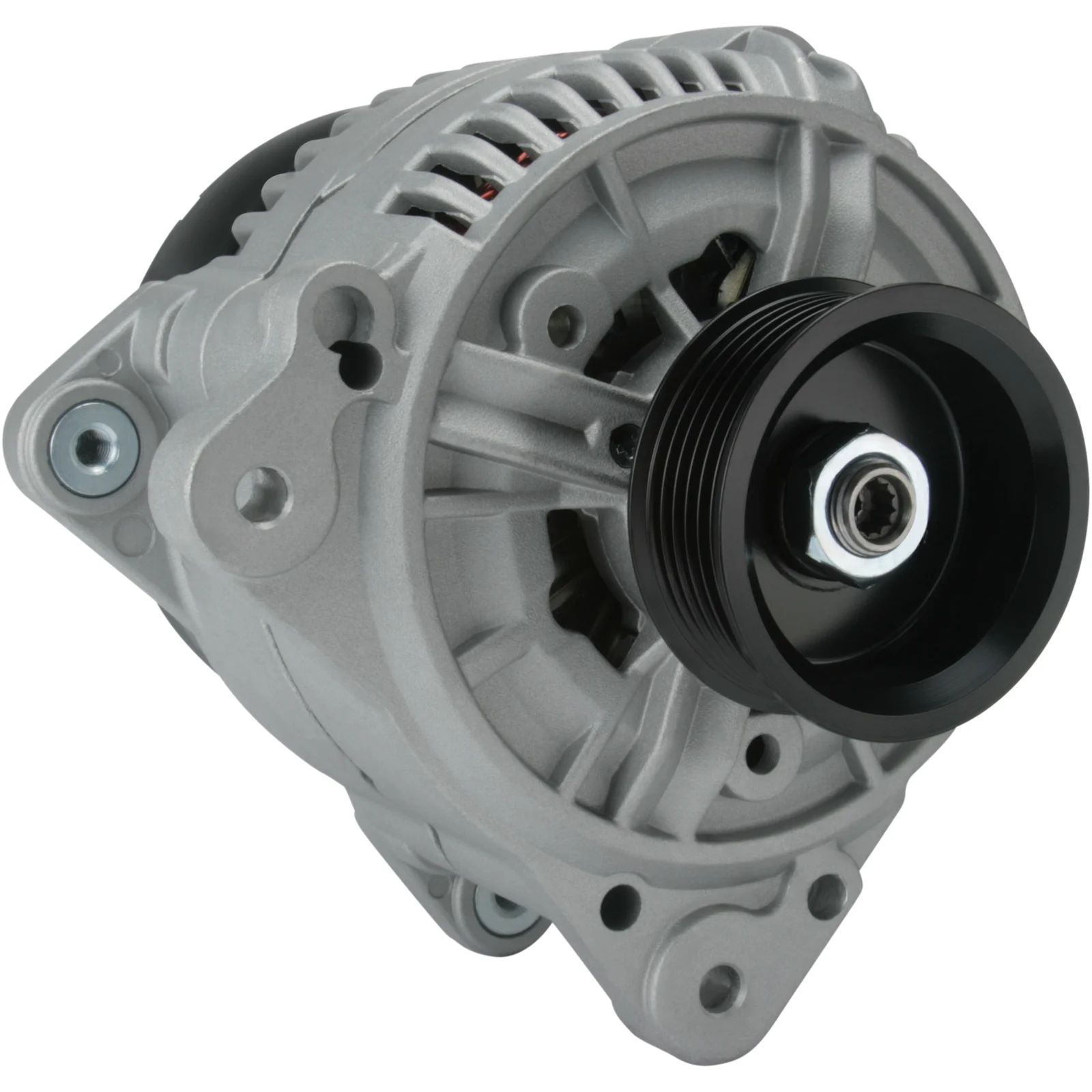

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 120, Rotation: CW, Mounting bracket distance: 61.00

Description

VW Alternator 12V-120A 12V - 120A, 6 grooves (D+, W) (W, D+) For Yourex product order 90-620-4036

Voltage: 14
Amp: 120
Terminal: W
Pulley distance: 40.00
Width/holder arm: 14.20
Mounting bracket distance: 61.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 67.70
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in minutes: 53
D+ Size: Plug
Rotation: CW
Plug no.: PL23
W plug type: Plug
Total length mm: 205.00
Pulley: SP
Regulator type: IR
Prod. info: BN

Files

  • OEM
    A0186, AAN5564, ALT-2061A, ALT10366, B120510614, CAL10501, DRB0360, F032111898, F042301069, F042A01069, IA1269, LRB00296, MG33, QA3093, 8EL012427-951, 8EL737310001, 11.203.569, 28-2589, 28-2763, 95VW10300GA, 0123 510 026, 0123 515 016, 211.150.1202, 211.178.1202, 0986 040 360, 4547, 5662, 13626N, 13626R, 111898, 118923, 209439, 209439A, 301229RI, 437618, 1515434R, 1516434R, 12040360, 021903017B, 21903017B, 021903023L, 021903025B, 021903025G, 21903025G, 023903025R, 028903018C, 028903018CX, 28903018C, 28903018CX, 028903025R, 028903025RX, 28903025R, 028903027D, 028903027P, 028903028B, 32040360, 037903023F, 37903023F, 037903025A, 071903023A, 074903023R, 074903027P, 74903027P, 0123505016, 0123510026, 0123515016, 0986040360, 905710100042, 943355111010, 944390403600

  • Normalised article numbler
    a0186, aan5564, alt10366, alt2061a, b120510614, cal10501, drb0360, f032111898, f042301069, f042a01069, ia1269, lrb00296, mg33, qa3093, 8el012427951, 8el737310001, 95vw10300ga, 4547, 5662, 13626n, 13626r, 111898, 118923, 209439, 209439a, 282589, 282763, 301229ri, 437618, 1515434r, 1516434r, 11203569, 12040360, 021903017b, 21903017b, 021903023l, 021903025b, 021903025g, 21903025g, 023903025r, 028903018c, 028903018cx, 28903018c, 28903018cx, 028903025r, 028903025rx, 28903025r, 028903027d, 028903027p, 028903028b, 32040360, 037903023f, 37903023f, 037903025a, 071903023a, 074903023r, 074903027p, 74903027p, 0123505016, 0123510026, 0123515016, 0986040360, 2111501202, 2111781202, 905710100042, 943355111010, 944390403600
  • Description
    VW Alternator 12V-120A 12V - 120A, 6 grooves (D+, W) (W, D+) For Yourex product order 90-620-4036

    Voltage: 14
    Amp: 120
    Terminal: W
    Pulley distance: 40.00
    Width/holder arm: 14.20
    Mounting bracket distance: 61.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 67.70
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in minutes: 53
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL23
    W plug type: Plug
    Total length mm: 205.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      A0186, AAN5564, ALT-2061A, ALT10366, B120510614, CAL10501, DRB0360, F032111898, F042301069, F042A01069, IA1269, LRB00296, MG33, QA3093, 8EL012427-951, 8EL737310001, 11.203.569, 28-2589, 28-2763, 95VW10300GA, 0123 510 026, 0123 515 016, 211.150.1202, 211.178.1202, 0986 040 360, 4547, 5662, 13626N, 13626R, 111898, 118923, 209439, 209439A, 301229RI, 437618, 1515434R, 1516434R, 12040360, 021903017B, 21903017B, 021903023L, 021903025B, 021903025G, 21903025G, 023903025R, 028903018C, 028903018CX, 28903018C, 28903018CX, 028903025R, 028903025RX, 28903025R, 028903027D, 028903027P, 028903028B, 32040360, 037903023F, 37903023F, 037903025A, 071903023A, 074903023R, 074903027P, 74903027P, 0123505016, 0123510026, 0123515016, 0986040360, 905710100042, 943355111010, 944390403600

    • Normalised article numbler
      a0186, aan5564, alt10366, alt2061a, b120510614, cal10501, drb0360, f032111898, f042301069, f042a01069, ia1269, lrb00296, mg33, qa3093, 8el012427951, 8el737310001, 95vw10300ga, 4547, 5662, 13626n, 13626r, 111898, 118923, 209439, 209439a, 282589, 282763, 301229ri, 437618, 1515434r, 1516434r, 11203569, 12040360, 021903017b, 21903017b, 021903023l, 021903025b, 021903025g, 21903025g, 023903025r, 028903018c, 028903018cx, 28903018c, 28903018cx, 028903025r, 028903025rx, 28903025r, 028903027d, 028903027p, 028903028b, 32040360, 037903023f, 37903023f, 037903025a, 071903023a, 074903023r, 074903027p, 74903027p, 0123505016, 0123510026, 0123515016, 0986040360, 2111501202, 2111781202, 905710100042, 943355111010, 944390403600
