HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116011

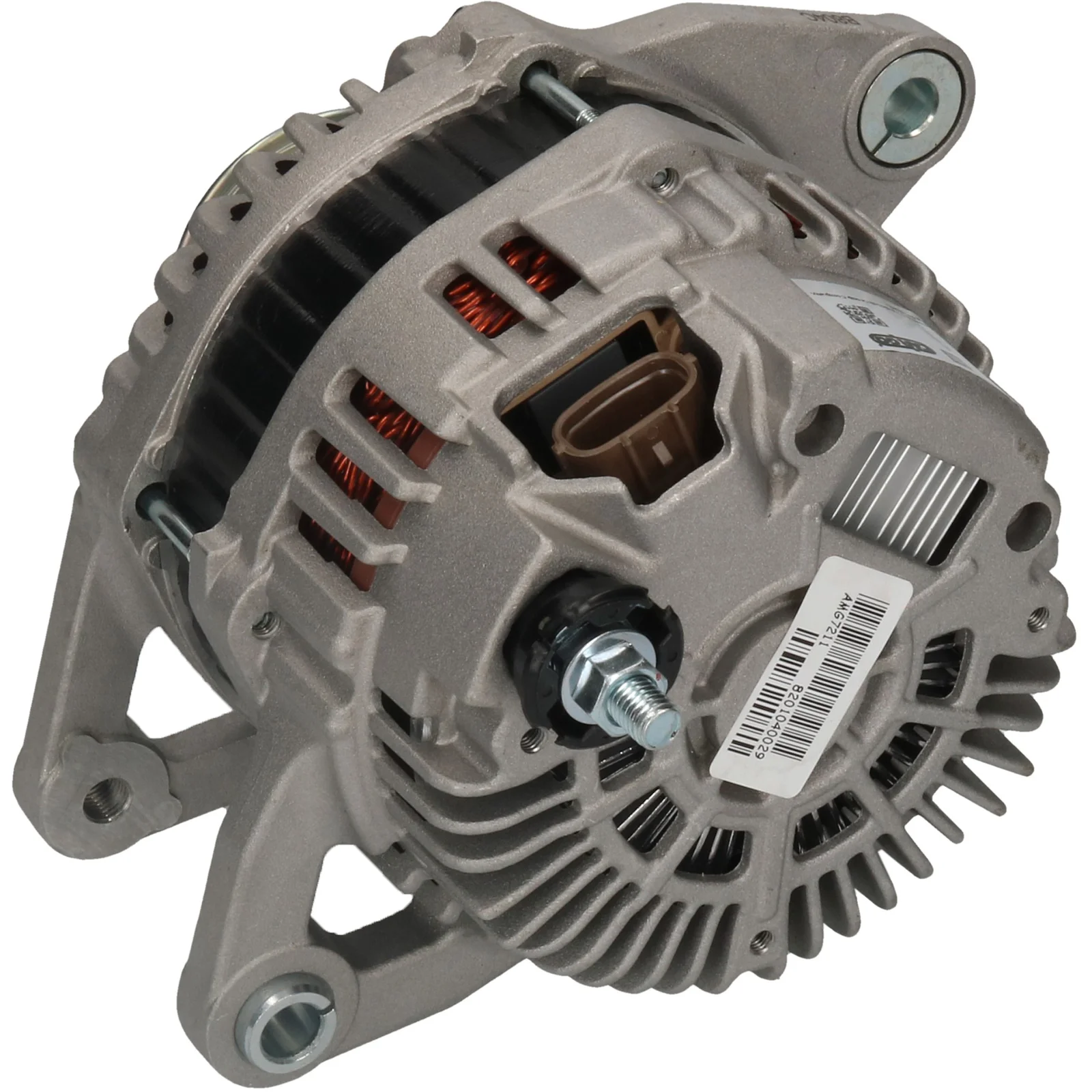

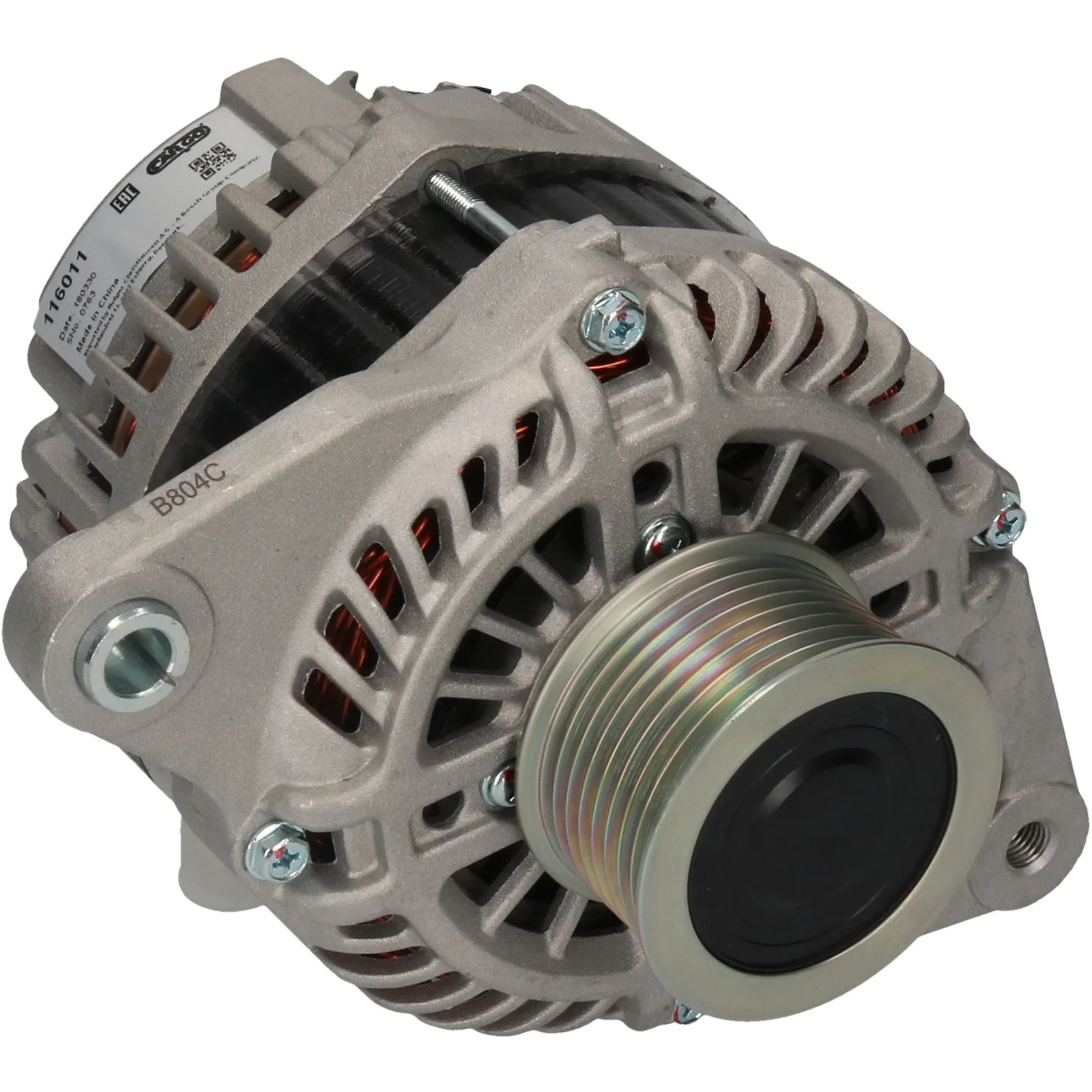

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 100, Rotation: CW, Mounting bracket distance: 57.00

Description

Voltage: 14
Amp: 100
Pulley diameter: 26.00
Width/holder arm: 13.00
Mounting bracket diameter: 57.00
Bracket hole: M10
Belt adjustment bracket hole position: 57
Belt adjustment bracket hole 1: 10.50
Pulley diameter: 59.50
Grooves/pulley: 8
Radius: 95.00
Radius 2: 95.00
B+: M8
Position/B+ in min.: 43
D+ Size: Plug
Rotation: CW
Plug no.: PL139
Pulley: SP/FW
Regulator type: IR

Files

  • OEM
    A002TJ0681, A2TJ0681, A2TJ0681A, F032116011, r2aa-18-300a, R2AA-18-300B, 2129

  • Normalised article numbler
    a002tj0681, a2tj0681, a2tj0681a, a5121, cal35310, dra0866, f032116011, lra03638, r2aa18300a, r2aa18300b, 8el011713841, 2129, 20394n, 20394nos, 276778, 554002ri, 12061042, 145558100, 0986084480, 2243101002
  • Description
    Voltage: 14
    Amp: 100
    Pulley diameter: 26.00
    Width/holder arm: 13.00
    Mounting bracket diameter: 57.00
    Bracket hole: M10
    Belt adjustment bracket hole position: 57
    Belt adjustment bracket hole 1: 10.50
    Pulley diameter: 59.50
    Grooves/pulley: 8
    Radius: 95.00
    Radius 2: 95.00
    B+: M8
    Position/B+ in min.: 43
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL139
    Pulley: SP/FW
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      A002TJ0681, A2TJ0681, A2TJ0681A, F032116011, r2aa-18-300a, R2AA-18-300B, 2129

    • Normalised article numbler
      a002tj0681, a2tj0681, a2tj0681a, a5121, cal35310, dra0866, f032116011, lra03638, r2aa18300a, r2aa18300b, 8el011713841, 2129, 20394n, 20394nos, 276778, 554002ri, 12061042, 145558100, 0986084480, 2243101002
