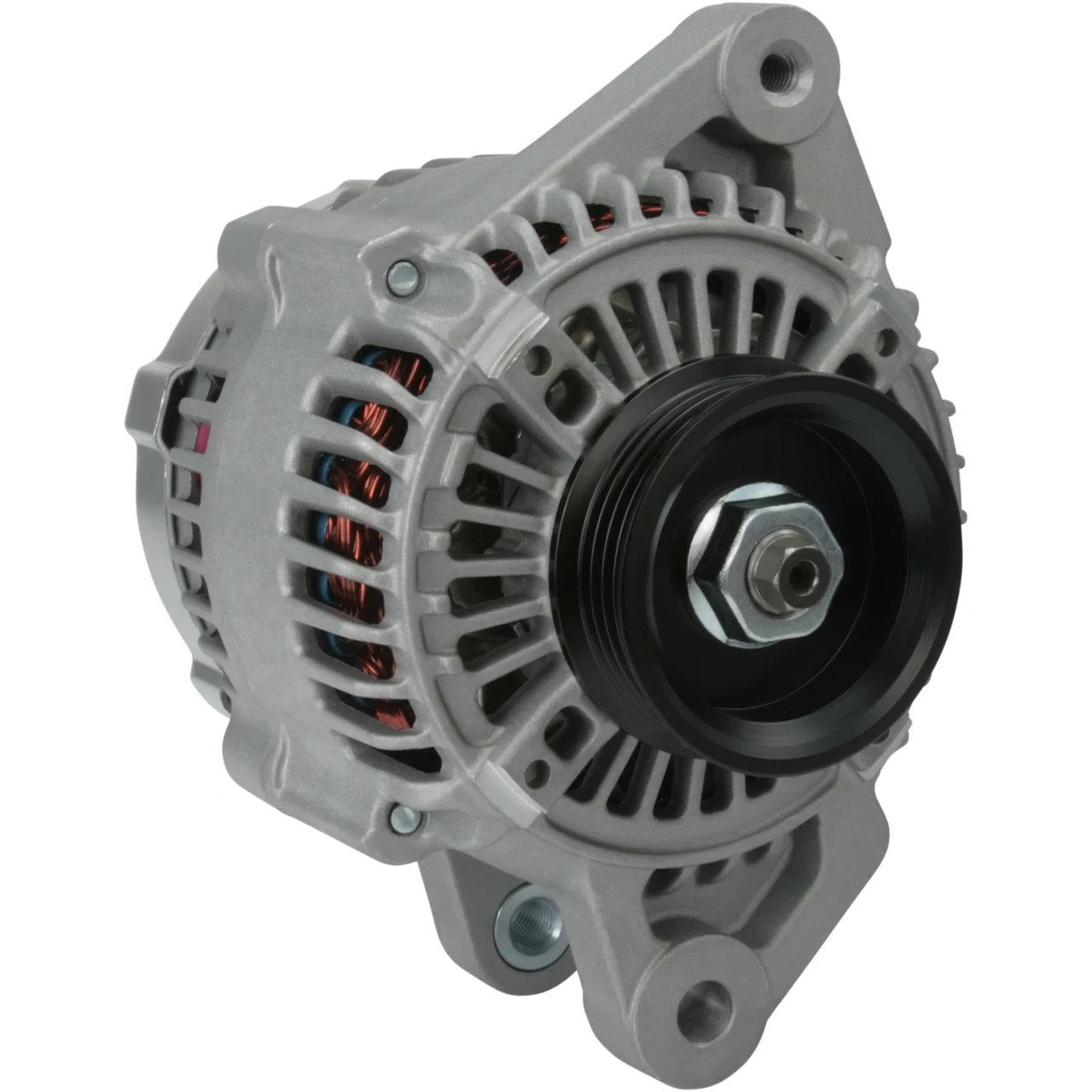

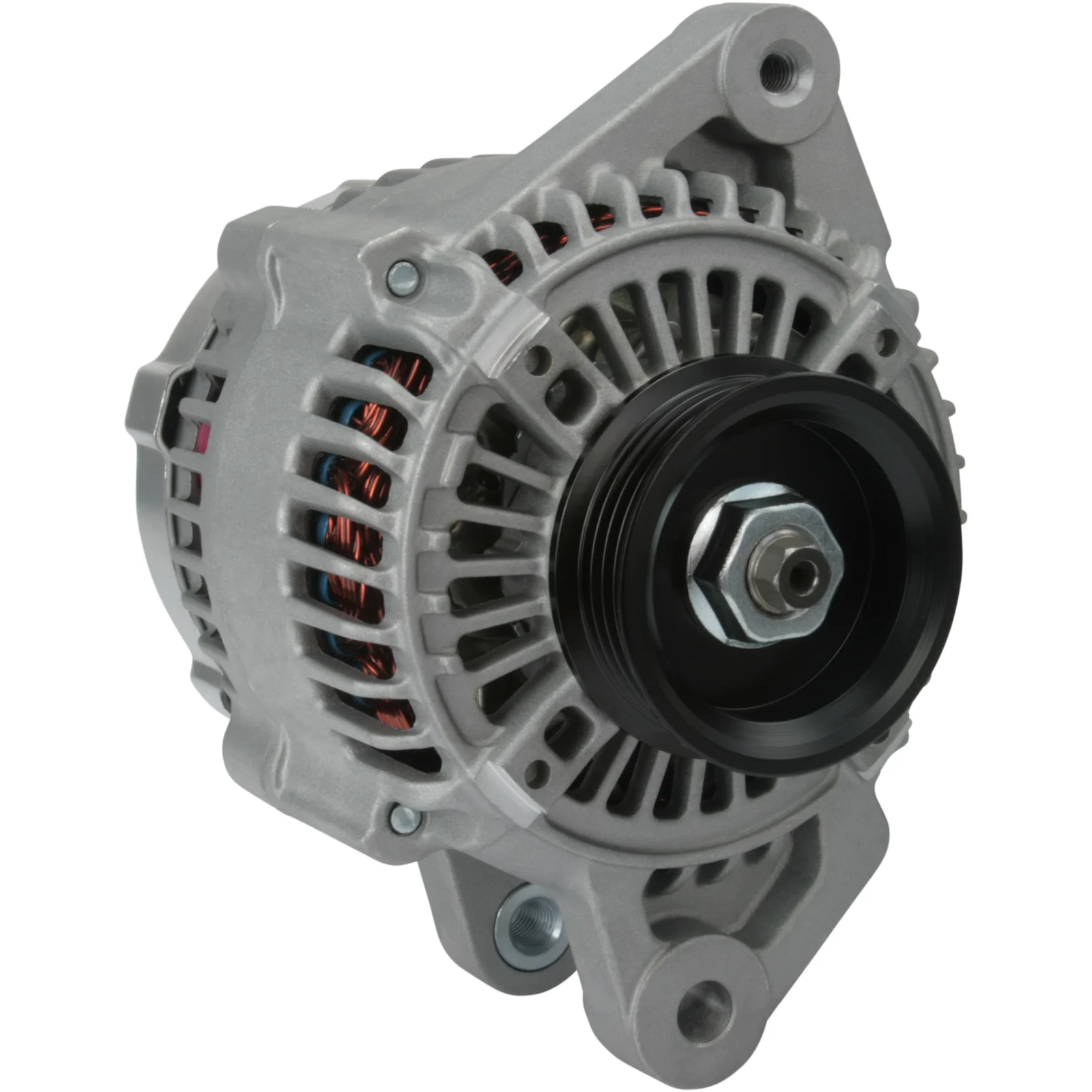

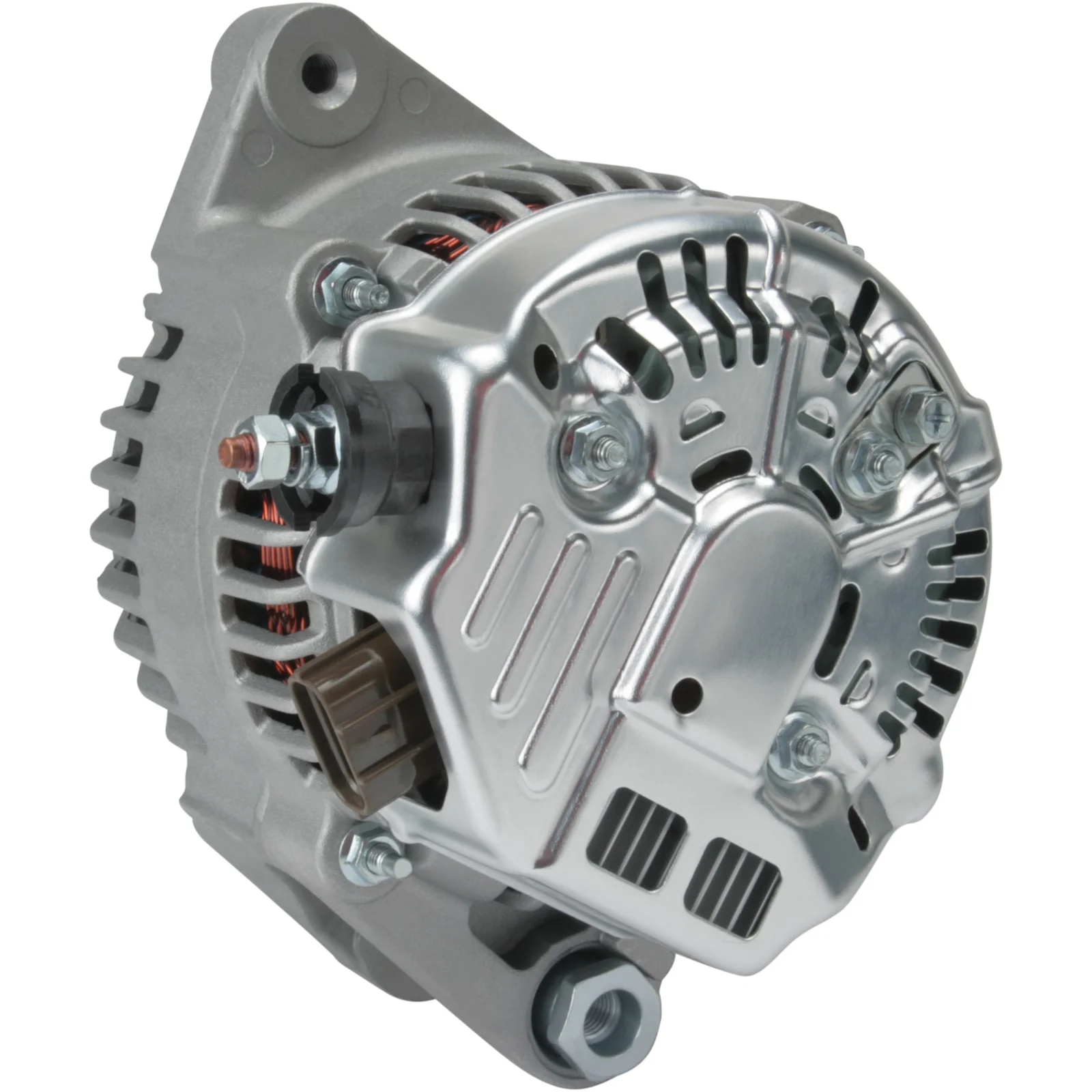

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115791

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 90, Rotation: CW, Mounting bracket distributor: 41.60

Description

Toyota Yaris Alternator 12V-90A 12V - 90A, 4grooves, (M, IG, L) For Yourex product order 90-555-2102

Voltage: 14
Amp: 90
Pulley dist.: 33.00
Width/holder arm: 18.00
Mounting bracket dist.: 41.60
Bracket hole: 11.00
Belt adjustment bracket hole pos.: 3
Belt adjustment bracket hole 1: M8
Pulley dia.: 60.00
Grooves/pulley: 4
Radius: 81.50
Radius 2: 81.00
B+: M6
Position/B+ in min.: 50
D+ Size: Plug
Rotation: CW
Plug no.: PL67
Pulley: SP
Regulator type: IR
Prod. info: BN

Files

  • OEM
    F032115791, ja1595ir, 0986 045 821, 1986A01570, 27060-21020, 27060-21030, 27060-21031, 27060-21040, 27060-21140, 102211-1950, 102211-1960, 102211-5380, 102211-9030, 102211-9070, 115791

  • Normalised article numbler
    a6028, a6033, alt30375, cal40143, dan959, dra1206, drb5821, drb5821x, drb5831, f032115791, f042205004, j5112114, ja1595ir, lra01945, mar5742, 8el011711191, 8el012426531, 8el737883001, 1986a01570, 11085n, 11085r, 13857, 13857n, 111537, 115791, 209371, 209371a, 209377, 209377a, 283838, 440290, 440294, 9045821, 12060747, 12060880, 195540090, 235168902, 944390458, 0986045821, 0986045831, 1022111950, 1022111960, 1022115380, 1022119030, 1022119070, 2706021020, 2706021030, 2706021031, 2706021040, 2706021140, 944390458210
  • Description
    Toyota Yaris Alternator 12V-90A 12V - 90A, 4grooves, (M, IG, L) For Yourex product order 90-555-2102

    Voltage: 14
    Amp: 90
    Pulley dist.: 33.00
    Width/holder arm: 18.00
    Mounting bracket dist.: 41.60
    Bracket hole: 11.00
    Belt adjustment bracket hole pos.: 3
    Belt adjustment bracket hole 1: M8
    Pulley dia.: 60.00
    Grooves/pulley: 4
    Radius: 81.50
    Radius 2: 81.00
    B+: M6
    Position/B+ in min.: 50
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL67
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032115791, ja1595ir, 0986 045 821, 1986A01570, 27060-21020, 27060-21030, 27060-21031, 27060-21040, 27060-21140, 102211-1950, 102211-1960, 102211-5380, 102211-9030, 102211-9070, 115791

    • Normalised article numbler
      a6028, a6033, alt30375, cal40143, dan959, dra1206, drb5821, drb5821x, drb5831, f032115791, f042205004, j5112114, ja1595ir, lra01945, mar5742, 8el011711191, 8el012426531, 8el737883001, 1986a01570, 11085n, 11085r, 13857, 13857n, 111537, 115791, 209371, 209371a, 209377, 209377a, 283838, 440290, 440294, 9045821, 12060747, 12060880, 195540090, 235168902, 944390458, 0986045821, 0986045831, 1022111950, 1022111960, 1022115380, 1022119030, 1022119070, 2706021020, 2706021030, 2706021031, 2706021040, 2706021140, 944390458210
