HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116295

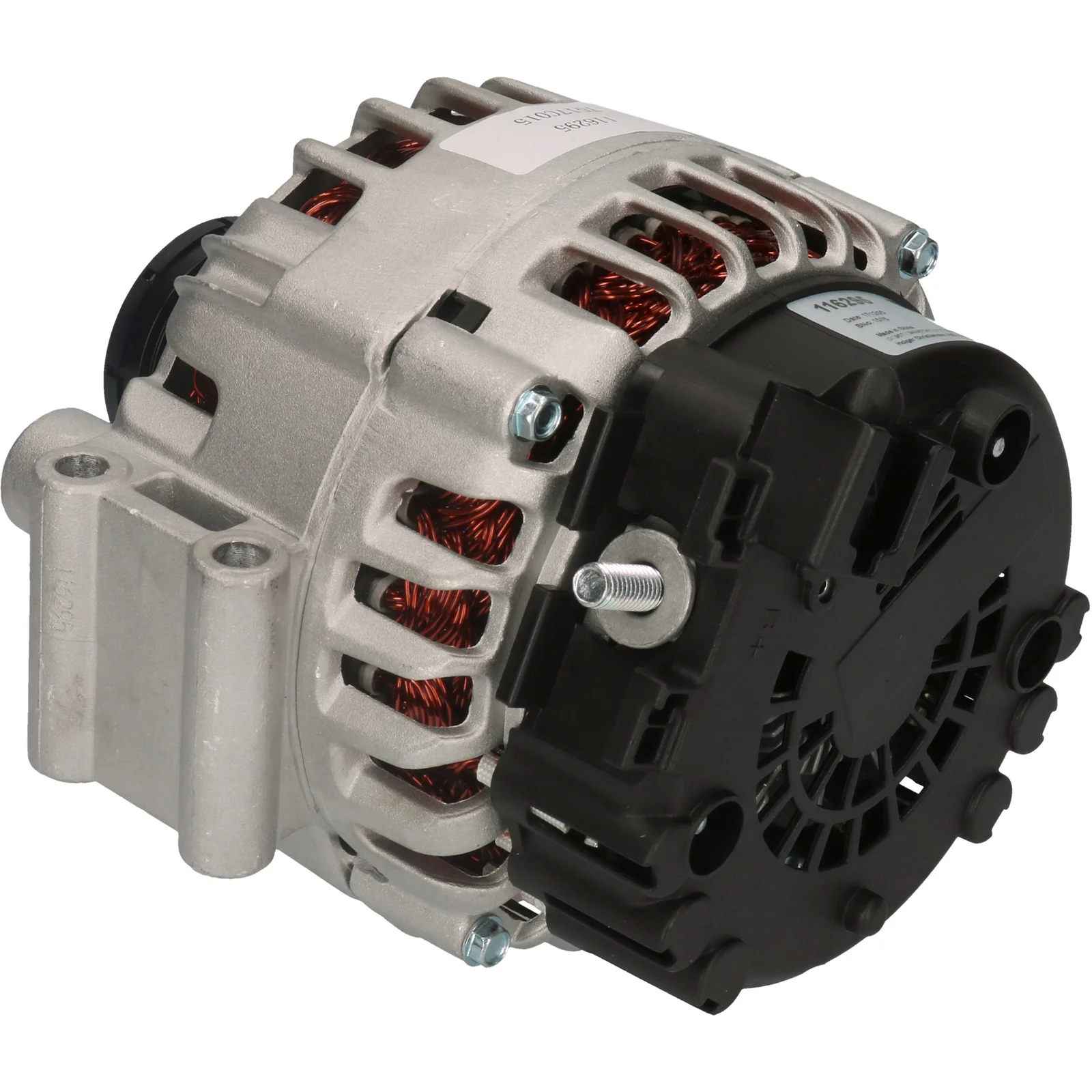

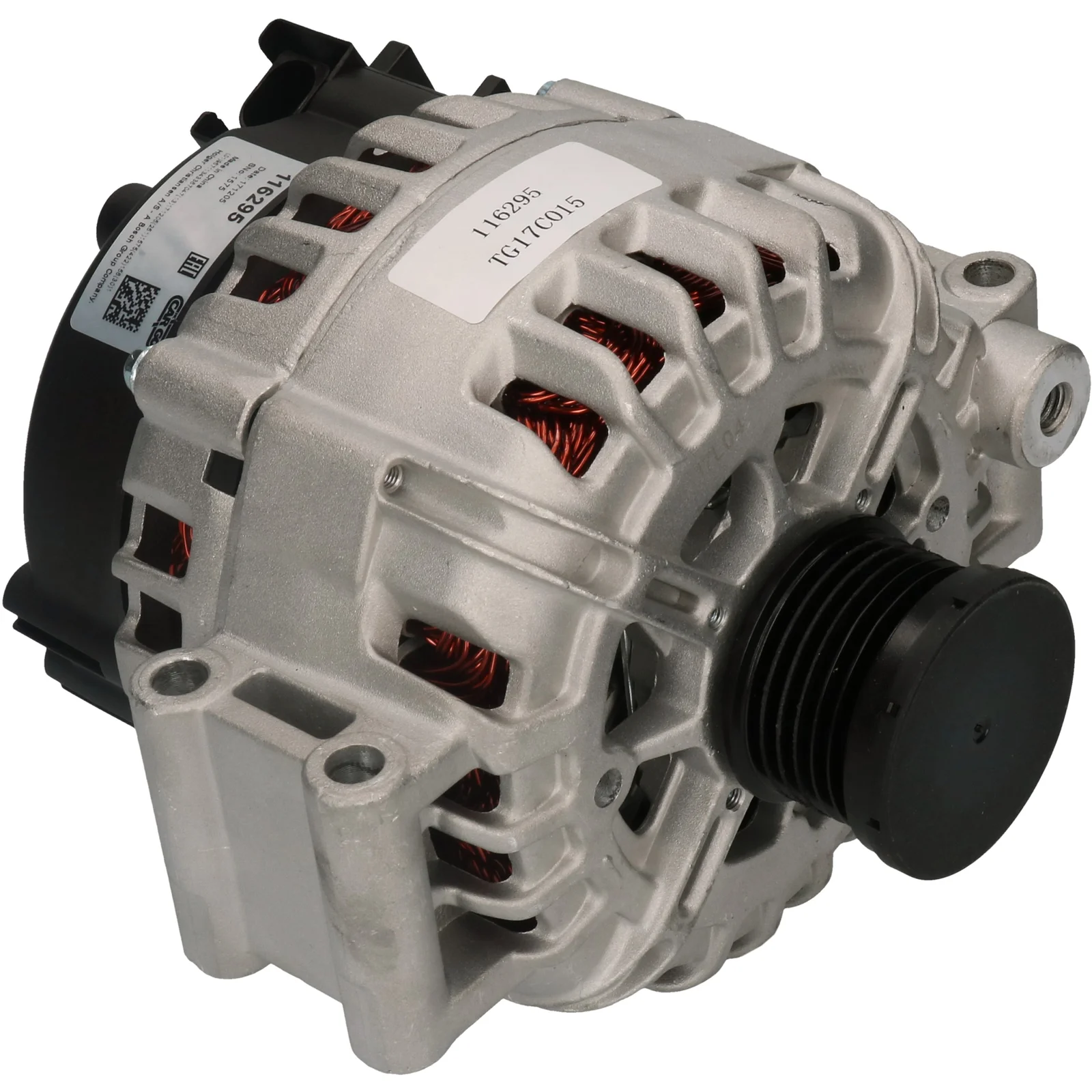

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 180, Rotation: CW, Mounting bracket distributor: 41.50

Description

Voltage: 14 Amp: 180 Pulley dist.: 29.50 Width/holder arm: 62.50 Mount. bracket dist.: 41.50 Bracket hole: 8.00 Bracket hole 2: 10.00 Belt. adj. brackethole pos.: 60 Belt. adj. bracket hole 1: 8.00 Belt. adj. bracket hole 2: 10.00 Pulley dia.: 49.00 Grooves/pulley: 6 B+: M8 Position/B+ in min.: 5 Rotation: CW Plug no.: PL125 Total length mm: 191.00 Terminal type: COM Communication: BSS Pulley: SP/FW Regulator type: IR Prod. info: BN Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116295, tg17c015, 1953ir, 2542720, 2542720D, 2542720J, 7521178, 7525376, 12317521178, 12317525376

  • Normalised article numbler
    cal15327, dra0005, f032116295, lra02969, tg17c015, 8el738212381, 1953ir, 4775, 11260, 112525, 200224, 210476, 210476a, 285583, 301953ri, 437557, 439560, 553210ri, 747070, 2542720, 2542720d, 2542720j, 7521178, 7525376, 9090401, 12090207, 32437557, 0986048820, 0986048827, 2151711702, 12317521178, 12317525376
  • Description
    Voltage: 14 Amp: 180 Pulley dist.: 29.50 Width/holder arm: 62.50 Mount. bracket dist.: 41.50 Bracket hole: 8.00 Bracket hole 2: 10.00 Belt. adj. brackethole pos.: 60 Belt. adj. bracket hole 1: 8.00 Belt. adj. bracket hole 2: 10.00 Pulley dia.: 49.00 Grooves/pulley: 6 B+: M8 Position/B+ in min.: 5 Rotation: CW Plug no.: PL125 Total length mm: 191.00 Terminal type: COM Communication: BSS Pulley: SP/FW Regulator type: IR Prod. info: BN Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116295, tg17c015, 1953ir, 2542720, 2542720D, 2542720J, 7521178, 7525376, 12317521178, 12317525376

    • Normalised article numbler
      cal15327, dra0005, f032116295, lra02969, tg17c015, 8el738212381, 1953ir, 4775, 11260, 112525, 200224, 210476, 210476a, 285583, 301953ri, 437557, 439560, 553210ri, 747070, 2542720, 2542720d, 2542720j, 7521178, 7525376, 9090401, 12090207, 32437557, 0986048820, 0986048827, 2151711702, 12317521178, 12317525376
