HC-Cargo Alternator

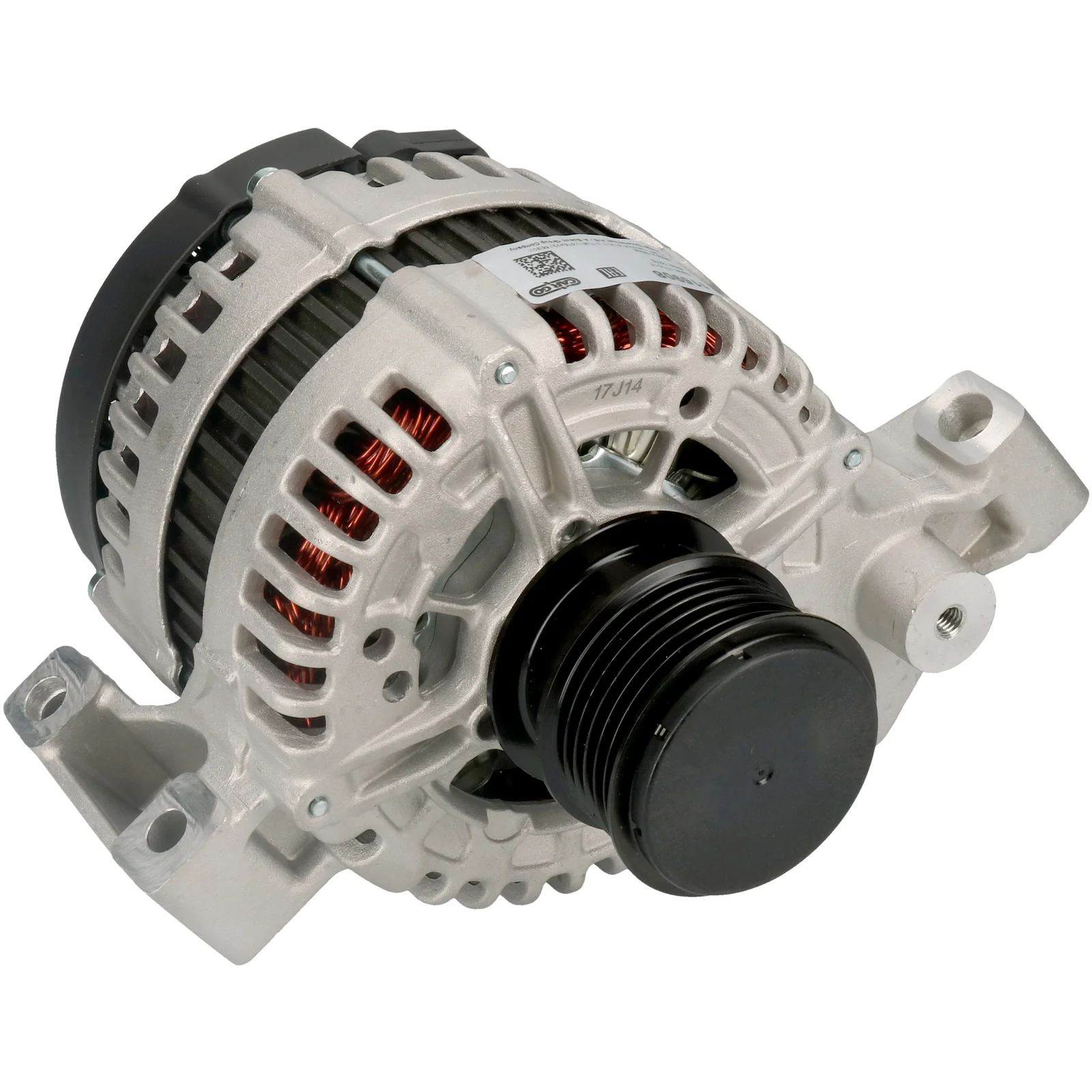

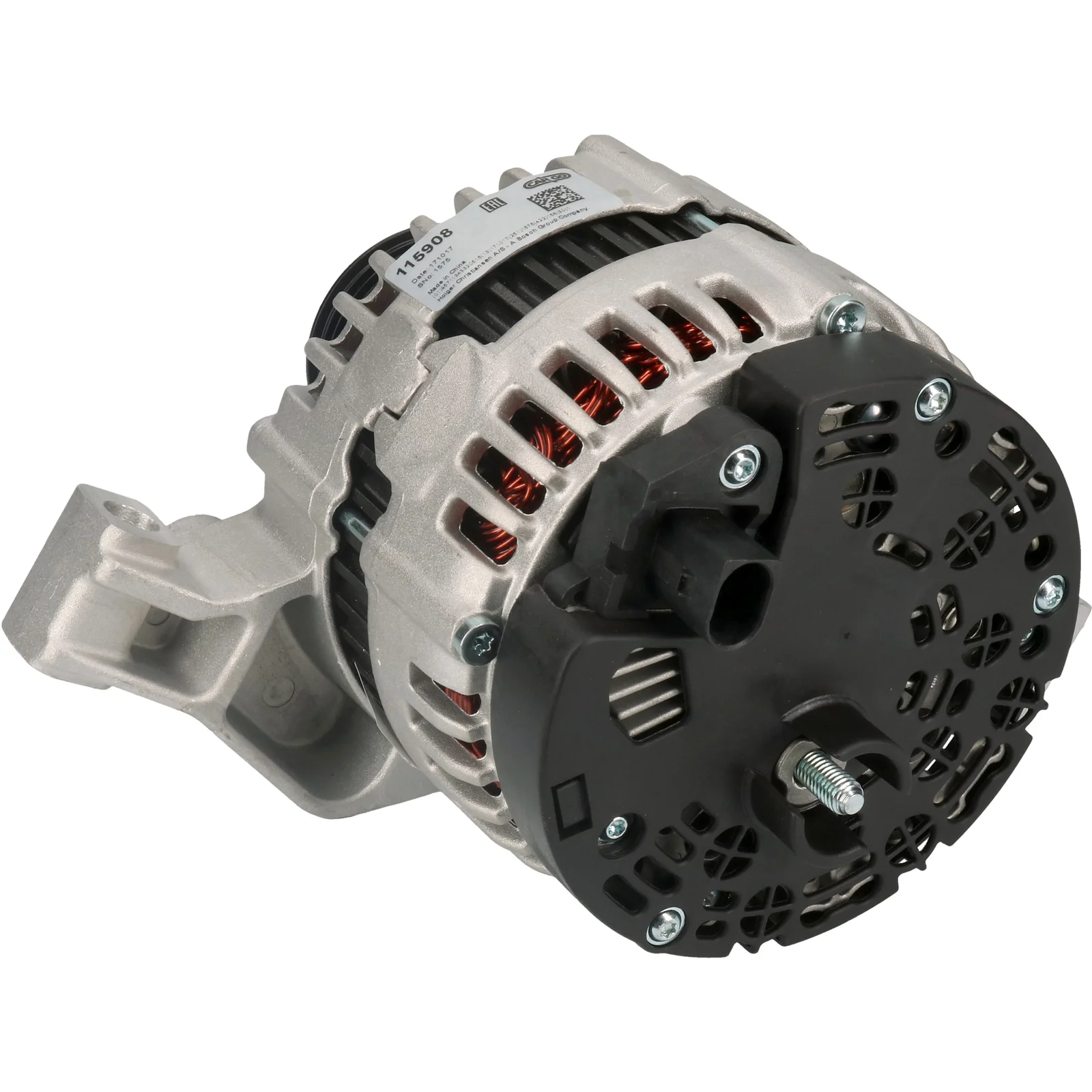

HC-Cargo Alternator
Article no.: F032115908

HC-Cargo Alternator

Technical info:

Voltage: 14, Amper: 150, Rotation: CCW, Mounting bracket distance: 58.00

Description

Voltage: 14
Amp: 150
Pulley dist.: 55.00
Width/holder arm: 34.00
Mounting bracket dist.: 58.00
Bracket hole: 9.00
Belt adjustment bracket hole 1: 9.50
Pulley dia.: 58.30
Grooves/pulley: 6
Radius: 91.00
B+: M8
Position/B+ in min.: 43
Rotation: CCW
Glow plug no.: PL174
Total length mm: 199.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Product info: BN
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032115908, 6G9N10300AA, 9G9J10300AA, 9g9n10300aa, 1682130, 2099467, 31260072, 36002584, 0121615032, 0121615132

  • Normalised article numbler
    a0404, cal10573, dra0474, f032115908, lra03574, 6g9n10300aa, 9g9j10300aa, 9g9n10300aa, 286684, 443406, 444272, 1682130, 2099467, 12090501, 31260072, 36002584, 0121615032, 0121615132, 815536150, 2381581502
  • Description
    Voltage: 14
    Amp: 150
    Pulley dist.: 55.00
    Width/holder arm: 34.00
    Mounting bracket dist.: 58.00
    Bracket hole: 9.00
    Belt adjustment bracket hole 1: 9.50
    Pulley dia.: 58.30
    Grooves/pulley: 6
    Radius: 91.00
    B+: M8
    Position/B+ in min.: 43
    Rotation: CCW
    Glow plug no.: PL174
    Total length mm: 199.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Product info: BN
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032115908, 6G9N10300AA, 9G9J10300AA, 9g9n10300aa, 1682130, 2099467, 31260072, 36002584, 0121615032, 0121615132

    • Normalised article numbler
      a0404, cal10573, dra0474, f032115908, lra03574, 6g9n10300aa, 9g9j10300aa, 9g9n10300aa, 286684, 443406, 444272, 1682130, 2099467, 12090501, 31260072, 36002584, 0121615032, 0121615132, 815536150, 2381581502
