HC-Cargo Alternator

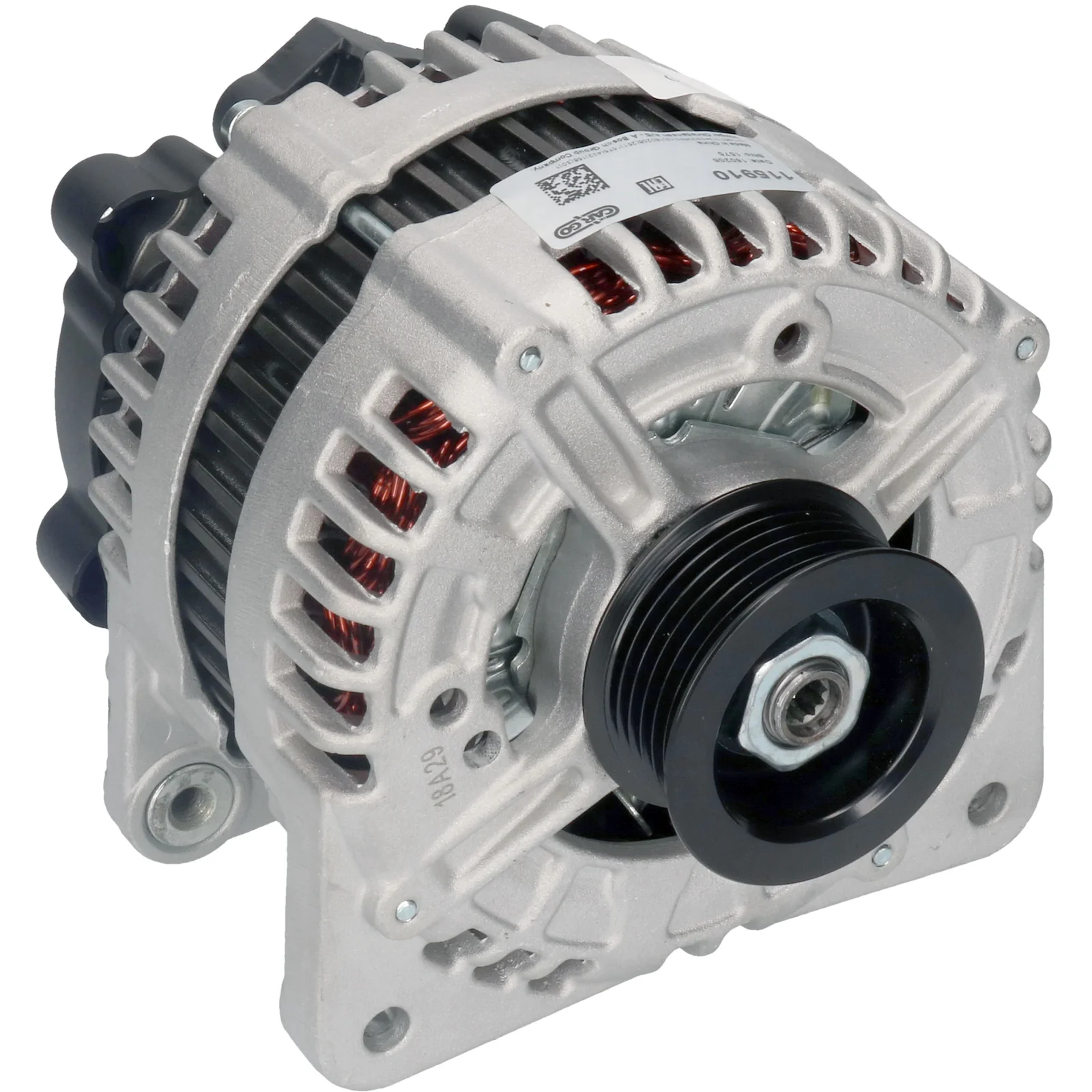

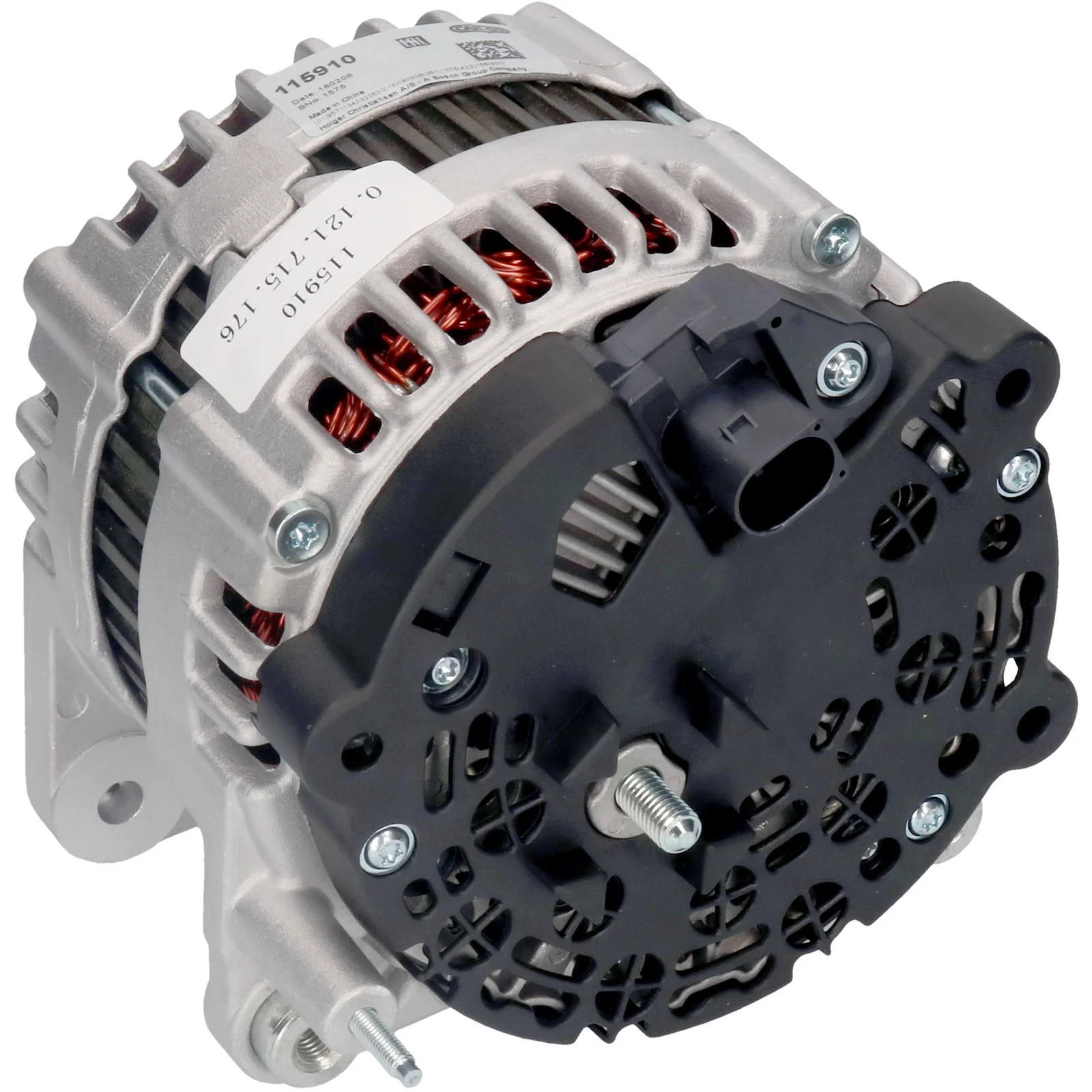

HC-Cargo Alternator
Article no.: F032115910

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 180, Rotation: CW, Mount. bracket dist.: 62.30

Description

Voltage: 14
Amp: 180
Pulley dist.: 30.00
Width/holder arm: 14.50
Mount. bracket dist.: 62.30
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 56.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 30
Rotation: CW
Plug no.: PL181
Total length mm: 179.00
Terminal type: COM
Communication: LIN
Pulley: SP
Regulator type: IR
Prod. info: BN
Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032115910, 1986A00768, 059903018e, 059903018EX, 059903018TX, 0121715076, 0121715176

  • Normalised article numbler
    a0409, dra0833, f032115910, lra03286, 1986a00768, 20138n, 20138r, 209186, 209186a, 285898, 443306, 444215, 9090608, 12090500, 32715180, 059903018e, 059903018ex, 059903018tx, 0121715076, 0121715176, 205578180, 0986081930, 2113701802
  • Description
    Voltage: 14
    Amp: 180
    Pulley dist.: 30.00
    Width/holder arm: 14.50
    Mount. bracket dist.: 62.30
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 56.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 30
    Rotation: CW
    Plug no.: PL181
    Total length mm: 179.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032115910, 1986A00768, 059903018e, 059903018EX, 059903018TX, 0121715076, 0121715176

    • Normalised article numbler
      a0409, dra0833, f032115910, lra03286, 1986a00768, 20138n, 20138r, 209186, 209186a, 285898, 443306, 444215, 9090608, 12090500, 32715180, 059903018e, 059903018ex, 059903018tx, 0121715076, 0121715176, 205578180, 0986081930, 2113701802
