HC-Cargo Alternator

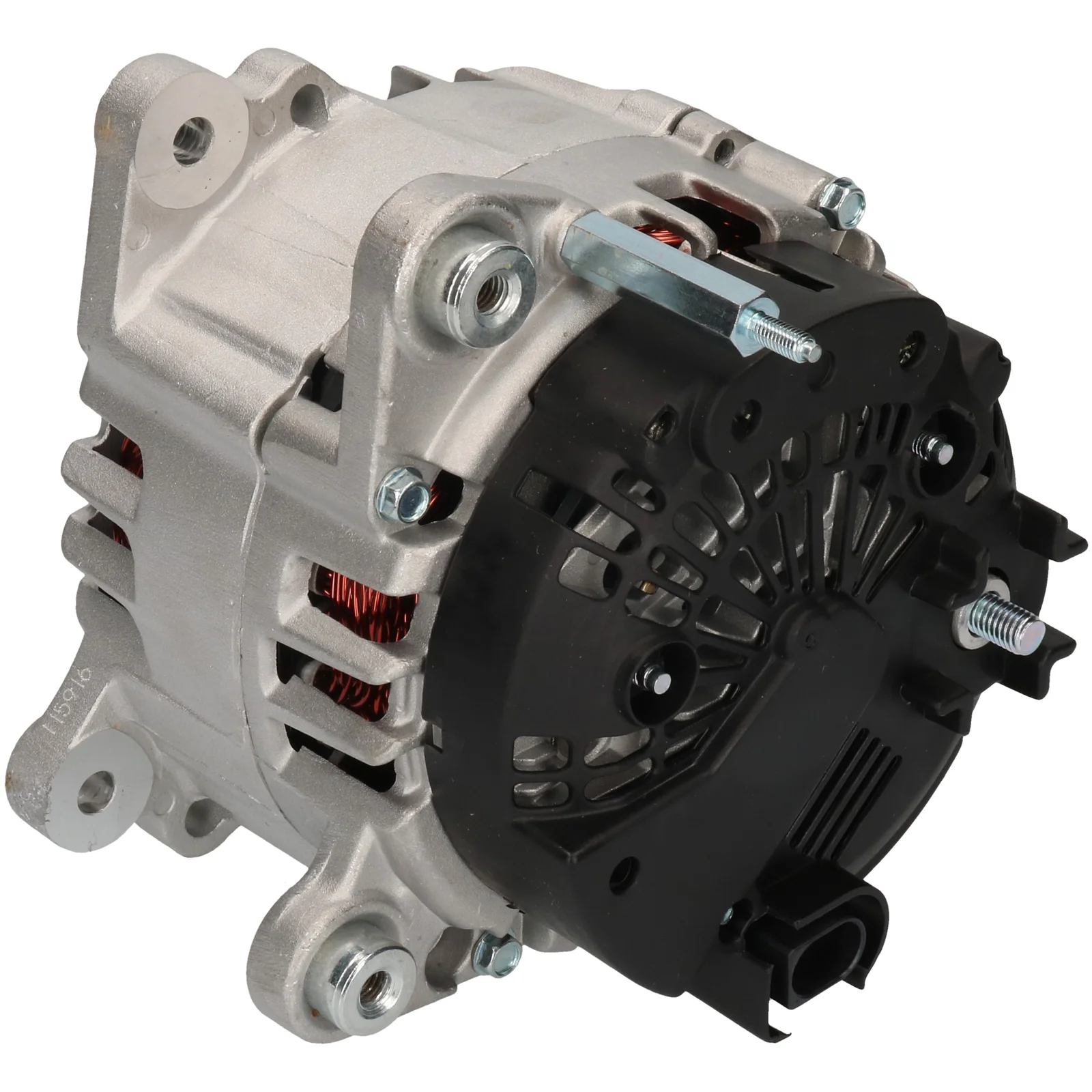

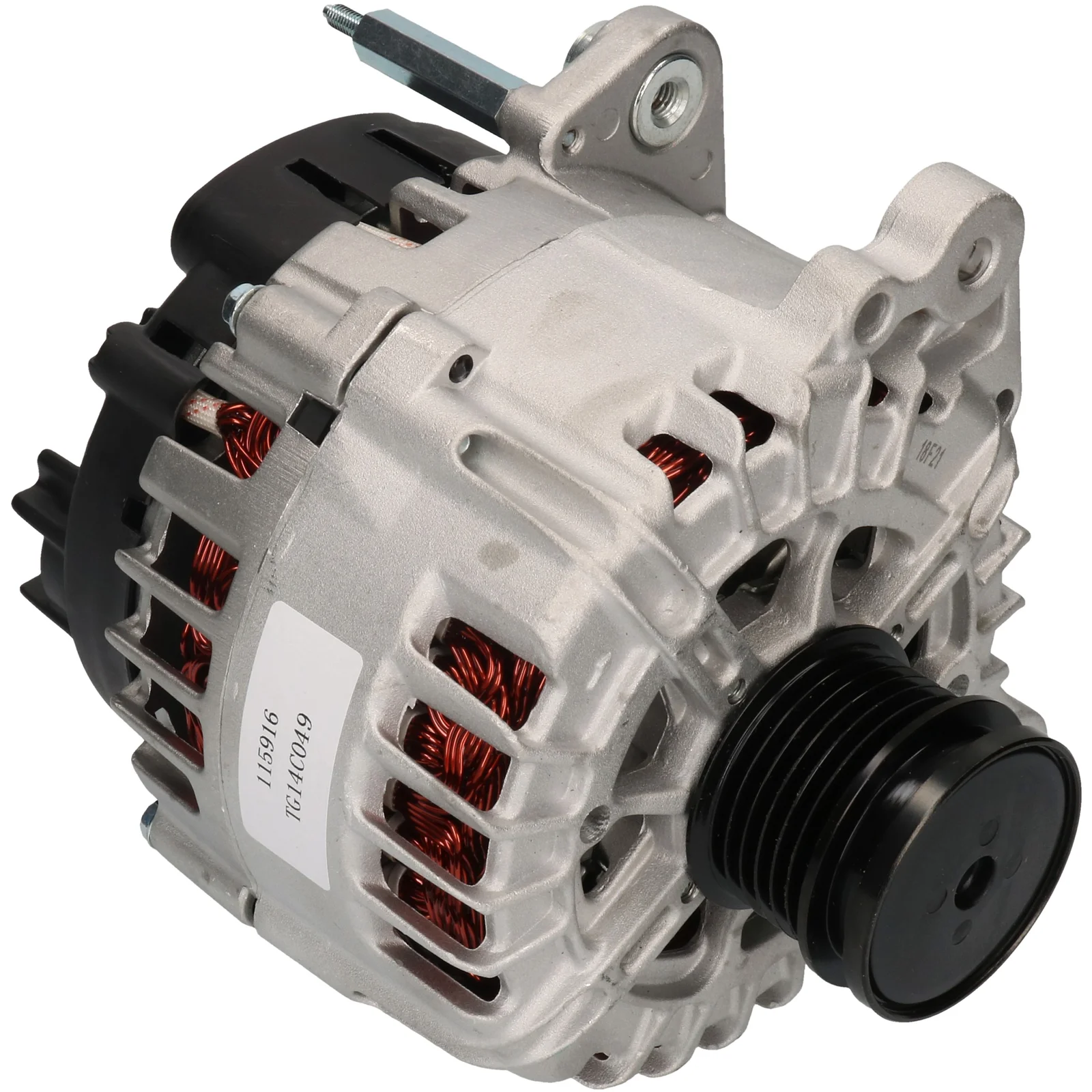

HC-Cargo Alternator
Article no.: F032115916

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 140, Rotation: CW, Mounting bracket distributor: 61.00

Description

HC-Cargo Alternator 14V - 140A, 6grooves

Voltage: 14
Amp: 140
Pulley dist.: 30.00
Width/holder arm: 13.50
Mount. bracket dist.: 61.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 49.30
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 52
Rotation: CW
Plug no.: PL166
Total length mm: 195.00
Terminal type: COM
ID Code: 25
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A0580PR, A0580S, A3127, A3127(VALEO), A3127PR, A3127S, DRA1376, F000BL04R2, F032115916, LRA03703, TG14C049, 04E 903 023K, 04E903023H, 04E903023K, 04E903023KX, 8EL015637-111, 28-6764, 211.393.1402, 305.303.090, 305.906.140, 20353N, 115916, 200269, 209276, 209276A, 439821, 439875, 440475, 442301, 12090564, 0986083170

  • Normalised article numbler
    a0580pr, a0580s, a3127, a3127pr, a3127s, a3127valeo, dra1376, f000bl04r2, f032115916, lra03703, tg14c049, 04e903023h, 04e903023k, 04e903023kx, 8el015637111, 20353n, 115916, 200269, 209276, 209276a, 286764, 439821, 439875, 440475, 442301, 12090564, 305303090, 305906140, 0986083170, 2113931402
  • Description
    HC-Cargo Alternator 14V - 140A, 6grooves

    Voltage: 14
    Amp: 140
    Pulley dist.: 30.00
    Width/holder arm: 13.50
    Mount. bracket dist.: 61.00
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 49.30
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 52
    Rotation: CW
    Plug no.: PL166
    Total length mm: 195.00
    Terminal type: COM
    ID Code: 25
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A0580PR, A0580S, A3127, A3127(VALEO), A3127PR, A3127S, DRA1376, F000BL04R2, F032115916, LRA03703, TG14C049, 04E 903 023K, 04E903023H, 04E903023K, 04E903023KX, 8EL015637-111, 28-6764, 211.393.1402, 305.303.090, 305.906.140, 20353N, 115916, 200269, 209276, 209276A, 439821, 439875, 440475, 442301, 12090564, 0986083170

    • Normalised article numbler
      a0580pr, a0580s, a3127, a3127pr, a3127s, a3127valeo, dra1376, f000bl04r2, f032115916, lra03703, tg14c049, 04e903023h, 04e903023k, 04e903023kx, 8el015637111, 20353n, 115916, 200269, 209276, 209276a, 286764, 439821, 439875, 440475, 442301, 12090564, 305303090, 305906140, 0986083170, 2113931402
