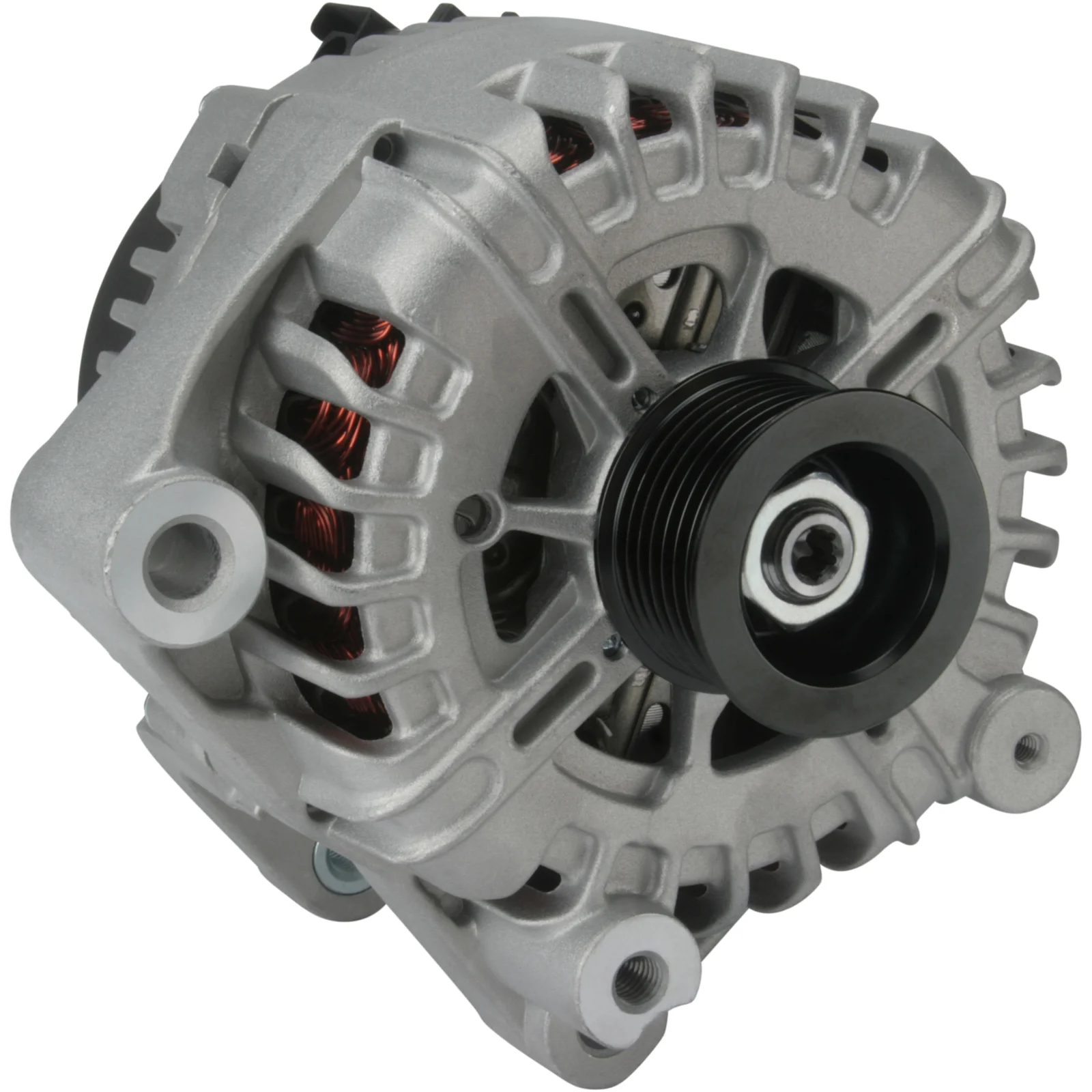

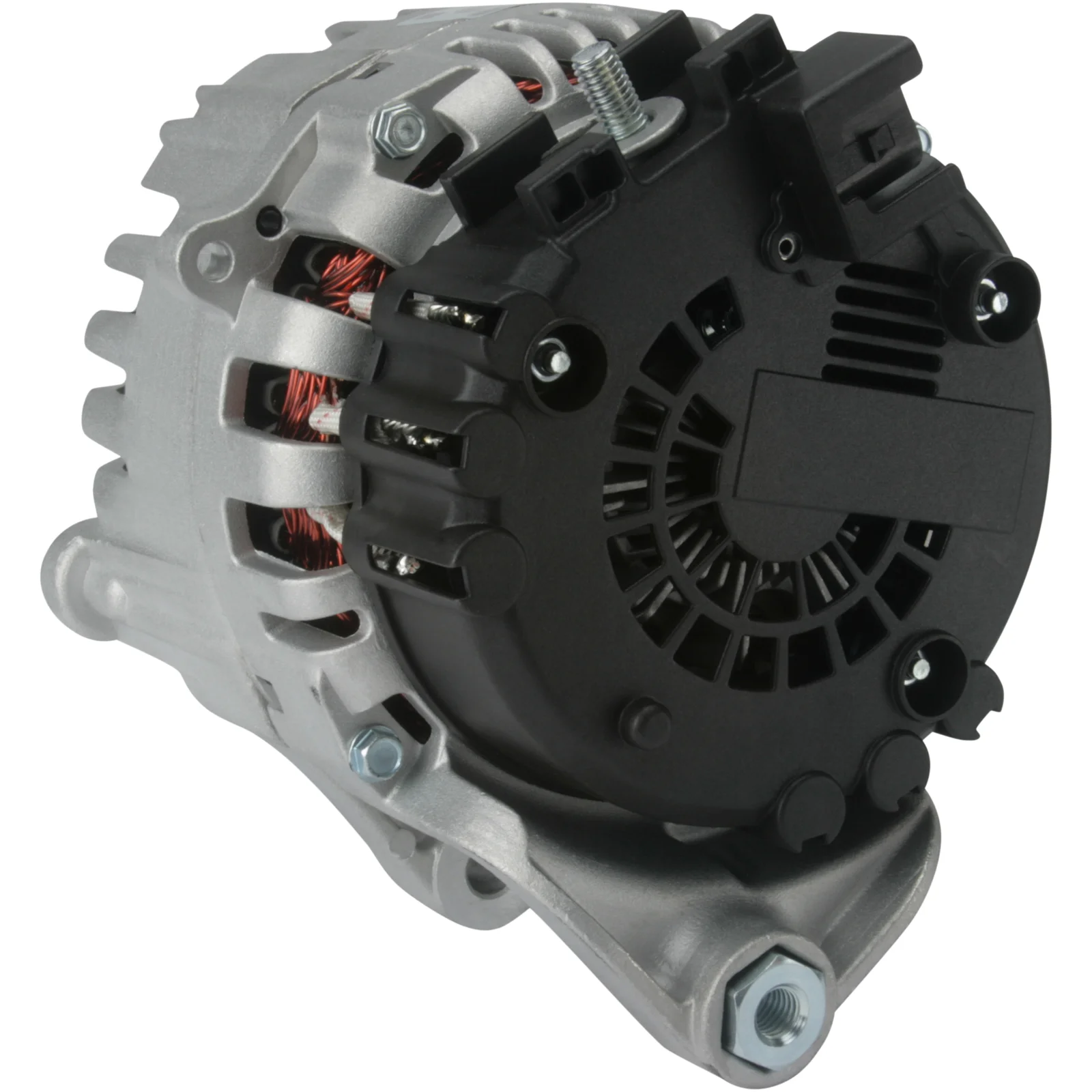

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115923

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 180, Rotation: CW, Mounting bracket distributor: 75.50

Description

Voltage: 14
Amp: 180
Pulley distance: 57.00
Width/holder arm: 28.50
Mounting bracket distance: 75.50
Bracket hole: 10.30
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 12.00
Pulley diameter: 51.00
Grooves/pulley: 7
Radius: 93.00
Radius 2: 93.00
B+: M8
Position/B+ in minutes: 55
Rotation: CW
Plug number: PL125
Total length mm: 185.00
Terminal type: COM
Communication: BSS
Pulley: SP
Regulator type: IR
Product information: BN
Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032115923, TG17C036, 12317561003, 12317561004

  • Normalised article numbler
    a3230, cal15487, dra0592, f032115923, lra03162, tg17c036, 11396n, 112535, 209236, 209236a, 285774, 439601, 440097, 9090473, 12090524, 215542170, 215542180, 2151841702, 12317561003, 12317561004
  • Description
    Voltage: 14
    Amp: 180
    Pulley distance: 57.00
    Width/holder arm: 28.50
    Mounting bracket distance: 75.50
    Bracket hole: 10.30
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 12.00
    Pulley diameter: 51.00
    Grooves/pulley: 7
    Radius: 93.00
    Radius 2: 93.00
    B+: M8
    Position/B+ in minutes: 55
    Rotation: CW
    Plug number: PL125
    Total length mm: 185.00
    Terminal type: COM
    Communication: BSS
    Pulley: SP
    Regulator type: IR
    Product information: BN
    Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.
