Article no.: F032111354

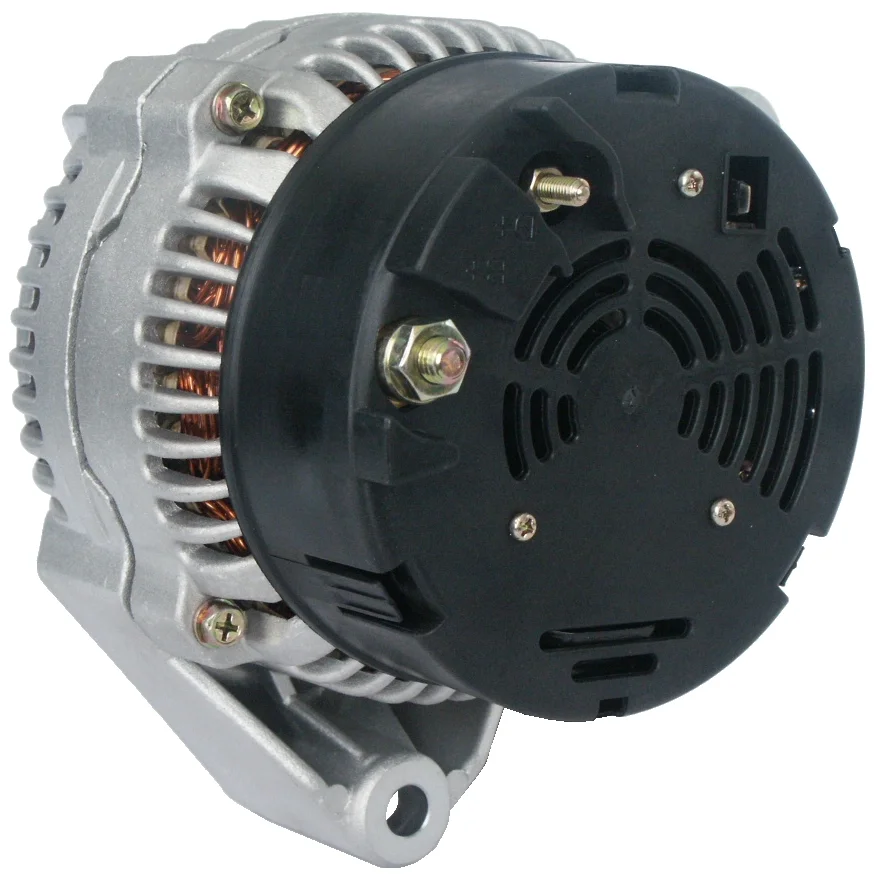

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 70, Rotation: CW, Pulley diameter: 55.50

Description

Mercedes 90>, Alternator 12V-70A 12V - 70A For your product order 90-365-3823

Voltage: 14
Amp: 70
Terminal: W
Pulley diameter: 92.00
Width/holder arm: 56.00
Bracket hole: 10.50
Belt. adjustment bracket hole position: 10
Belt. adjustment bracket hole 1: 10.50
Pulley diameter: 55.50
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 8
D+ Size: M5
Rotation: CW
W plug type: 6.30
Total length mm: 190.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Mercedes-Benz

Files

  • OEM
    A0081545102, A0081545202, A008154520280, A0081549602, A008154960280, A0081549702, A008154970280, A0091544002, A009154400280, A0091544102, A009154410280, A0091544202, A009154420280, a13vi74, a13vi75, aak5127, aak5319, F032111354, LRB 195, 11.201.744, 11.203.024, 0120 485 011, 0120 485 012, 0123 310 005, 0123 315 005, 724ir, 0986 036 810, 0986 038 230, 111354, 436450, 1516633R, 2541680, 2541680A, 2541683, 2541683A, 2541699, 0081545102, 0081545202, 0081549602, 0081549702, 0091544002, 0091544102, 0091544202, 0120485011, 0120485012, 0120485022, 0123310005, 0123315005, 0986036820, 008154520280, 008154960280, 008154970280, 009154400280, 009154410280, 009154420280

  • Normalised article numbler
    a0081545102, a0081545202, a008154520280, a0081549602, a008154960280, a0081549702, a008154970280, a0091544002, a009154400280, a0091544102, a009154410280, a0091544202, a009154420280, a0385, a13vi74, a13vi75, aak5127, aak5319, al0160x, al0161x, alt10140, alt2034, bao3118, cal10108, cal10173, dra6810, dra6820, f032111354, f042301057, f042a01057, ia1007, lra01600, lrb00192, lrb00195, lrb195, mar942, mg19, mg248, qa3164, va391, va392, 8el012426431, 8el012426711, 8el730022001, 8el731694001, 724ir, 2580, 2581, 3241n, 13355r, 13376, 13376n, 13376r, 30724ri, 30833ri, 56350, 56400, 111354, 118358, 118428, 209077, 209077a, 210187, 210187a, 281953, 282550, 282560, 282752, 436450, 436451, 437580, 1184601va, 1516633r, 2533820, 2536810, 2536820, 2538230, 2541680, 2541680a, 2541683, 2541683a, 2541699, 3238820, 9036820, 9038230, 9212978, 11201744, 11203024, 12036810, 12036820, 12038230, 32036820, 32038230, 0081545102, 0081545202, 0081549602, 0081549702, 0091544002, 0091544102, 0091544202, 0120485011, 0120485012, 0120485022, 0123310005, 0123315005, 225110702, 225111702, 225112702, 225122702, 943356506, 943356507, 943356518, 944390382, 0986036810, 0986036813, 0986036820, 0986038230, 0986038236, 0986040726, 008154520280, 008154960280, 008154970280, 009154400280, 009154410280, 009154420280, 943356506010, 943356507010, 944390382300
  • Description
    Mercedes 90>, Alternator 12V-70A 12V - 70A For your product order 90-365-3823

    Voltage: 14
    Amp: 70
    Terminal: W
    Pulley diameter: 92.00
    Width/holder arm: 56.00
    Bracket hole: 10.50
    Belt. adjustment bracket hole position: 10
    Belt. adjustment bracket hole 1: 10.50
    Pulley diameter: 55.50
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 8
    D+ Size: M5
    Rotation: CW
    W plug type: 6.30
    Total length mm: 190.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Mercedes-Benz

    Files

  • Suitable for these vehicles

    • OEM
      A0081545102, A0081545202, A008154520280, A0081549602, A008154960280, A0081549702, A008154970280, A0091544002, A009154400280, A0091544102, A009154410280, A0091544202, A009154420280, a13vi74, a13vi75, aak5127, aak5319, F032111354, LRB 195, 11.201.744, 11.203.024, 0120 485 011, 0120 485 012, 0123 310 005, 0123 315 005, 724ir, 0986 036 810, 0986 038 230, 111354, 436450, 1516633R, 2541680, 2541680A, 2541683, 2541683A, 2541699, 0081545102, 0081545202, 0081549602, 0081549702, 0091544002, 0091544102, 0091544202, 0120485011, 0120485012, 0120485022, 0123310005, 0123315005, 0986036820, 008154520280, 008154960280, 008154970280, 009154400280, 009154410280, 009154420280

    • Normalised article numbler
      a0081545102, a0081545202, a008154520280, a0081549602, a008154960280, a0081549702, a008154970280, a0091544002, a009154400280, a0091544102, a009154410280, a0091544202, a009154420280, a0385, a13vi74, a13vi75, aak5127, aak5319, al0160x, al0161x, alt10140, alt2034, bao3118, cal10108, cal10173, dra6810, dra6820, f032111354, f042301057, f042a01057, ia1007, lra01600, lrb00192, lrb00195, lrb195, mar942, mg19, mg248, qa3164, va391, va392, 8el012426431, 8el012426711, 8el730022001, 8el731694001, 724ir, 2580, 2581, 3241n, 13355r, 13376, 13376n, 13376r, 30724ri, 30833ri, 56350, 56400, 111354, 118358, 118428, 209077, 209077a, 210187, 210187a, 281953, 282550, 282560, 282752, 436450, 436451, 437580, 1184601va, 1516633r, 2533820, 2536810, 2536820, 2538230, 2541680, 2541680a, 2541683, 2541683a, 2541699, 3238820, 9036820, 9038230, 9212978, 11201744, 11203024, 12036810, 12036820, 12038230, 32036820, 32038230, 0081545102, 0081545202, 0081549602, 0081549702, 0091544002, 0091544102, 0091544202, 0120485011, 0120485012, 0120485022, 0123310005, 0123315005, 225110702, 225111702, 225112702, 225122702, 943356506, 943356507, 943356518, 944390382, 0986036810, 0986036813, 0986036820, 0986038230, 0986038236, 0986040726, 008154520280, 008154960280, 008154970280, 009154400280, 009154410280, 009154420280, 943356506010, 943356507010, 944390382300
