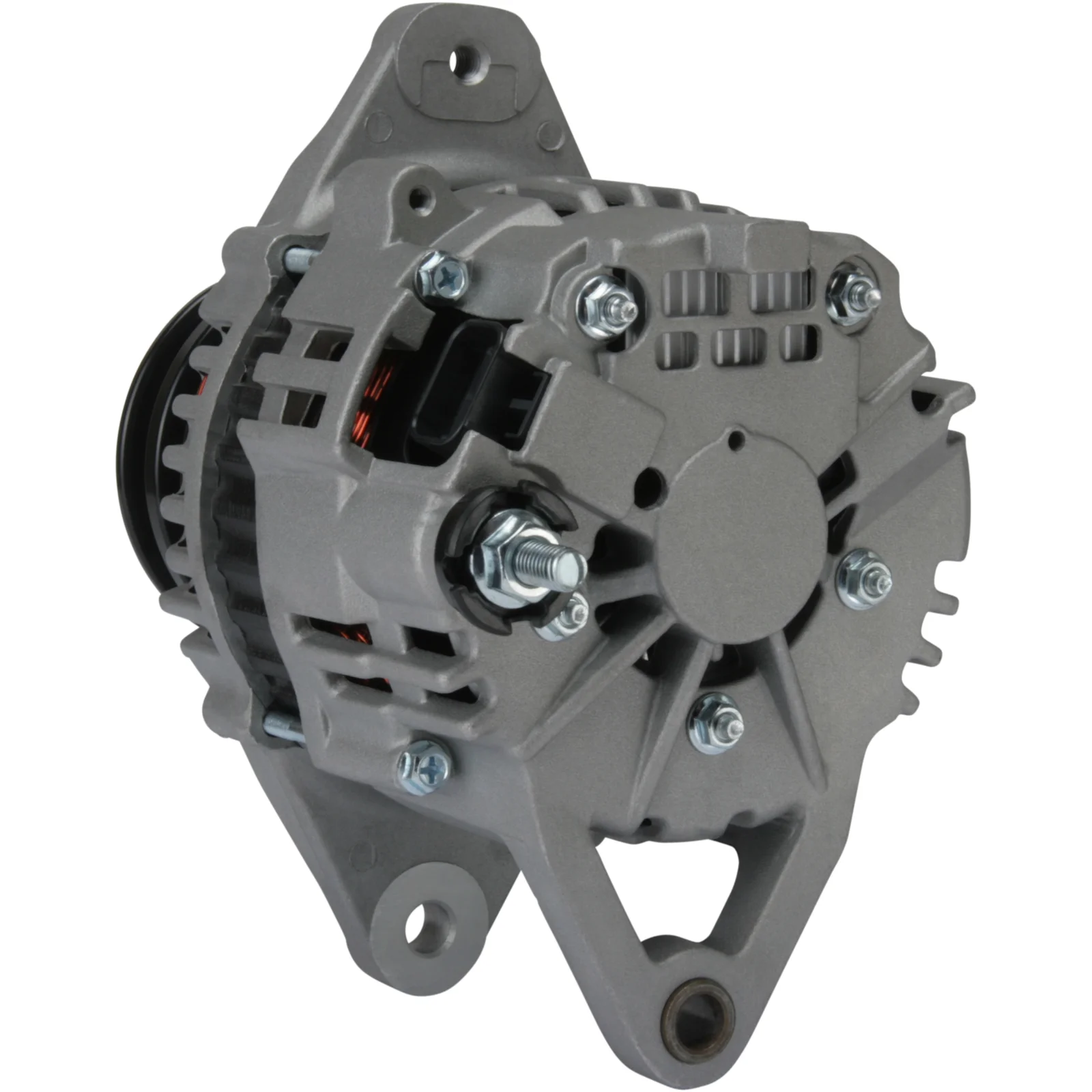

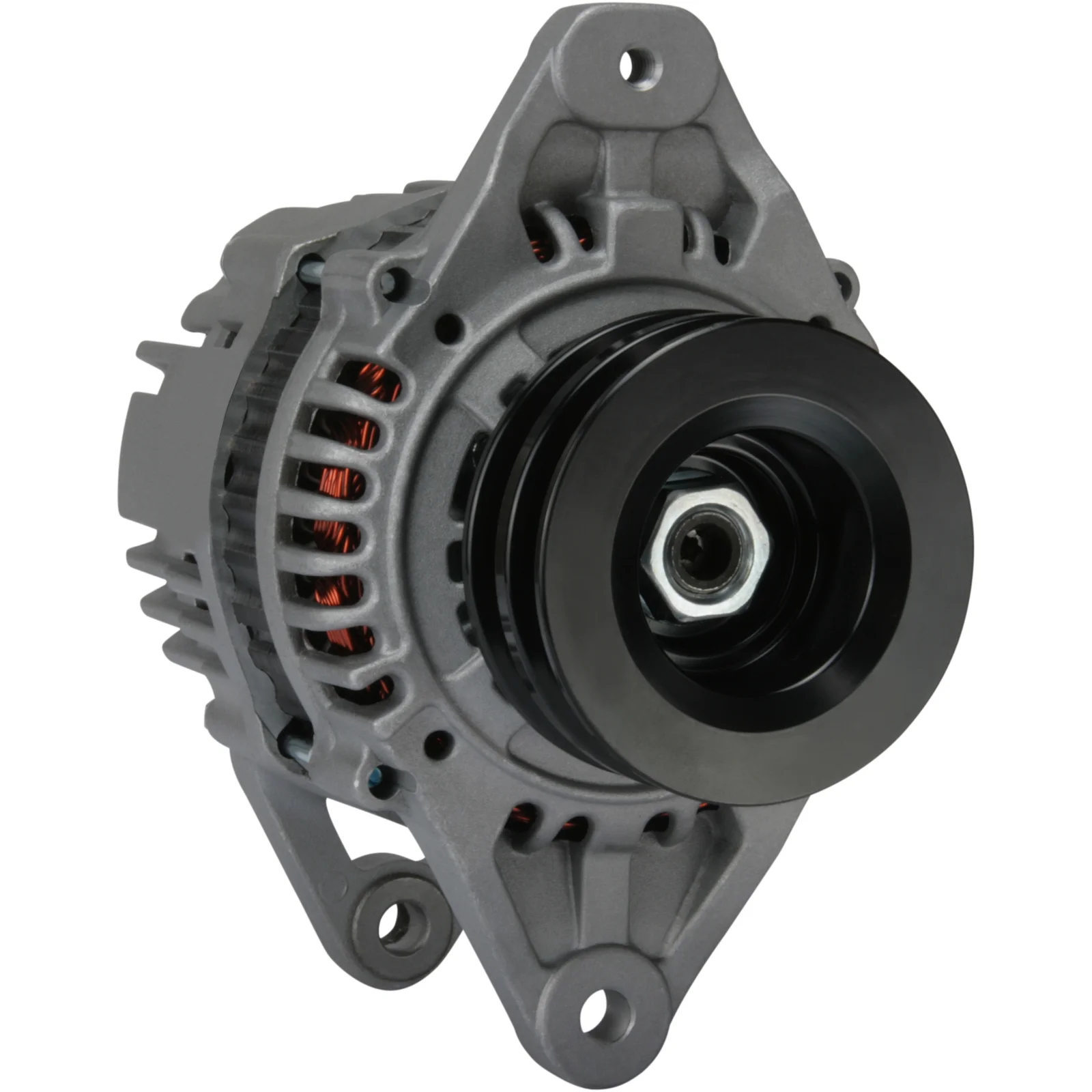

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113383

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 60, Rotation: CW, Mounting bracket distance: 81.00

Description

Nissan King-Cab TD Alternator 12V-60A 12V - 60A, 2V, (L, S) 12V - 60A For Yourex product order 90-400-0728

Voltage: 14
Amp: 60
Pulley dist.: 42.00
Width/holder arm: 12.80
Mounting bracket dist.: 81.00
Bracket hole: 10.40
Belt adjustment bracket hole position.: 60
Belt adjustment bracket hole 1: M8
Pulley diameter: 85.00
Grooves/pulley: 2
Radius: 90.00
Radius 2: 85.00
B+: M8
Position/B+ in min.: 45
D+ Size: Plug
Rotation: CW
Plug no.: PL07
Total length mm: 181.00
Pulley: DP
Regulator type: IR
Prod. info: BN
Servicing: Nissan

Files

  • OEM
    F032113383, ja1516ir, LR160-728, lr160-728, lr160-728b, lr160-728c, LR160-728E, lr160-728e, LR160-728F, 23100-7T400, 23100-7t400, 23100-7t402, 23100-7T403, 23100-7t403, 23100-7T40A, 113383

  • Normalised article numbler
    a2035, alt32041, alth134, cal20106, dra4095, f032113383, f042205171, f042a0h134, j5111078, ja1516ir, lr160728, lr160728b, lr160728c, lr160728e, lr160728f, lra01662, 8el011711711, 8el737752001, 5825, 9224, 22663n, 22663r, 111468, 113383, 119303, 210794, 210794a, 231007t400, 231007t402, 231007t403, 231007t40a, 282874, 401516ri, 440876, 9051178, 12060298, 227163602, 0986045681
  • Description
    Nissan King-Cab TD Alternator 12V-60A 12V - 60A, 2V, (L, S) 12V - 60A For Yourex product order 90-400-0728

    Voltage: 14
    Amp: 60
    Pulley dist.: 42.00
    Width/holder arm: 12.80
    Mounting bracket dist.: 81.00
    Bracket hole: 10.40
    Belt adjustment bracket hole position.: 60
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 85.00
    Grooves/pulley: 2
    Radius: 90.00
    Radius 2: 85.00
    B+: M8
    Position/B+ in min.: 45
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL07
    Total length mm: 181.00
    Pulley: DP
    Regulator type: IR
    Prod. info: BN
    Servicing: Nissan

    Files

  • Suitable for these vehicles

    • OEM
      F032113383, ja1516ir, LR160-728, lr160-728, lr160-728b, lr160-728c, LR160-728E, lr160-728e, LR160-728F, 23100-7T400, 23100-7t400, 23100-7t402, 23100-7T403, 23100-7t403, 23100-7T40A, 113383

    • Normalised article numbler
      a2035, alt32041, alth134, cal20106, dra4095, f032113383, f042205171, f042a0h134, j5111078, ja1516ir, lr160728, lr160728b, lr160728c, lr160728e, lr160728f, lra01662, 8el011711711, 8el737752001, 5825, 9224, 22663n, 22663r, 111468, 113383, 119303, 210794, 210794a, 231007t400, 231007t402, 231007t403, 231007t40a, 282874, 401516ri, 440876, 9051178, 12060298, 227163602, 0986045681
