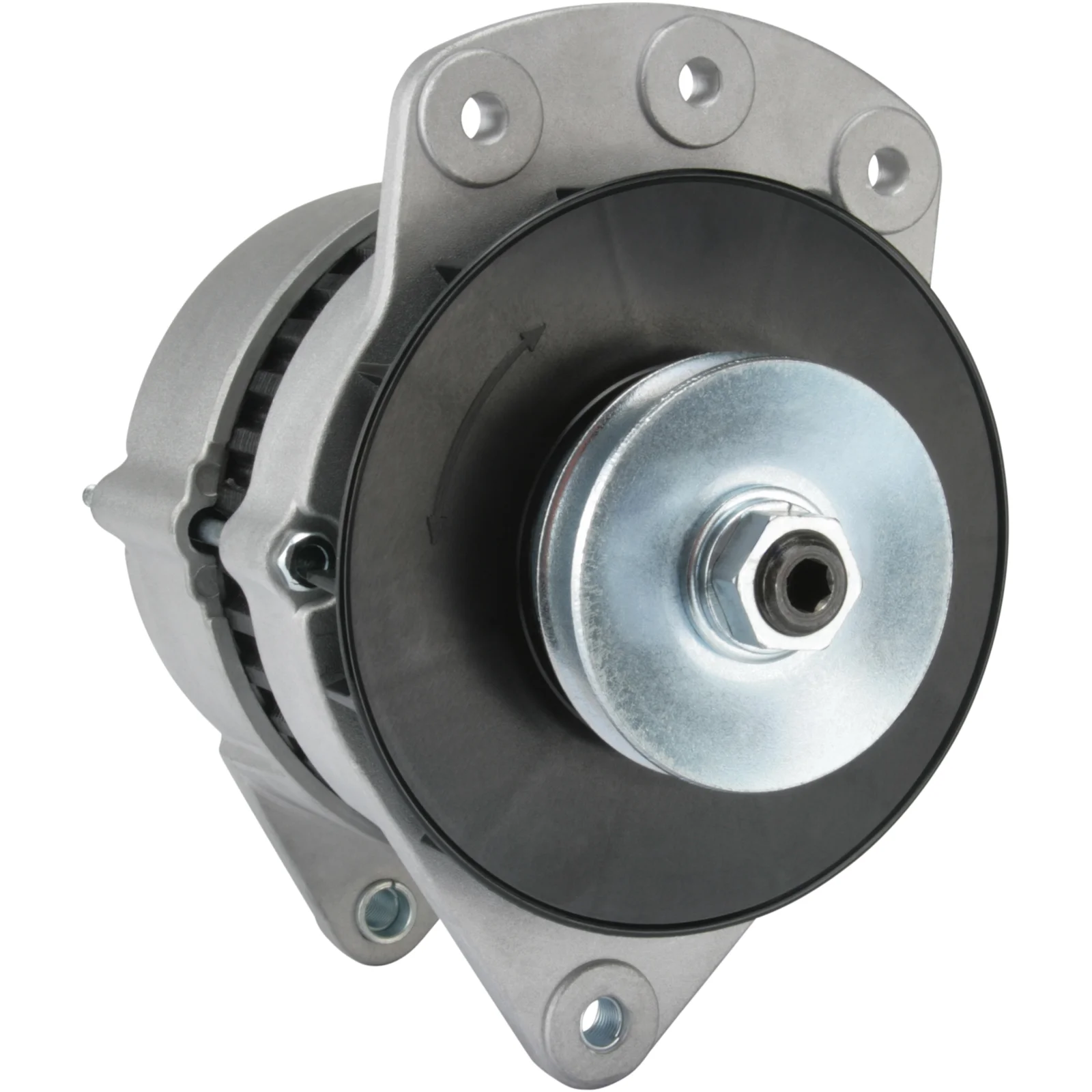

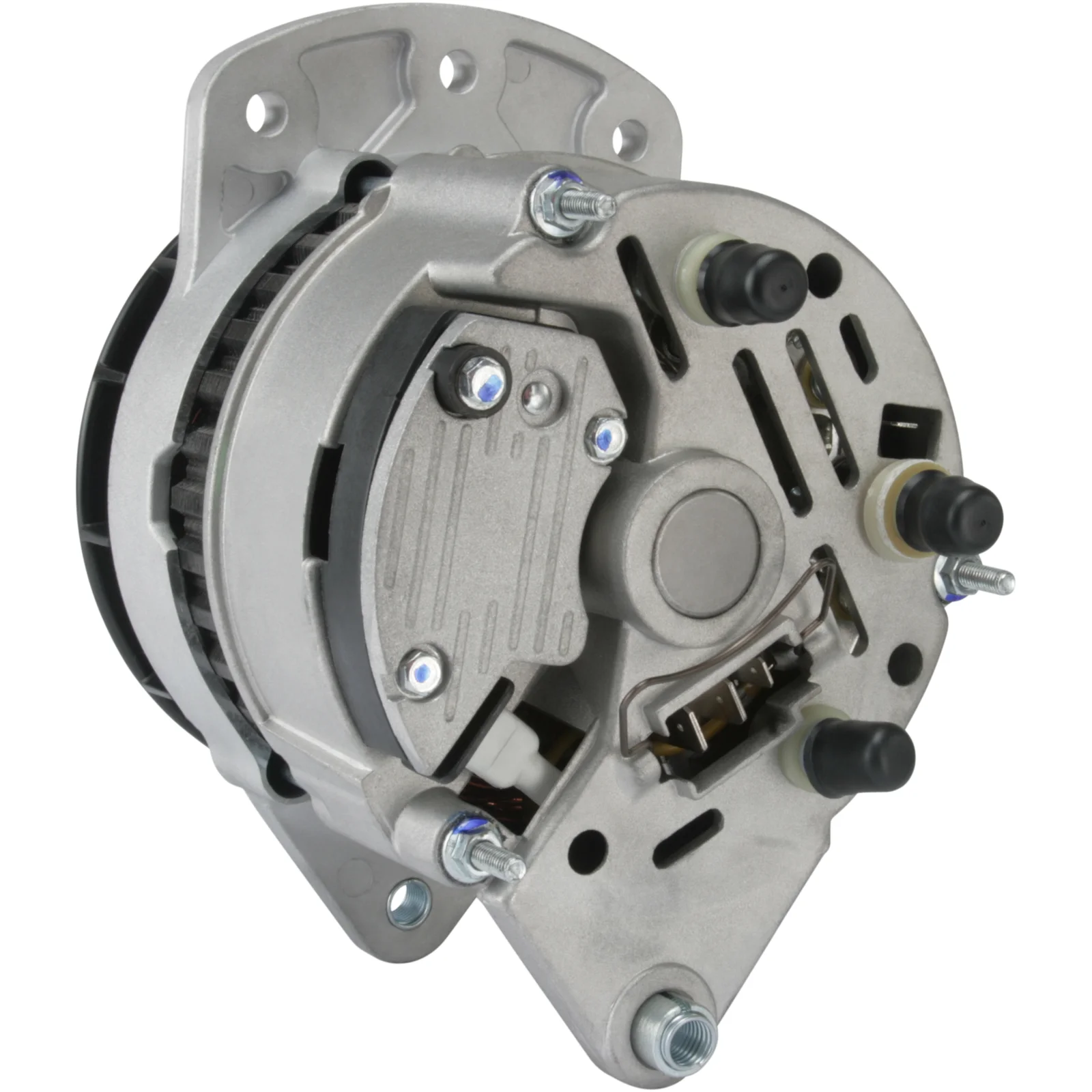

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032112237

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 70, Rotation: CW/CCW, Mounting bracket distributor: 84.00

Description

Voltage: 14
Amp: 70
Insulated return: Yes
Terminal: W
Pulley distance: 34.00
Width/holder arm: 11.00
Mounting bracket distance: 84.00
Bracket hole: 8.00
Belt adjustment bracket hole position.: 55
Belt adjustment bracket hole position 3: 5
Belt adjustment bracket hole position 2: 60
Belt adjustment bracket hole 1: 8.00
Pulley diameter.: 68.00
Grooves/pulley: 1
Radius: 87.00
Radius 2: 82.00
B+: M6
Position/B+ in minutes: 14
D+ Size: Plug
Rotation: CW/CCW
Plug number.: PL22
W plug type: M5
Total length mm: 175.00
Pulley: P
Voltage regulator type: IR
Product info: BN
Servicing: Marine
Remarks: Pulley distance is okay from 34.00 to 43.00 mm.

Files

  • OEM
    F032112237, nab900m, 1550ir

  • Normalised article numbler
    a4066, alt4036a, f032112237, f042306031, f042a06031, lea0295, lea0441, nab900m, 1550ir, 12526n, 12526noe, 66021126m
  • Description
    Voltage: 14
    Amp: 70
    Insulated return: Yes
    Terminal: W
    Pulley distance: 34.00
    Width/holder arm: 11.00
    Mounting bracket distance: 84.00
    Bracket hole: 8.00
    Belt adjustment bracket hole position.: 55
    Belt adjustment bracket hole position 3: 5
    Belt adjustment bracket hole position 2: 60
    Belt adjustment bracket hole 1: 8.00
    Pulley diameter.: 68.00
    Grooves/pulley: 1
    Radius: 87.00
    Radius 2: 82.00
    B+: M6
    Position/B+ in minutes: 14
    D+ Size: Plug
    Rotation: CW/CCW
    Plug number.: PL22
    W plug type: M5
    Total length mm: 175.00
    Pulley: P
    Voltage regulator type: IR
    Product info: BN
    Servicing: Marine
    Remarks: Pulley distance is okay from 34.00 to 43.00 mm.

    Files

  • Suitable for these vehicles

    • OEM
      F032112237, nab900m, 1550ir

    • Normalised article numbler
      a4066, alt4036a, f032112237, f042306031, f042a06031, lea0295, lea0441, nab900m, 1550ir, 12526n, 12526noe, 66021126m
