HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032112356

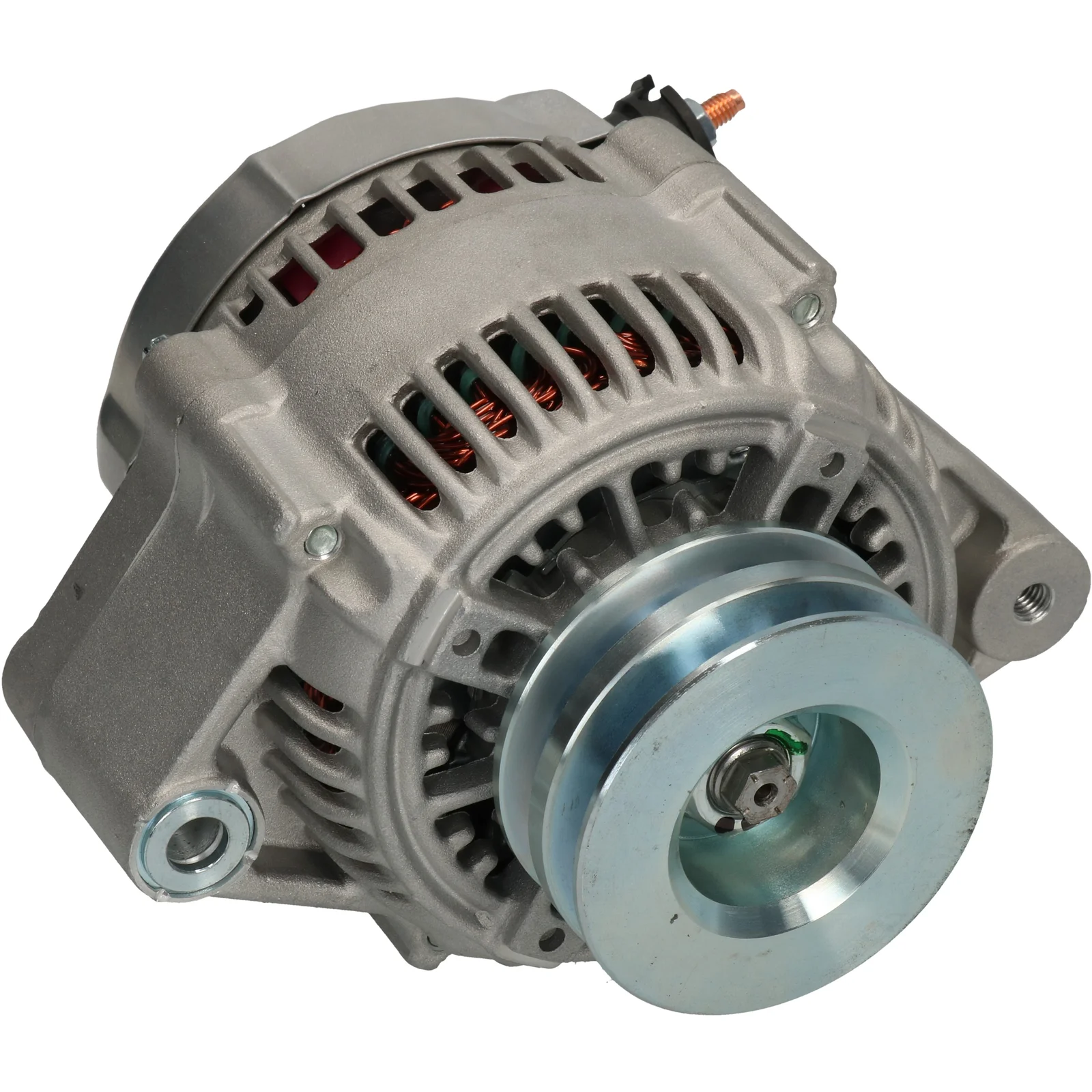

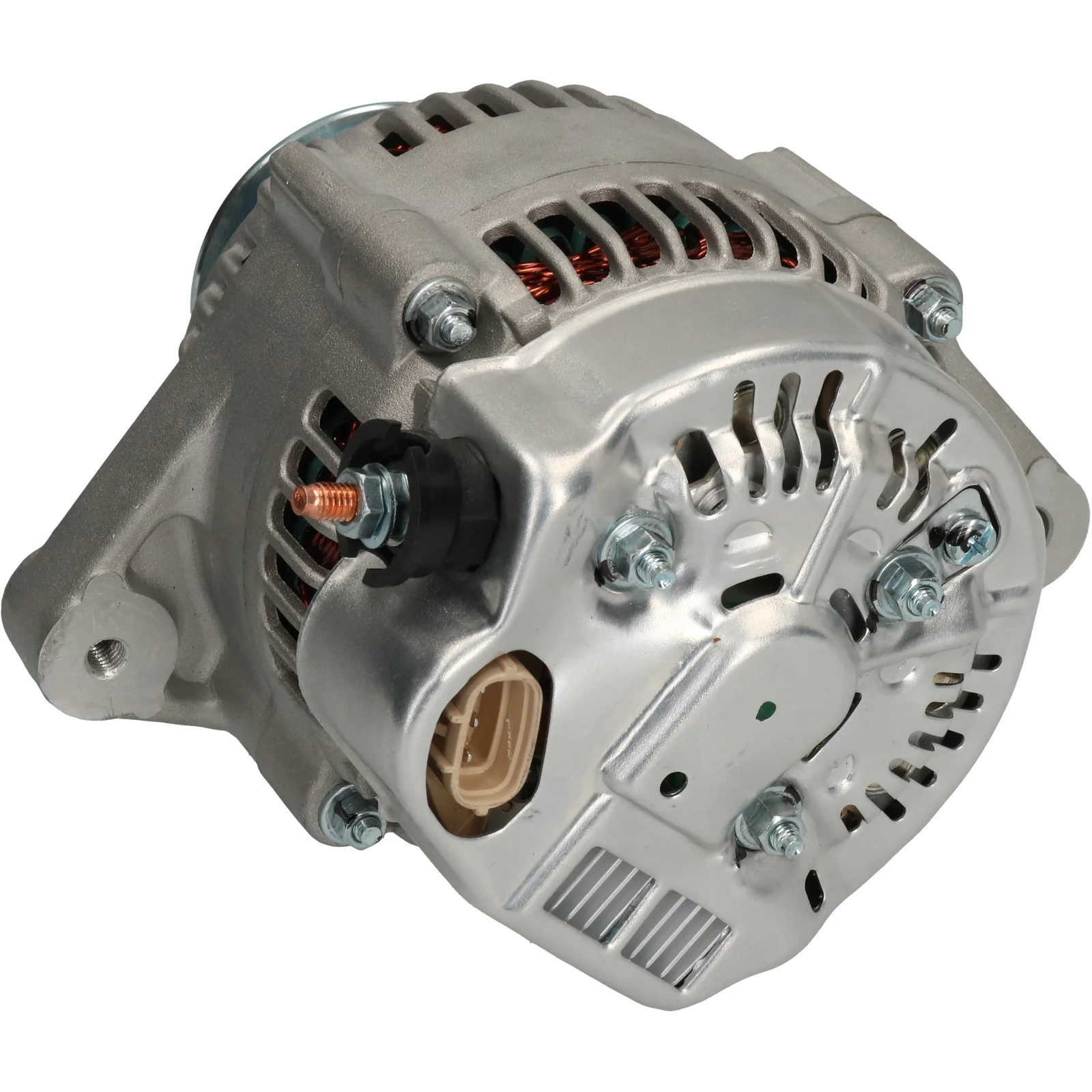

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 80, Rotation: CW, Pulley diameter: 77.00

Description

Voltage: 14
Amp: 80
Pulley dist.: 93.00
Width/holder arm: 58.00
Bracket hole: 10.30
Belt. adj. bracket hole pos.: 5
Belt. adj. bracket hole 1: M8
Pulley dia.: 77.00
Grooves/pulley: 2
Radius: 79.00
Radius 2: 83.00
B+: M6
Position/B+ in min.: 5
D+ Size: Plug
Rotation: CW
Plug no.: PL42
Total length mm: 167.00
Terminal type: L-IG-S
Pulley: Alternator
Fan: Fan
Regulator type: Voltage regulator
Prod. info: BN
Servicing: Toyota

Files

  • OEM
    F032112356, ja1534ir, 1986A00583, 1986A00752, 021080-0410, 27060-17150, 27060-17170, 27060-17171, 27060-17220, 101211-5260, 101211-5261, 101211-5330, 102211-1360, 102211-1361, 102211-1362

  • Normalised article numbler
    a6104, alt30089, cal40217, dan1114, dra3517, f032112356, j5112085, ja1534ir, lra01598, 8el012426551, 1986a00583, 1986a00752, 119948, 282750, 401534ri, 9212887, 12060592, 195942080, 0210800410, 535121802, 0986083720, 1012115260, 1012115261, 1012115330, 1022111360, 1022111361, 1022111362, 2706017150, 2706017170, 2706017171, 2706017220
  • Description
    Voltage: 14
    Amp: 80
    Pulley dist.: 93.00
    Width/holder arm: 58.00
    Bracket hole: 10.30
    Belt. adj. bracket hole pos.: 5
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 77.00
    Grooves/pulley: 2
    Radius: 79.00
    Radius 2: 83.00
    B+: M6
    Position/B+ in min.: 5
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL42
    Total length mm: 167.00
    Terminal type: L-IG-S
    Pulley: Alternator
    Fan: Fan
    Regulator type: Voltage regulator
    Prod. info: BN
    Servicing: Toyota

    Files

  • Suitable for these vehicles

    • OEM
      F032112356, ja1534ir, 1986A00583, 1986A00752, 021080-0410, 27060-17150, 27060-17170, 27060-17171, 27060-17220, 101211-5260, 101211-5261, 101211-5330, 102211-1360, 102211-1361, 102211-1362

    • Normalised article numbler
      a6104, alt30089, cal40217, dan1114, dra3517, f032112356, j5112085, ja1534ir, lra01598, 8el012426551, 1986a00583, 1986a00752, 119948, 282750, 401534ri, 9212887, 12060592, 195942080, 0210800410, 535121802, 0986083720, 1012115260, 1012115261, 1012115330, 1022111360, 1022111361, 1022111362, 2706017150, 2706017170, 2706017171, 2706017220
