Article no.: F032112358

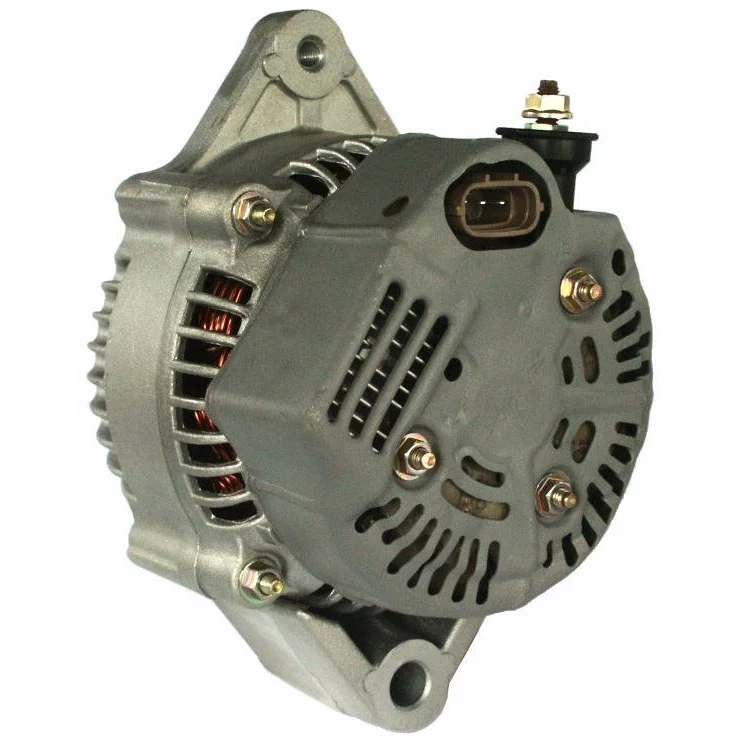

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 55, Rotation: CW, Pulley dia.: 50.00

Description

Voltage: 14
Amp: 55
Pulley dist.: 89.50
Width/holder arm: 58.00
Bracket hole: 10.20
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 50.00
Grooves/pulley: 5
Radius: 80.00
Radius 2: 84.00
B+: M6
Position/B+ in min.: 5
D+ Size: Plug
Rotation: CW
Plug no.: PL42
Total length mm: 157.00
Pulley: SP
Regulator type: IR
Prod. info: Reman
Servicing: Toyota
Info: Denso 102211-5850

Files

  • OEM
    F032112358, ja1536ir, 27060-75020, 27060-75030, 27060-75190, 27060-78154-71, 27060-78700, 27060-78700-71, 27060-78701, 101211-0540, 101211-0541, 101211-0542, 101211-0543, 101211-4370, 102211-5190, 102211-5200, 102211-5850

  • Normalised article numbler
    a6204, a6215, cal44101, dan2014, f032112358, j5112097, ja1536ir, lra01813, lra02044, 12473n, 119950, 283631, 283968, 401536ri, 9051297, 12060421, 235157552, 535142602, 1012110540, 1012110541, 1012110542, 1012110543, 1012114370, 1022115190, 1022115200, 1022115850, 2706075020, 2706075030, 2706075190, 2706078700, 2706078701, 270607815471, 270607870071, 943354064010, 944390512970
  • Description
    Voltage: 14
    Amp: 55
    Pulley dist.: 89.50
    Width/holder arm: 58.00
    Bracket hole: 10.20
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 50.00
    Grooves/pulley: 5
    Radius: 80.00
    Radius 2: 84.00
    B+: M6
    Position/B+ in min.: 5
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL42
    Total length mm: 157.00
    Pulley: SP
    Regulator type: IR
    Prod. info: Reman
    Servicing: Toyota
    Info: Denso 102211-5850

    Files

  • Suitable for these vehicles

    • OEM
      F032112358, ja1536ir, 27060-75020, 27060-75030, 27060-75190, 27060-78154-71, 27060-78700, 27060-78700-71, 27060-78701, 101211-0540, 101211-0541, 101211-0542, 101211-0543, 101211-4370, 102211-5190, 102211-5200, 102211-5850

    • Normalised article numbler
      a6204, a6215, cal44101, dan2014, f032112358, j5112097, ja1536ir, lra01813, lra02044, 12473n, 119950, 283631, 283968, 401536ri, 9051297, 12060421, 235157552, 535142602, 1012110540, 1012110541, 1012110542, 1012110543, 1012114370, 1022115190, 1022115200, 1022115850, 2706075020, 2706075030, 2706075190, 2706078700, 2706078701, 270607815471, 270607870071, 943354064010, 944390512970
